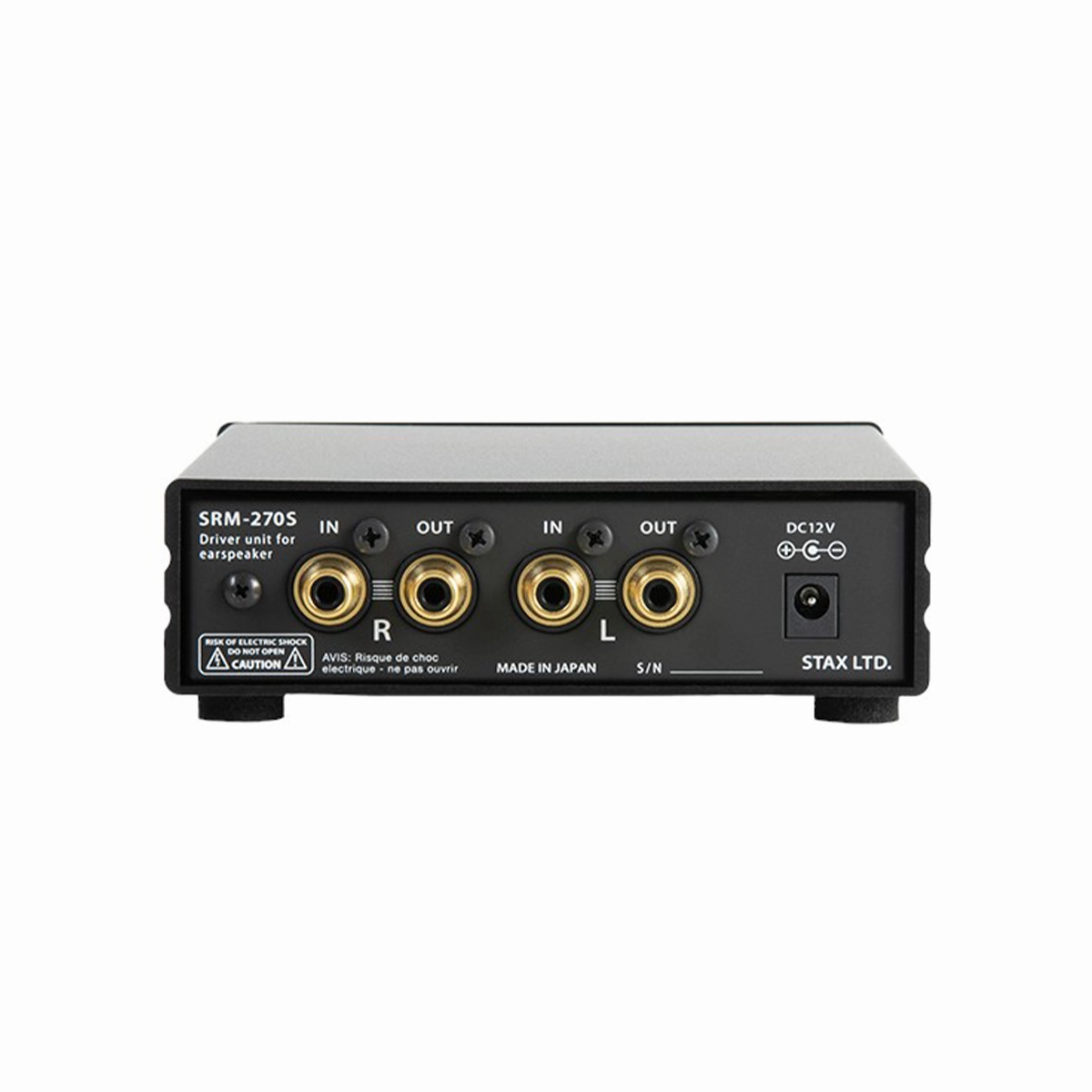

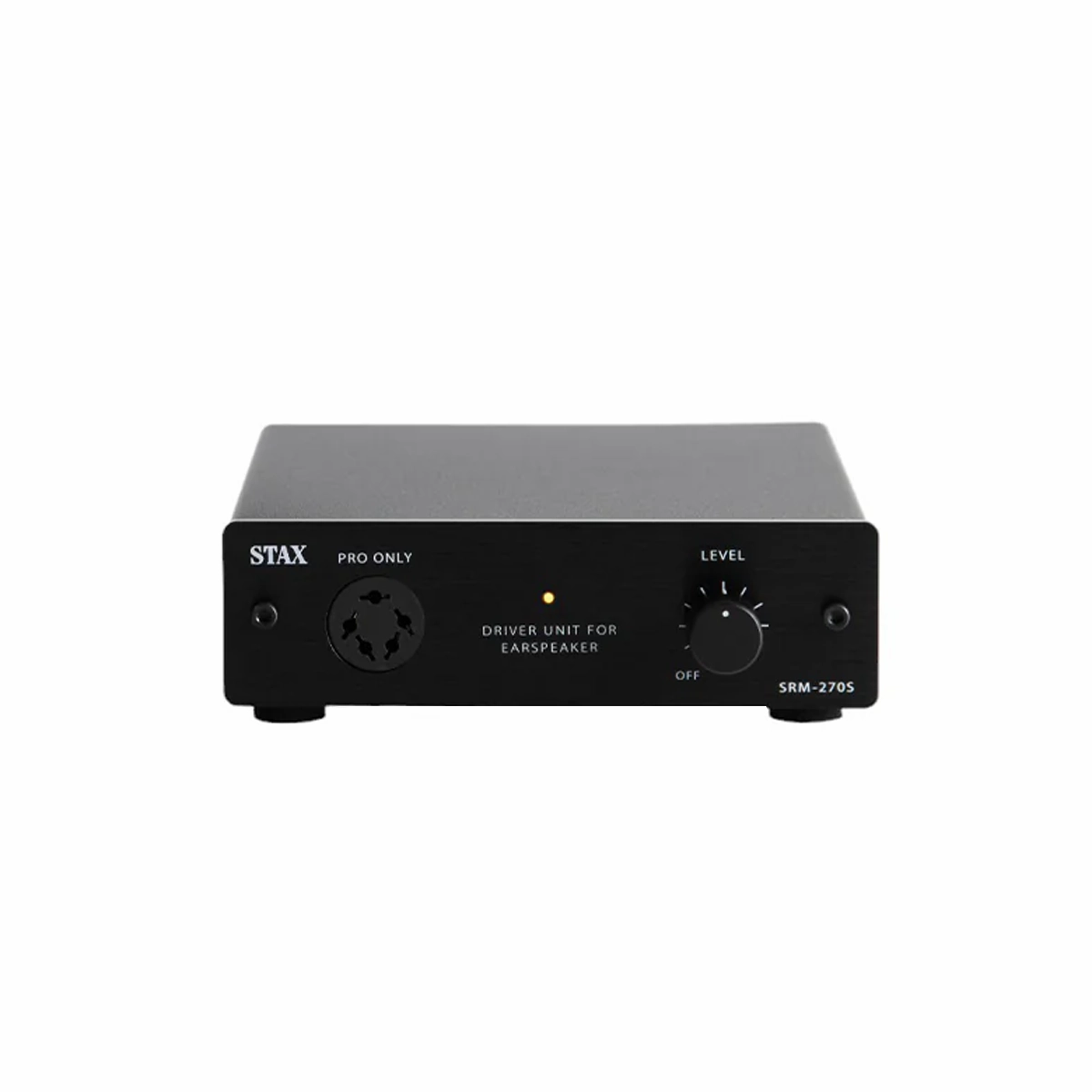

SRM-270S DRIVER UNIT: THE HEART OF THE
- Enhanced Heat Dissipation:A 3mm-thick front aluminum panel and alarger aluminum extrusion case for effective heat management. aluminum case for effective heat management.
- High-Grade Connectivity:RCA pin jacks and a 3mm-thick front aluminum panel ensure a pristine connection.
- Low Noise FET:Selected for the First Stage amplifier, paired with arefined emitter follower circuit in the Output Stage for unparalleledclarity.
- Compact Chassis:Easy for placement, transportability and aestheticappeal
- Designed for the
SPECIFICATIONS
- Frequency response: DC to 35,000Hz/ 0, -3dB
- Harmonic distortion: 0.01% or less/1kHz 100V r.m.s.
- Amplification: 58dB (800 times)
- Maximum output voltage: 280V r.m.s./1kHz
- Input impedance: 25k
- Input terminals: RCA x 1
- Output terminal: Parallel out x 1
- Bias voltage: 580V DC
- Power supply: AC adaptor included
- Power consumption: 12VDC/500mA
- External dimensions: 132(W)38(H)153(D)mm (excluding protruding parts)
- Weight: 540g
