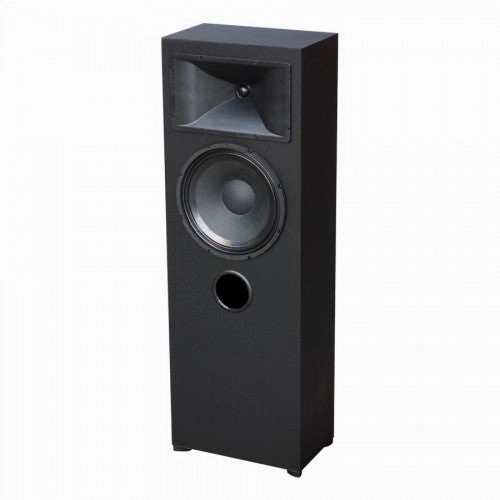

MEGAPHONIX IN-ROOM

**Speakers are sold individually - Please get in touch with us to work our your requirements**

Impact and dynamics for a real home cinema experience

High sensitivity, very low distortion

Precise pattern control

Designedfor dedicatedhome cinemas, theMegaphonix In-Room deliverseffortless powerand controlleddispersion to achievethe impact of arealcinema experience.

EXPERIENCE DYNAMICS

TheMegaphonix In-Room are designed specifically for in room use in dedicated home cinemas. Using high power handling and high sensitivity drivers, these speakers will deliver all the impact and dynamics you need for a real home cinema experience, without the need for a big wattage power amplifier.

The 255mm bass driver has a 50mm voice coil and has been developed to offer low harmonic distortion, especially in the critical midband. The paper cone and surround of the bass driver have been developed to provide the smoothest possible response.The high frequency drive unit is a specially-damped, high power, 26mm doped fabric dome tweeter, and is coupled with Krixs proprietary waveguide to provide consistently-maintained optimum dispersion of 90 degrees horizontal and 40 degrees vertical over the entire working bandwidth.

The combined high frequency response of theMegaphonix In-Room provides an exceptionally smooth and well-controlled sound a new benchmark in loudspeaker reproduction.

The enclosure is braced and critically damped, with proprietary Krix rubber feet to improve acoustic isolation on hard or soft surfaces.

TheMegaphonix In-Rooma member of a five-speaker family, allowing you to combine it with main or surround speakers for a connected, clear and smooth sound experience.

For the ultimate cinema experience at home, play it through Krix.

SPECIFICATIONS

Frequency Range
40Hz-20kHz in room response

Power Handling
50-250 Watts RMS recommended amplifier power

Sensitivity
95dB for 2.83 volts at 1 metre

Impedance
8 Ohms

Configuration
2-way

Enclosure Type
Bass reflex, frontvented

Dimensions
939mm high x 315mm wide x 205mm deep

LowFrequency Driver
Single 255mm (10) paper cone driver. 50mm (2) voicecoil wound on high powered kapton former, with ventilatedmagnet assembly and copper shorting ring for low distortion

High Frequency Driver
26mm (1) doped fabric dome with large roll surround. Ferro fluid cooled. Coupled to a Krix designed 90 x 40 short throw waveguide

Crossover Point
1.8kHz

Input Terminals
Gold plated binding posts

Weight
19kg each
