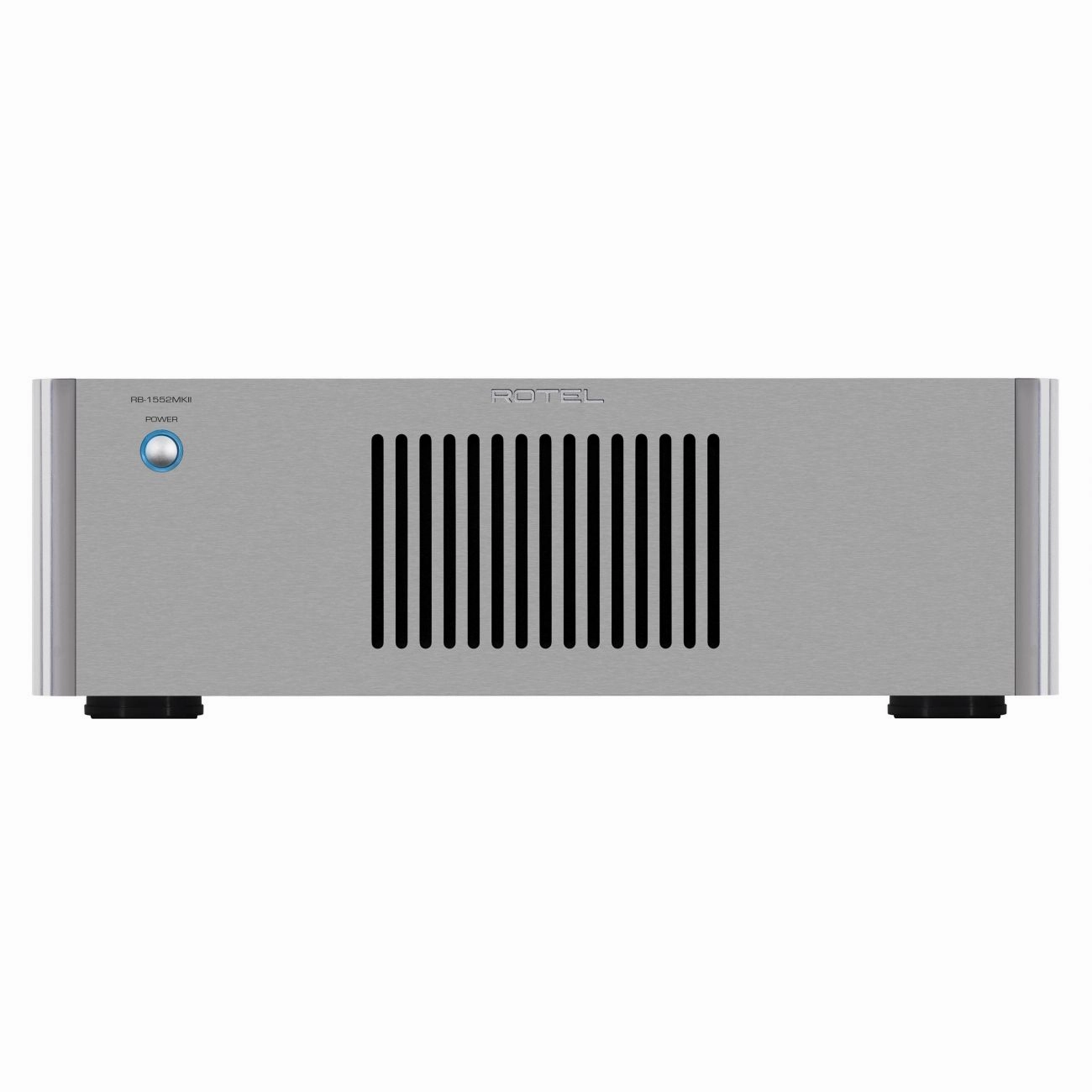

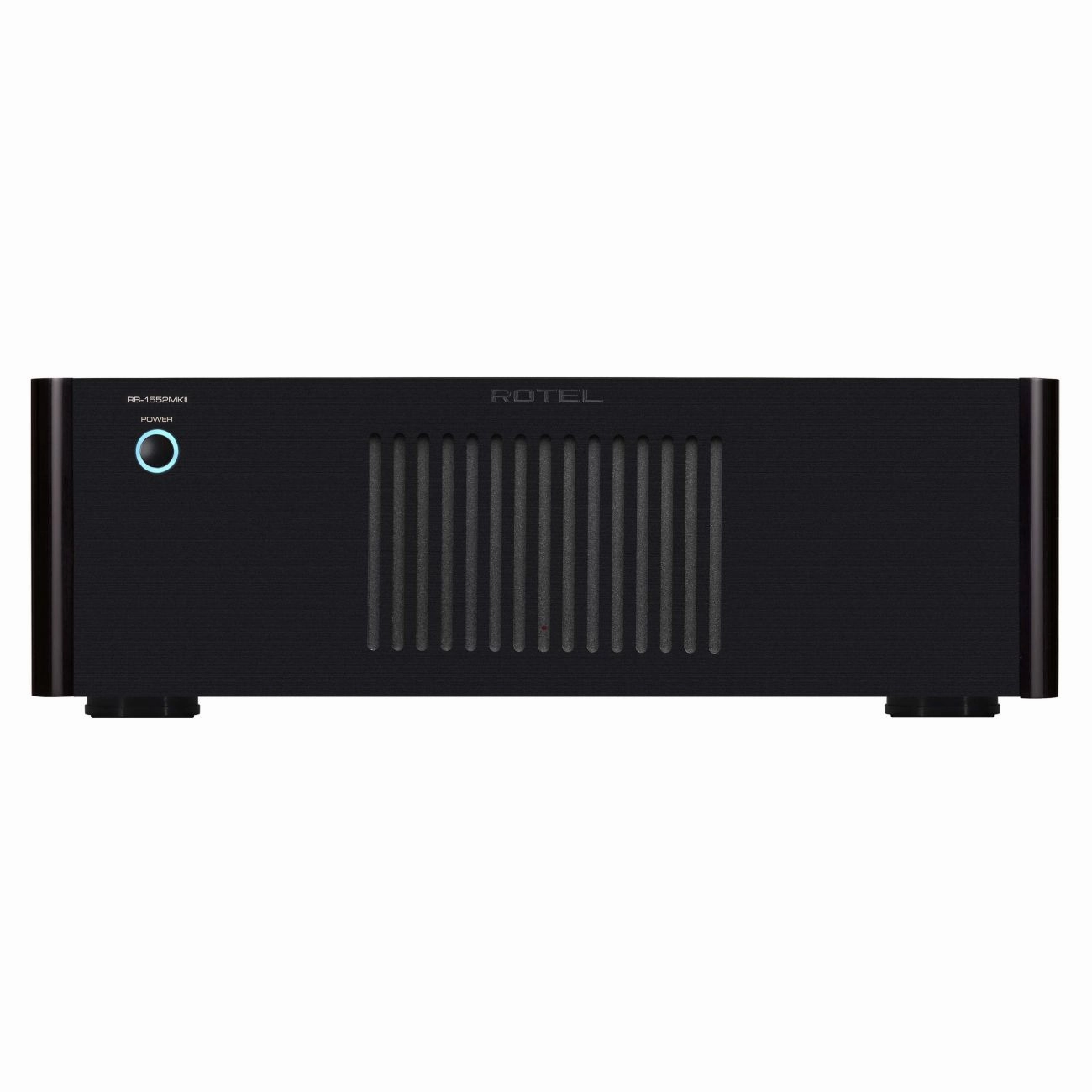

The RB-1552 MKII stereo amplifier has been engineered to provide high-resolution audio performance, yet it is very affordable, as has been the tradition with Rotel electronics for over 50 years.
Features:
- 2 x 130 Watts of robust power
- Class AB amplifier design
- High quality slit foil capacitors made in Britain
- Balanced XLR inputs
- Rack ears included
Rotel engineerings fanatical attention to detail means the sum is greater than the parts; this is what we call our Balanced Design Concept. Each aspect of design is carefully considered holistically to result in maximum audio performance, from the selection of an over-sized power supply featuring a highly efficient, low magnetic field toroidal transformer to multiple, high-current bipolar output transistors. Circuit topology is planned, implemented, evaluated, and adjusted to achieve optimum results. The RB-1552 MKII 120 watt Class A/B amplifier features independent left and right power rectification stages and decoupling, and is essentially a mono block design. Further evidence of design over-spec is in the selection of premium slit-foil capacitors, which provide plenty of reserve energy for extremely dynamic audio passages and are able to quickly replenish themselves due to the nature of their unique design. Input options are balanced XLR or unbalanced RCA connectors.
Specifications:
| Amplifier Class | AB |
| Continuous Power Output | 130 W/Ch (All Channels Driven, 8) |
| Total Harmonic Distortion (THD) | 20 Hz 20 kHz <0.03% |
| S/N Ratio (IHF "A" Weighted) | 120 dB |
| Gain | RCA: 26.5 dB, XLR: 22.5 dB |
| Intermodulation Distortion (60 Hz:7 kHz, 4:1) | <0.03% |
| Damping Factor | 450 |
| Speaker Impedance | 4 Minimum |

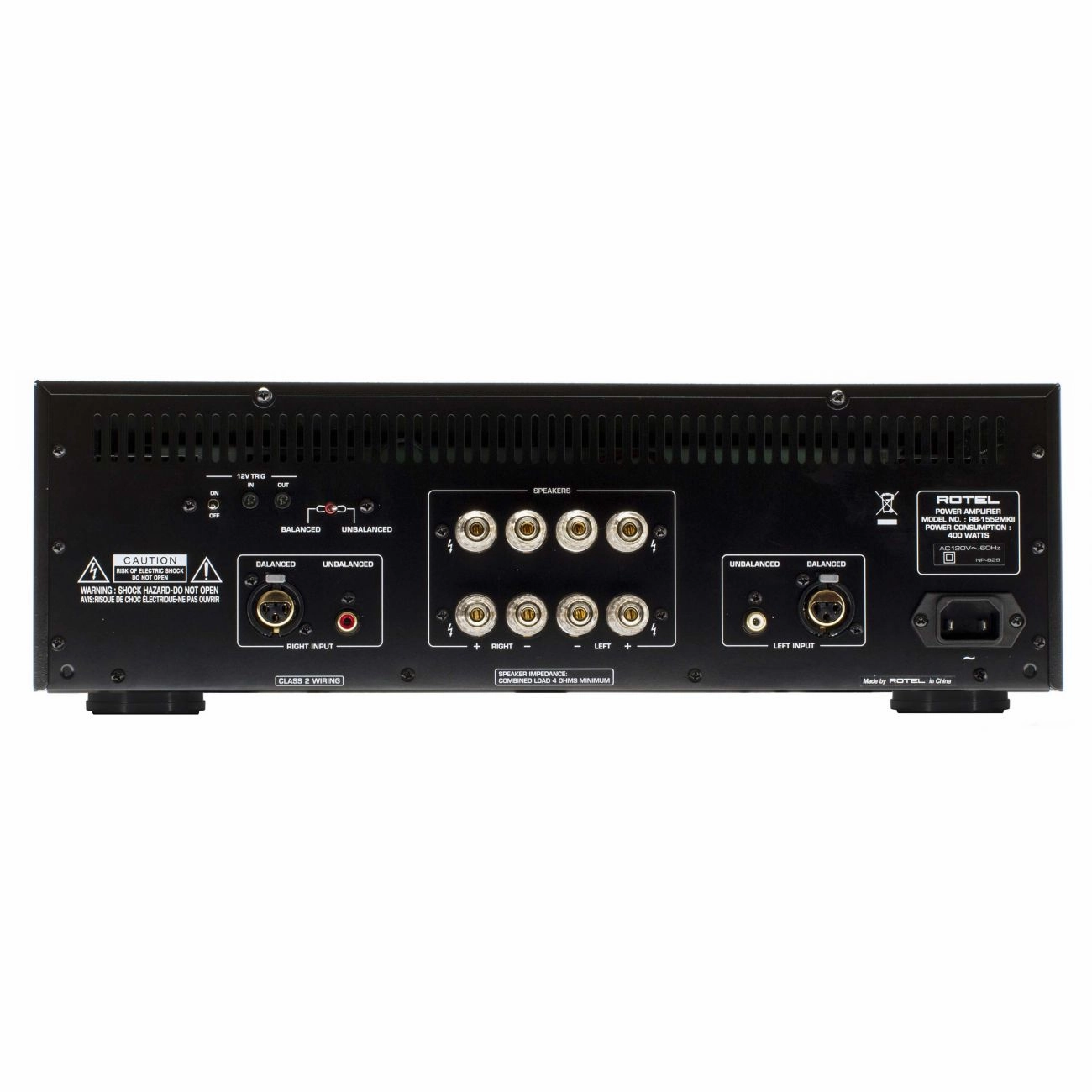

| Input Sensitivity | Line Level Inputs (RCA): 1.5 V, Line Level Inputs (XLR): 2.5 V |
| Input Impedance | Line Level Inputs (RCA): 12 k, Line Level Inputs (XLR): 100 k |
| Dimensions, Weight & Power | |
| Dimensions (W x H x D) | 431 x 144 x 339 mm (17" x 5.7" x 13.4") |
| Front Panel Height | 3U / 132.6 mm (5.25") |
| Power Requirements | 230 V, 50 Hz |
| Power Consumption | 400 W |
| Net Weight | 12.4 kg (27 lbs.) |
| BTU Rating (4, 1/8th Power) | 905 BTU/ |
