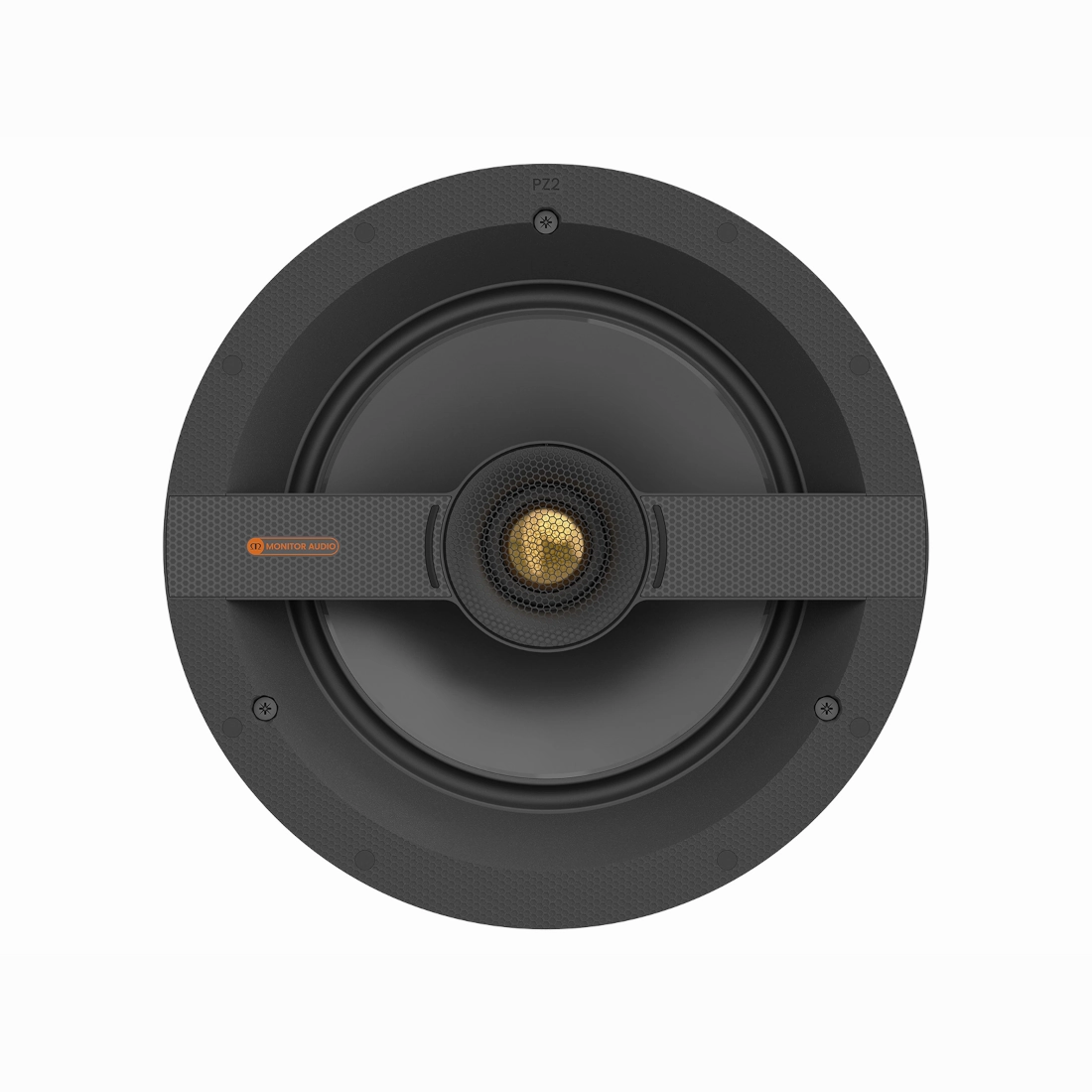

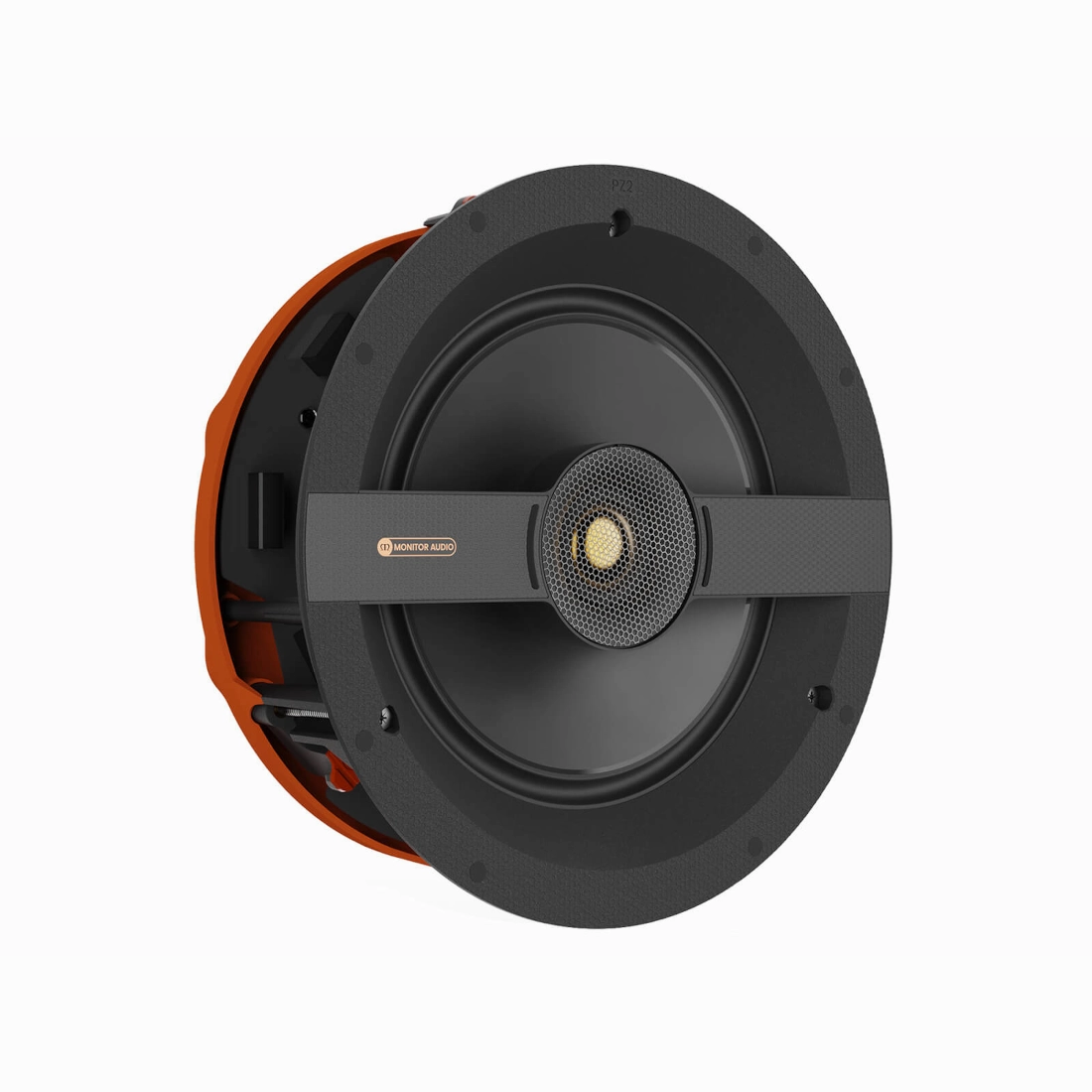

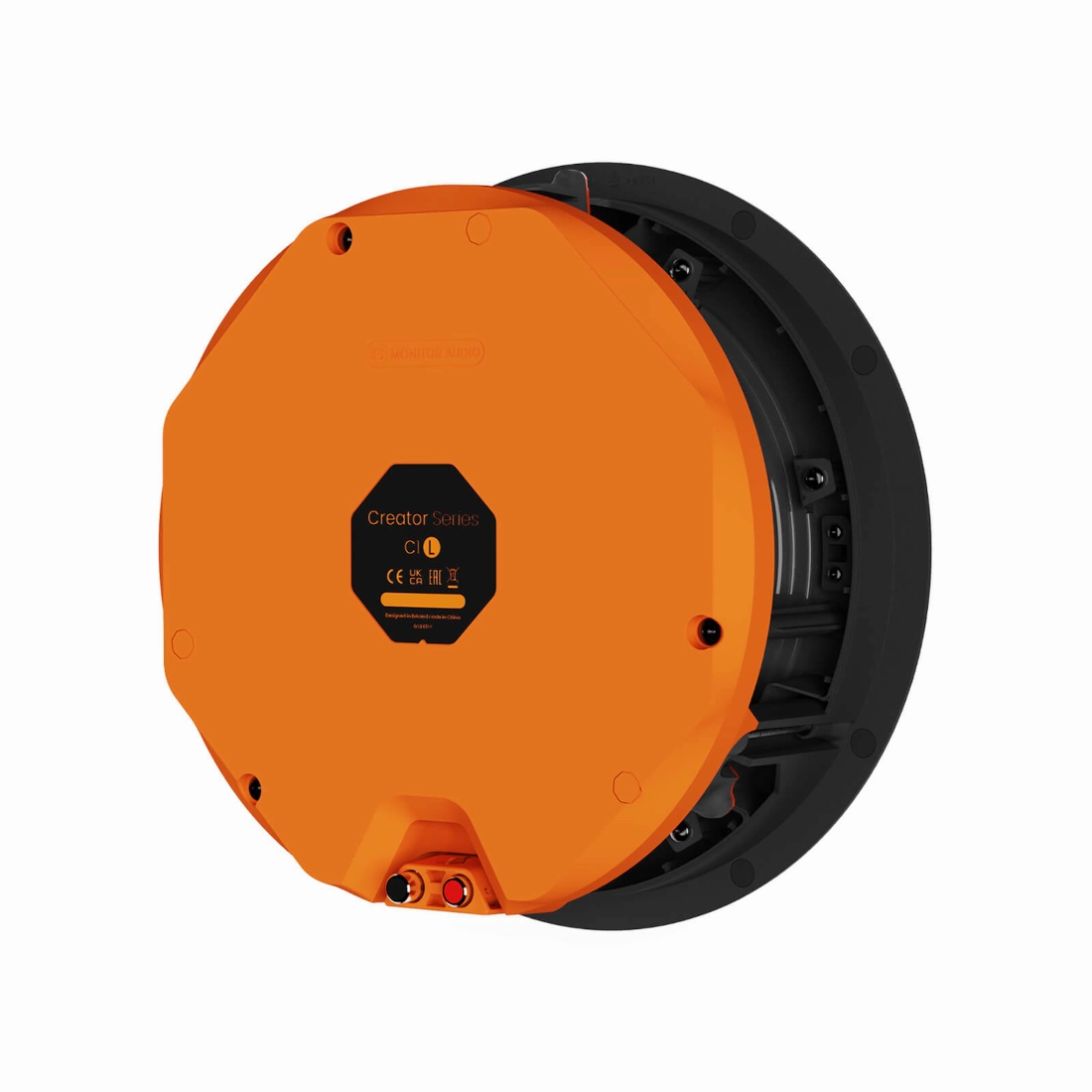

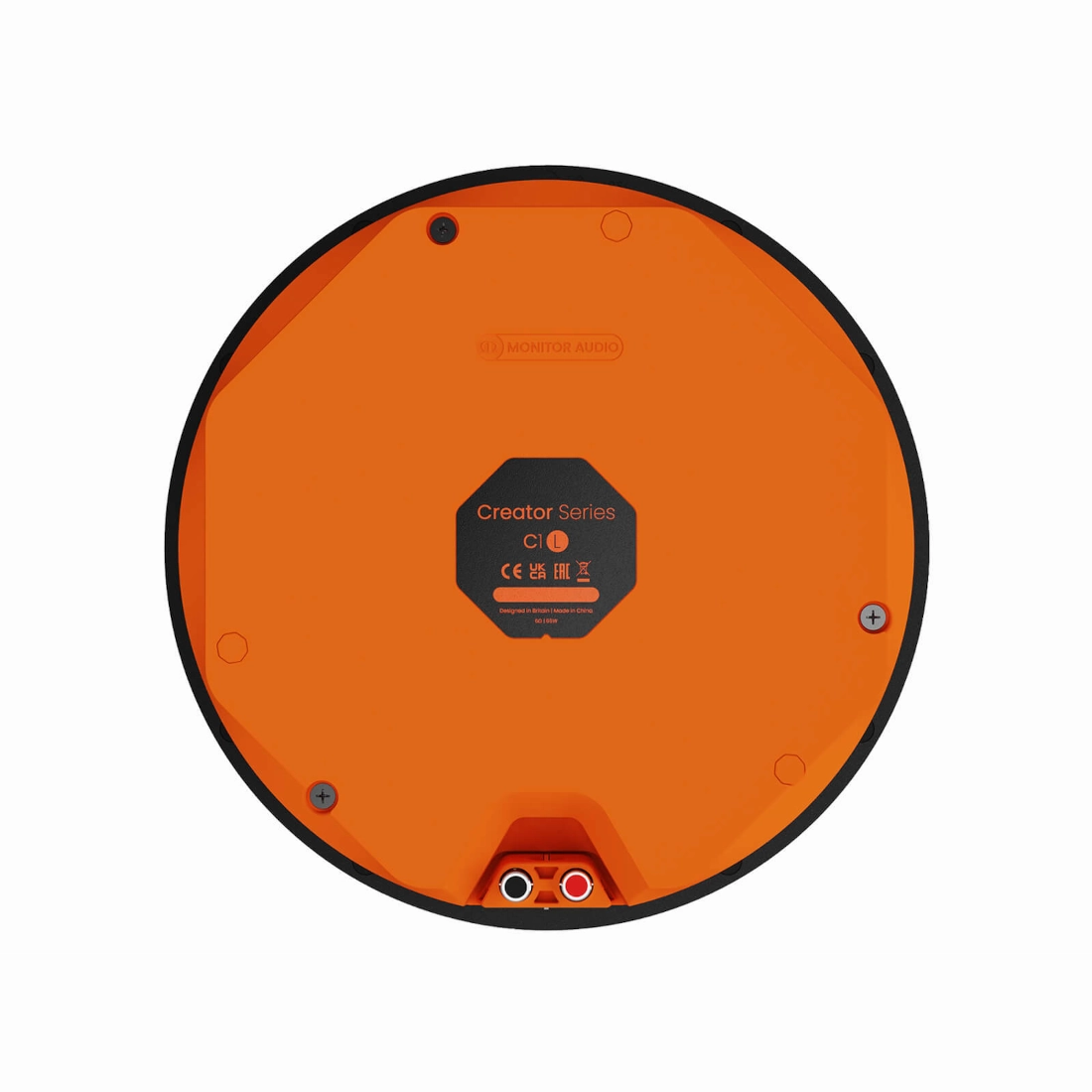

This large Tier 1 in-ceiling loudspeaker is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 248 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
Key Features:
- Ideal for cost-effective installations, where product simplicity and solid acoustic performance is required
- Two-way design
- 1 x1.25"(32 mm) C-CAM tweeter with UD Waveguide I for lifelike sound
- 1 x 9" (229 mm) C-CAM mid-bass driver for clear mid-range and full bass
- Patented Quik-Link speaker cable connector for quicker installation(UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
This large Tier 1 in-ceiling loudspeaker is designed for cost-effective installations, where product simplicity and solid acoustic performance is required. It is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound of the quality youd expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 248 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.

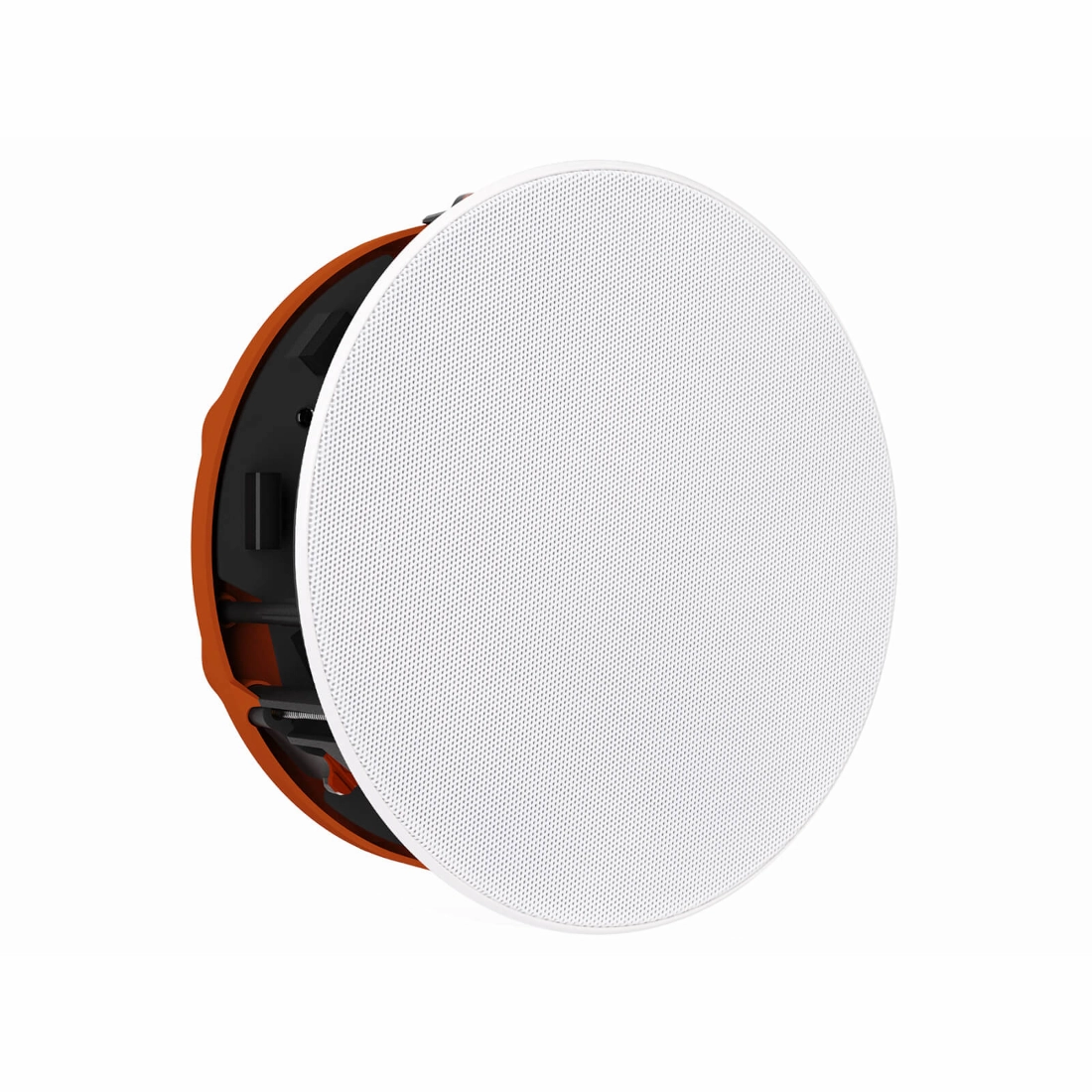

Optional square grillecan be used with this model.
Specifications:
| Drive Units Complement | 1 x 9 C-CAM bass driver, 1 x 32mm C-CAM tweeter |
| Nominal Impedance | 8 Ohms |
| Amplifier Requirement | 40 - 150 W |
| Continuous Power Handling | 75 W |
| Sensitivity (2.83v @ 1m) | 88 dB |
| Cut Out Size | 248 mm |
| Mounting Depth | 99 mm |
| Dimensions | grille: 278 x 103 mm ( 10 15/16 x 4 4/16) |
| Weight | 2.5 kg (5 lb 8 oz) |
