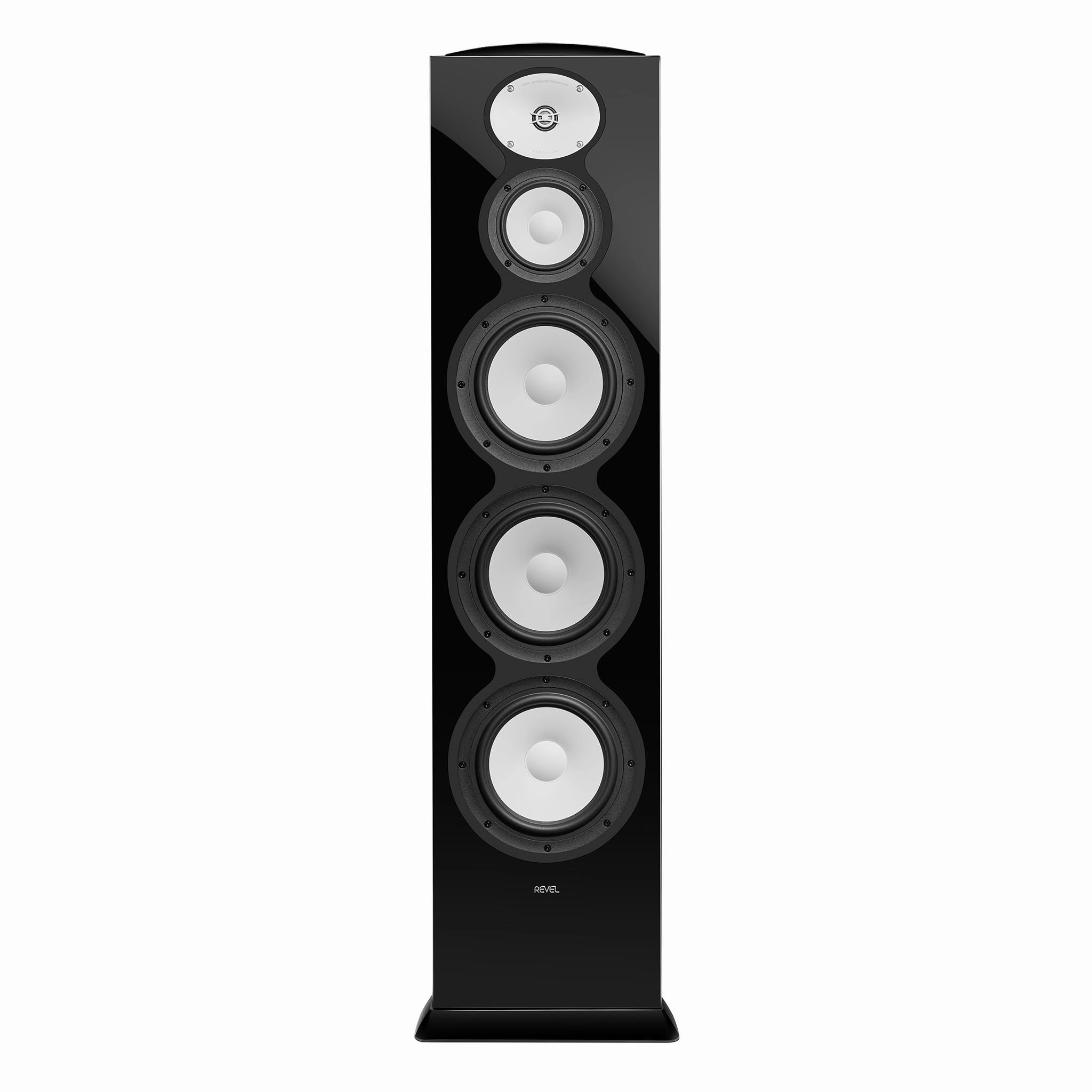

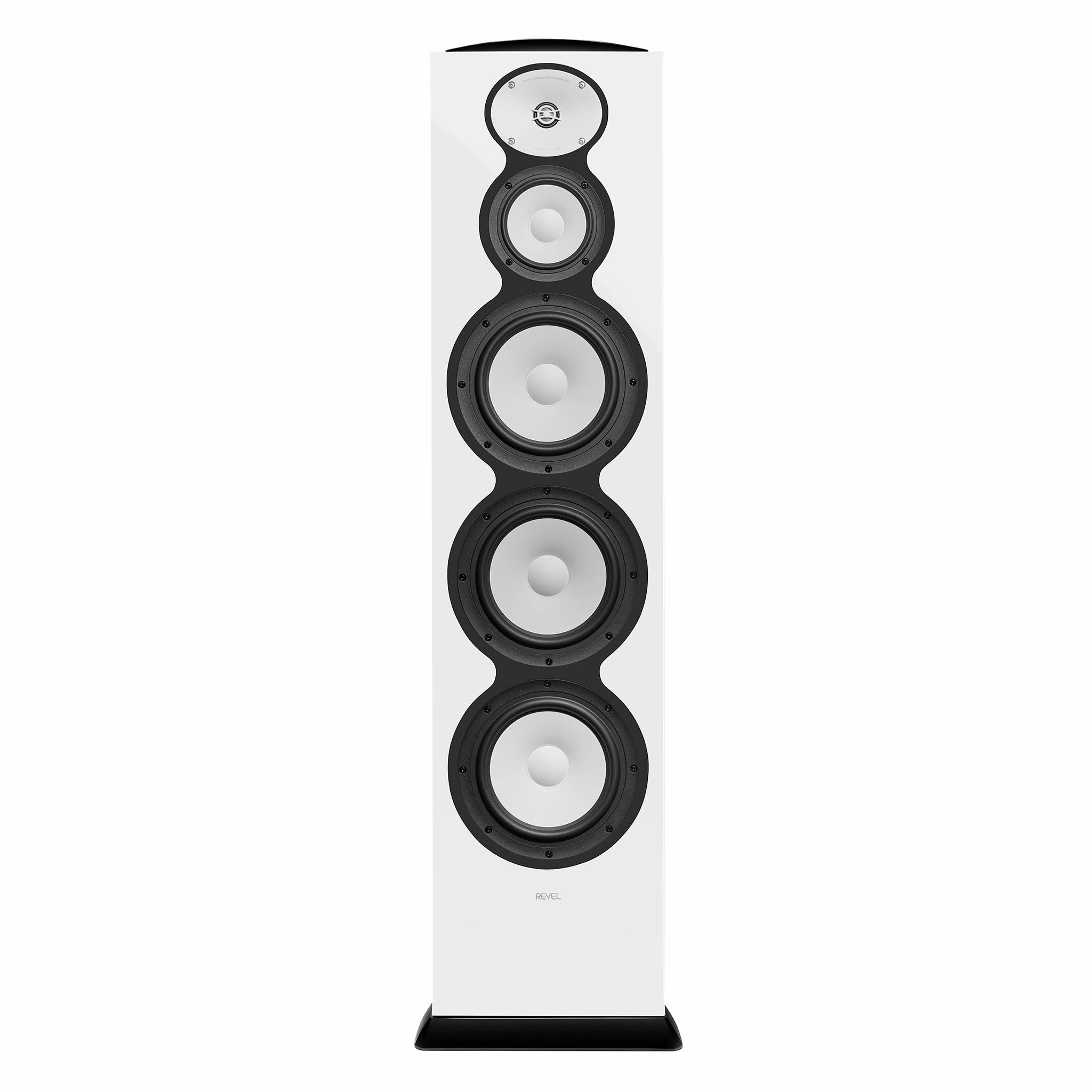

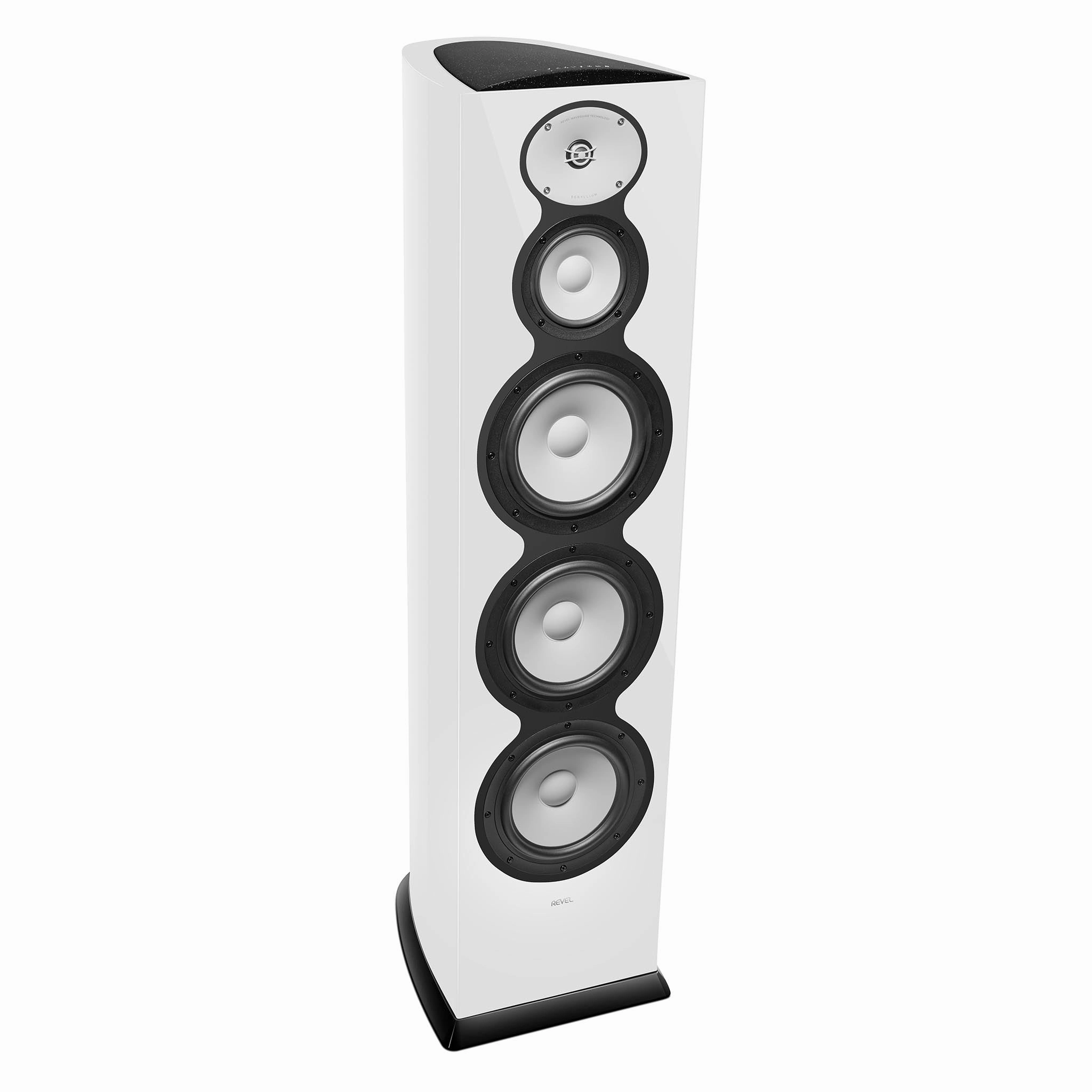

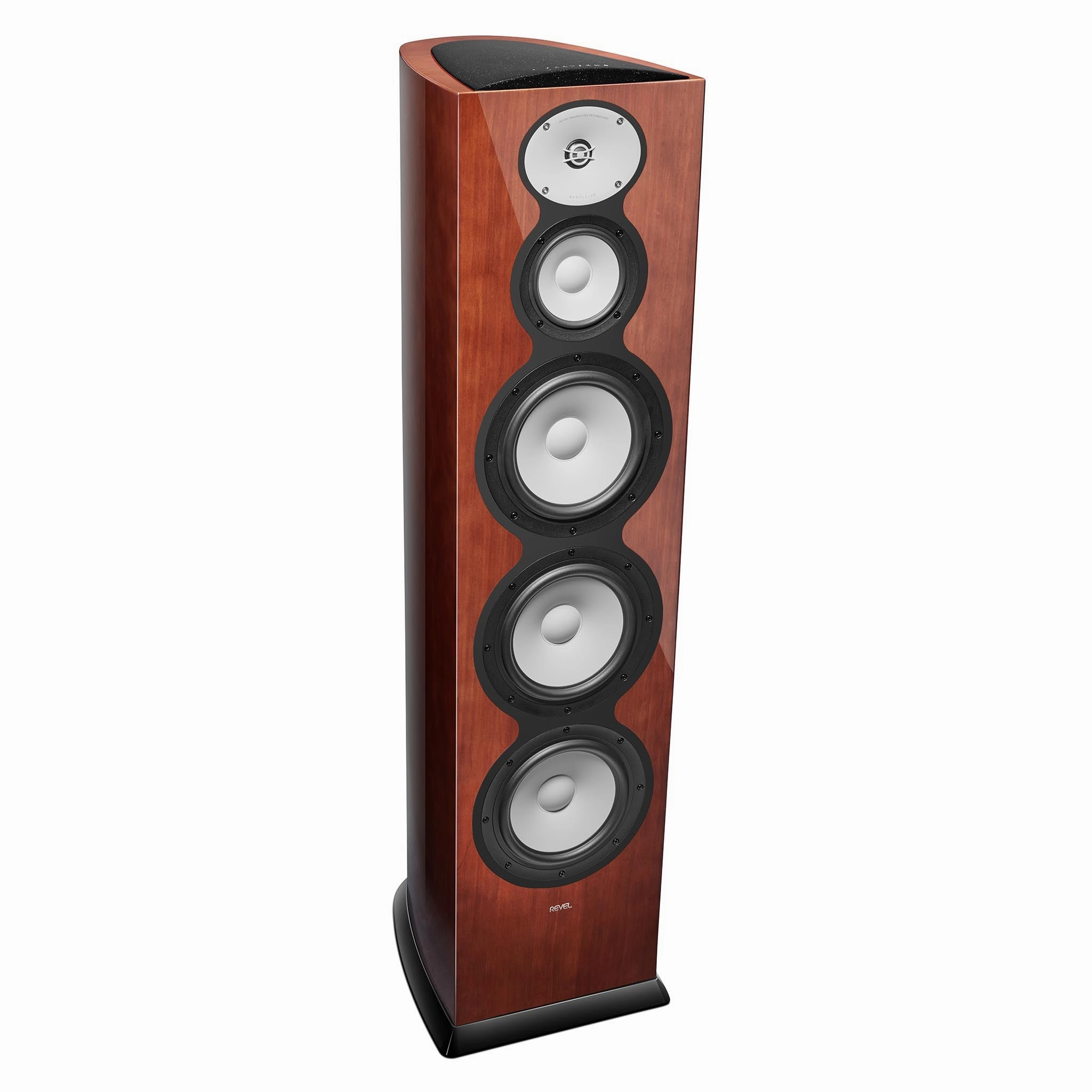

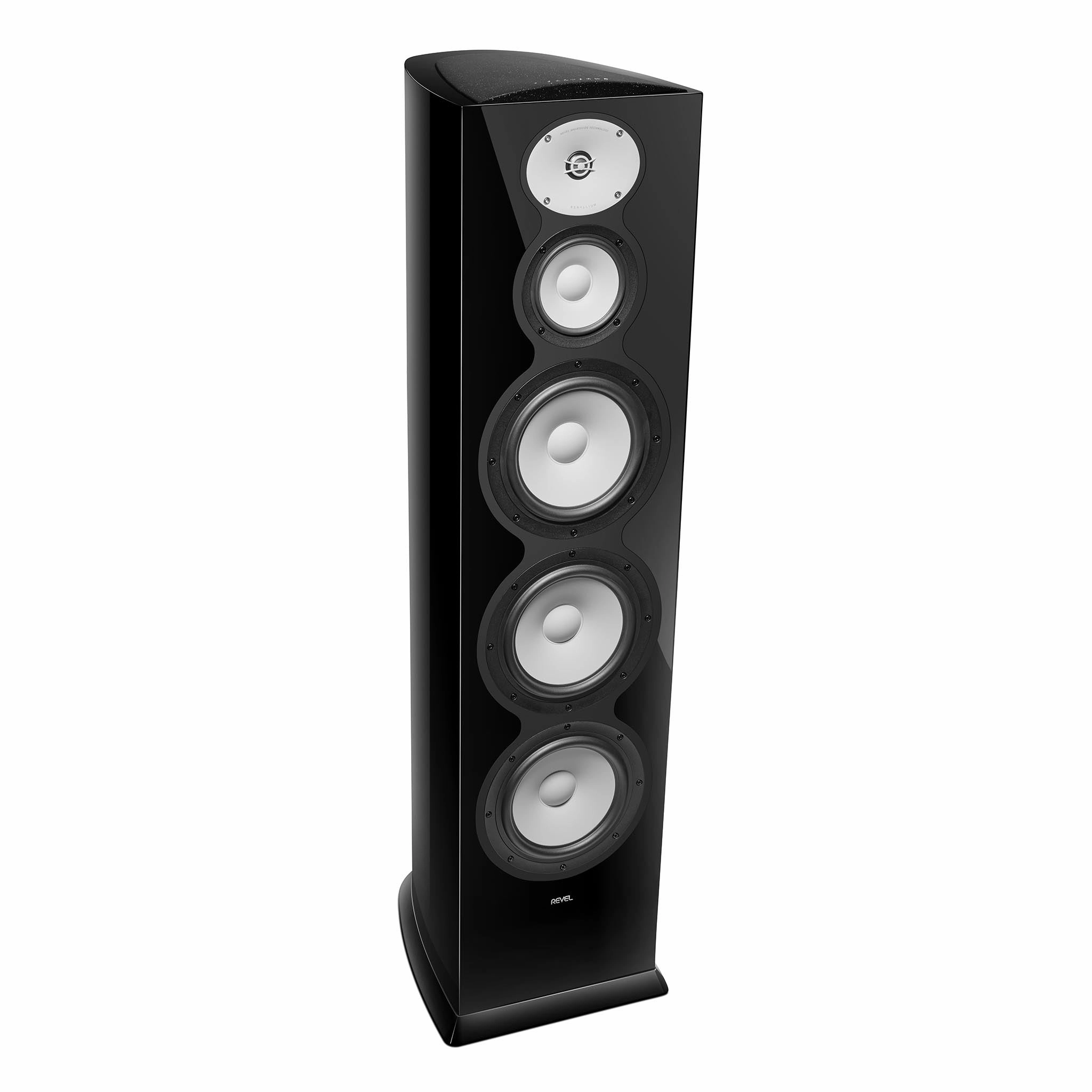

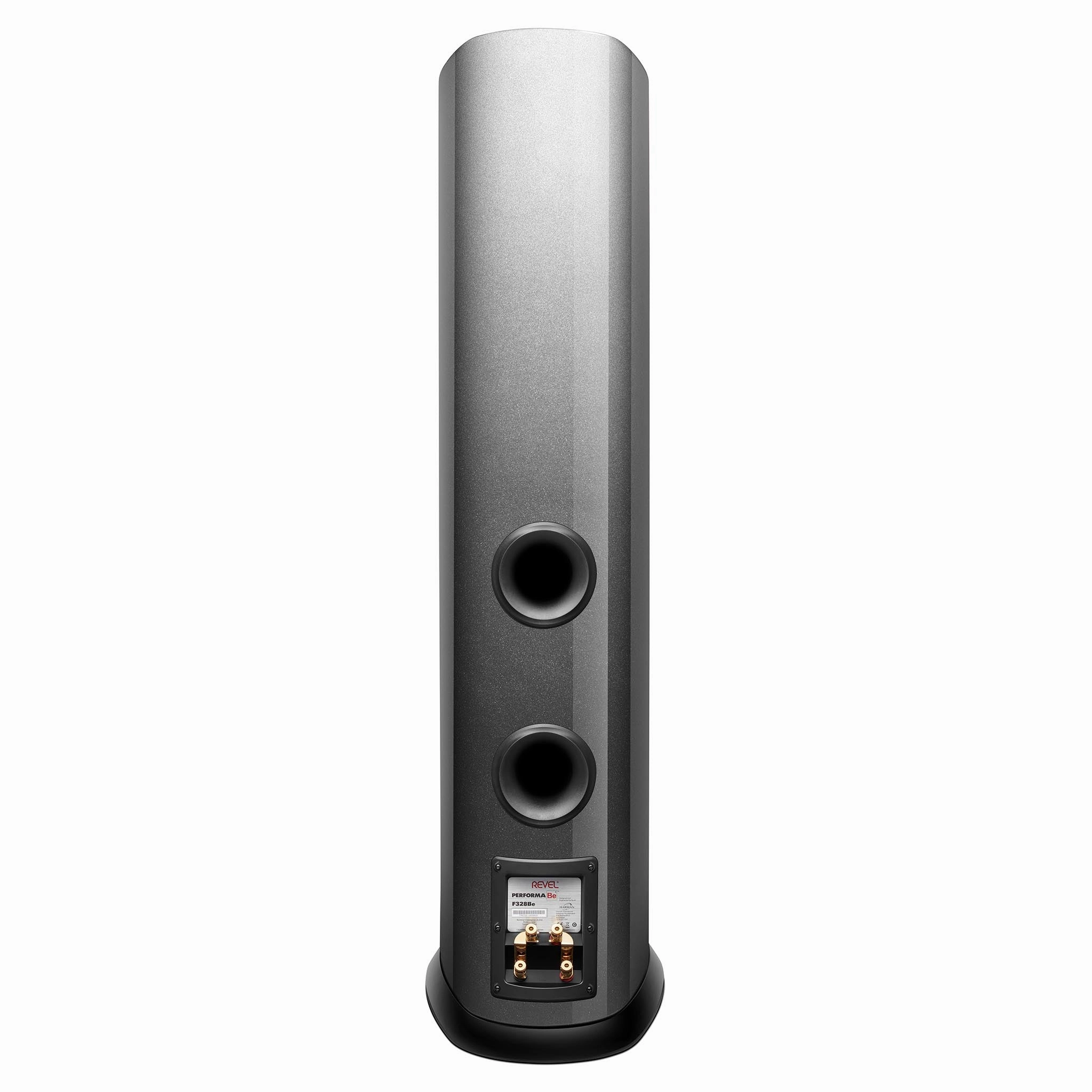

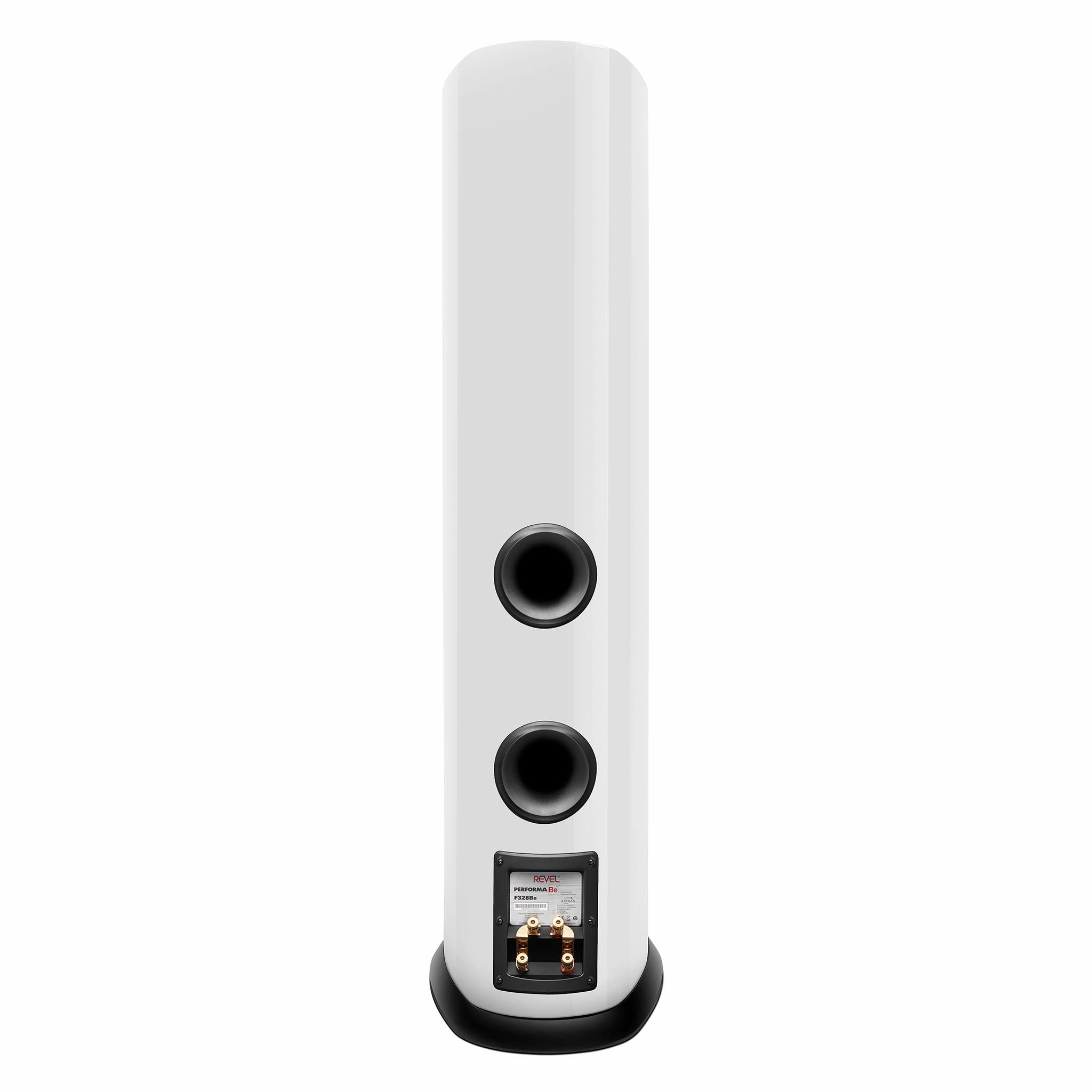

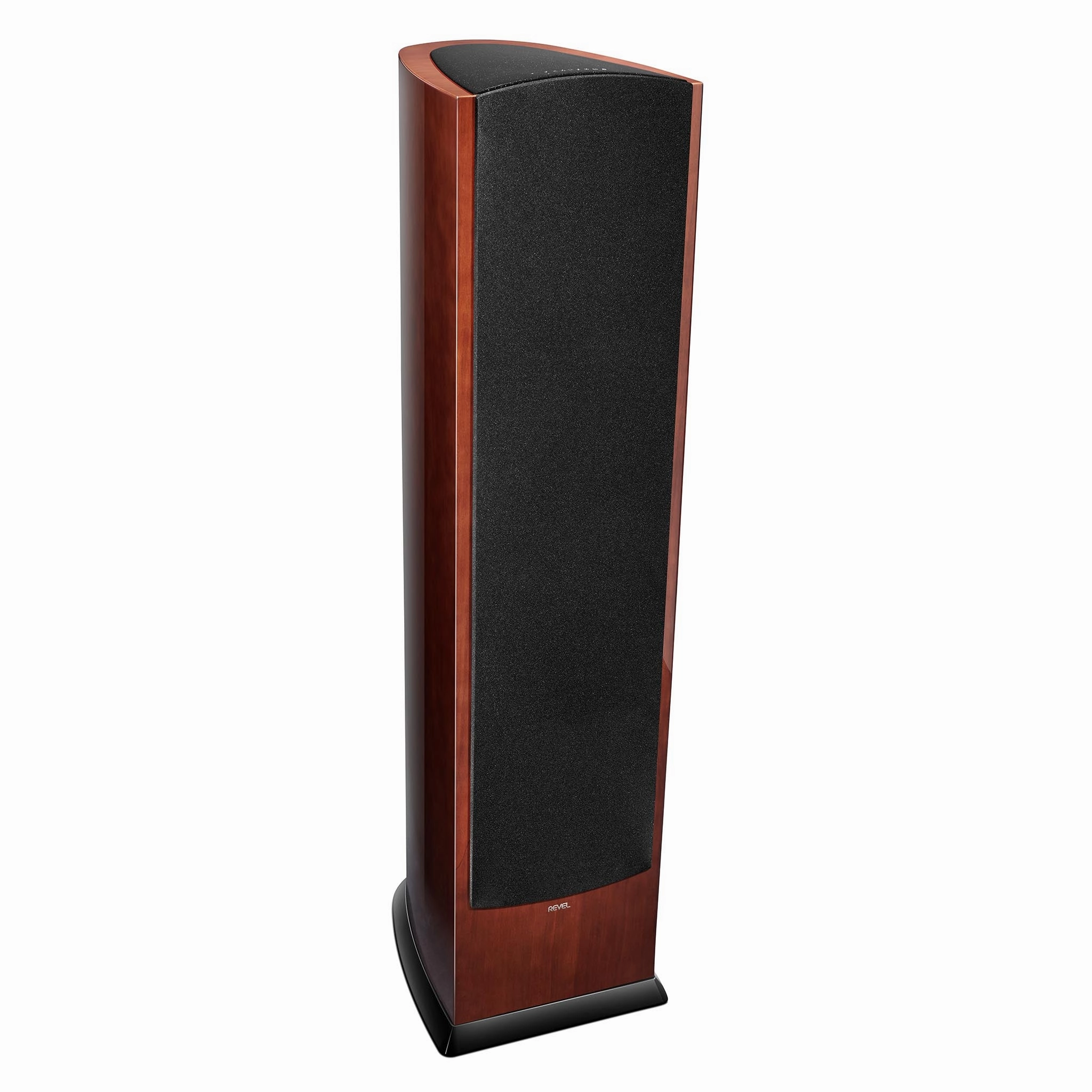

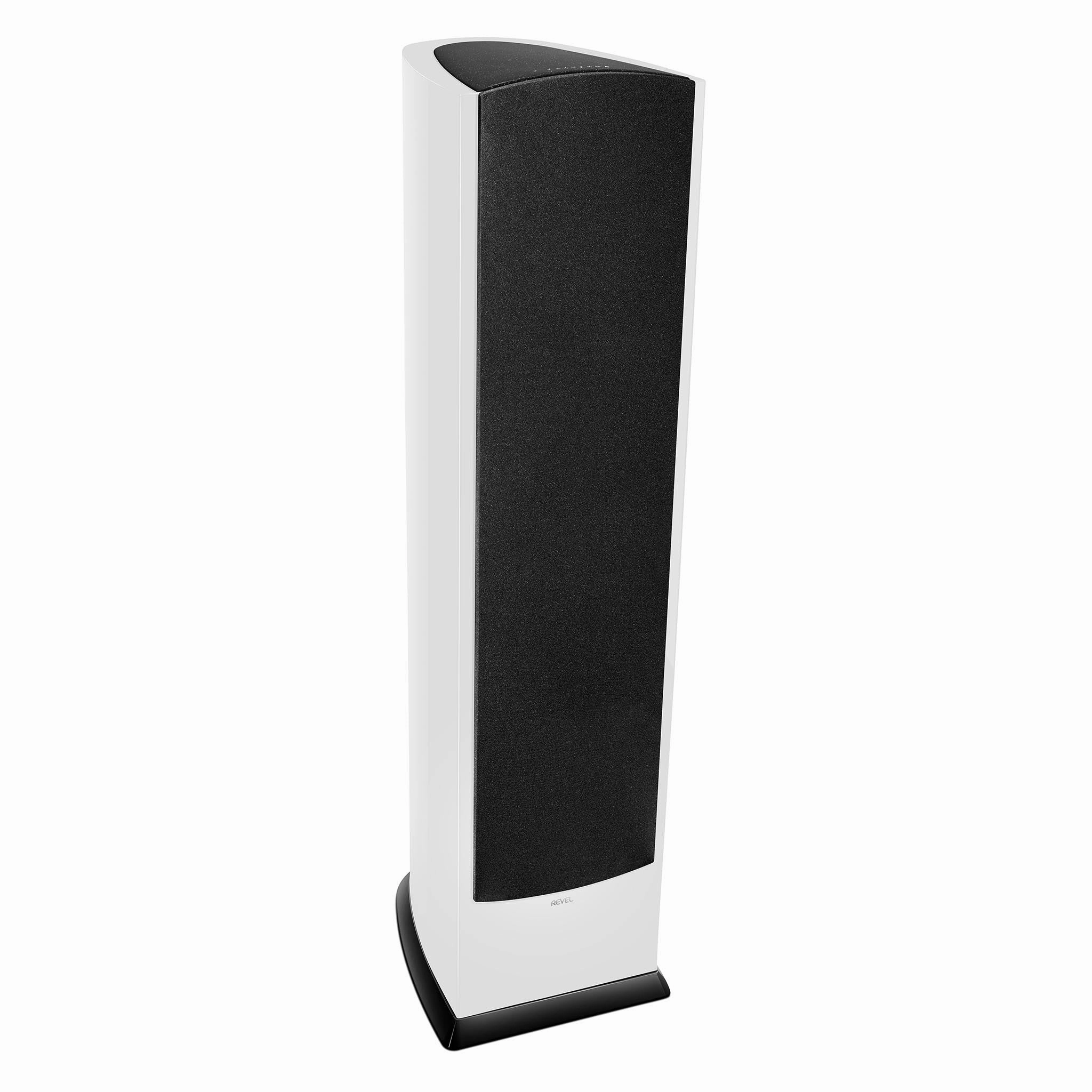

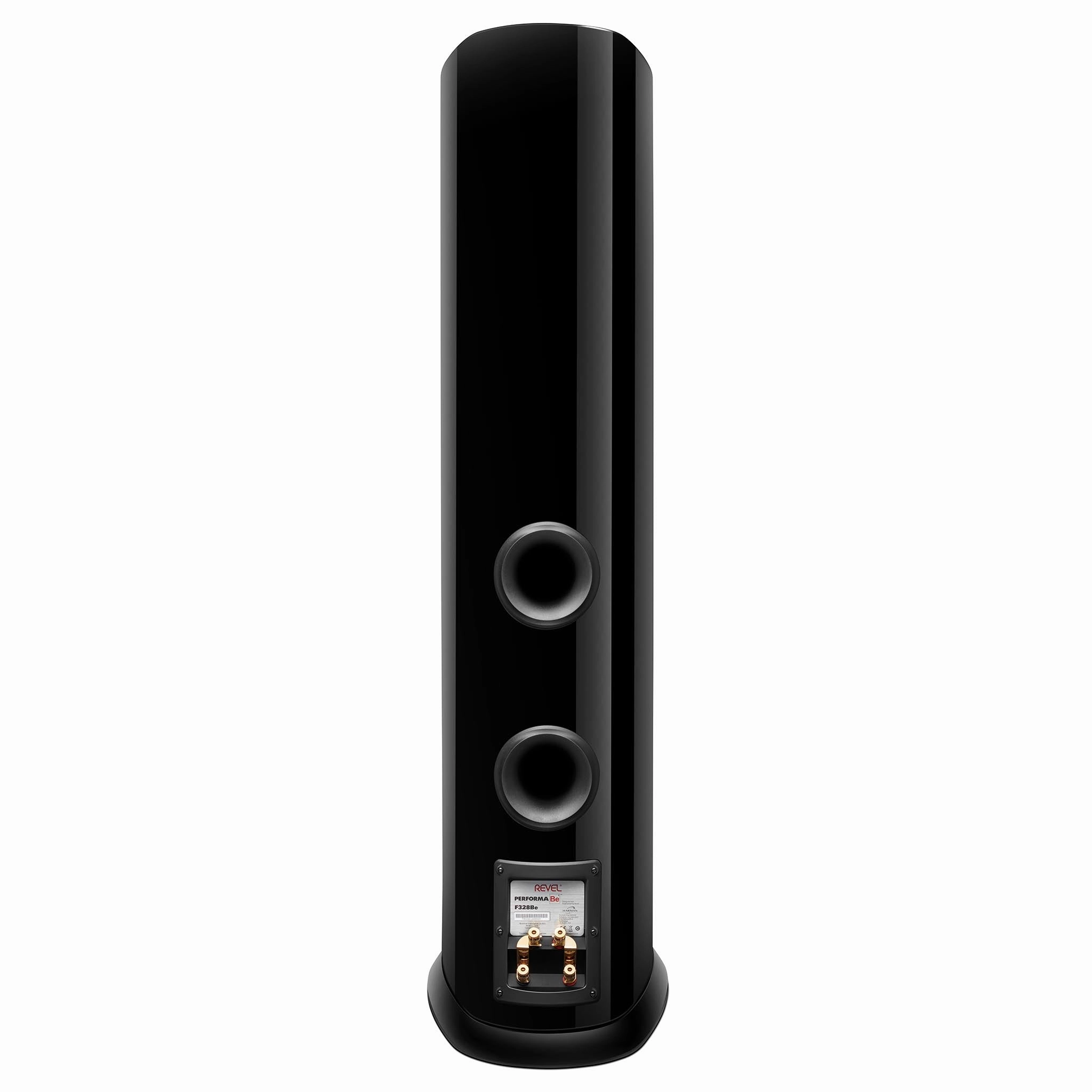

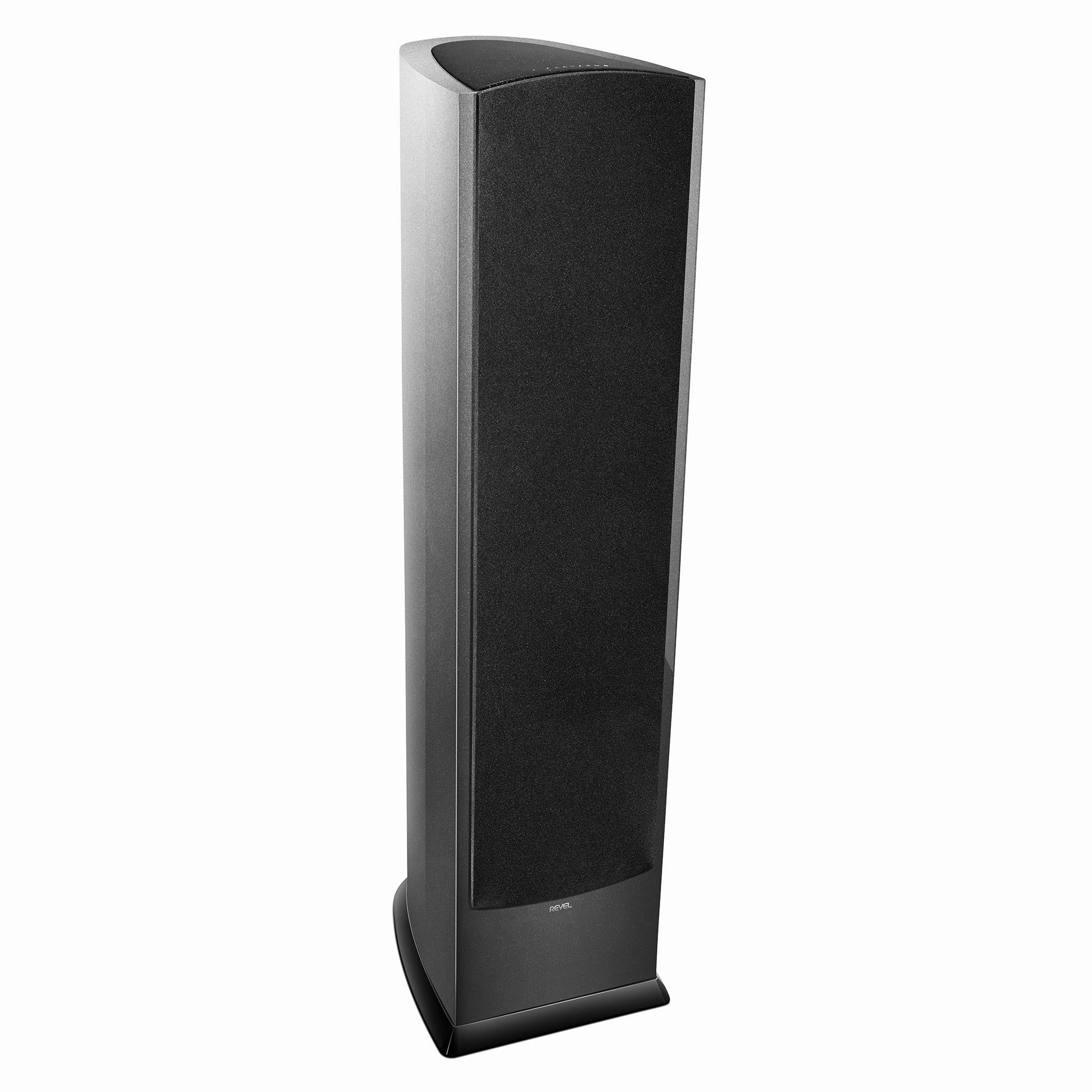

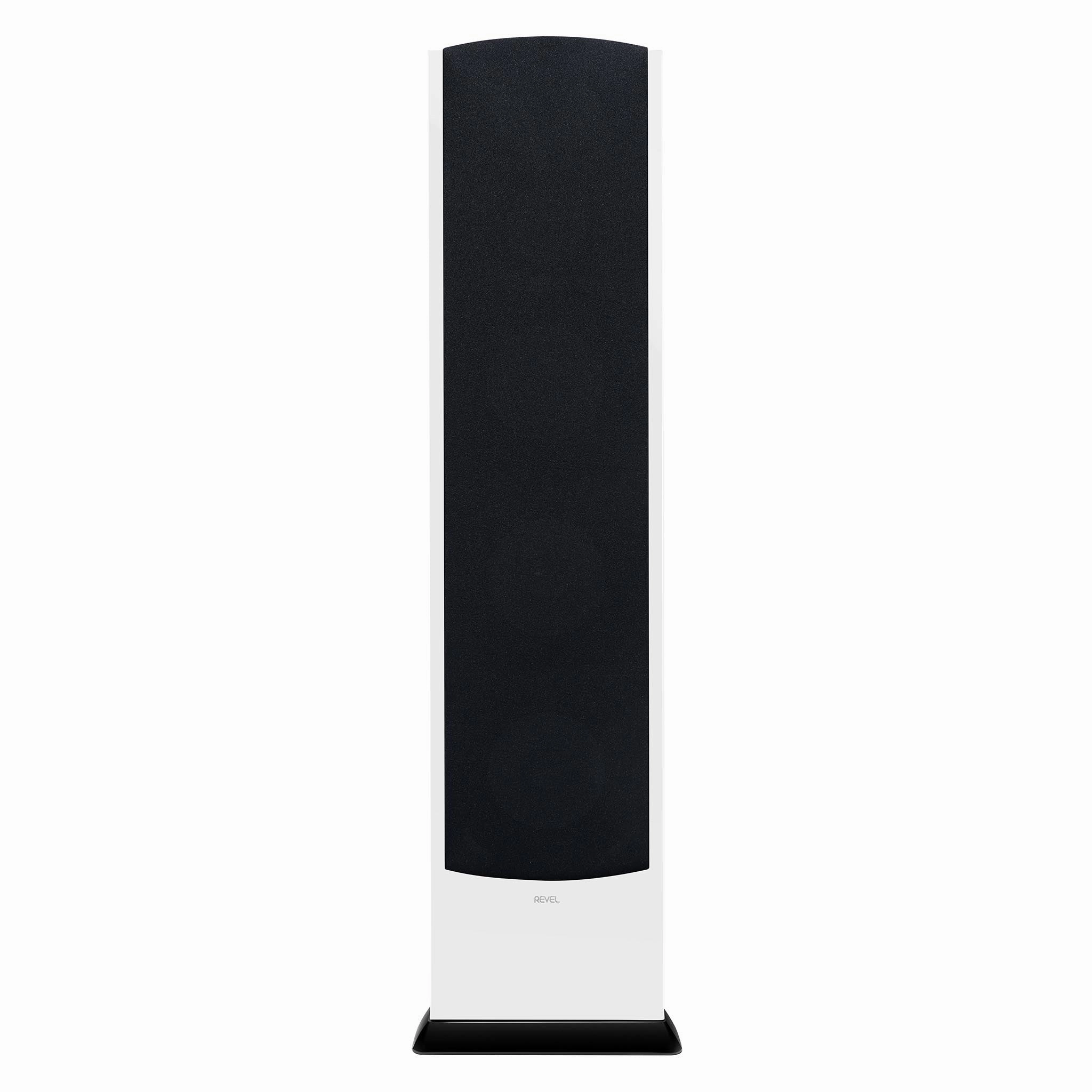

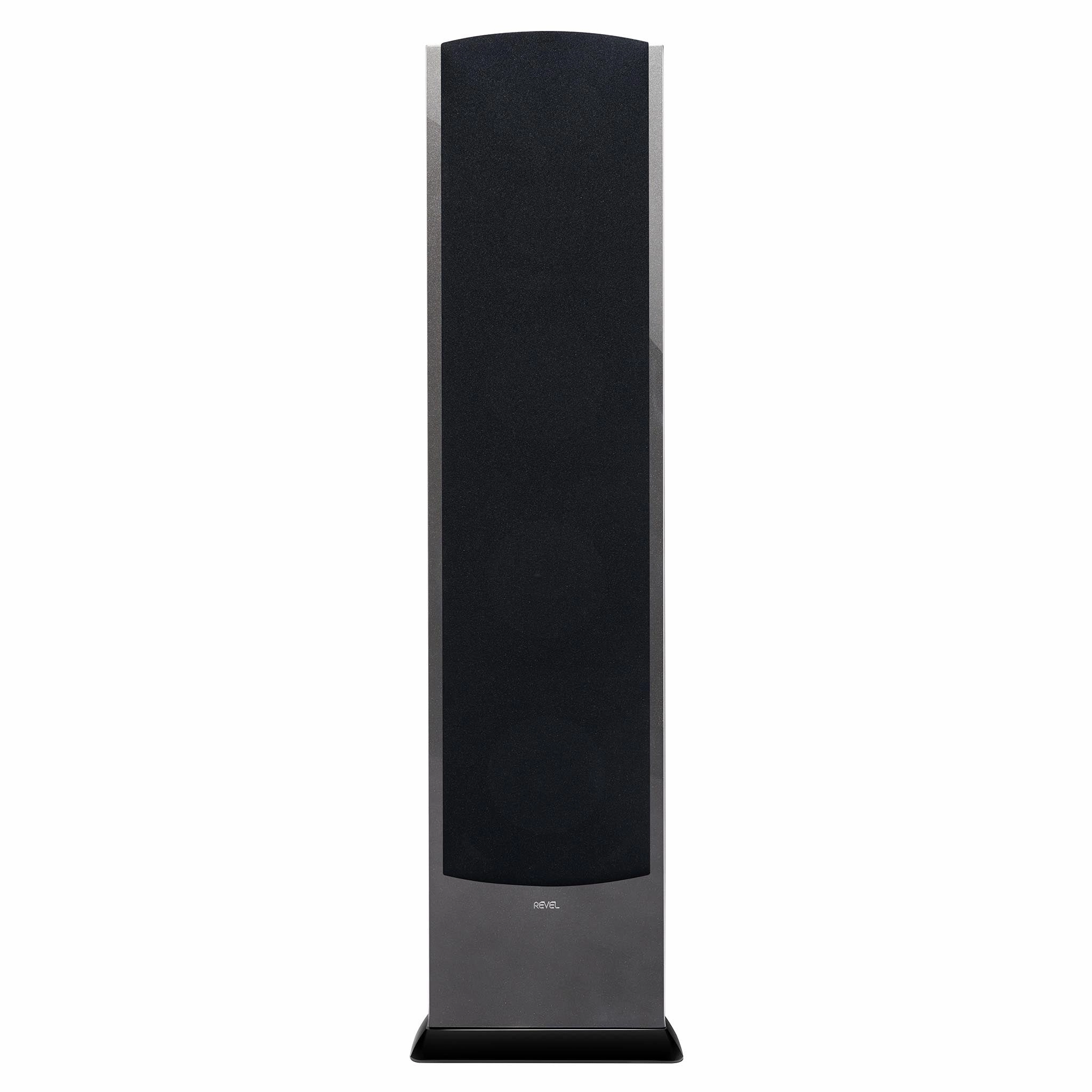

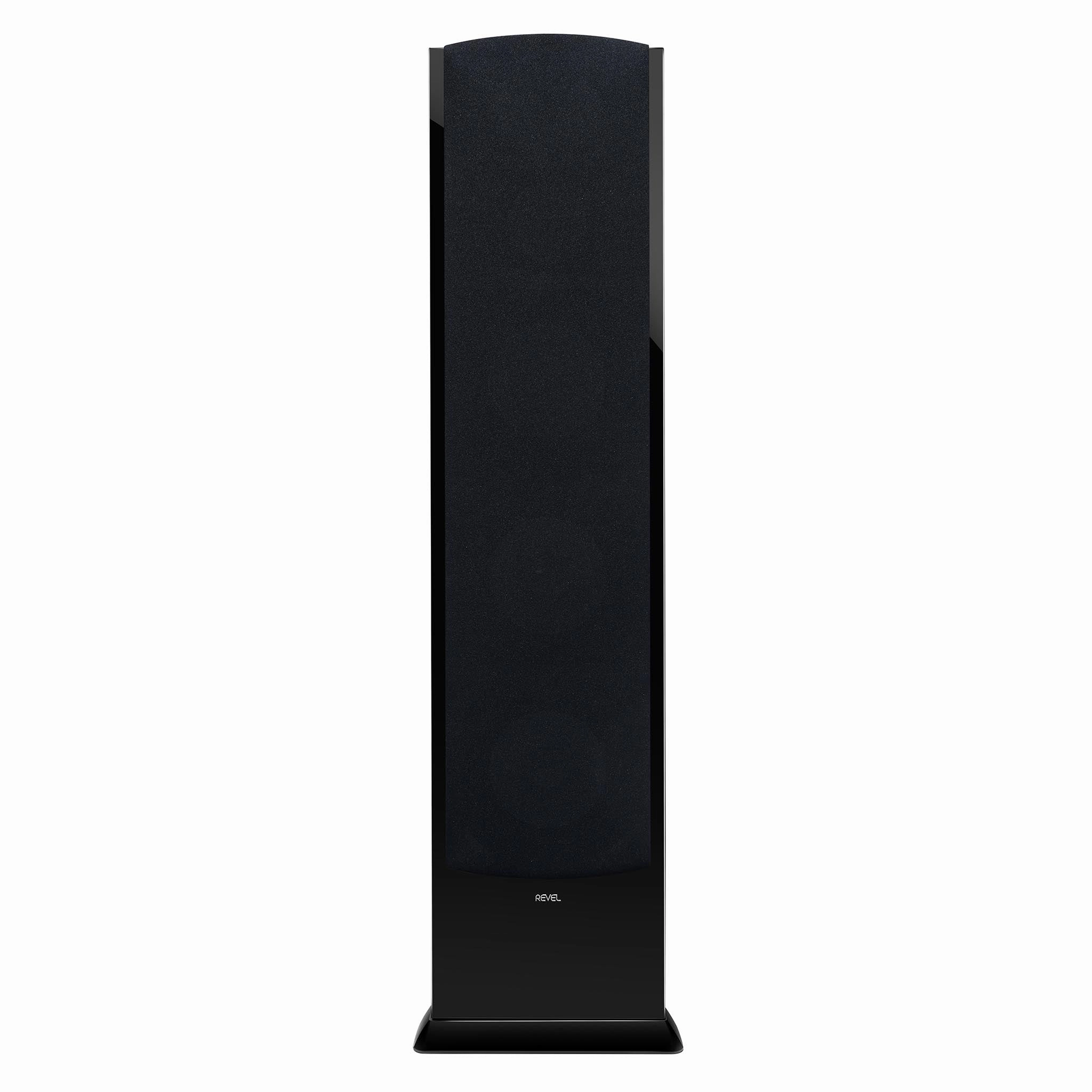

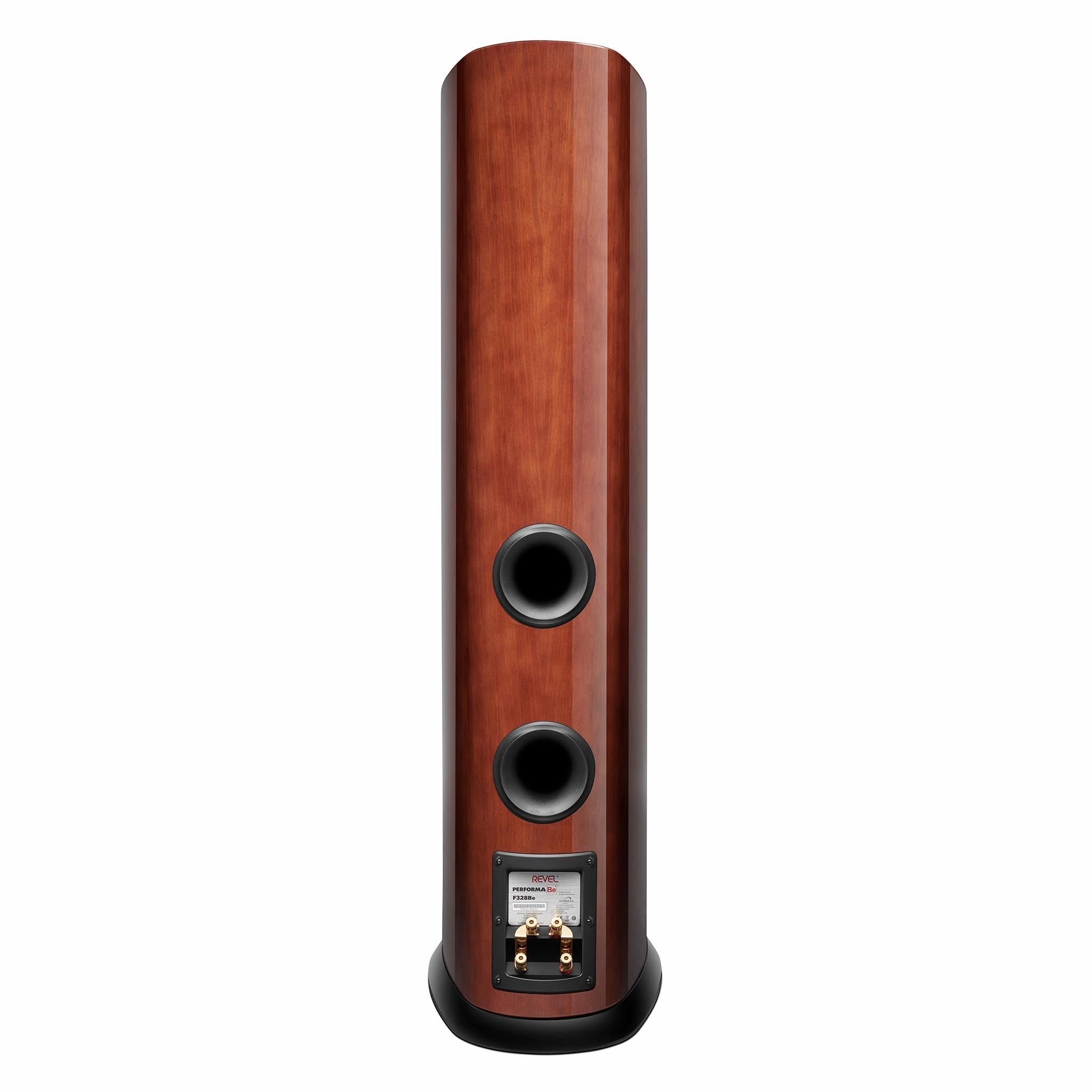

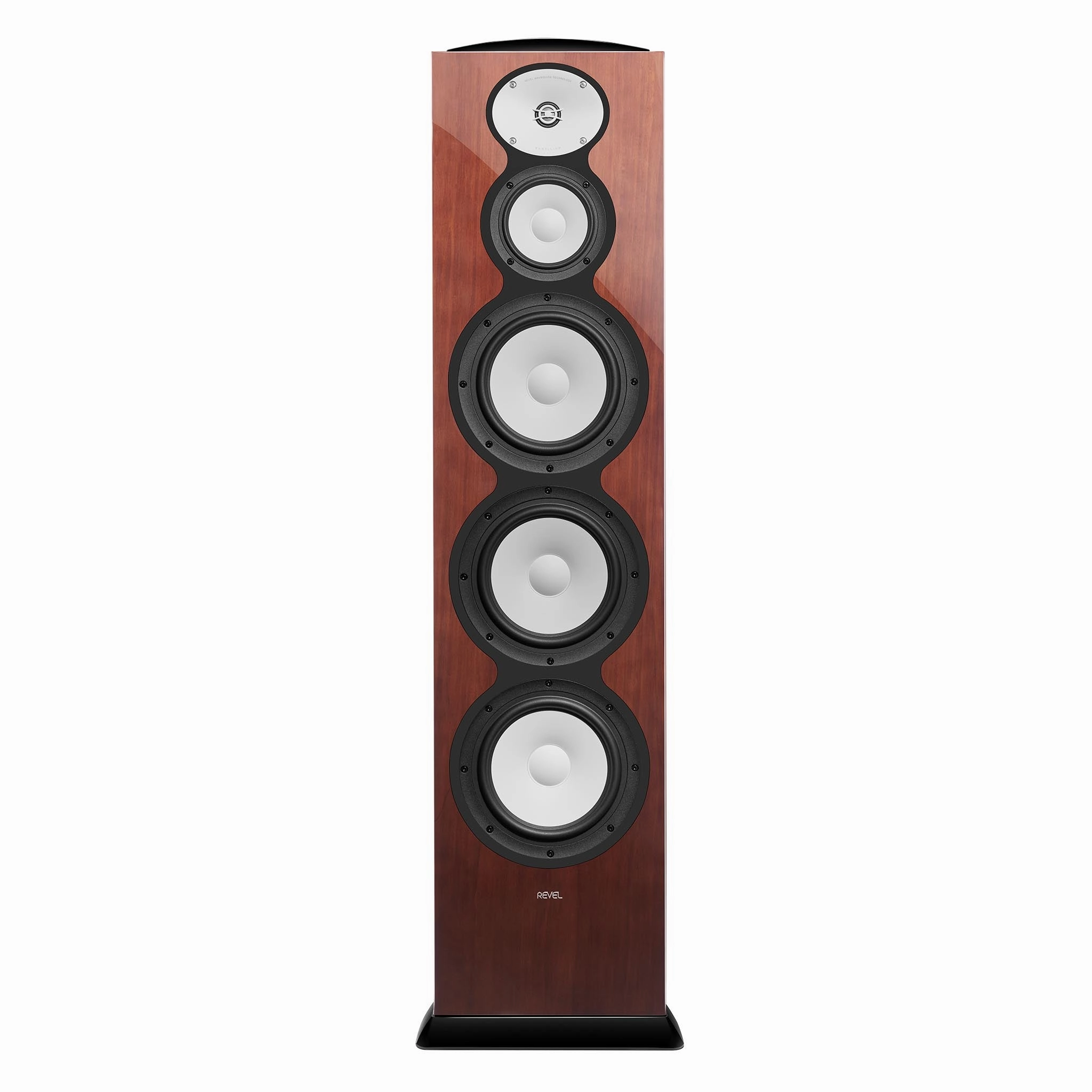

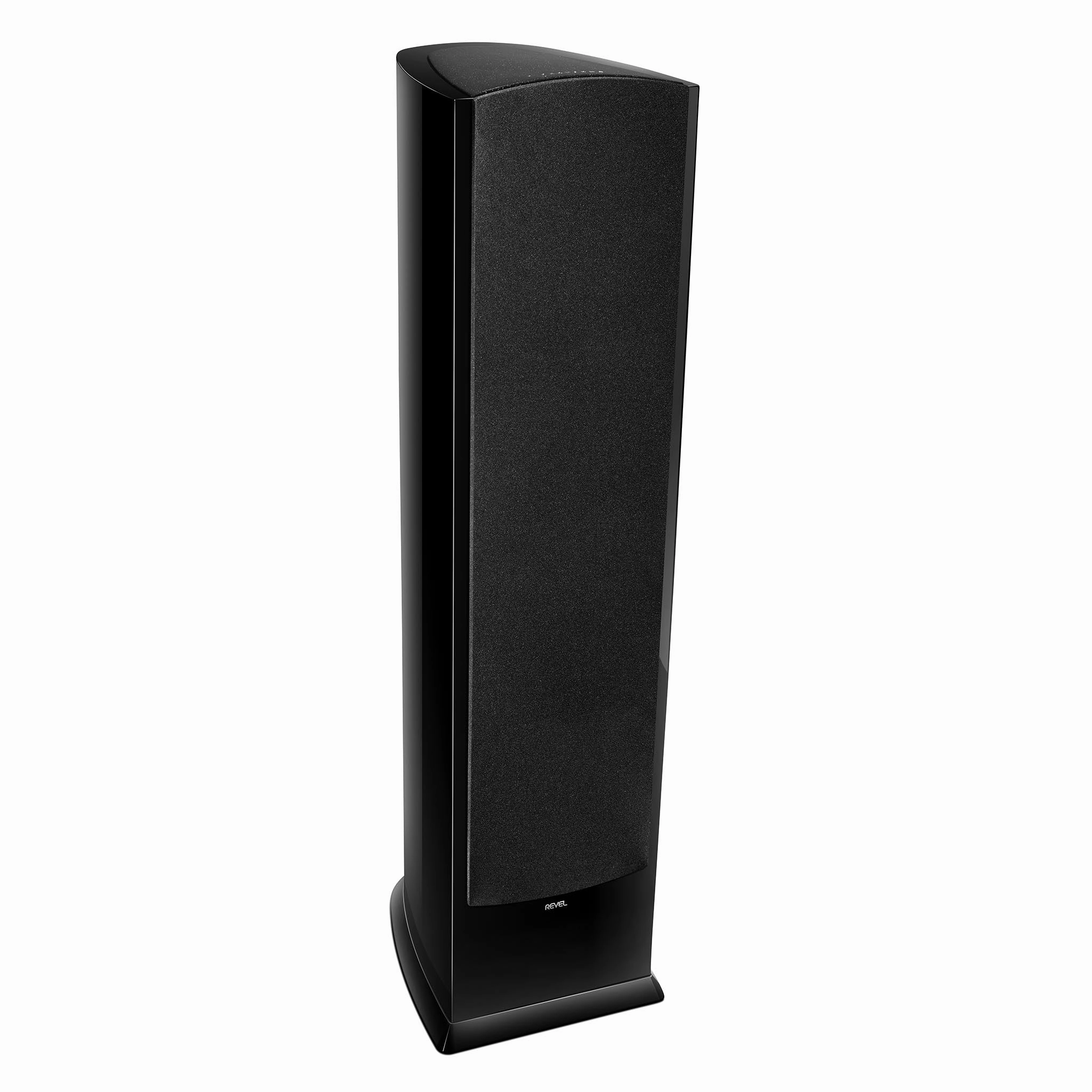

Revel F328Be Floorstanding Loudspeaker
The Revel F328Be is the flagship floorstanding loudspeaker from the award-winning PerformaBe series. The F328Be includes a 1-inch (25 mm) beryllium tweeter driven by massive3.3"dual ceramic magnets. The powerful all-new tweeter and 6th-generation ceramic-coated, cast-aluminum Acoustic Lens waveguide seamlessly integrate with the directivity of the companion midrange driver resulting in greater efficiency, improved dynamic range, reduced distortion, and increased power handling compared to aluminum or titanium tweeters.
Features
- 1"beryllium dome tweeter
- Sixth-generation Acoustic Lens Waveguide
- Deep ceramic composite (DCC) cone midrange and woofers
- High-order crossovers with film capacitors and air core inductors

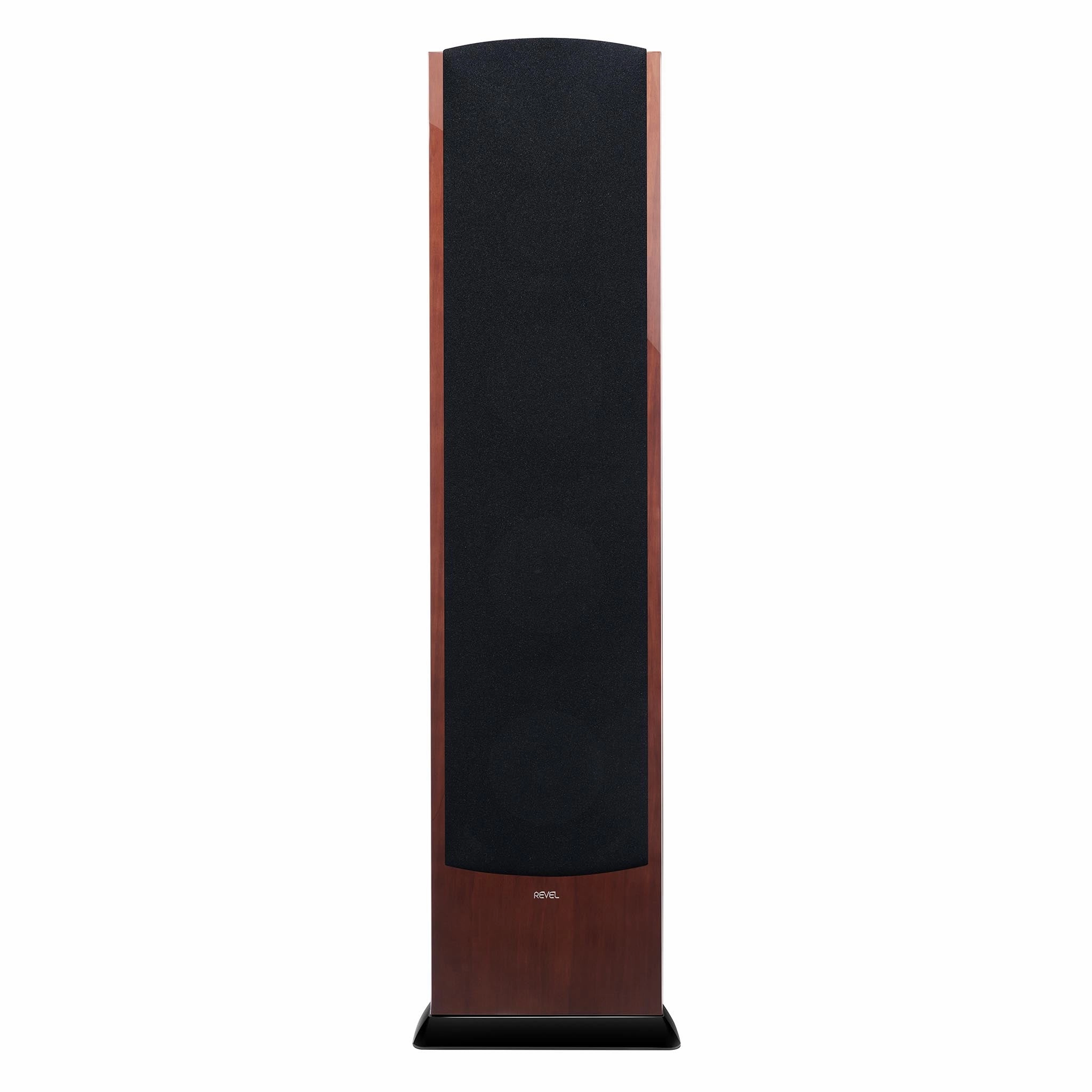

- Magnetically attached grilles
Specifications

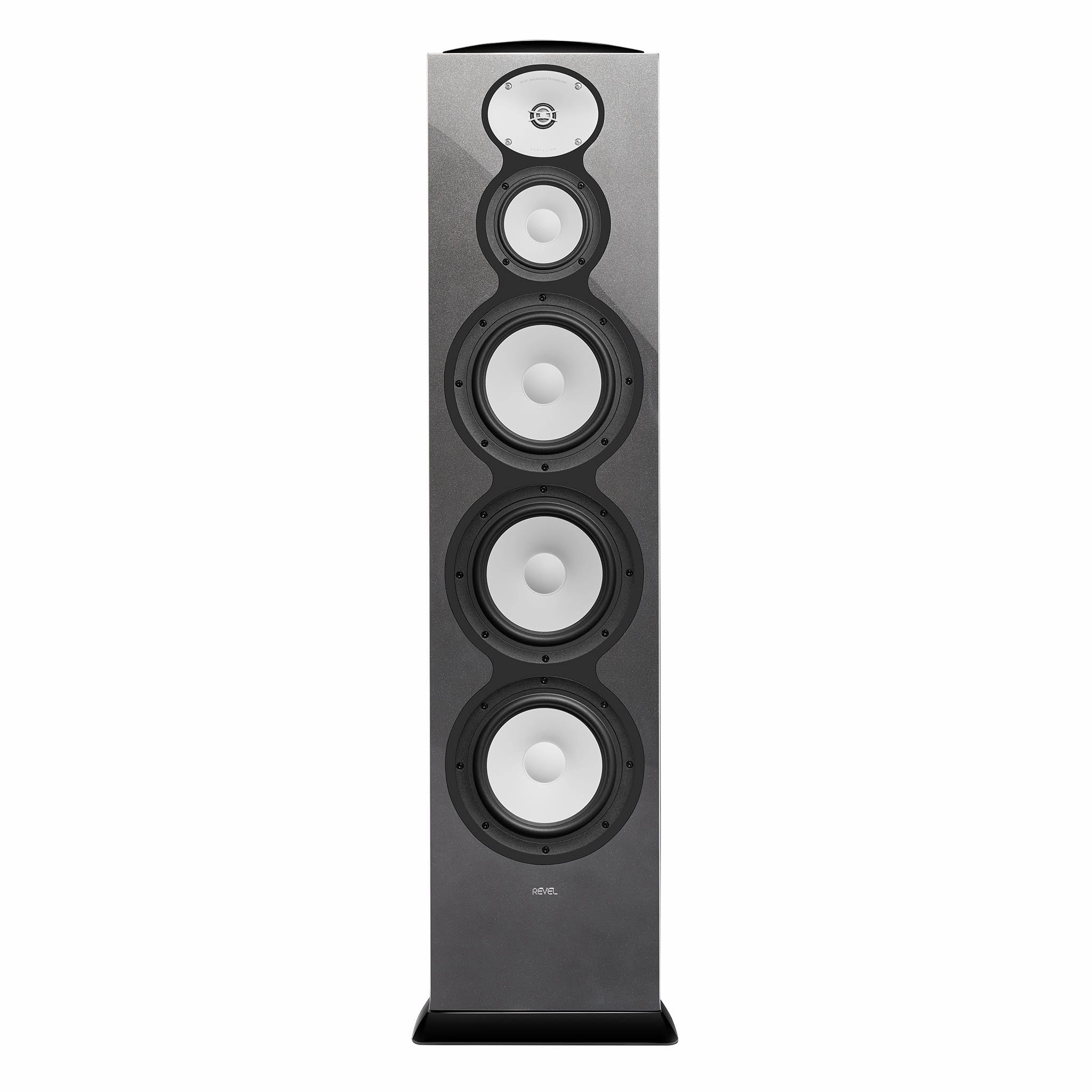

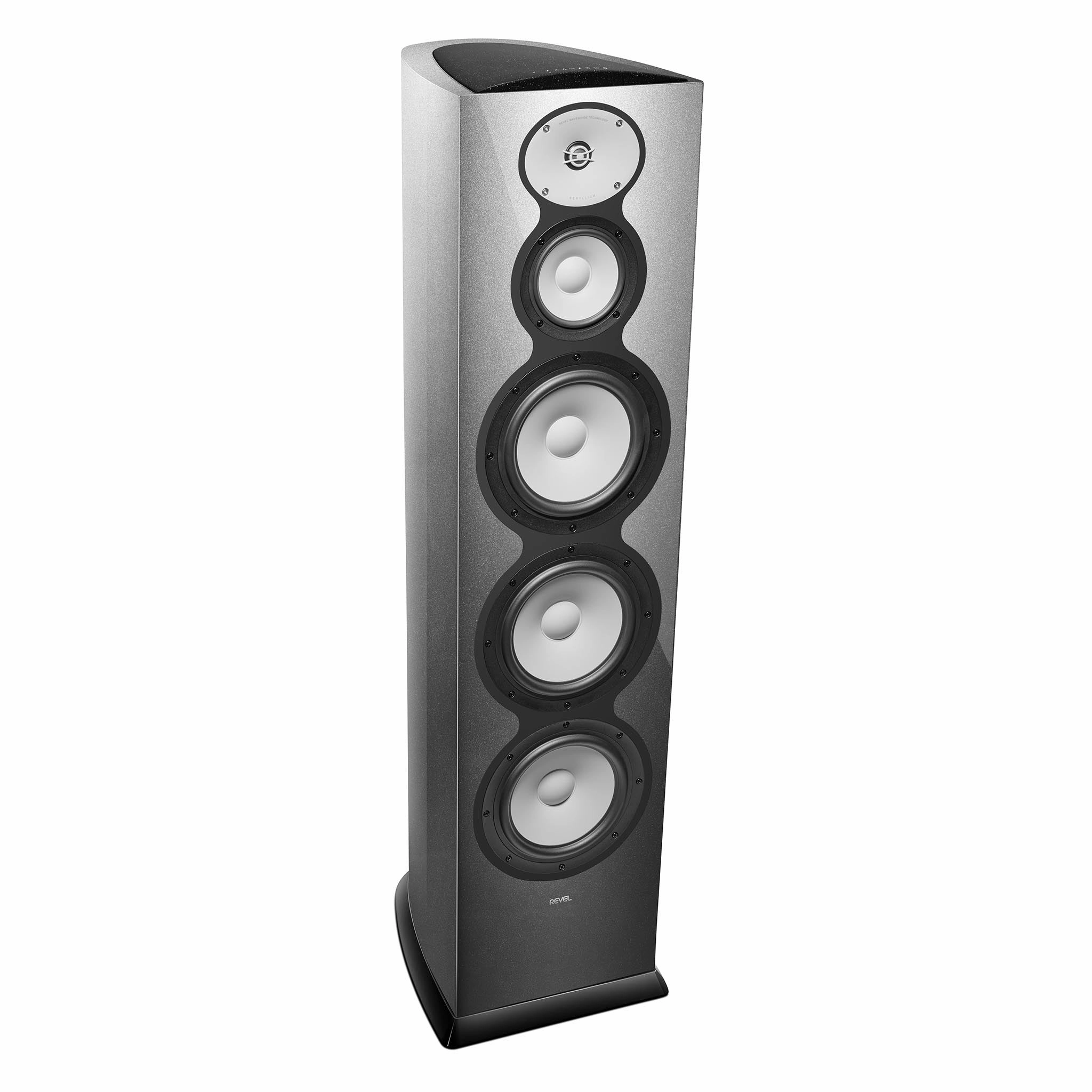

Type:Three-way triple 8" floorstanding loudspeaker
Low-frequency transducer:3 x 8" deep ceramic composite aluminum cones, with cast frames
Midrange transducer:5-1/4" deep ceramic composite aluminum cone, with cast frame
High-frequency transducer:1" beryllium dome, with acoustic lens waveguide
Nominal impedance:8 Ohm
Sensitivity (2.83 V/1 m):91 dB
Crossover frequencies:240 Hz, 2.1 kHz
Dimensions, with grille (HWD):50.9 x 13.5 x 17.6
Weight:90 lb
