Get the corewith AKM flagship DAC combo

Like the Q15 and K9 AKM, the M23 utilizes the flagship AKM DAC combo the AK4191EQ AK4499EX. It is a new design that totallyseparates the digital and analog portions and also features the DWA ROUTING Technology to further improve the signal-to-noise ratio. These technologies allow for a purer audio background and higher resolution audio resulting in a relaxed yet natural sound.

Double Type-C ports, patented Desktop Mode

The M23 is FIIOs first portable player with dual Type-C ports, one of which is dedicated to accepting power only (POWER IN). When this dedicated power Type-C port is connected to fast charging, the Super High Gain Modecan be activated for more gain and more output power. In this mode, the output power can reach up to 1000mW 1000mW per channel, making the M23 better suited for pushing high impedance headphones. While in this mode, the other Type-C port does not consume any power and thus makes it suitable to connect the M23 to a phone for use as a USB DAC.

In addition, the M23 also follows FIIOs latest patented technology - Desktop mode (D.MODE), witha switch specifically for toggling. When the D.MODEis activated, the M23is completely powered by an external power source. The built-in battery will neither be charged nor discharged, which ensures the M23 can be used as desktop equipment without fear of damaging the battery.

4-way fully balanced THX AAA 78 amp design

FIIO, as one oftheaudio manufacturerswith the earliest and most widely adoptedTHX amp design, has long mastered andpolishedthe THX headphone amplifier architecture.The THX AAA 78 headphone amplifiers as used in the M11 Plus and M11 Pro have been widely praised by audiophiles around the world. After several years of continuing to refine the design, we introduce the THX AAA 78 amplifier architecture in the M23. It allows for greater power output with high fidelity, resulting in powerful sound reproduced with extreme accuracy.

Dual-mode fast charging,5500mAhlarge battery

The M23 employs a dual-mode fast-charging system that utilizes extreme fast-charging normal fast charging. At a lower battery state of charge, extreme fast-charging is used to safely allow for up to 30W charging speeds. When the battery gets close to a full state of charge, the M23 switches to slightly slower normal fast-charging, which allows for greatly improved charging times while still maintaining battery health.

The specially selected low-resistance fast-charging batteries5500mAhthat employ high-temperature resistant material are paired with technologies such as a low resistance MOS protection board to ensure the batteries will last a long time.

IN THE BOX

1. M23
2. Screen Protective Film (Pre-Installed)
3. Protective Case (for Dark Blue Version)
4. Leather Case (For Silver Version)
5. USB-A male to Type-C Female Adapter
6. Tray Eject Pin
7. GPL V2 Manual
8. Warranty Card
9. Type-C to Type-C data/charging cable
10. Quick Start Guide


SPECIFICATIONS

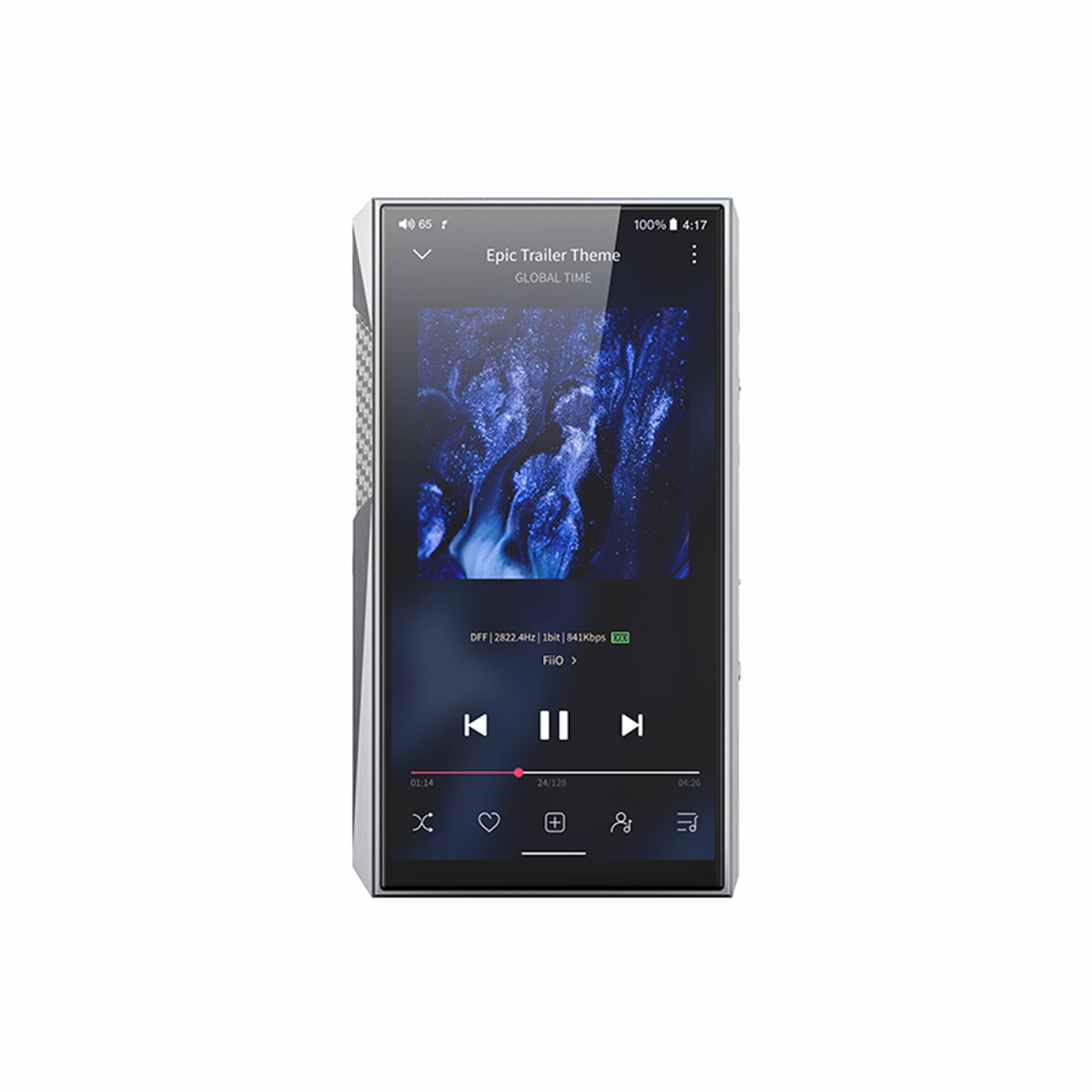

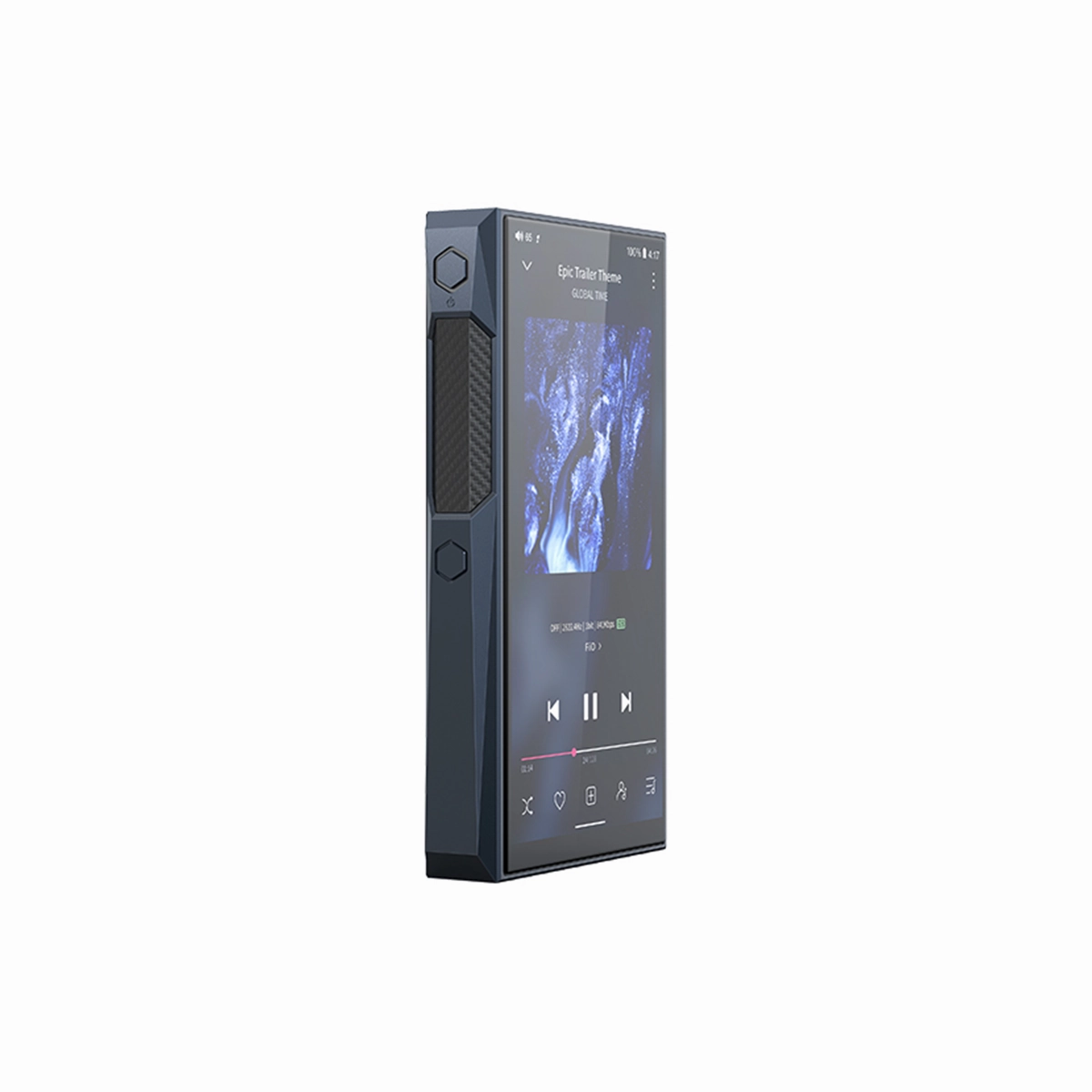

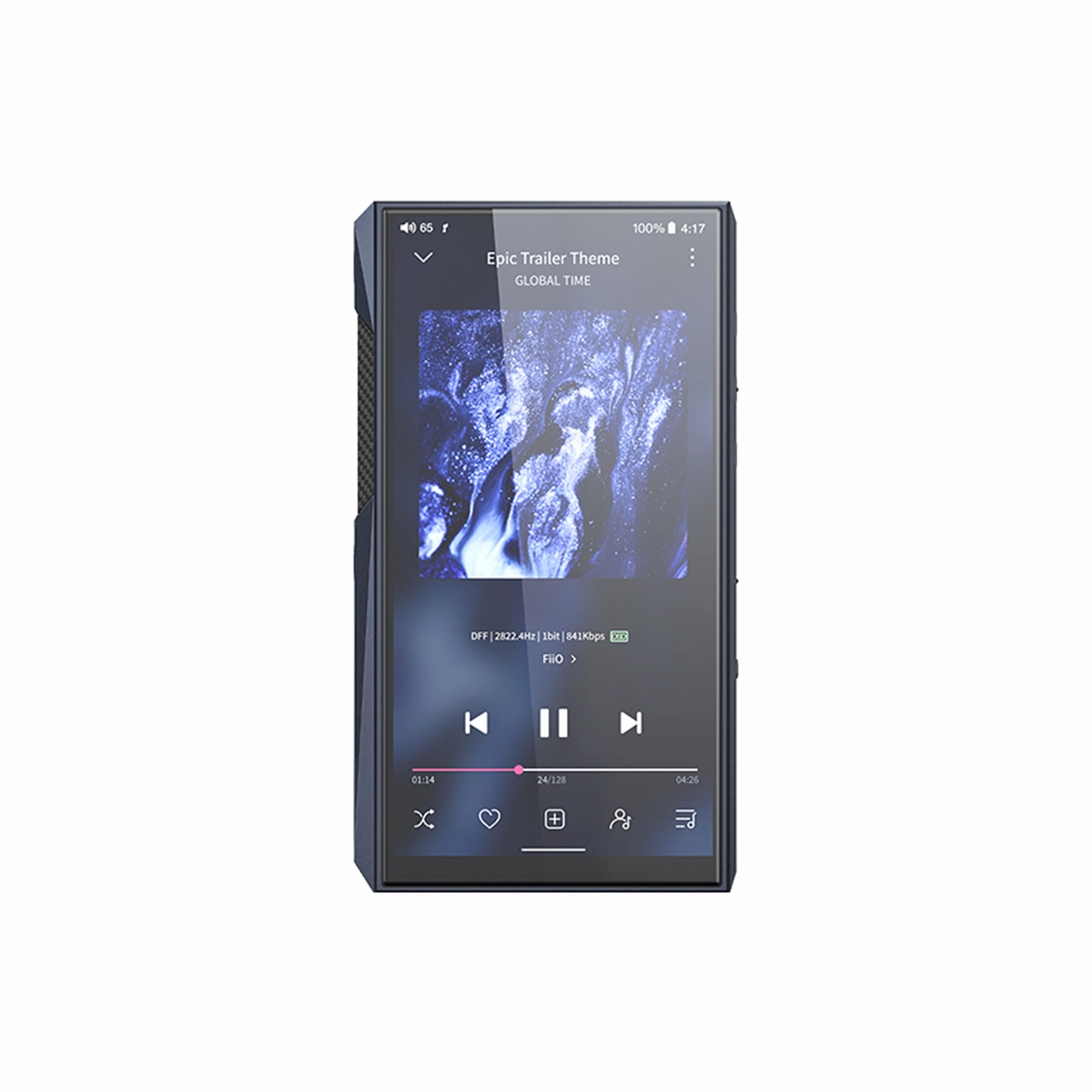

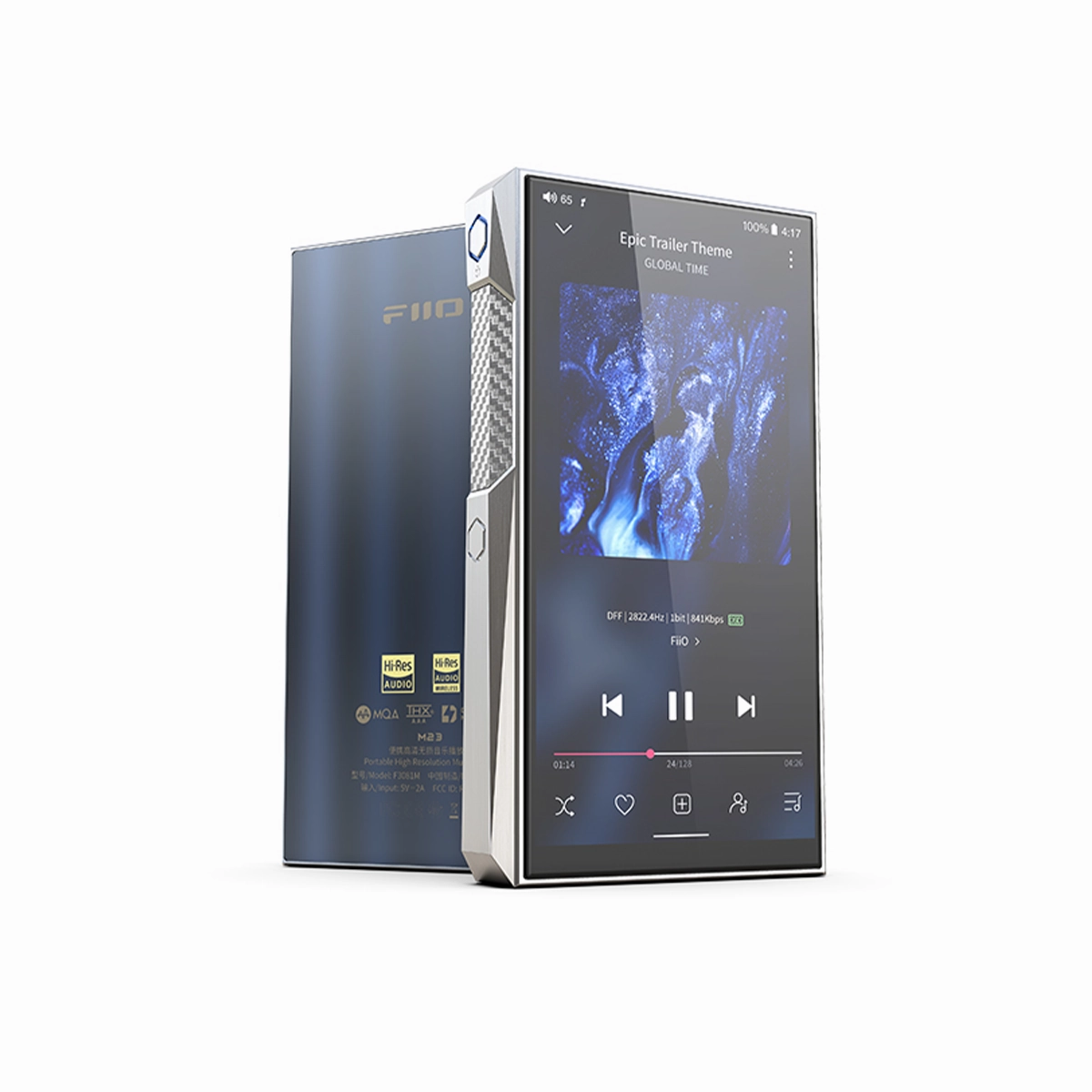

• Color: Dark blue (aluminum alloy), silver (stainless steel)
• SoC: Qualcomm Snapdragon 660
• OS: Android10
• DAC: AK4191EQ AK4499EX
• Display: 5.5-inch (720*1440)
• Headphone outputs: Single-ended 3.5mm PO/LO/SPDIF balanced 4.4mm PO/LO
• USB ports: Type-C USB3.0 data/charging, Type-C POWER IN independent power port
• Bluetooth version: 5.0
• Bluetooth transmission: SBC/AAC/aptX/aptX HD/LHDC/LDAC
• Bluetooth reception: SBC/AAC/LDAC
• Output power 1: L R 1000mW 1000mW (320/THD N<1%/ balanced/over-ear headphone mode)
• Output power 2: L R>240mW 240mW (3000/THD N<1%/ balanced/over-ear headphone mode)
• Output power 3: L R 420mW 420mW (320/THD N<1%/ single-ended/over-ear headphone mode)
• Output power 4: L R>60mW 60mW (300/THD N<1%/ single-ended/over-ear headphone mode)
• Output power 5: L R>475mW 475mW (320/THD N<1%/ balanced/high gain)
• Output power 6: L R>125mW 125mW (320/THD N<1%/ single-ended/high gain)
• SNR: 125dB (A-weighted)
• Noise floor: PO<1.9V (A-weighted); BAL<3.1V(A-weighted)
• Output impedance: <10 (320 load)
• THD N: 0.00038% (1kHz/-6dB@320)
• Battery capacity: 5500mAh
• Battery life: 10.5h single-ended, 9h balanced
• System RAM: 4GB
• Storage capacity: 64GB/about46GB available
• Dimensions: 136.575.718.1mm
• Weight: About 299g (aluminum alloy), about 392.3g (stainless steel)
