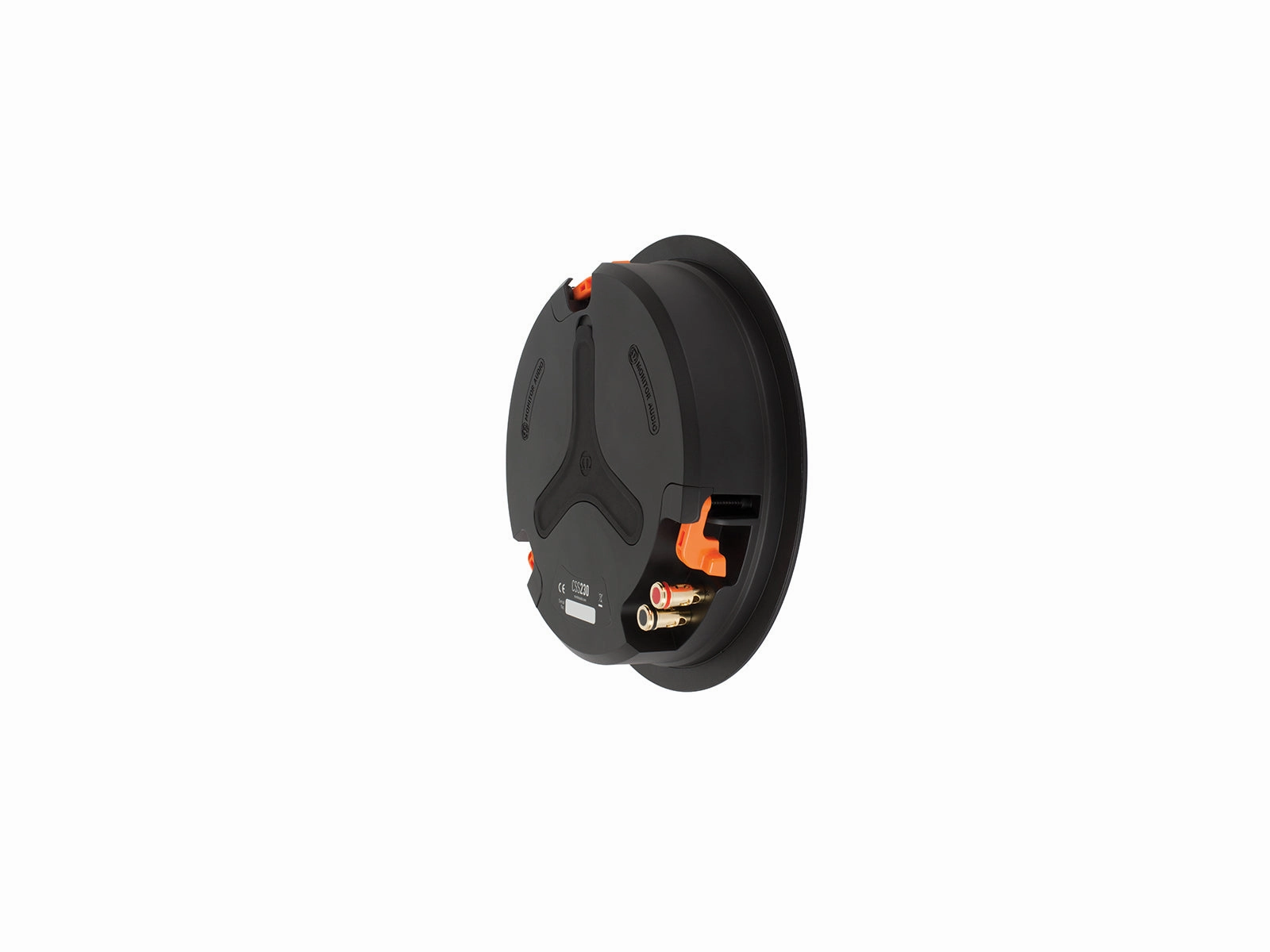

The CSS230 is a brilliantly innovative back-box design with an impressively shallow 50 mm (2") mounting depth, custom built to offer hi-fi levels of performance in spaces where no high quality speaker has gone before.
Specifications
Frequency Response (-6 dB)
100 Hz 30 kHz sealed CP (85 Hz 30 kHz open back)
Nominal Impedance
8 ohms
Sensitivity (1W@1M)
86 dB
Maximum SPL
103.8 dBA
Power Handling (RMS)
40 Watts Full range (60 watts with crossover set to 100 Hz @ 12 dB/Octave)
Recommended Amplifier Requirements
10 - 60 W

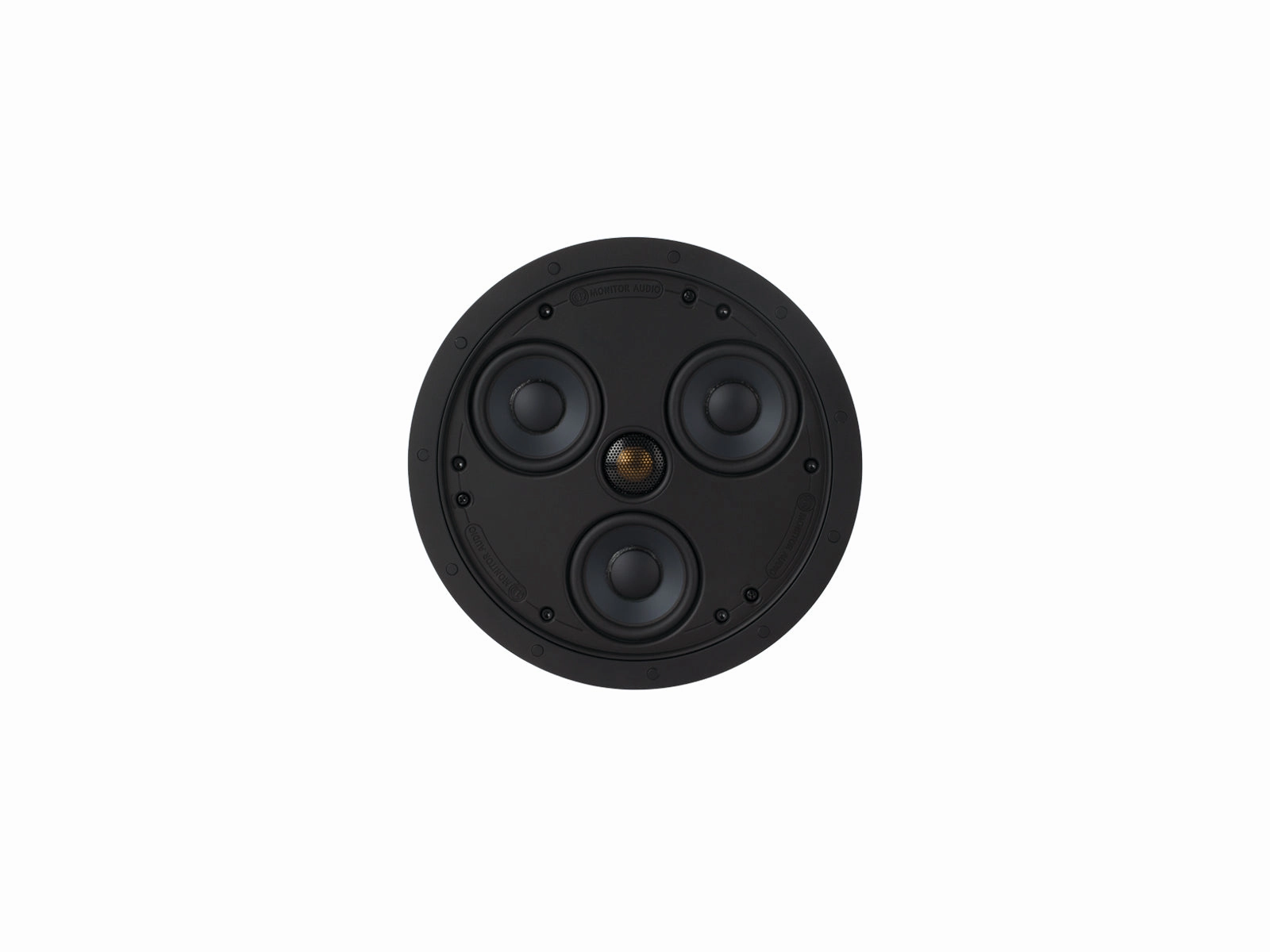

Drive Unit Complement
3 x 3"cone bass-mid drivers
1 x 19 mm (3/4") C-CAM Gold Dome tweeter
Crossover Recommendation
100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)
Connection
Gold Plated Sprung push terminals for bare wire connection up to 4 mm(2)
Overall Diameter (Including Grille)
250 mm (913/16")
Overall Depth (Including Grille)
54 mm (21/8")
Cut-Out Hole Diameter
211 mm (81/4")
Mounting Depth
50 mm (2")
Optional Square Grille - Outer Dimensions
249 x 249 mm (93/16")
Fixing Type
3 positiondog leg fixings
Construction Material
ABS (UL94 rated, RoHS2 Compliant) Painted steel grille
Weight
2.88 kg (6 lb 5 oz)
Pre-Construction Bracket
Sold As
Single Unit
