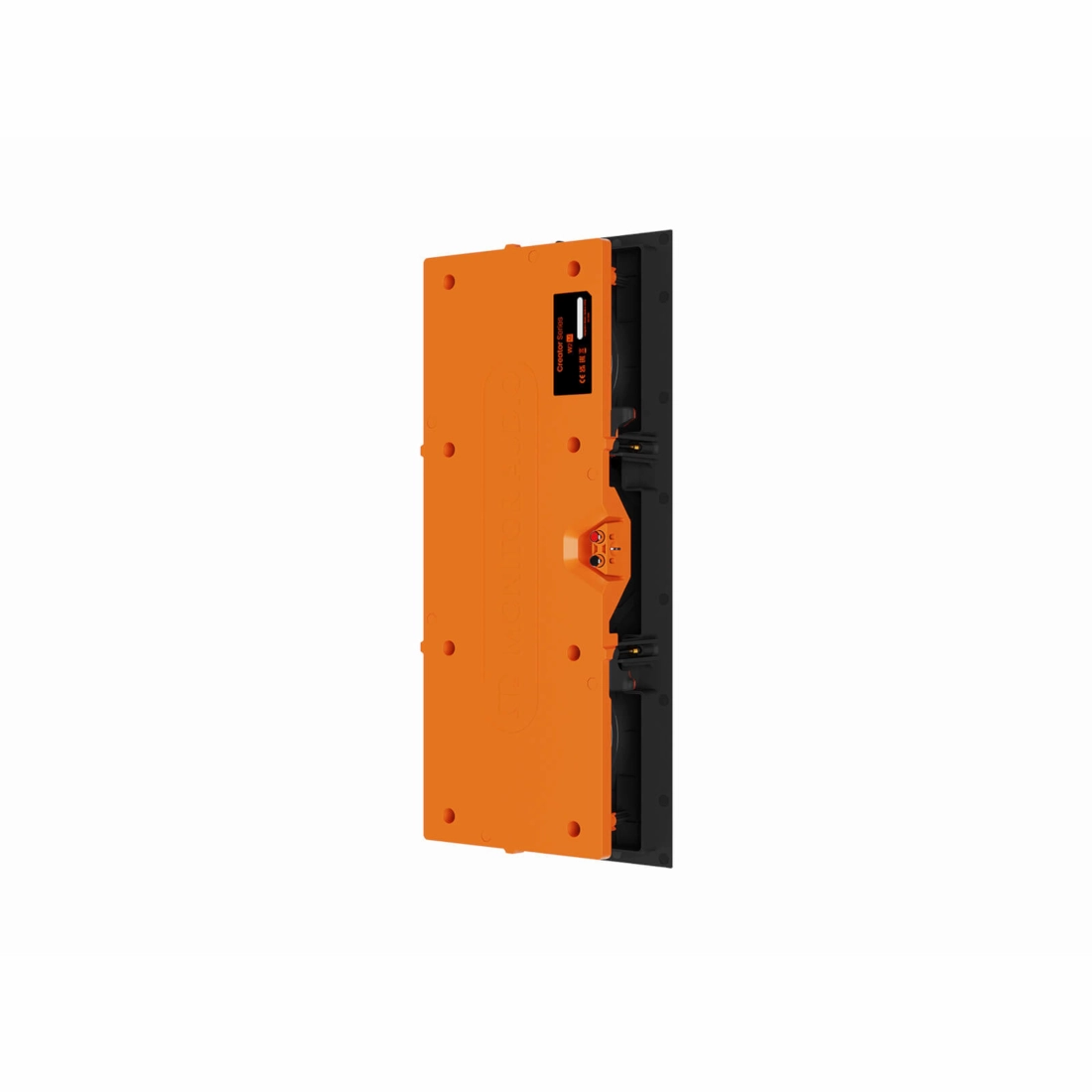

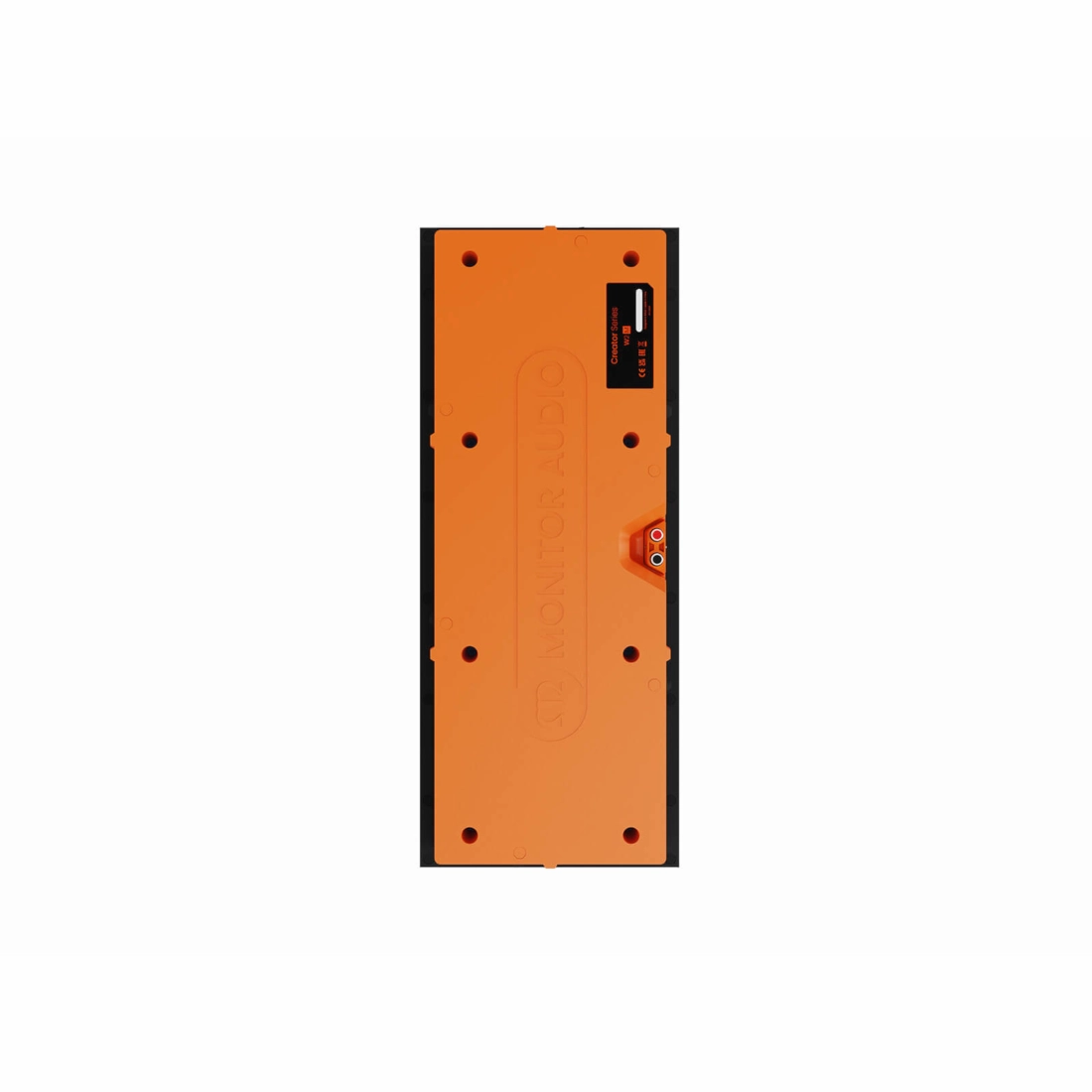

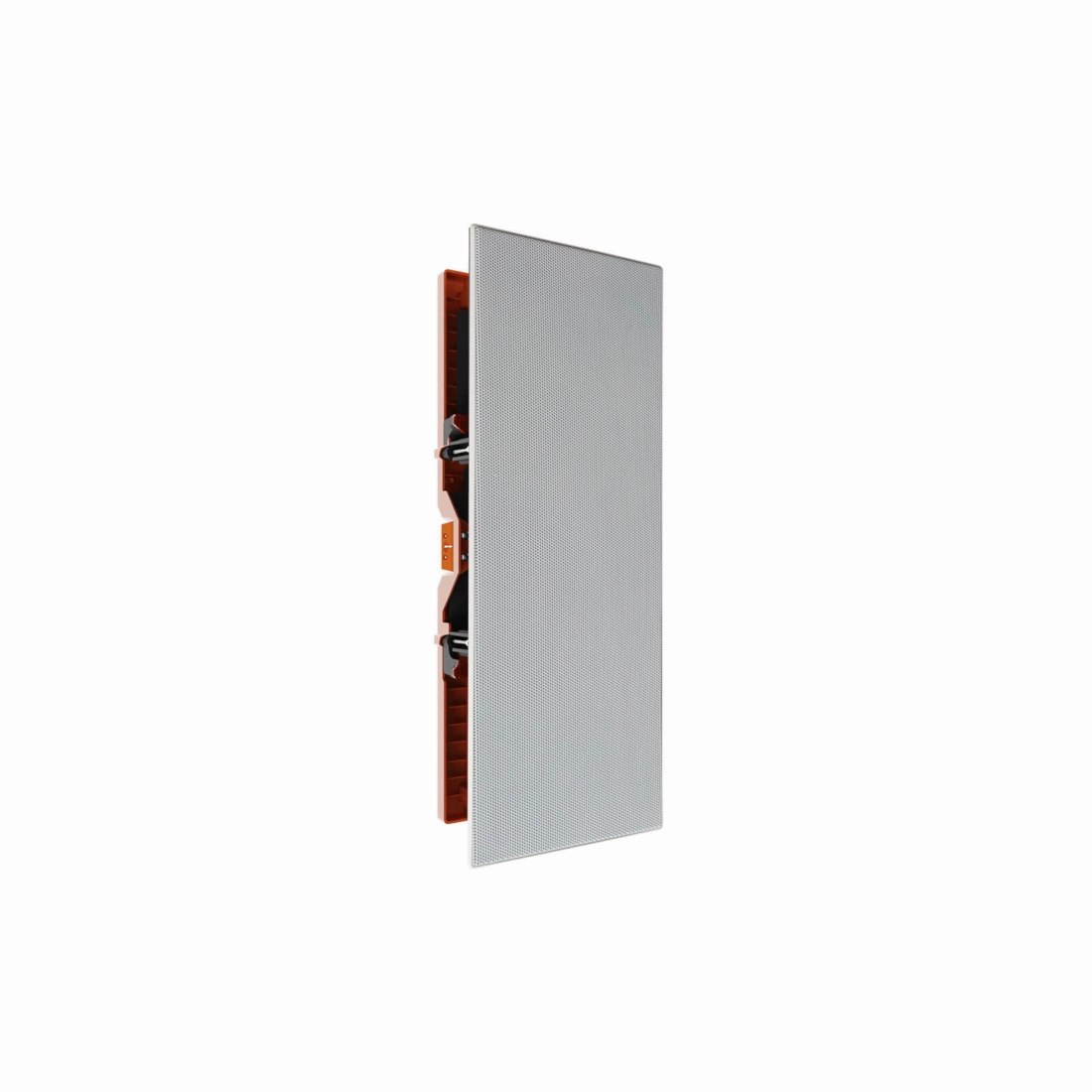

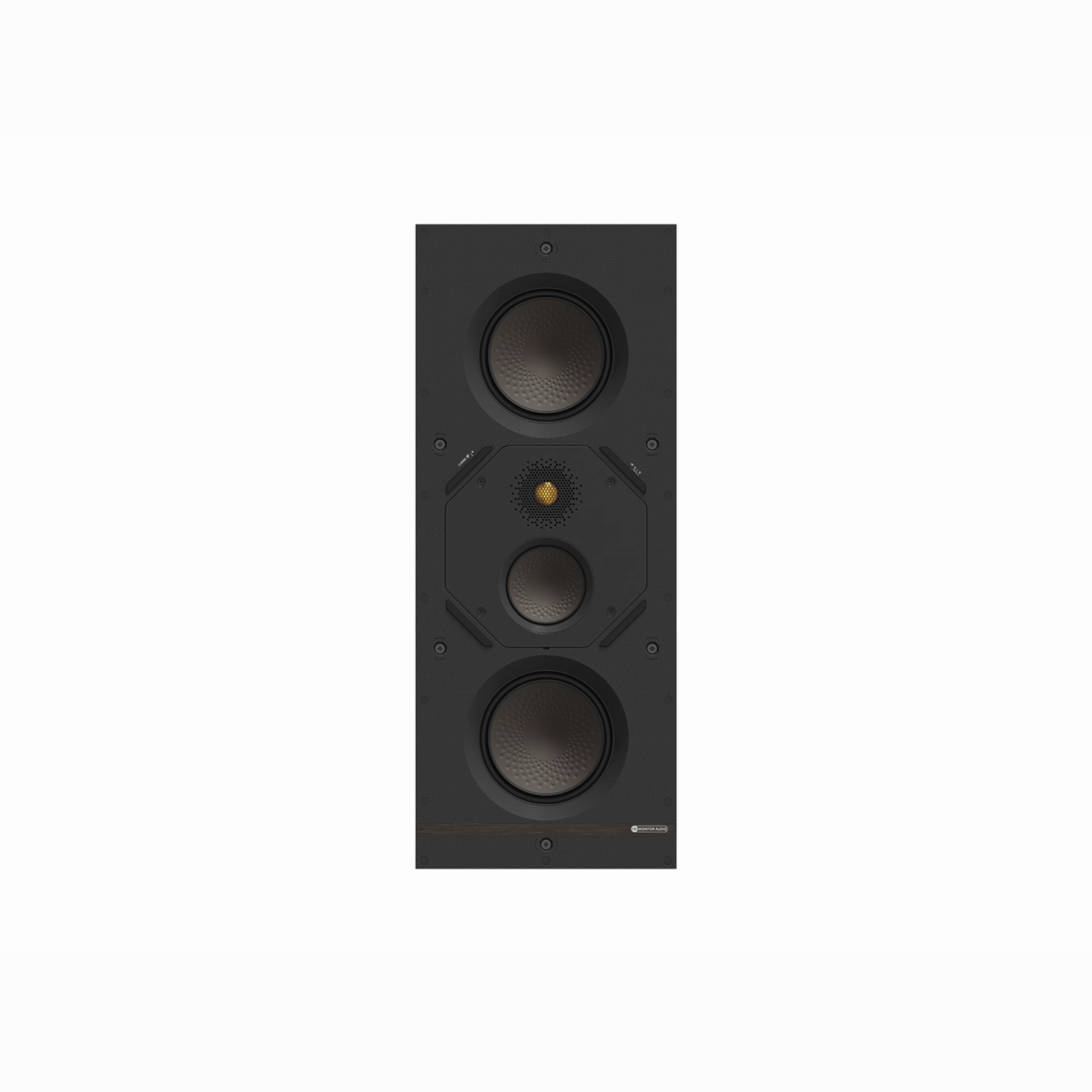

This medium-sized Tier 2 in-wall loudspeaker is a three-way model featuring two RST II bass drivers, an RST II mid-range driver and a C-CAM tweeter. It has a cut-out dimension of 527 x 198 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
Key Features:
- Ideal for installations where pristine acoustic performance is required
- Three-way design
- 1 x 1"(25 mm) C-CAM tweeter with UD Waveguide II for lifelike sound
- 1 x 3" (76 mm) RST II mid-range driver
- 2 x 5" (127 mm) RST II bass drivers for full bass
- Patented Quik-Link speaker cable connector for quicker installation(UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
This medium-sized Tier 2 in-wall loudspeaker is designed to deliver pristine, engaging acoustics where high-performance sound is a key requirement. It is a three-way model featuring two RST II bass drivers, an RST II mid-range driver and a C-CAM tweeter. This combination clear and lifelike high-fidelity sound of the quality youd expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 527 x 198 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Specifications:
| Drive Units Complement | 2 x 5 RST II bass driver, 1 x 3 RST II midrange driver, 1 x 25mm C-CAM tweeter |
| Nominal Impedance | 6 Ohms |
| Amplifier Requirement | 45-180 W |
| Continuous Power Handling | 120 W |
| Sensitivity (2.83v @ 1m): | 87 dB |
| Cut Out Size | 527 x 198 mm |
| Mounting Depth | 85 mm |
| Dimensions | inc. grille: 540 x 211 x 90 mm (21 1/4 x 8 5/16 x 3 9/16) |
| Weight | 3.9 kg (8 lb 9 oz) |
