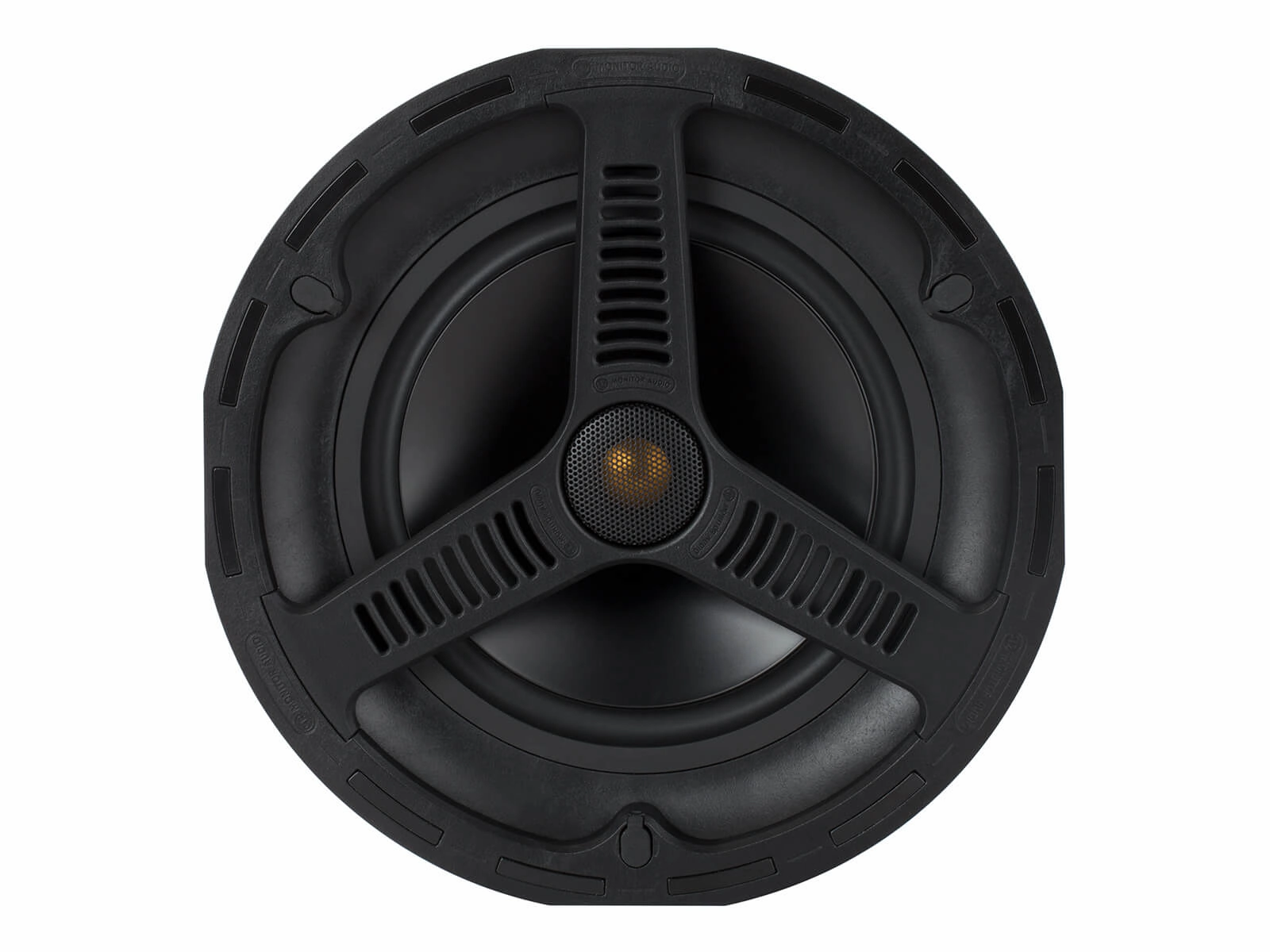

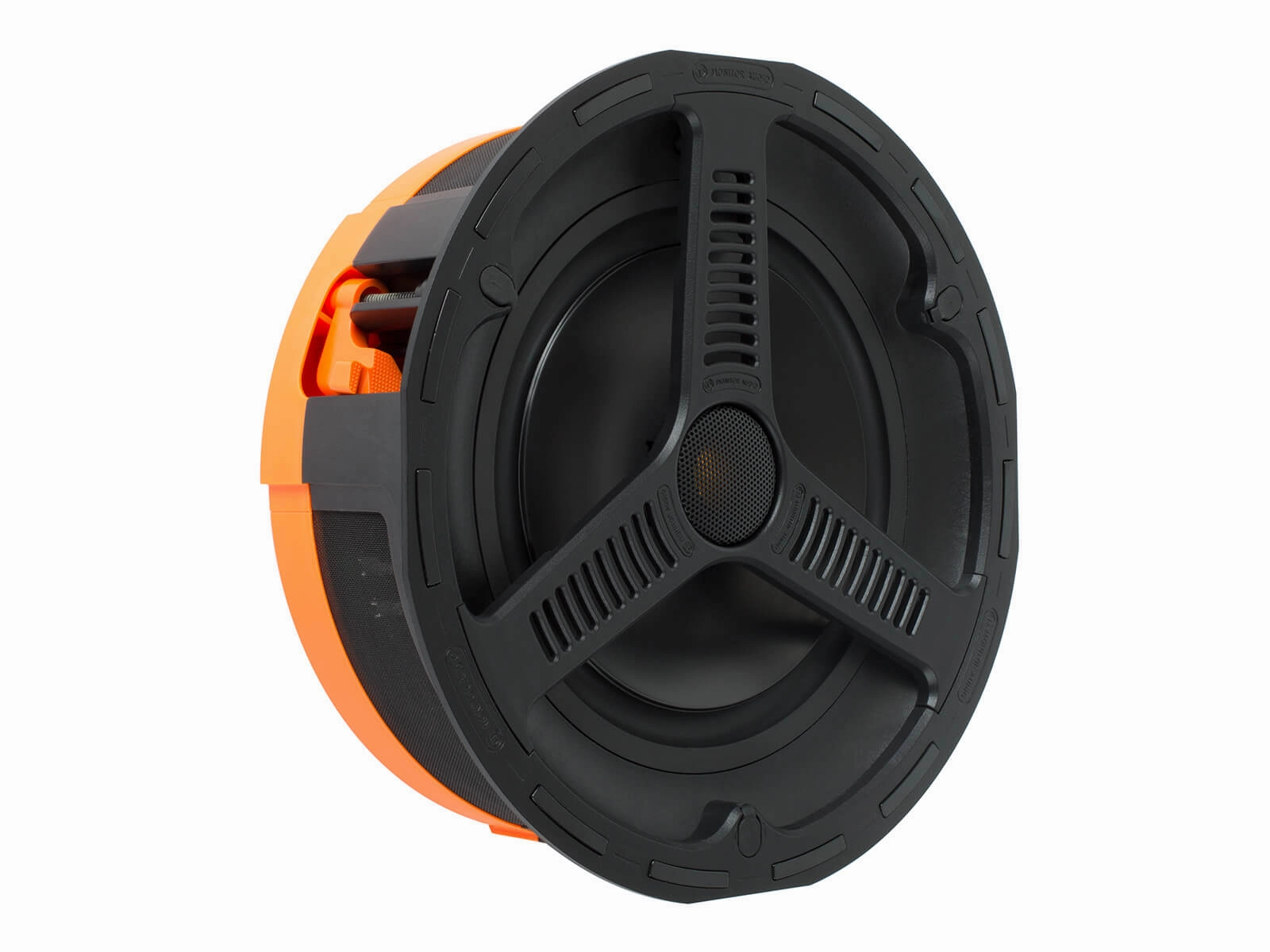

Developed using all C-CAM driver systems derived from our critically acclaimed hi-fi speakers, the AWC280comprises a stylish two-way 8C-CAMbass driver.
Specifications
Frequency Response
50 Hz 30 kHz
Sensitivity (1W@1M)
89 dB
Nominal Impedance
8 ohms
Maximum SPL
109 dBA
Power Handling (RMS)
100 W
Recommended Amplifier Requirements
20 100 W
Drivers
8" C-CAMcone bass driver
1" C-CAMGold Dome tweeter (fixed angle)
Controls
HF Level Switch ( 3 dB / 0 dB / -3 dB) - Adjustable at the point of installation
Adjustment Controls
2 x (1 pair) Gold plated push style terminal
Overall Diameter (Including Grille)
285 mm (111/4")
Overall Depth (Including Grille)
102.5 mm (41/32")
Cut-Out Hole Diameter
247 mm (93/4")
Mounting Depth
97.6mm (37/8")
Optional Square Grille - Outer Dimensions
285 x 285 mm (111/4")
Fixing Type
3 position Tri-Grip dog leg fixings
Construction Material
Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant)
Grille
SS430 Stainless Steel
Magnets
Samarium Cobalt
Operating Temperature Range
-34 to 79 C -29 to 174 F
Weight
2.8 kg (6 lb 2 oz)
Pre-Construction Bracket
Back Box
|
Sold As
Single Unit
