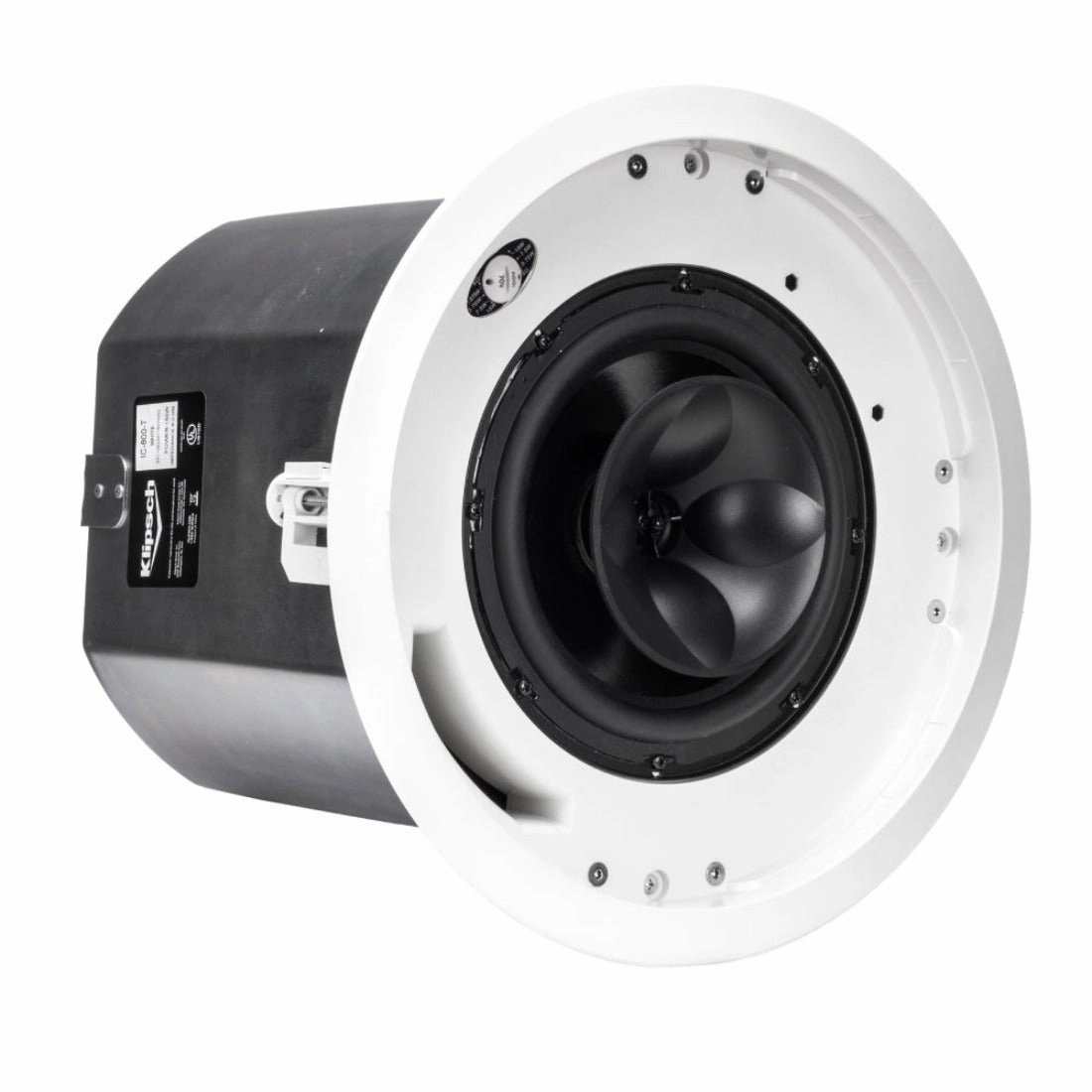

IC-800-T
HIGH OUTPUT, FULL-RANGE 8" 2-WAY
The IC-800-T packs proven materials and Tractrix horn technology into a high performance, install friendly, UL-2043 & 1480 certified loudspeaker with an integrated backcan. For distributed applications, the IC-800-T features a 70/100 volt, 100 watt, multi-tap transformer. A single rotary switch for the 8-ohm bypass and multi-tap settings is conveniently located under the speaker grille.
- Tight 75 degree coverage pattern for high ceiling applications
- 100 watt, low insertion loss, multitap transformer for high output and less compression
- 70-volt, 100-volt or low impedance operation selectable via a front baffle switch
- Tractrix port design for deep bass with improved linear response
- Excellent low-frequency performance for applications where low-frequency bass extension is required
- Designed to mix & match with Klipsch CA-T speakers
Specifications:
Brand | Klipsch |
Color | White |
Speaker Type | In-Ceiling Speaker |
Enclosure type | Bass Reflex via Tractrix Port |
Frequency Response | 49 Hz - 20 kHz |
Power | 400 Watts |
Woofer Size | 8" |
Woofer Bass Driver Size (mm) | 203 mm |
Tweeter | 25 mm |
Impedance () | 8 |
Sensitivity | 92 dB |
Item Sold As | Pair |
Warranty | Australian Manufacturer Warranty |
Dimensions:
Product Dimension (HWD) | 359 x 333 mm (ea) |
Hole Cutout Dimensions | 321 mm (ea) |
Mounting Depth | 324 mm (ea) |
Product Weight | 9.5 Kg (ea) |
