VOLCANIX

SUBWOOFER

Ultimate bass power and extension

Exclusive Krix digital sub amplifier (KDSA)

Precise low frequency reproduction

The ultimate in deep bass for your home theatreor sound system, the Volcanixwill have you diving for cover.

EARTH-MOVING EXPERIENCE

The Volcanix is the peak of home theatre bass delivery. Effortlessly reproducing the sheer energy of a high-powered explosion on your screen, the impact of a kick drum, or the subtleties of a double bass, all at the tip of your fingers.

With push-button controls conveniently located behind the grille, theres no need to pull this subwoofer out from the wall to make adjustments its all right there in front of you.

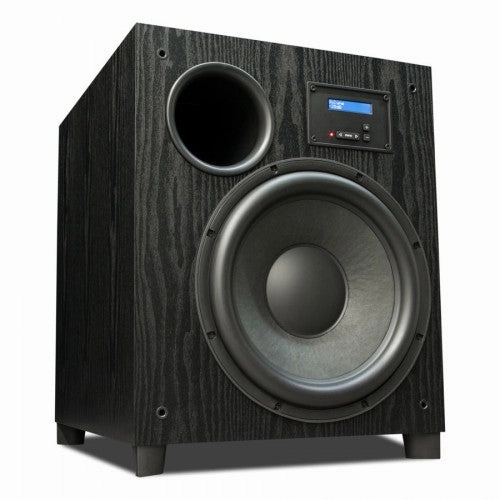

A massively powerful 305mm long-throw bass driver is at the heart of the Volcanix, developed specifically for high-level, low frequency reinforcement. Krixs own amplifier design uses ICEpower class D technology for improved efficiency and lower power consumption.

Simple controls allow for easy set-up,with a back-lit LCD display that fades in brightness after 45 seconds,this extreme bass experience not only sounds great, it looks great too with your choice of classic black woodgrain or five genuine timber veneer finishes.

For the ultimate sound experience at home, play it through Krix.

SPECIFICATIONS

Frequency Range
15Hz-200Hz in room response

Amplifier Power
450 Watts RMS,900 Watts maximum instantaneous power

Output
125dB maximum SPL in room response

Inputs

Stereo line level RCA. High level inputs

Enclosure Type
Bass reflex, front vented

Dimensions
506mm high x 400mm wide x 470mm deep

LowFrequency Driver
Nominal 305mm (12) diameter paper cone driver with 50mm (2) long throw voice coil developed for high level, low frequency reinforcement

Power On/Off
Adjustable Auto/Always On.Adjustable Auto Sensitivity setting and 12V trigger setting

Phase Select
0 to 180 (relative to input signal)

Low Pass Filter

50Hz-195Hz or bypass

Weight

23kg each
