AM-1

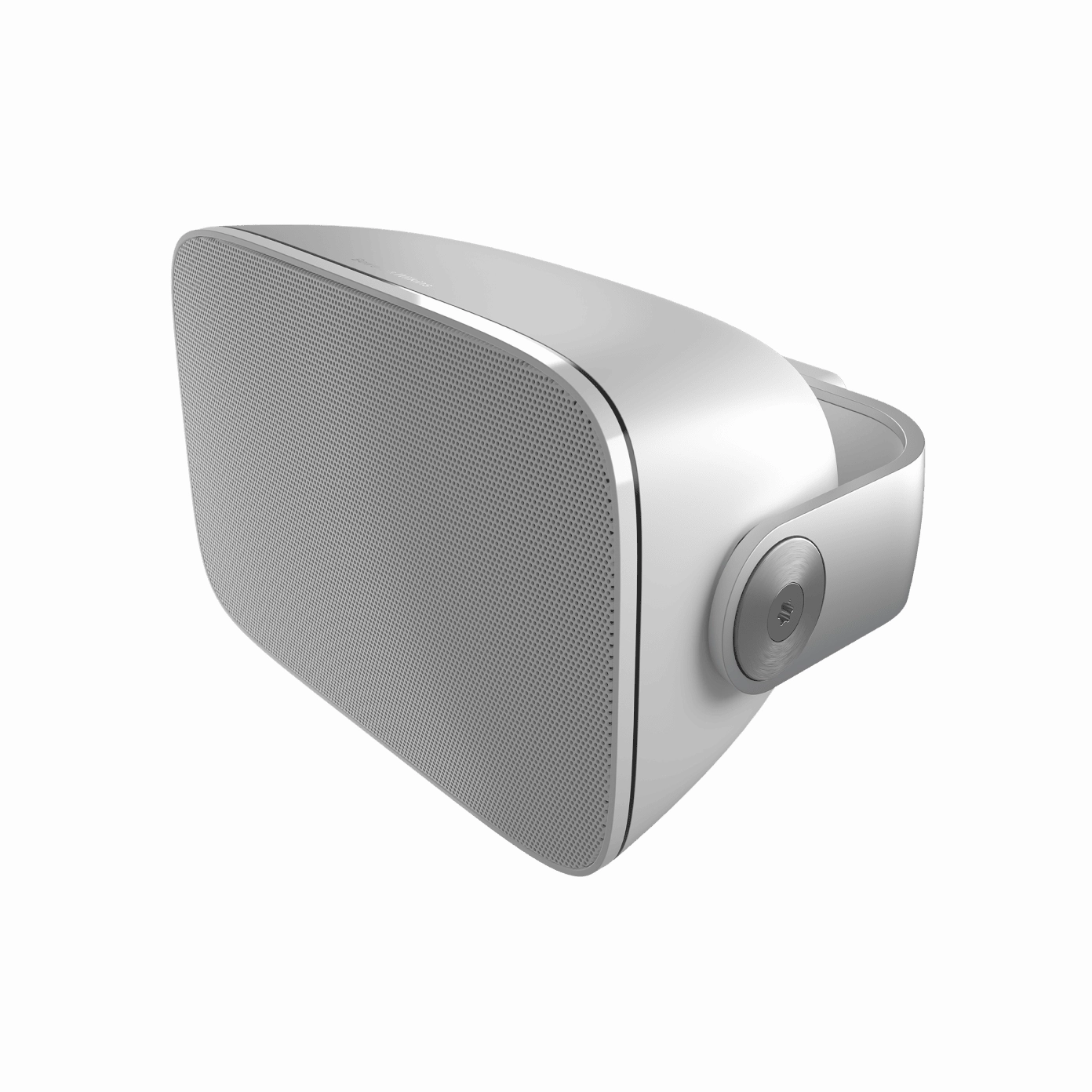

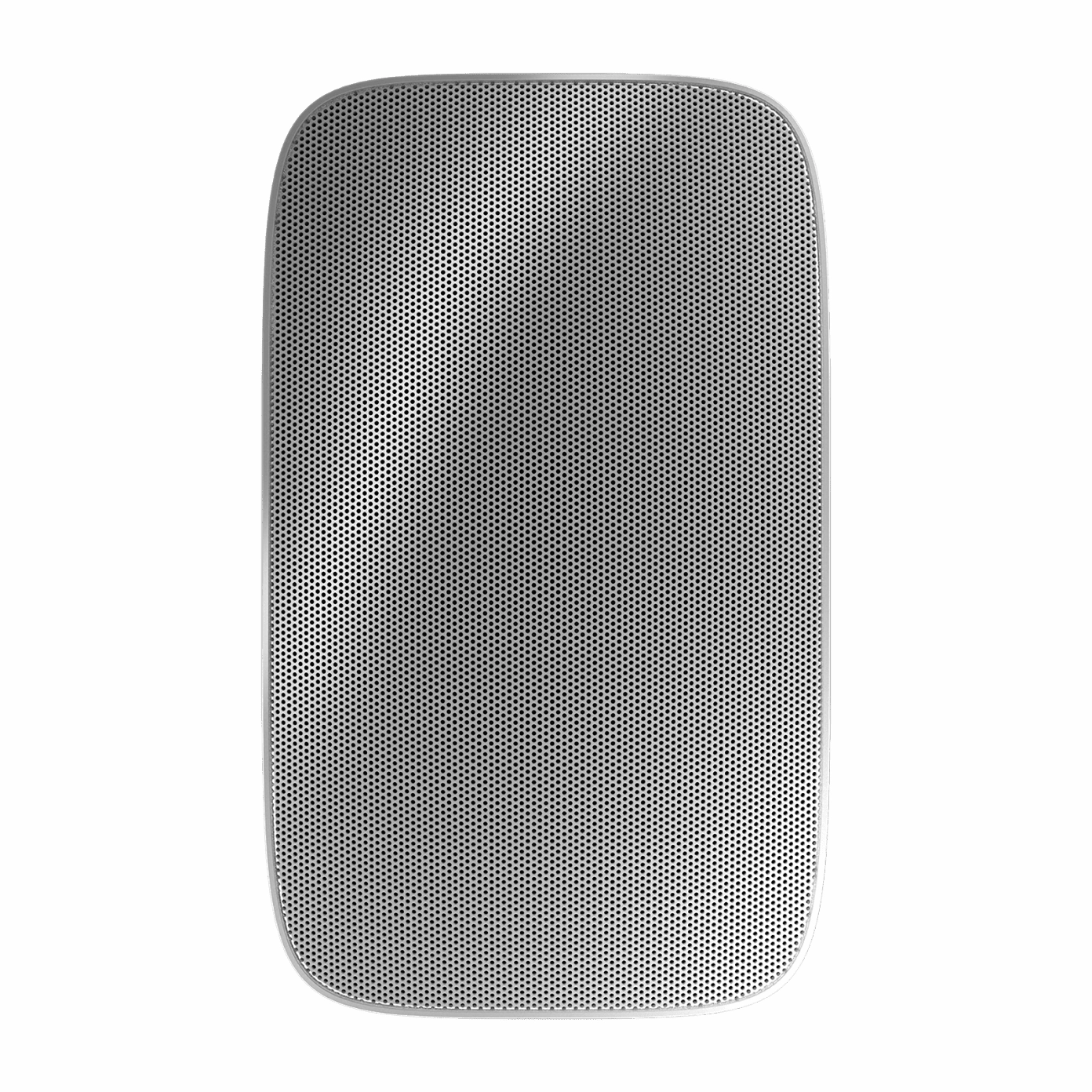

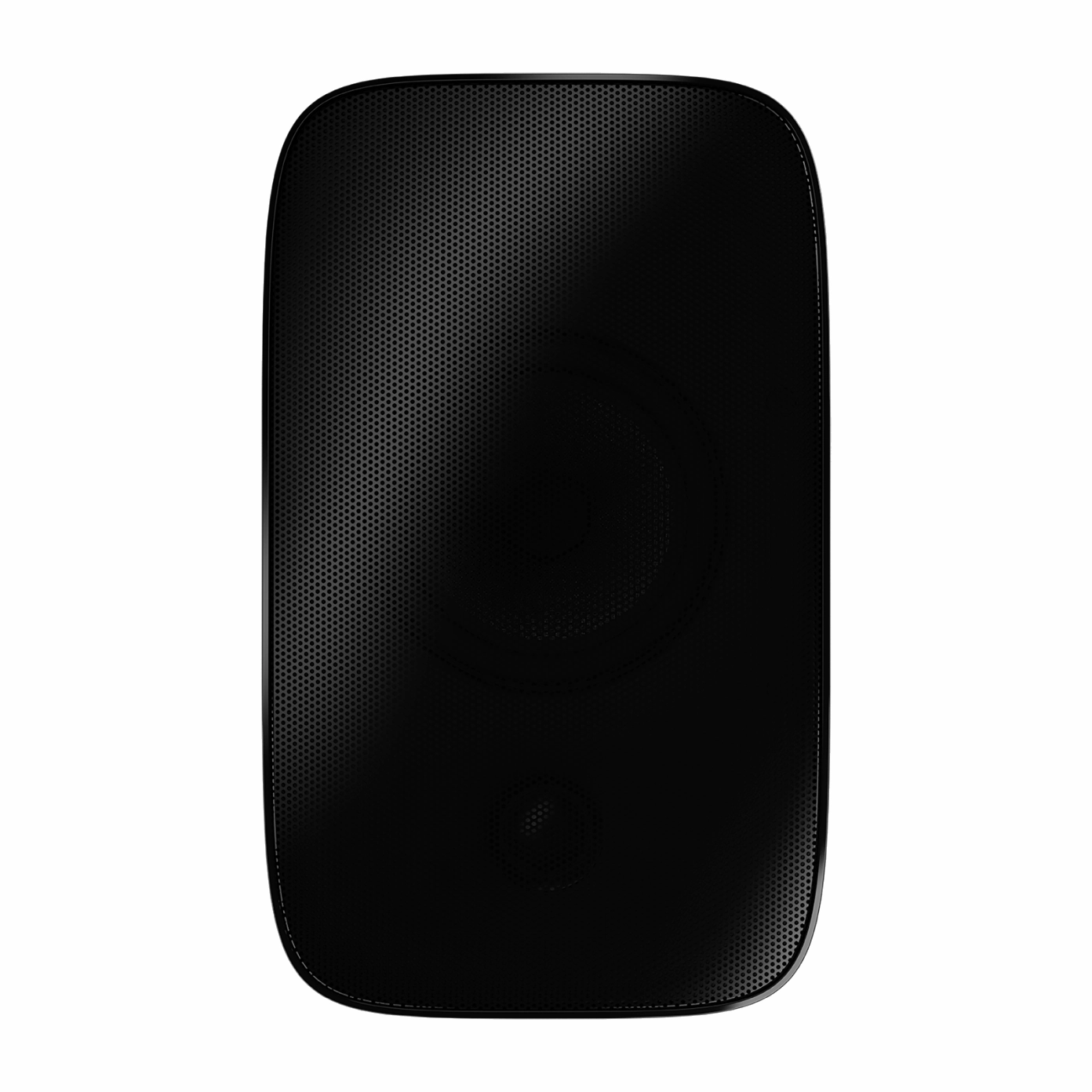

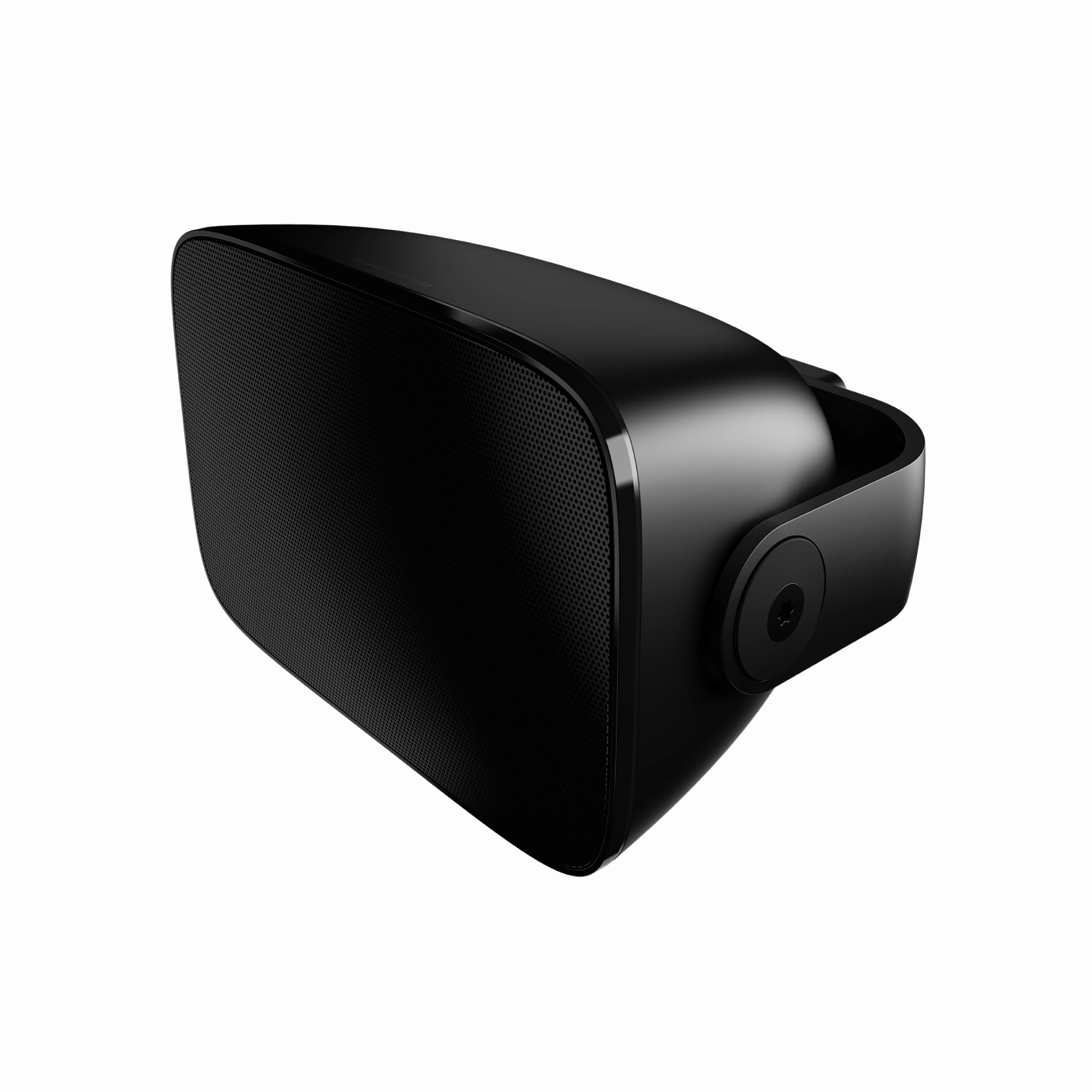

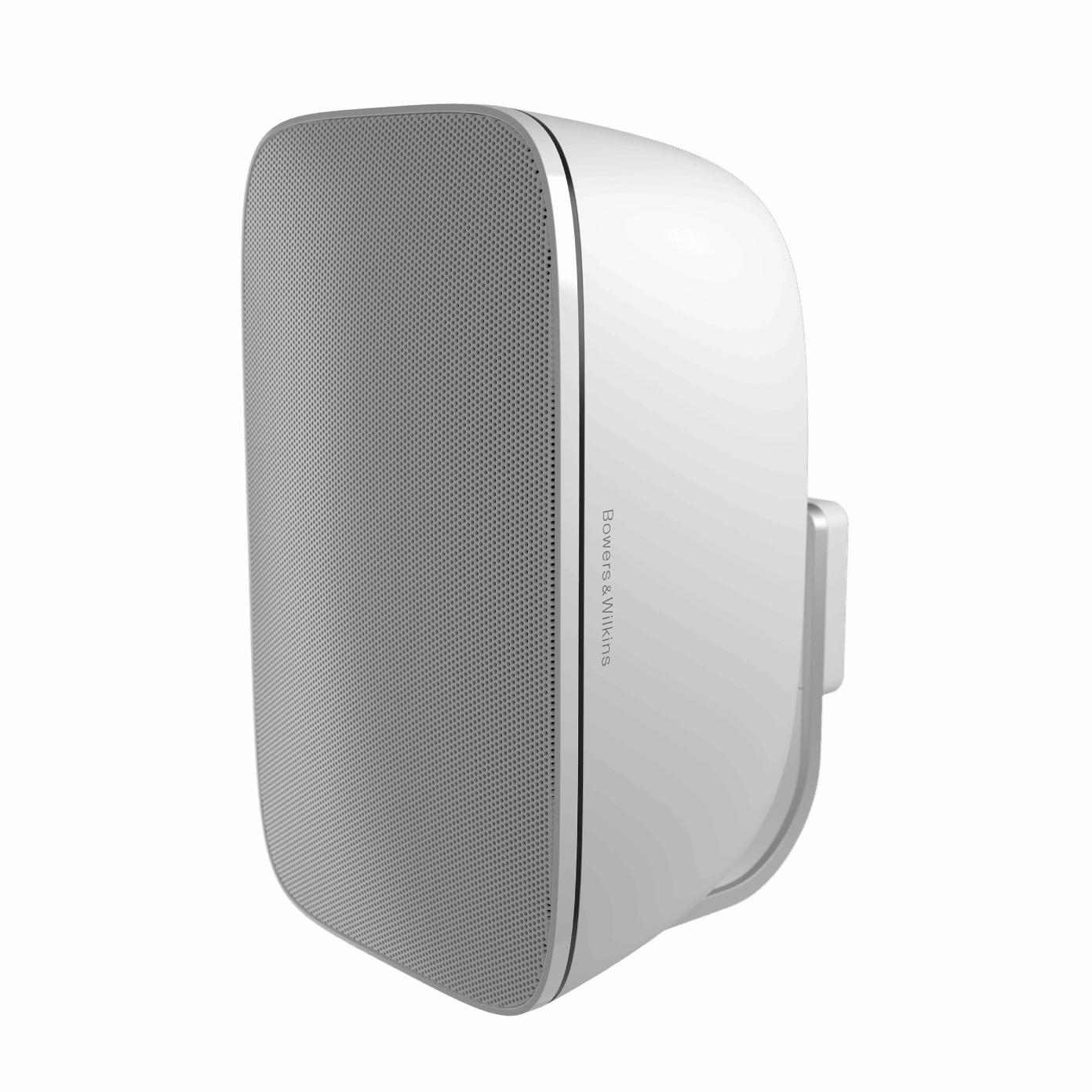

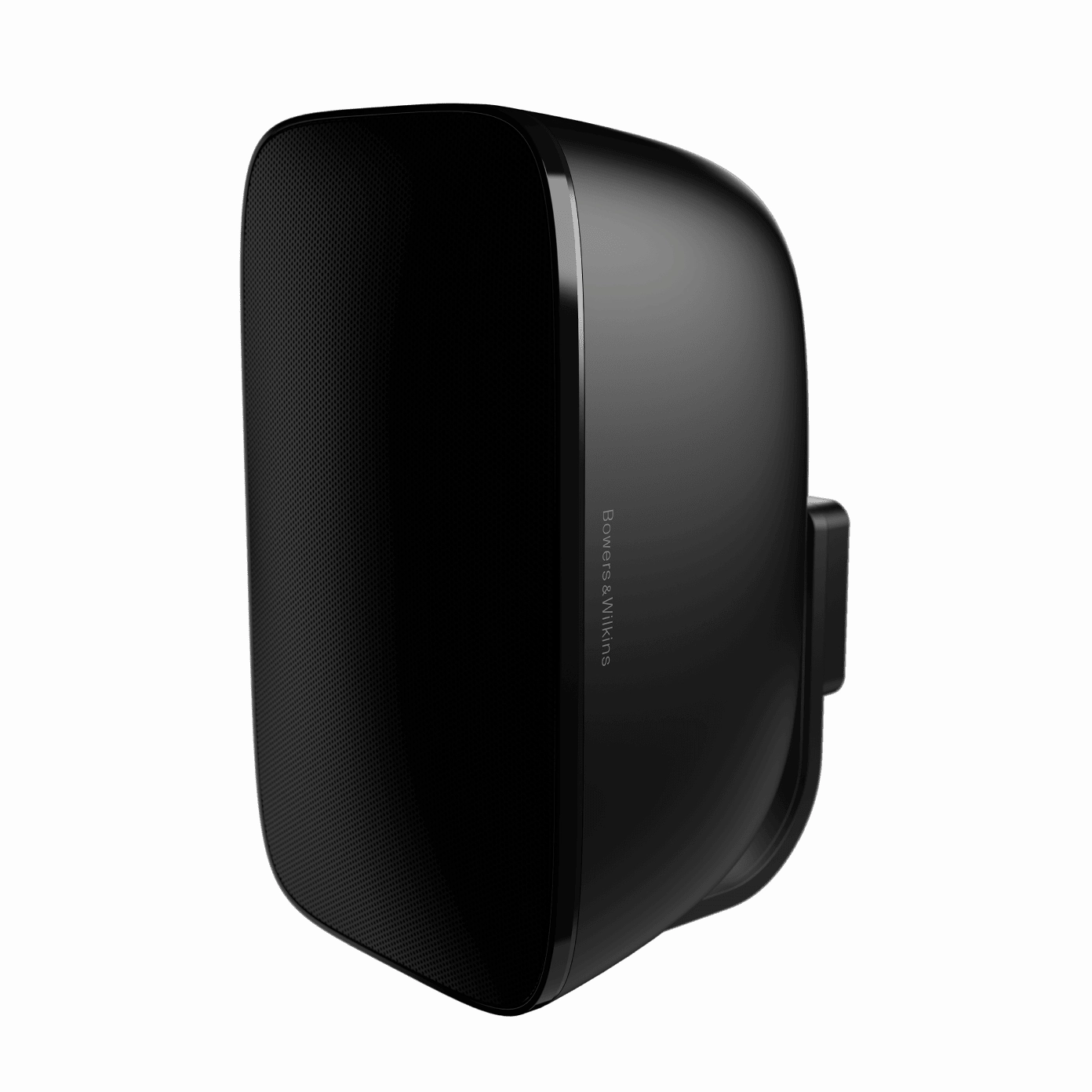

Position vertically or horizontally thanks to the elegant aluminium wall-bracket. Resistant to dust, moisture and UV, the AM-1 is far tougher than it looks.
Performance that endures
AM-1 is entirely sealed, in order to keep the elements at bay. Its tough and hard-wearing too, and its clever one-piece mounting system with 220-degree rotation means its ready to perform wherever you want it to, come rain or shine.
Easy to install, great to listen to
A one-plug, simple-to-install mounting system means AM-1 is happy vertically or horizontally. Plus, smart engineering means AM-1 sounds great whichever way you choose to mount it.
Specified and built without compromise
With our trademark Nautilus tube-loaded 25mm aluminium dome tweeter and 130mm glassfibre mid/bass driver supplemented by an auxiliary bass radiator for solid, powerful bass response, AM-1 has sound and scale way beyond its compact dimensions.
Specifications:
Size & weight
| Dimensions | Height: 310mm (12 1/4in) Width: 180mm (7in) Depth: 210mm (8 1/4in) |
| Net weight | 4kg (8.8lb) |
Finishes
| Finishes | Matte white Matte black |
Technical details
| Technical features | Nautilus tube loaded aluminum dome tweeter Glassfiber cone bass/midrange Auxiliary Bass Radiator (ABR) |
| Description | 2-way system with Auxiliary Bass Radiator (ABR) |
| Drive units | 1x 25mm (1in) aluminum dome high-frequency 1x 130mm (5in) glassfiber cone bass/midrange |
| Frequency range | -6dB at 46Hz and 50kHz (wall mounted) |
| Frequency response | 51Hz - 22kHz on reference axis (wall mounted) |
| Sensitivity | 86dB (2.83V, 1m) |
| Harmonic distortion | <1% 200Hz - 20kHz (86dB, 1m) |
| Nominal impedance | 8 (5.2 min) |
| Recommended amplifier power | 20W - 100W into 8 on unclipped program |
