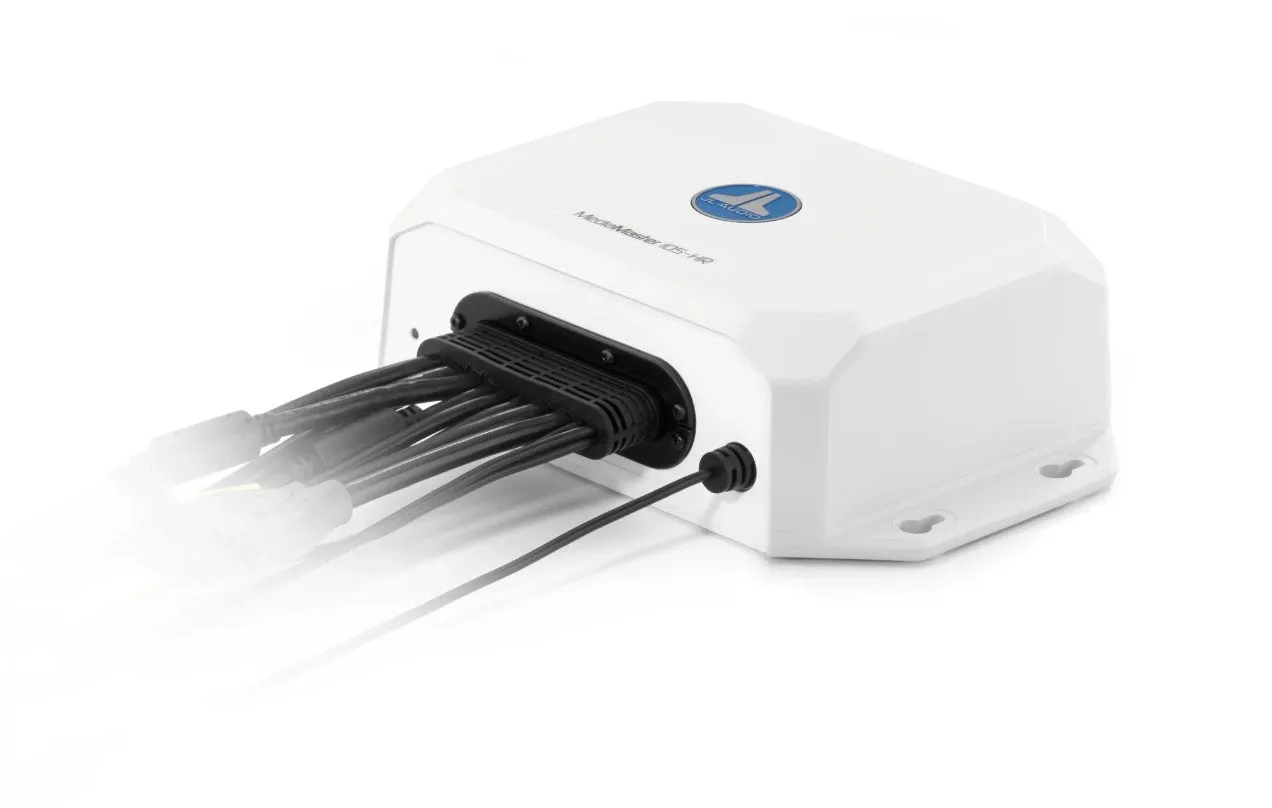

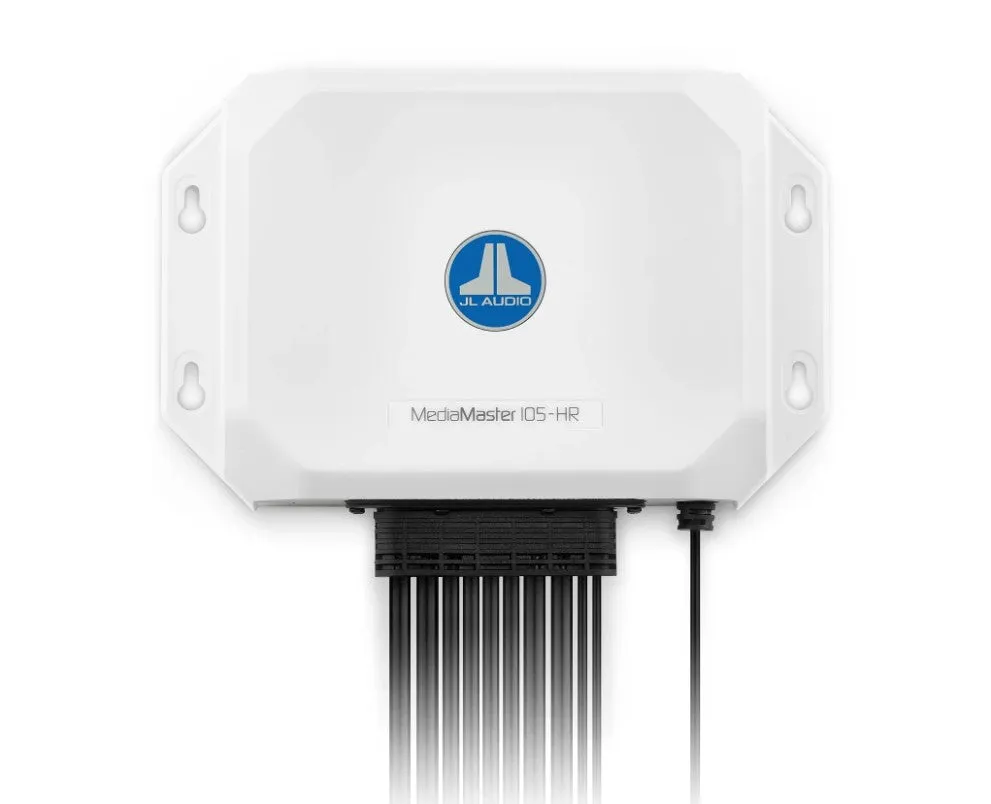

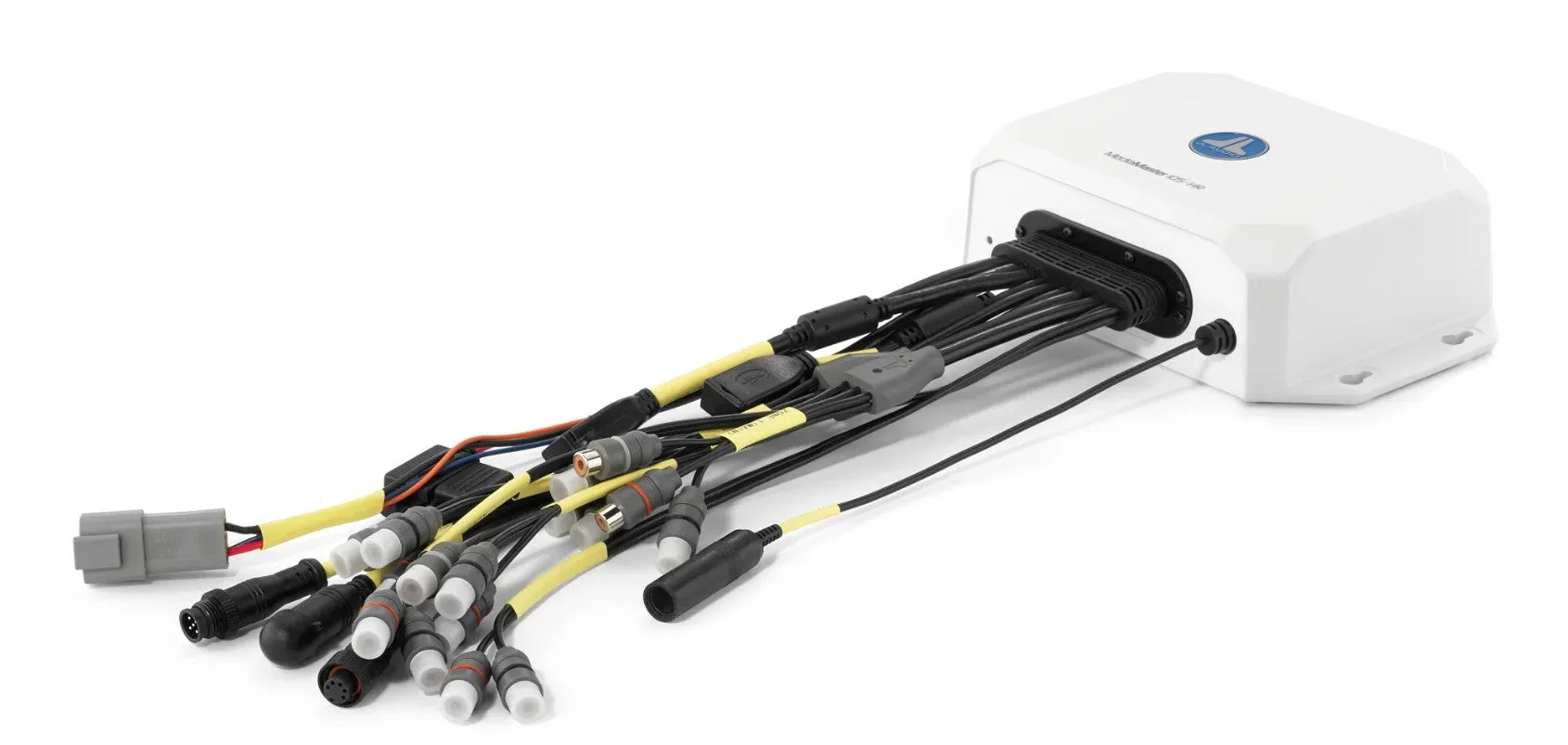

Engineered to operate behind the scenes as a hideaway receiver, the MediaMaster 105-HR includes all features of the MM105, minus the LCD display andphysical controls. This full-featured, concealed source unit delivers top-flight sound performance and advanced audio features specifically designed for marine applications.

Because sound quality is our top priority, the MM105-HR is not equipped with an internal amplifier designed to drive loudspeakers directly. Instead, it offers twelve channels of audiophile-quality, preamp level outputs to deliver crystal-clear signals to high-quality marine amplifiers. These are deployedvia four configurable, nameable audio zones, eachwith its own set of independent control options, making the MM105-HR adaptable to a wide range of system types. On-the-fly, levelcontrols make adjusting eachor all audio zonesabreeze, while a useful volume limit featureensures that nobody gets blasted inadvertently. All zones feature our Zero-Clipping audio circuit design, with self-limiting tone controls to keep the audio clean at high listening levels, reducing the likelihood of speaker damage.

Features:

Two Certified NMEA 2000 Control Options

• NMEA 2000 MFD Control - Use your compatible Multi-Function Display from Garmin, Simrad, Lowrance or Raymarine (refer to MFD manufacturer for compatibility info)
• MMR-40 NMEA 2000 Network Controller (sold separately) - Full-function, water-resistant (IP66 rated) controller with full-color LCD display

Complete command of your marine listening experience:

• 12-channels of audiophile quality, 4V RMS preamp level outputs
• Four separate audio zones, each with independent feature/control options:
  - Volume: control all zones or individual zones, at any time. A fixed output mode is also available.
  - Tone Controls: Bass, Midrange, Treble and Balance can be operated independently or linked with Zone 1
  - Subwoofer Outputs: each zone has its own subwoofer output, with built-in, selectable low-pass crossover (Off/60/80/100 Hz)
  - Customizable zone names for ease of operation
  - Volume Limit: set a maximum allowable volume level for each zone
• All zones feature our zero-clipping audio circuit design, with self-limitingtone controls to prevent speaker system damage.

Built for today's modern media with multiple connectivity options

• Available Digital HD Radio (North America) and DAB Radio (Europe) tuners for the best in broadcast sound quality and selection
• Global AM/FM radio tuner with RDS (Radio Data System), to displayextended FM program info, where available
• SiriusXM-Ready (tuner, antenna and subscription sold separately)
• 24 Favorites: store up to 24 of your favorite channels for quick access, across all tuner bands, including Sirius/XM
• Bluetooth audio streaming with Qualcomm aptX formaximum audio fidelity with compatible devices
• USB1 and USB2 direct-digital connections access music files on your compatibleiPhone or USB storage device; includes 1A and 500mA charging outputs
• AUX1 and AUX2 inputs accepts analog audio signals from a variety of audio sources
• Certified NMEA 2000 Connectivity - MFD (Multi-Function Display) vessel control functionalityusing applicable network cables and connectors (sold separately).
