THX Certified Ultra Architectural Speaker
Ci160RR-THX# is an ultra-high-performance loudspeaker featuring KEF's signature Uni-Q technology, designed for discreet in-ceiling or in-wall installation. As part of the Ci-R Series and a THX Certified Ultra architectural loudspeaker, Ci160RR-THX is engineered to maintain exceptional sound quality at high outputs.

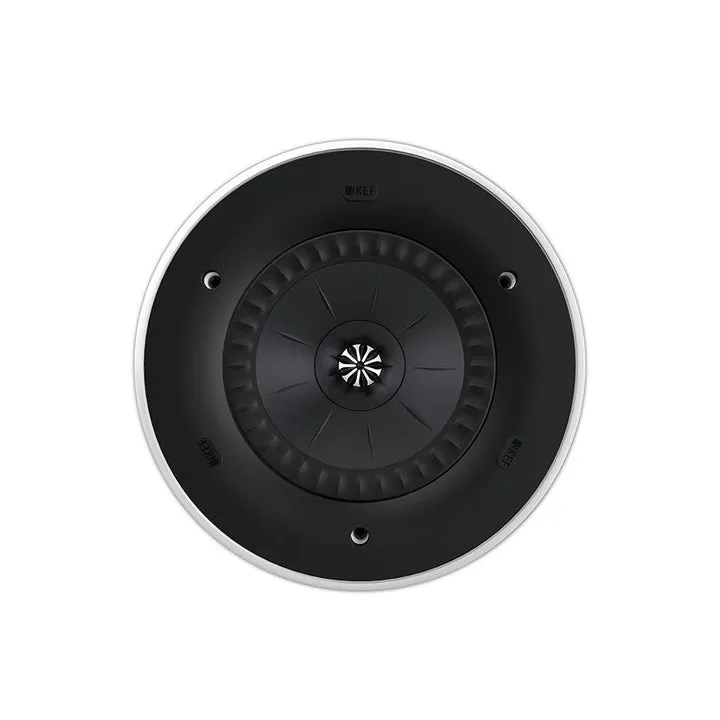

Ci160RR-THX
Ci160RR-THXs Uni-Q array boasts a 25mm high frequency tweeter mounted in the acoustic centre of a 165mm woofer, delivering the same, natural performance across the entire listening area. Plus, a Universal Cut-out system means its opening is the same as any 160mm KEF speaker for ease of installation and component selection.
#To meet THX Ultra distortion specifications, install with 3 litre rear enclosure and set the A/V processor speaker size to small.
#To meet THX Ultra distortion specifications, install with 3 litre rear enclosure and set the A/V processor speaker size to small.
Specifications:
| Model | Ci160RR-THX |
| Nominal Impedance | 4 |
| Sensitivity (2.83V/ 1m) | 90dB |
| Frequency response (6dB) open-backed | 52Hz-24kHz |
| Crossover frequency | 2.1kHz |
| Drive units LF HF | 165mm (6.5 in.) 25mm (1 in.) Uni-Q |
| Recommended Amplifier Power | 10-190W |
| Product external dimensions (H x W x D) | 234.6mm 9.24 in. |
| Cut-out dimensions | 196mm (7.71 in.) |
| Net Weight | 2.94 kg (6.48 lbs) |
| Mounting depth from surface | 110 mm (4.33 in.) |
| Optional rough in frame | RIF160R |
