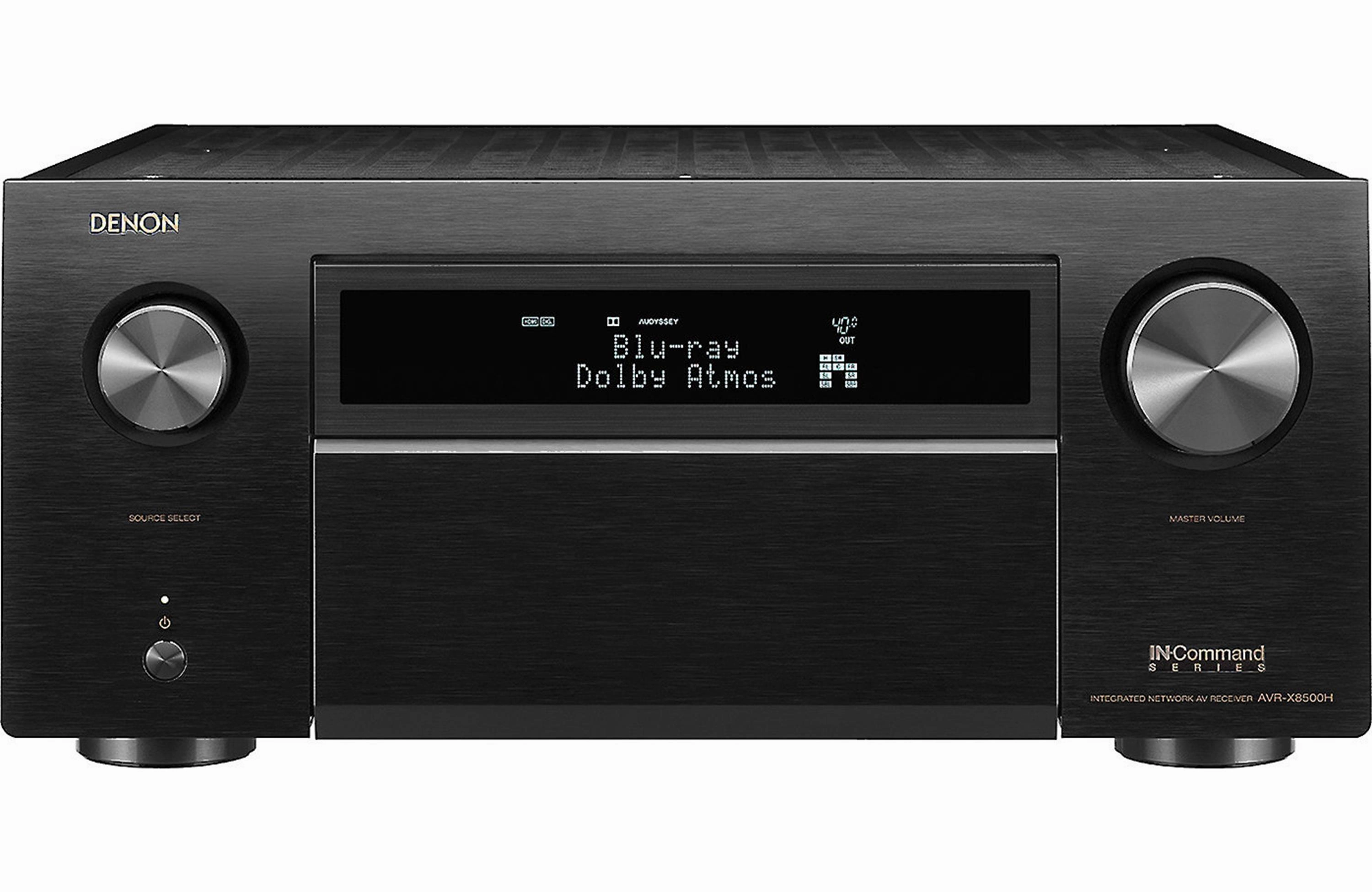

AVC-X8500H
POWERFUL 13.2 CHANNEL HOME THEATRE EXPERIENCE
The AVC-X8500H ushers in a leading-edge home theatre experience with 13 channels of built-in amplification to enable premium 3D surround sound up to 7.2.6 without external amplification and supports latest 4K Ultra HD picture standards.
BLOCKBUSTING 3D-SOUND
Surround yourself in cinema-grade sound from literally any direction.
SOUND IN THE RIGHT PLACE
Immerse yourself in multi-dimensional audio with Dolby Atmos. Enjoy a 7.1.6 or 9.1.4 surround sound speaker system with as many as 6 overhead speakers or Dolby Atmos elevation speakers for the ultimate home theatre experience.
BE CLOSER TO THE ACTION
DTS:X immersive audio places sound where it would occur naturally in space, creating a lifelike, multi-dimensional audio experience in the home. The improved immersion and heightened realism draw you into the world of your favourite movies. The included DTS Neural:X gives your movies, games and music a realism unmatched by traditional 5.1 surround sound.
FEEL THE POWER OF LIFE-LIKE SOUND
Auro-3D provides an immersive surround sound experience thanks to dedicated height and overhead channels, in addition to traditional channels supporting up to a 13.2 configuration. Formatting identifies sound objects individually and projects them to different spaces in your listening environment, creating an immersive, three-dimensional sound stage. Auro-3D will be enabled via a future firmware update at no additional charge.
FUTUREPROOF IN ANY WAY

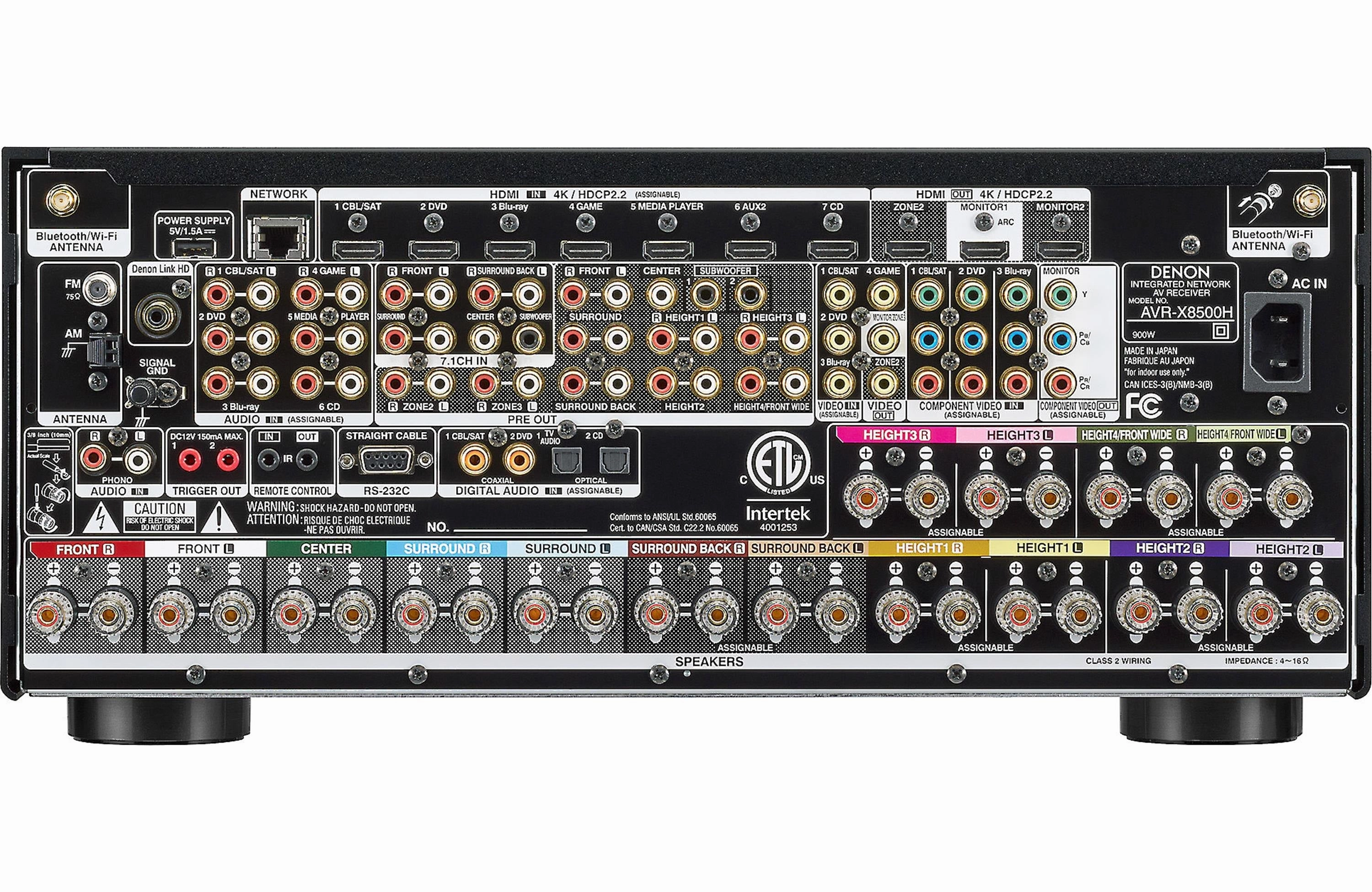

All eight HDMI inputs (including one on the front) and three HDMI outputs feature HDCP 2.2 compatibility and the latest HDMI specifications, including 4K Ultra HD 60Hz video, 4:4:4 Pure Colour sub-sampling, High Dynamic Range (HDR) and 21:9 video, 3D, and BT.2020 pass-through support. It is even ready for Enhanced Audio Return Channel (eARC) for 3D audio playback through TV apps. The eARC feature will be enabled via a future firmware update.
BREATHE NEW LIFE INTO LEGACY SOURCES
The AVC-X8500H boasts an advanced video processor to upscale existing lower resolution video from any analog or digital source to true 4K. With three HDMI outputs, you can even connect a TV and a projector in the main room, while playing back different content on a second zone screen.
NEXT GENERATION VIDEO FORMATS
The AVC-X8500H supports High Dynamic Range (HDR) video format. It is even ready for Dolby Vision and HLG (Hybrid Log Gamma). Dolby Vision transforms the viewing experiences with astonishing brightness, contrast, and colour. HLG offers HDR technology over broadcast content.
Specifications:
Audio section
Power amplifier
Rated output: | Front: |
150 W 150 W (8 /ohms, 20 Hz 20 kHz with 0.05 % T.H.D.) | |
190 W 190 W (6 /ohms, 1 kHz with 0.7 % T.H.D.) | |
Center: | |
150 W (8 /ohms, 20 Hz 20 kHz with 0.05 % T.H.D.) | |
190 W (6 /ohms, 1 kHz with 0.7 % T.H.D.) | |
Surround: | |
150 W 150 W (8 /ohms, 20 Hz 20 kHz with 0.05 % T.H.D.) | |
190 W 190 W (6 /ohms, 1 kHz with 0.7 % T.H.D.) | |
Surround back / Height1 / Height2 / Height3 / Height4/Front wide: | |
150 W 150 W (8 /ohms, 20 Hz 20 kHz with 0.05 % T.H.D.) | |
190 W 190 W (6 /ohms, 1 kHz with 0.7 % T.H.D.) | |
Dynamic power: | 170 W x 2-channel (8 /ohms) |
280 W x 2-channel (4 /ohms) | |
Output connectors: | 4 16 /ohms |
Analog
Input sensitivity: | 200 mV |
Frequency response: | 10 Hz 100 kHz 1, 3 dB (Direct mode) |
S/N: | 102 dB (IHFA weighted, Direct mode) |
Distortion: | 0.005 % (20 Hz 20 kHz) (Direct mode) |
Rated output: | 1.2 V |
Digital
D/A output: | Rated output 2 V (at 0 dB playback) |
Total harmonic distortion 0.008 % (1 kHz, at 0 dB) | |
S/N ratio 102 dB | |
Dynamic range 100 dB | |
Digital input: | Format Digital audio interface |
Phono equalizer
Input sensitivity: | 2.5 mV |
RIAA deviation: | 1 dB (20 Hz to 20 kHz) |
S/N: | 74 dB (IHF-A) |
Distortion factor: | 0.03 % (1 kHz, 3 V) |
Video section
Standard video connectors
Input/output level and impedance: | 1 Vp-p, 75 /ohms |
Frequency response: | 5 Hz 10 MHz 0, 3 dB |
Color component video connector
Input/output level and impedance: | Y signal 1 Vp-p, 75 /ohms PB/ CBsignal 0.7 Vp-p, 75 /ohms PR/ CRsignal 0.7 Vp-p, 75 /ohms |
Frequency response: | 5 Hz 60 MHz 0, 3 dB |
Tuner section | [FM] | [AM] |
(Note: V at 75 /ohms, 0 dBf = 1 x 1015W) | ||
Reception frequency range: | 87.5 MHz 107.9 MHz | 520 kHz 1710 kHz |
Effective sensitivity: | 1.2 V (12.8 dBf) | 18 V |
50 dB sensitivity: | MONO 2.8 V (20.2 dBf) | |
S/N ratio: | MONO 70 dB (IHFA weighted, Direct mode) STEREO 67 dB (IHFA weighted, Direct mode) | |
Distortion: | MONO 0.7 % (1 kHz) STEREO 1.0 % (1 kHz) |
Wireless LAN section
Network type (wireless LAN standard): | Conforming to IEEE 802.11a/b/g/n |
Security: | WEP 64 bit, WEP 128 bit |
WPA/WPA2-PSK (AES) | |
WPA/WPA2-PSK (TKIP) | |
Used frequency range: | 2.4 GHz, 5 GHz |
The Wi-FiCERTIFIED Logo and the Wi-Fi CERTIFIED On-Product Logo are registered trademarks of the Wi-Fi Alliance.
Bluetooth section
Communications system: | Bluetooth Specification Version 3.0 EDR (Enhanced Data Rate) |
Transmission power: | Bluetooth Specification Power Class 1 |
Maximum communication range: | Approx. 98.4 ft/30 m in line of sight 2 |
Used frequency range: | 2.4 GHz |
Modulation scheme: | FHSS (Frequency-Hopping Spread Spectrum) |
Supported profiles: | A2DP (Advanced Audio Distribution Profile) 1.2 |
AVRCP (Audio Video Remote Control Profile) 1.5 | |
Corresponding codec: | SBC |
Transmission range (A2DP): | 20 Hz 20,000 Hz |
The actual communication range varies depending on the influence of such factors as obstructions between devices, electromagnetic waves from microwave ovens, static electricity, cordless phones, reception sensitivity, antenna performance, operating system, application software etc.
General
Power supply: | AC 120 V, 60 Hz |
Power consumption: | 900 W |
Power consumption in standby mode: | 0.1 W |
Power consumption in CEC standby mode: | 0.5 W |
Maximum Dimensions | 43.4 x 49.7 x 19.5 |
*When Network Control in the menu is set to Off In Standby and HDMI Pass Through is set to Off.
For purposes of improvement, specifications and design are subject to change without notice.
