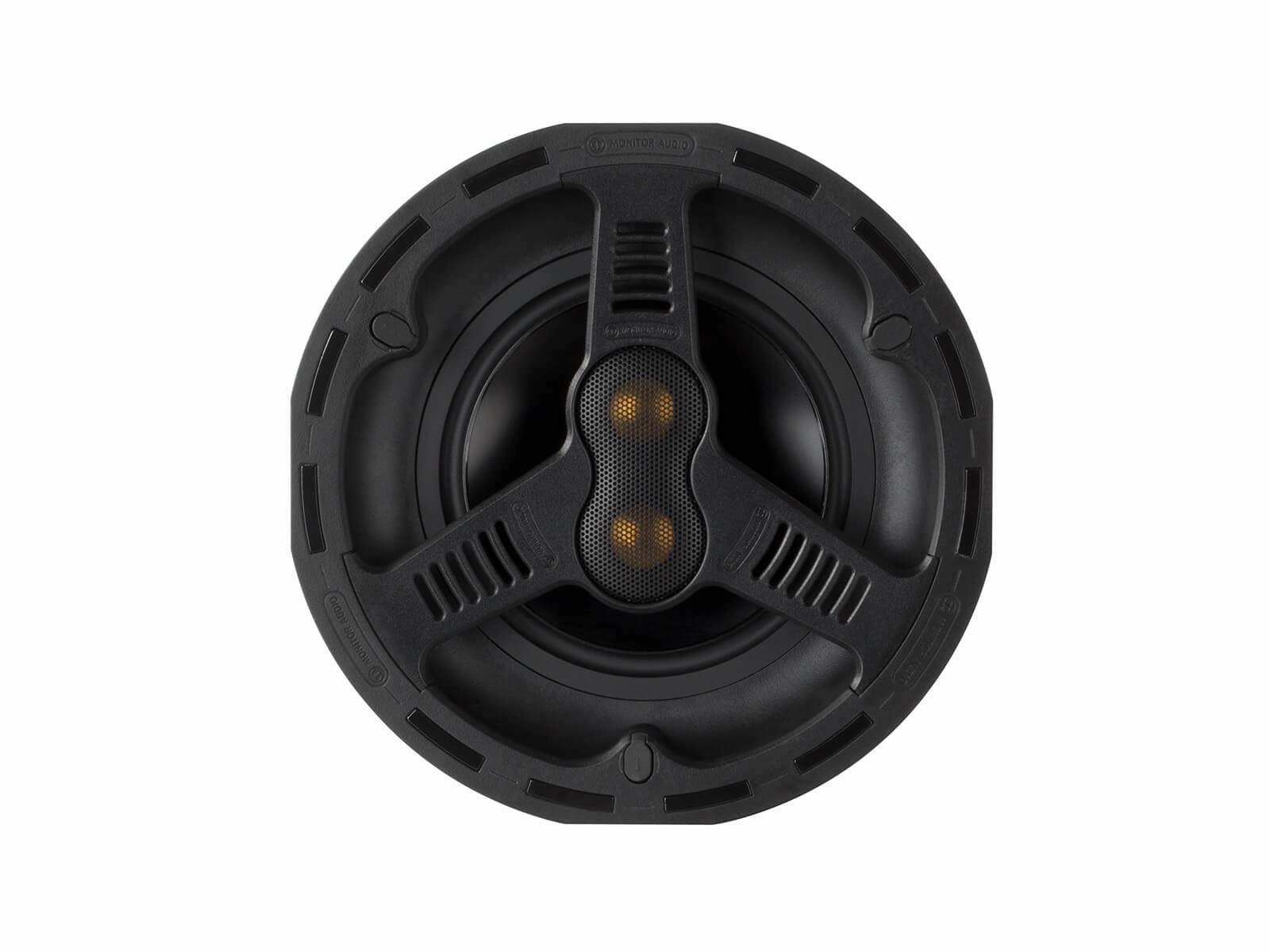

Anodised black for stealthy in-wall/ceiling integration, the C-CAM bass drivers combine co-axially with Monitor Audios renowned 1" C-CAM tweeters, which are twinned and angled on the AWC265-T2 to deliver high performance stereo sound from a single unit where space is limited.
Specifications
Frequency Response
60 Hz 30 kHz
Sensitivity (1W@1M)
88 dB (both channels driven)
Nominal Impedance
8 8 ohms
Maximum SPL
105.8 dBA
Power Handling (RMS)
60 W
Recommended Amplifier Requirements
20 60 W
Drivers
6.5" C-CAMcone bass driver
2 x 1" C-CAMGold Dome tweeters (fixed angle)
Adjustment Controls
HF Level Switch ( 3 dB / 0 dB / -3 dB) - Adjustable at the point of installation
Connection
2 x (2 pairs) Gold plated push style terminal
Overall Diameter (Including Grille)
251.71 mm (915/16")
Overall Depth (Including Grille)
93.5 mm (31/2")
Cut-Out Hole Diameter
211 mm (81/4")
Mounting Depth
88.5 mm (31/2")
Optional Square Grille - Outer Dimensions
249 x 249 mm (93/16")
Fixing Type
3 position Tri-Grip dog leg fixings
Construction Material
Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant)
Grille
SS430 Stainless Steel
Magnets
Samarium Cobalt
Operating Temperature Range
-34 to 79 C -29 to 174 F
Weight
2.04 kg (4 lb 8 oz)
Pre-Construction Bracket
Back Box
|
Sold As
Single Unit
