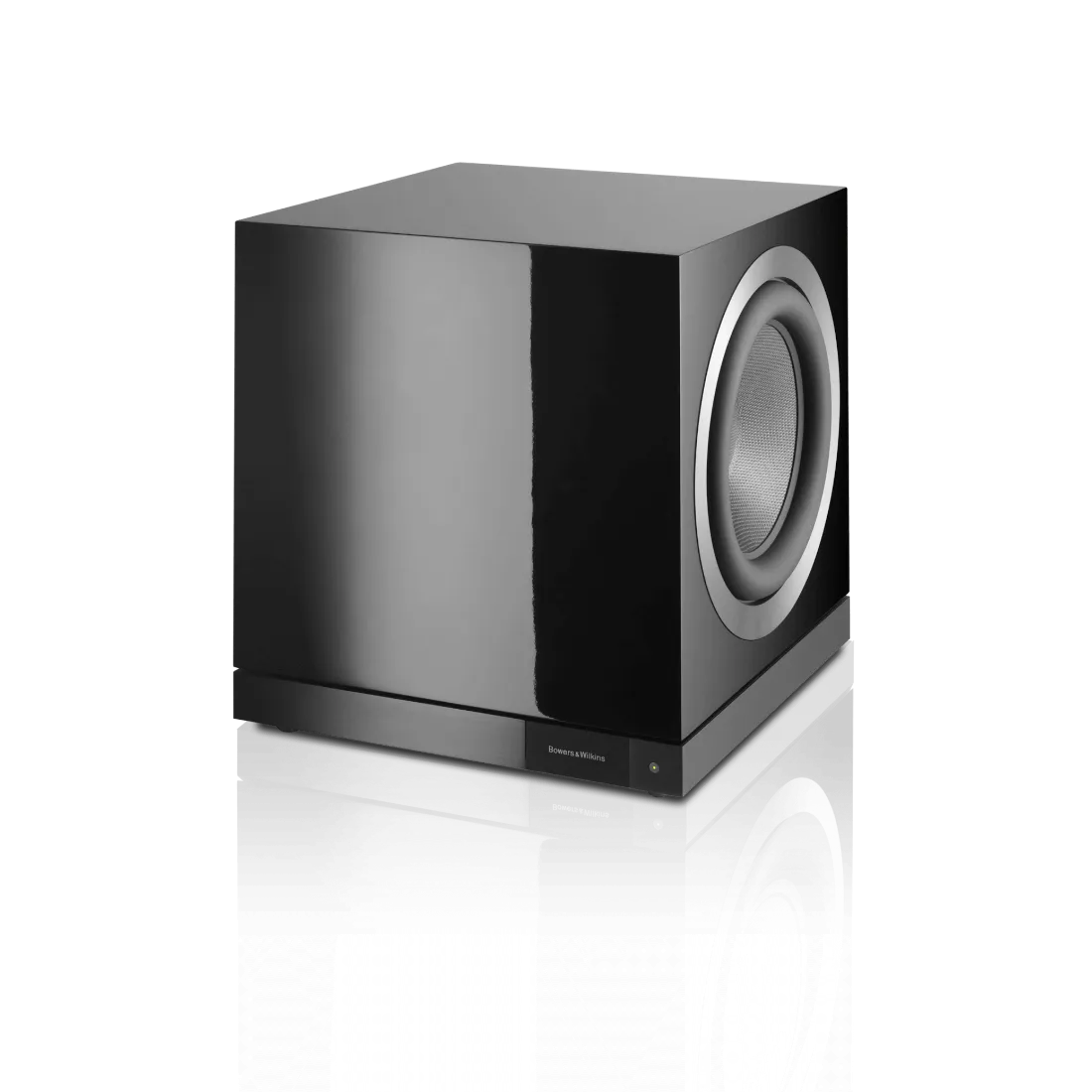

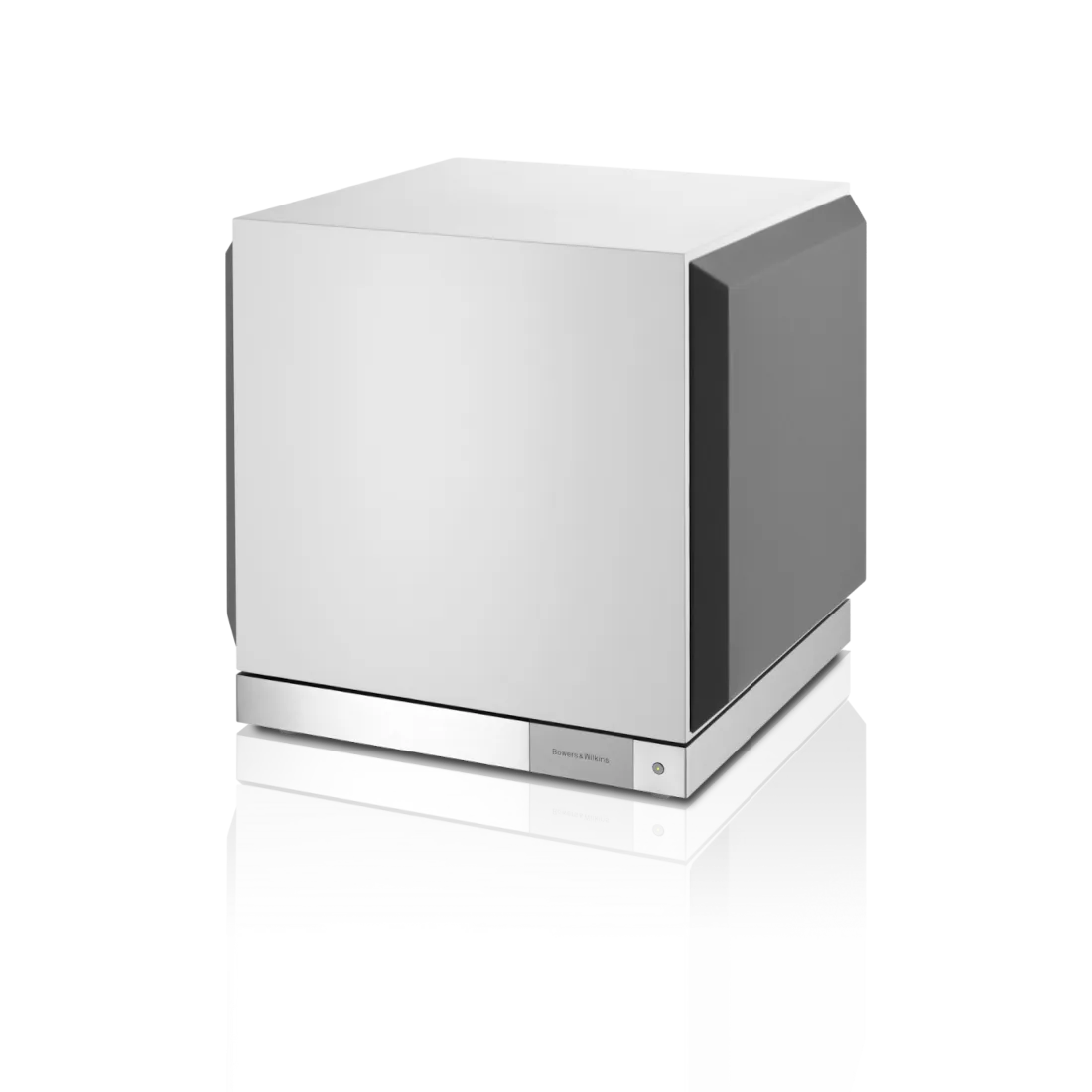

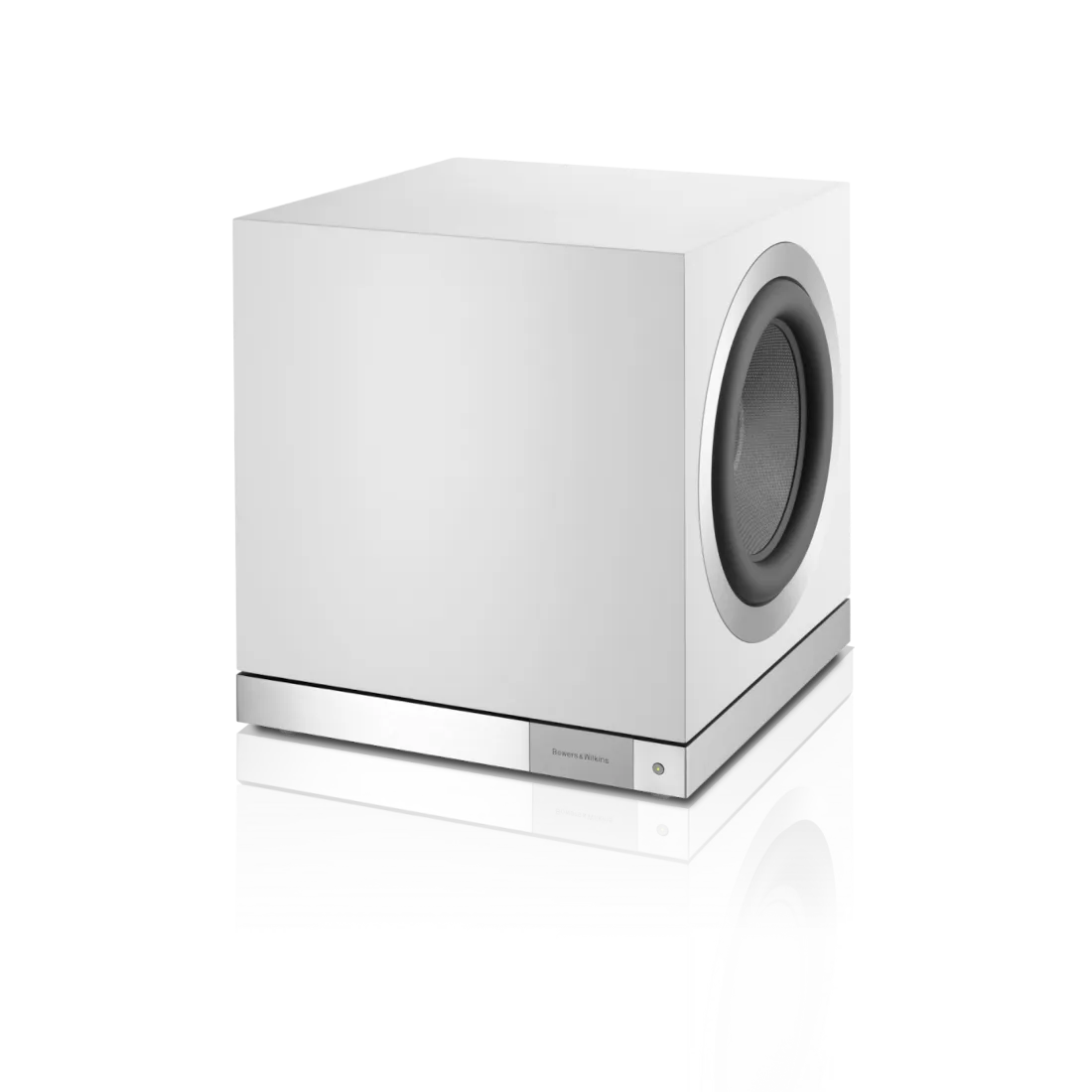

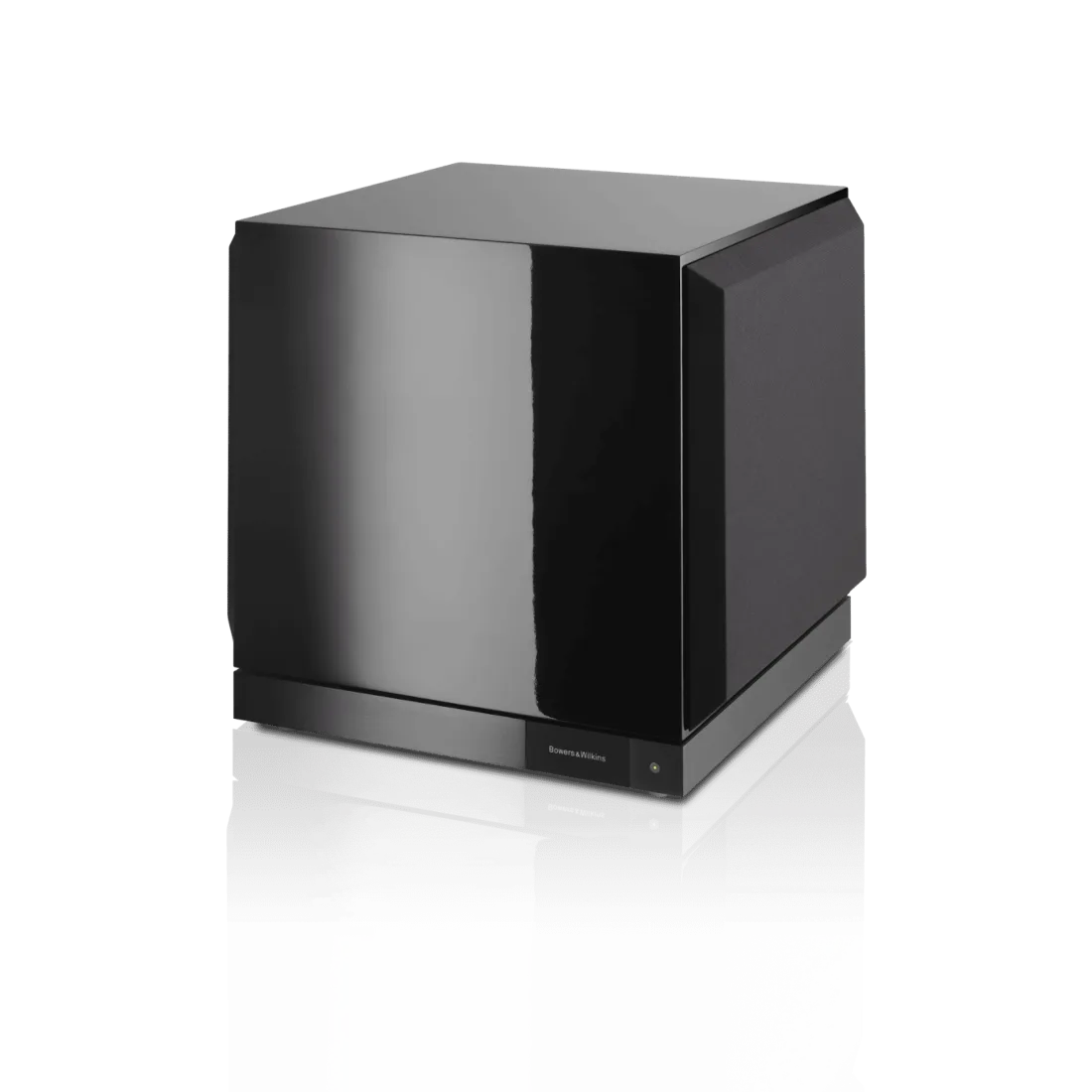

DB1D

Combining 2000 watts of digital amplification with twin balanced Aerofoil drivers for incredible low-end power and speed, DB1D is the best Bowers & Wilkins subwoofer.

Diamondbass

Powerful amplification and ultra-fast Aerofoil drivers: a perfect partner for the acclaimed 800 Series Diamond speakers.

Designed to deliver

DB1Ds ultra-rigid, highly damped enclosure channels all its energy into explosive, tightly-controlled bass.

A smarter approach to bass

DB1D's 2000 Watt amplifier and 12-in drivers are controlled by intelligent processing for best-in-class bass delivery.

Nimble and powerful

Solid, dramatic bass is delivered through the rigidity and lightness of the uniquely-shaped, variable thickness Aerofoil cone.

A question of balance

The back-to-back (opposed) drivers cancel out cabinet resonances, ensuring all that power is used to create room-shaking bass, not wasted vibrations.

The digital advantage

Digital amplification is cool-running and energy efficient, even when working hard, while Dynamic EQ and Room EQ ensure a precise sound for music and movies.

Take control

By placing control in the palm of your hand, our subwoofer app not only makes our DB Series subwoofers a snap to set up, it also helps maximise your sound quality.

Specifications:

Size & weight

Dimensions	Height: 460mm (18.1 in) Width: 429mm (16.9 in) Depth: 410mm (16.1 in)
Net weight	43kg

Technical details

Technical features	2000w Class D Hypex amplifier 2 x 300mm (12 in) Aerofoil-cone drive units in a balanced configuration Digital preamplifier with Dynamic EQ App-based set-up and BT-LE control
Description	DB Series Subwoofer
Drive units	2 x 300mm (12 in) Aerofoil-cone drive units in a balanced configuration
Frequency range	-6dB at 8.5Hz - 500Hz
Frequency response	10Hz - 350 Hz -3dB (centered on level at 100Hz)
Max power output	2000W
Inputs	2 x XLR 2 x RCA 2 x 3.5mm 12V trigger RS-232 - 9-pin D connector
