Part of Monitor Audios Vecta interior/exterior range of architectural loudspeakers, the V240-LV adds further versatility in commercial applications with a 70/100V line level. Its integrated transformer allows multiple speakers in a system without worrying about impedance matching or losses, when long cable runs are required.
Key Features:
- Stylish, compact and versatile architectural design
- Sealed enclosure impervious to All weather environments Rated to IP55
- Intelligent automatic connection system easier to install with no visible wires
- V240-LV 70/100 Volt line operation
- V240-LV power level selection switch for system optimisation (hidden behind the badge)
- V-CLUSTER a pole mount bracket for 360 degree coverage with 4 speakers (V240-LV model only)
- Straight wallV-MOUNTbracket providing 25 degrees of tilt (optional wedge adds extra 32.5 degrees)
- V-CORNERbracket for corner, under eave or back to back installation
- Dual 4" drivers featuring C-CAM metal cone technology
- 25 mm (1") C-CAM Dome tweeter
- High-density ABS enclosure with rust proof stainless steel grille

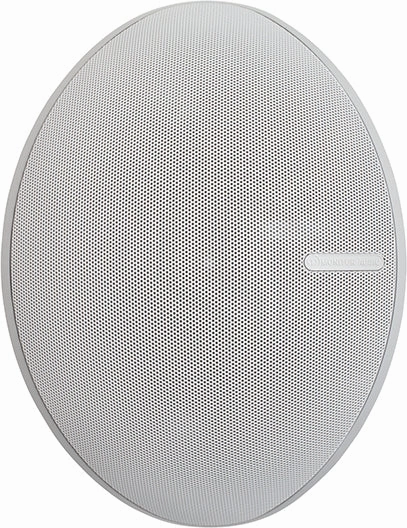

- Available in black or white (Signal White, RAL 9003)
- Paintable to match a custom installation
- Operating temperature range: -25 to 65 C / -13 to 149 F
The V240-LV can be simply installed in places where other speaker choices would prove impractical. In both domestic and commercial locations, the speaker can be wall-mounted (horizontally or vertically) and discreetly installed under eaves or corner.
With an IP55 rating, the V240-LV is designed to withstand extreme environmental exposure and to deliver incredible audio quality for a lifetime. The compact form factor and unique design aesthetics ensure the speaker blends seamlessly into the background, providing architects and installers with a fresh choice for discreet internal and external audio applications.
Driver and System design:
The dual 4" C-CAM metal cone drivers have been developed to be placed on a curved baffle and to deliver a controlled sound field that minimises ceiling or wall reflections, when mounted under eaves or in a corner. The centrally mounted C-CAM tweeter ensures dispersion at the crossover point matches the mid-range, providing smooth off-axis frequency response. The fully sealed box cabinet is resistant to air noise and the ingress of water and dirt.
Product Video:
Fitting:
Once the bespoke bracket is installed and connected, the speaker simply drops into position and is secured with a single screw. This gives a precise electrical connection automatically and with no visible wires. The intelligent design makes it easier to install the speaker in the most difficult locations.
Specifications:
| System Format | 2-way (3 driver) |
| Frequency Response (-6 dB) | 70 Hz 25 kHz |
| Sensitivity (1W@1M) | 88 dB |
| Nominal Impedance | 70/100 Volt line leve |
| Minimum Impedance | N/A |
| Switch | 70 V (2, 4, 8, 16, 32) power level |
| Maximum SPL | 108 dBA (each) |
| Power Handling (RMS) | 100 W |
| Recommended Amplifier Requirements | 25 100 W |
| Bass Alignment | Sealed cabinet |
| Crossover Frequency | 2.5 kHz |
| Connection | Gold plated push terminals attached to bracket |
| Environmental Protection Rating | IP55 -25 to 65 C / -13 to 149 F |
| Bracket Pivot Angle | Wall: 25 degrees. Wedge: Additional 32.5. Total Max: 45. 4-point cluster bracket - vertical. |
| Drive Unit Complement | 2 x 4" Drivers featuring C-CAM metal cone technology, 25 mm (1") C-CAM dome tweeter |
| Dimensions (H x W x D) | 335.9 x 243.2 x 150 mm (13 1/4 x 9 9/16 x 5 7/8") |
| Weight | 3.56 kg (7 lb 14 oz) |
| Finishes | Black or White (Signal White, RAL 9003) |
| Product Weight | 7.88 |
| Color Finish Name | Black |
| Frequency Response | 70 Hz 25 kHz |
| Outdoor Approved | Yes |
| Manufacturer Warranty | 5 Year |
| Collection | Vecta V240-LV |
| Rms Power Handling | 100 |
| Color | Black |
| Maximum Power Handling (Watts) | 100 |
| Number of Speakers | 1 |
| Sensitivity | 88 dB |
