See nothing, hear everything

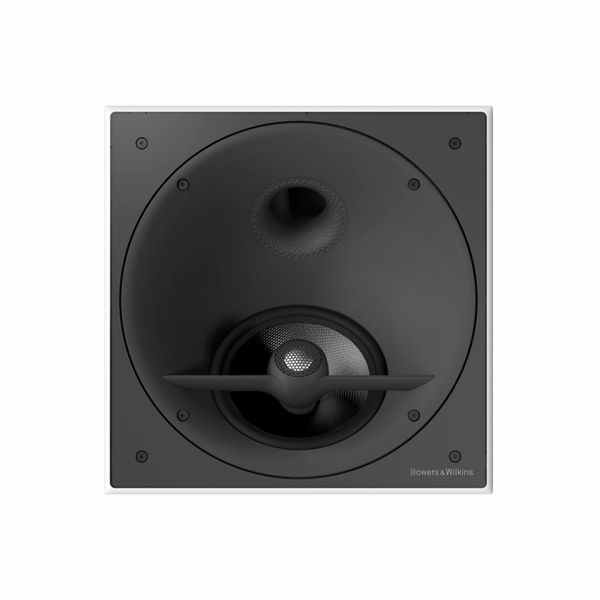

CCM8.5 D is a two-way in-ceiling loudspeaker which offers high-qualityacoustics in an incredibly discreet package.It features a decoupled Diamond dome tweeter and a single 7inchbass/midrange Continuum driver with anti-resonance plug. All the driveunits are located in a rotatable mini-baffle which allows the user to toein the drive units of the loudspeaker for the best performance.
Specifications:
| Description | 2-way in-ceiling loudspeaker |
| Technical features |
|
| Drive units |
|
| Frequency range (-6dB) | 35Hz - 35kHz |
| Recommended Amplifer Power | 120W |
| Sensitivity | 88dB |
| Nominal Impedance | 8 |
| Frame (width/height) | 351mm (13.8in) |
| Cut-out (width/height) | 331mm (13in) |
| Protrusion | 8mm (0.3in) |
| Net weight | 5kg |
| Back Box | BB CCM8.5 |
