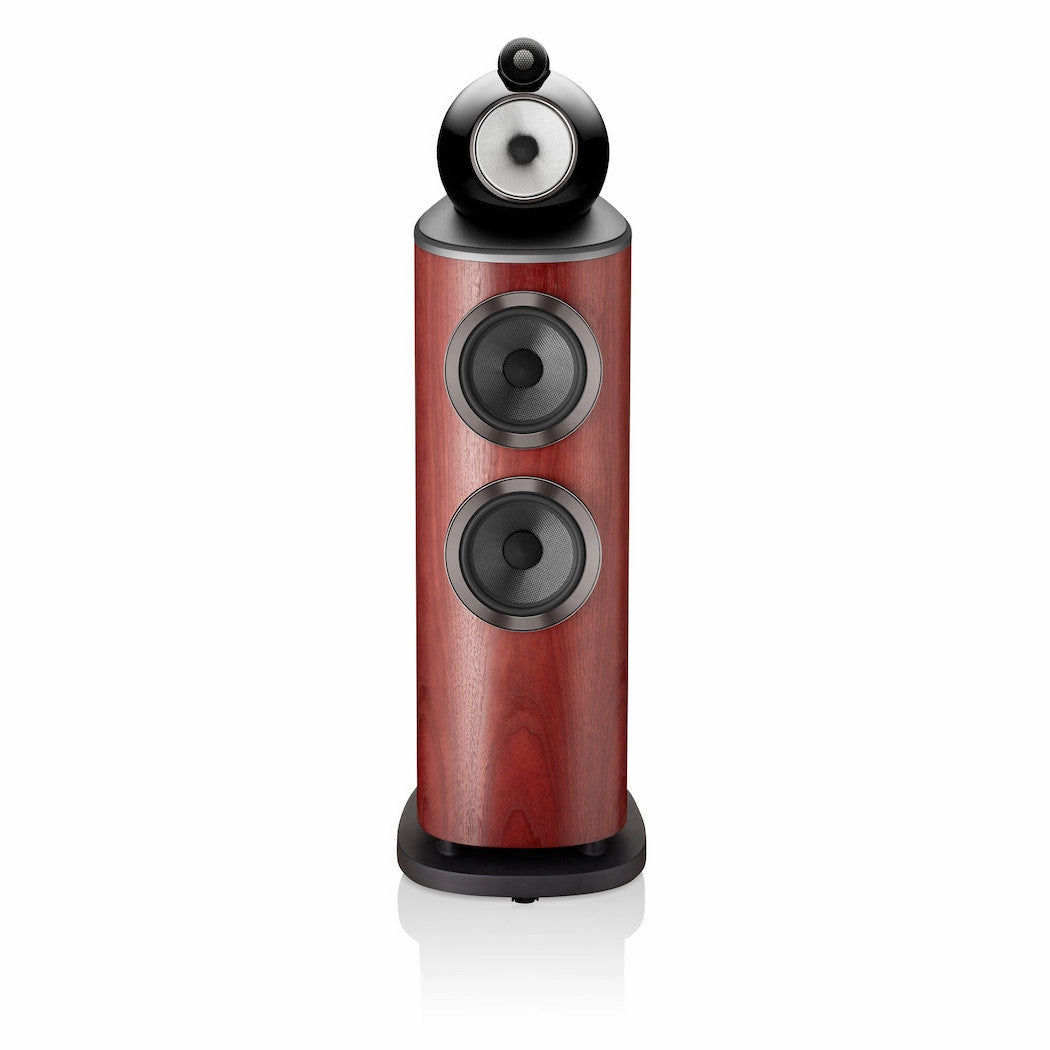

Bowers & Wilkins 803 D4 Floor-Standing Speaker - Each

Bowers & Wilkins 803 D4 Floor-Standing Speaker - Each

$ 70.00

$ 0.00

Unavailable
Bowers & Wilkins 803 D4 Floor-Standing Speaker - Each

Bowers & Wilkins 803 D4 Floor-Standing Speaker - Each

$ 70.00

$ 0.00

Color:
  • Black
  • White
  • Rosenut
  • Walnut
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

Four most compact headed model brings all the technical advantages of a dedicated midrange enclosure the TurbineHead, with its decoupled midrange cone to a smaller footprint thats easily accommodated in any home.

800 Series Diamond

This is not just another speaker range. Each new generation of 800 Series Diamond is a landmark event for Bowers & Wilkins. This is our benchmark, our icon; the most advanced range of loudspeakers we know how to make, equipped with all of our most sophisticated technologies and designed to deliver the upmost in sonic realism. For us, the 800 Series Diamond is everything we know, and everything we are.

Small wonder

803 D4 may be notably more compact than the 801D4 or 802D4, but it still bristles with technical innovation, most obviously in its use of a three-box construction. Its 130mm (5in) midrange cone is carefully isolated from the impact of its bass cones thanks to its Turbine Head enclosure.

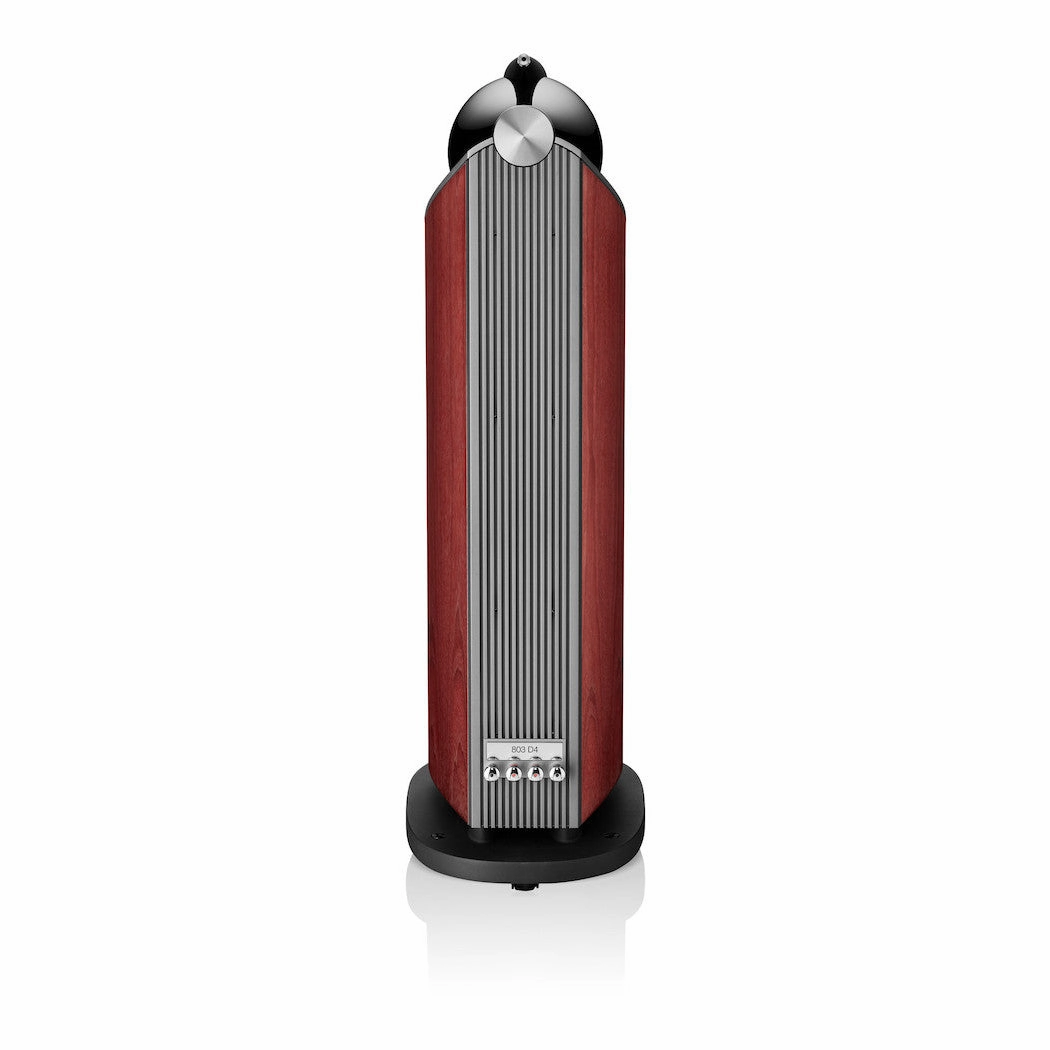

Reverse Wrap cabinet

Instead of a conventional loudspeaker box, our cabinets are made from a continuous curved section of wood, with the drive units mounted at the heart of the curvature. This stiffer, more inert structure resists mechanical resonances far better and also ensures better dispersion of sound.

Enhanced Matrix

Matrix bracing uses interlocking panels to reinforce loudspeaker cabinet walls in all directions internally, reducing resonance and creating a more believable soundstage. The Matrix assembly in 803D4 is our best yet, ensuring optimum scale, power and intelligibility.

Aluminium bass pods

803 D4mounts two Aerofoilbass cones in twin solid aluminium bass pods, each of which is clamped into an aluminium plate fixed to the stiffest part of its curved cabinet. Formed as single pieces of metal, these stiff structures provide the perfect mechanical location for those powerful bass cones.

Want more power?

803 D4 features all the most iconic ingredients in the 800 Series Diamond range including, of course, that famous headed enclosure. It is, however, smaller than its other siblings. Step up to the 802 D4, and youll get both larger 200mm (8in) bass cones and a larger 150mm (6in) midrange driver.

Description

  • 3-way vented-box system

Drive Units

  • 1x 25mm (1in) diamond dome high-frequency
  • 1x 130mm (5in) Continuum cone FST midrange
  • 2x 180mm (7in) Aerofoil cone bass units

Technical Features

  • Diamond tweeter
  • Solid body Tweeter-on-Top
  • Continuum cone FST
  • Anti-Resonance plug
  • Biomimetic Suspension
  • Turbine Head
  • Matrix
  • Aerofoil cone bass units
  • Flowport

Frequency range

  • 16Hz to 35kHz
  • Frequency response ( /-3dB from reference axis): 19Hz to 28kHz
  • Sensitivity (on axis at 2.83Vrms at 1m): 90dB

Harmonic distortion

  • 2nd and 3rd harmonics (90dB,1m on axis)
  • <1% 80Hz 20kHz
  • <0.3% 100Hz 20kHz

Nominal impedance

  • 8 (minimum 3.0)

Recommended amplifier power

  • 50W 500W into 8 on unclipped programme
  • Max. recommended cable impedance: 0.1

Dimensions

  • Height: 1165 mm
  • Width: 357 mm
  • Depth: 511 mm
  • Net weight: 62.15kg

Finishes

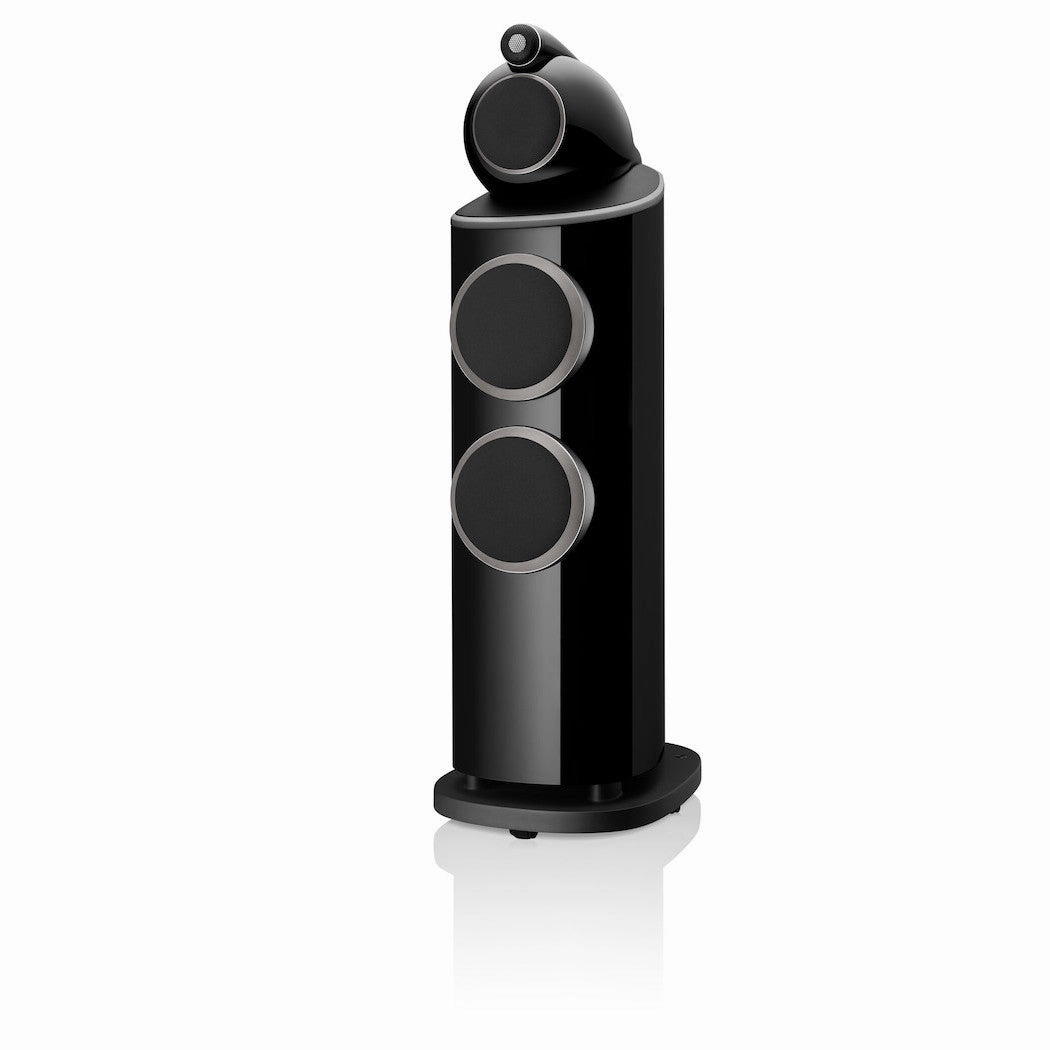

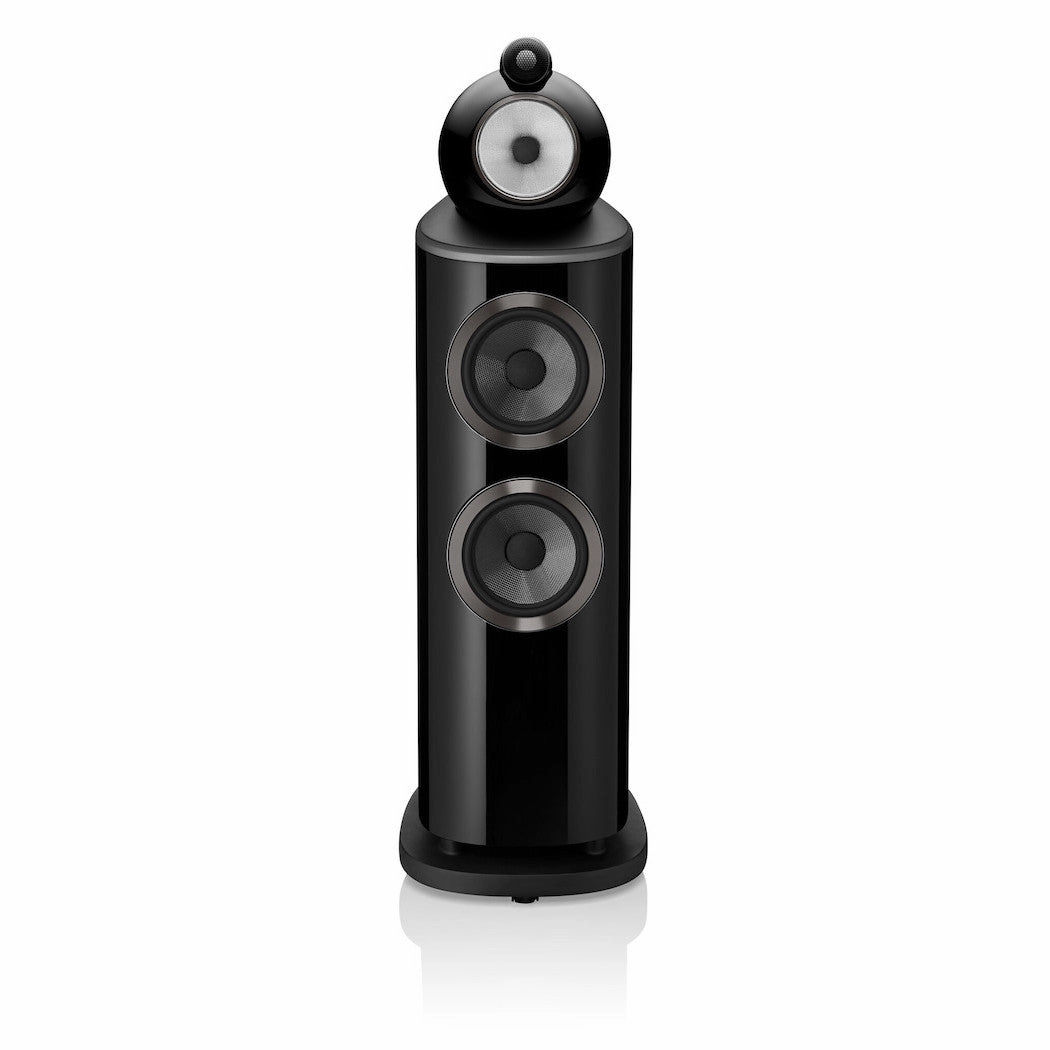

  • Gloss Black cabinet with Black grille

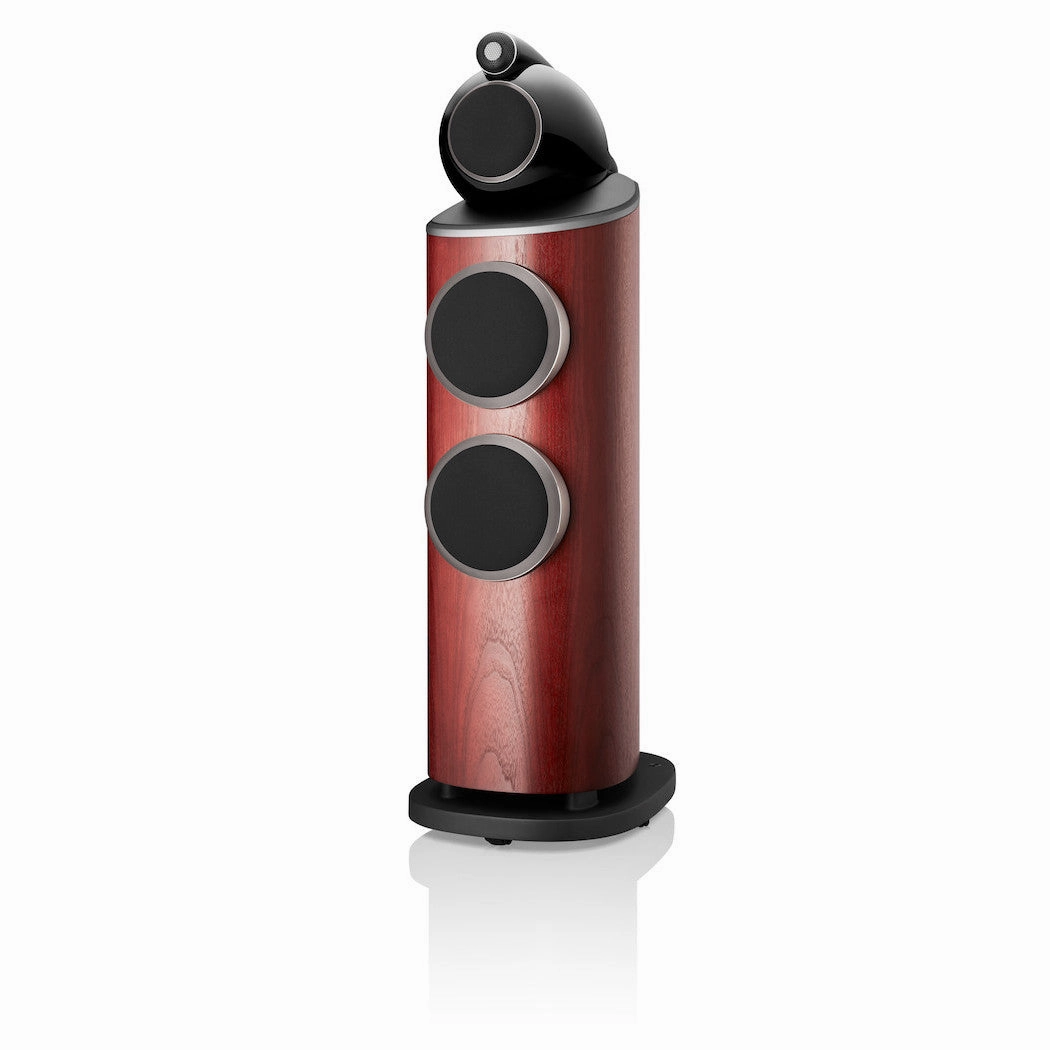

  • Satin Rosenut cabinet with Black grille

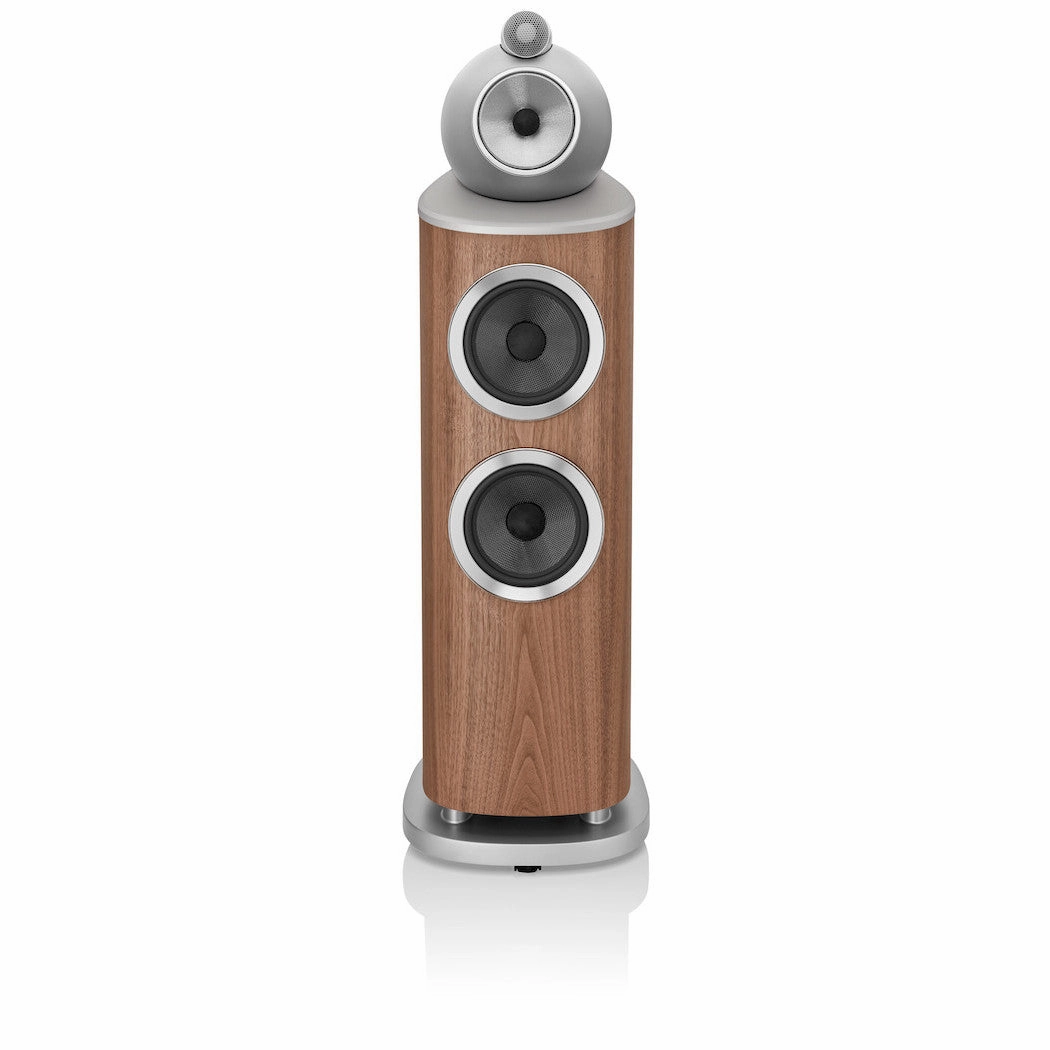

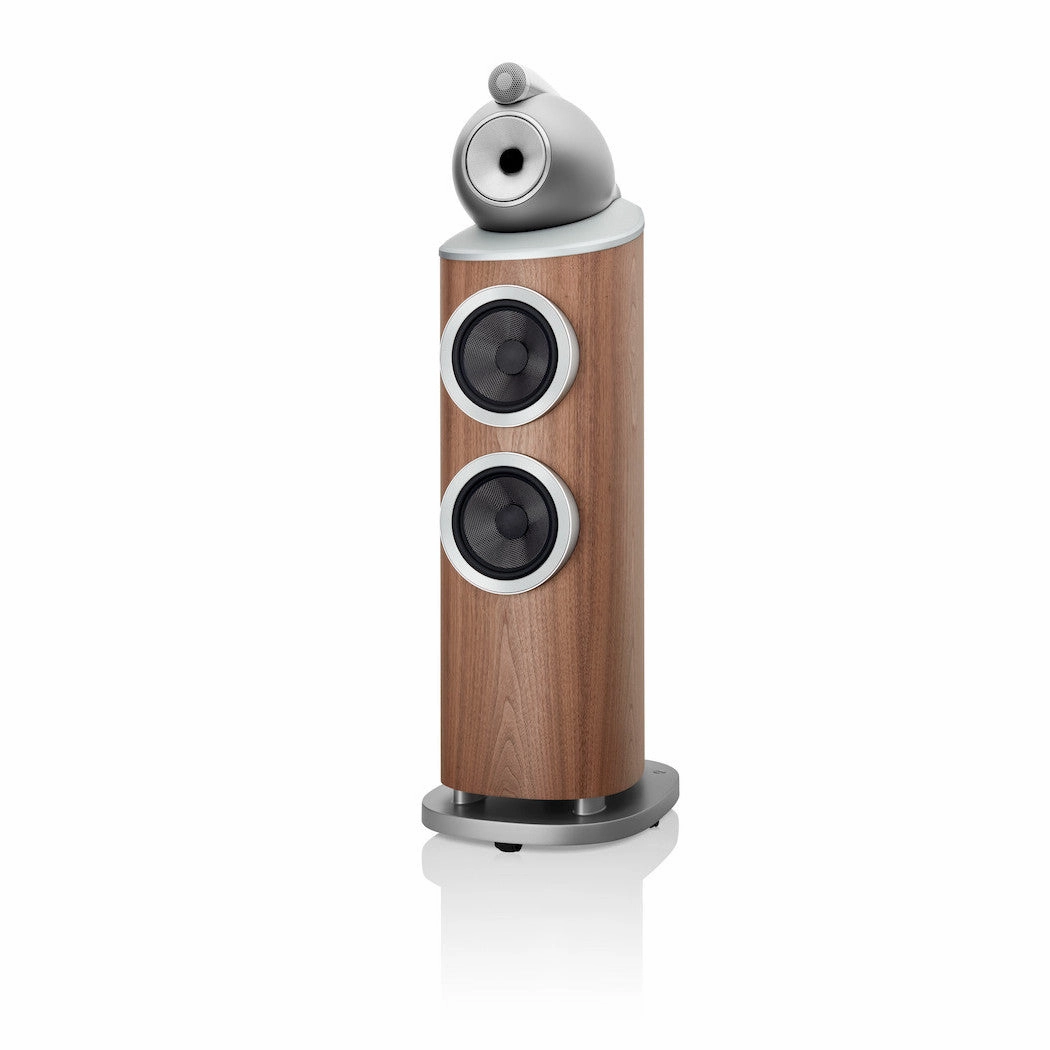

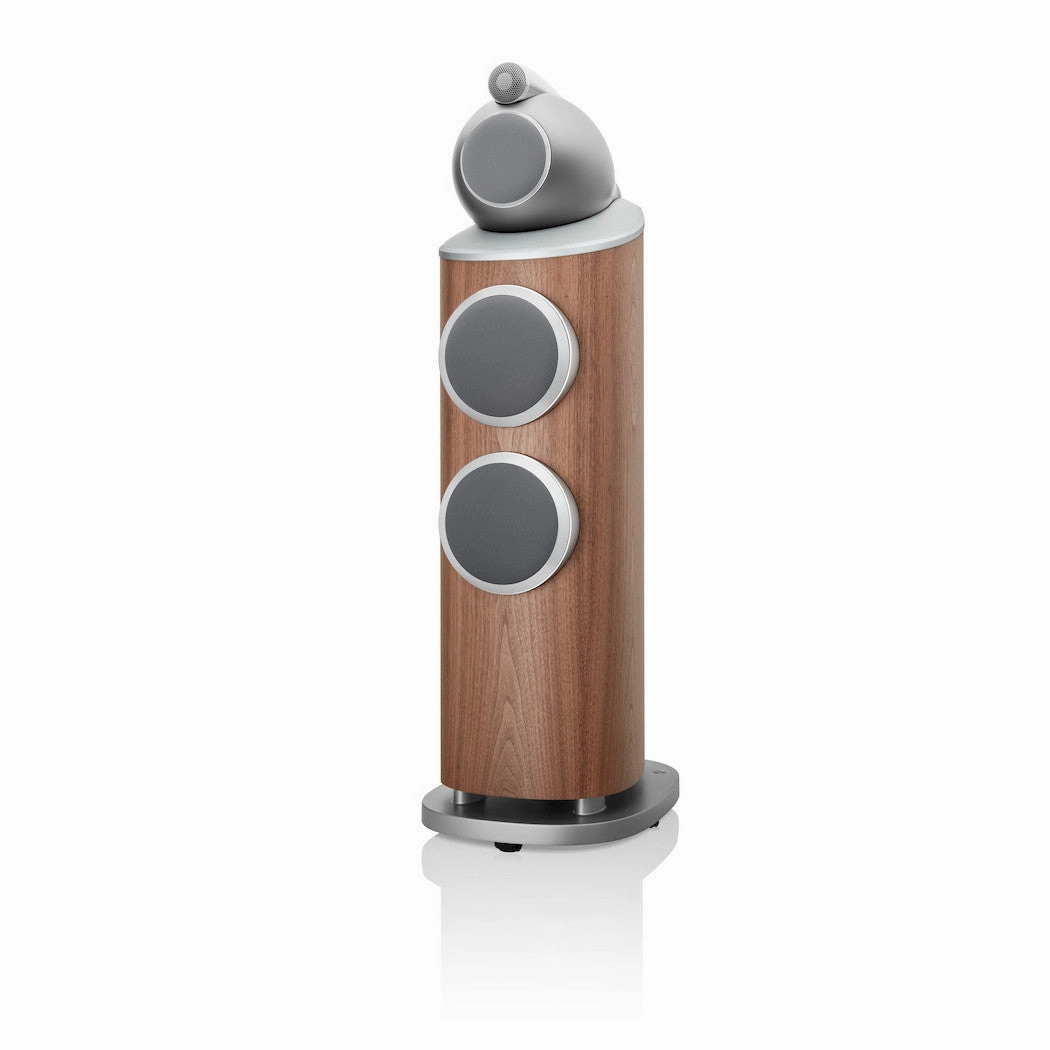

  • Satin Walnut cabinet with grey grille

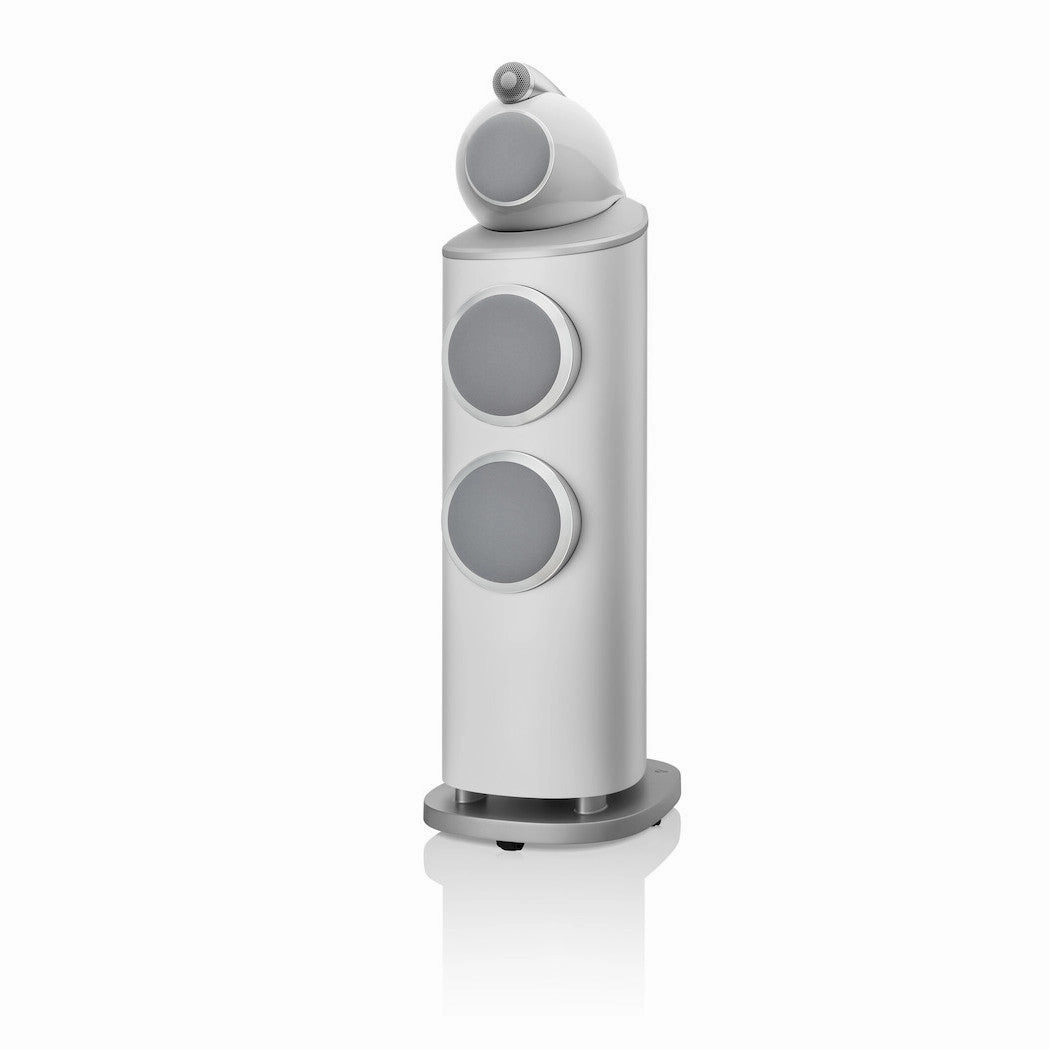

  • White cabinet with grey grille
