See nothing, hear everything

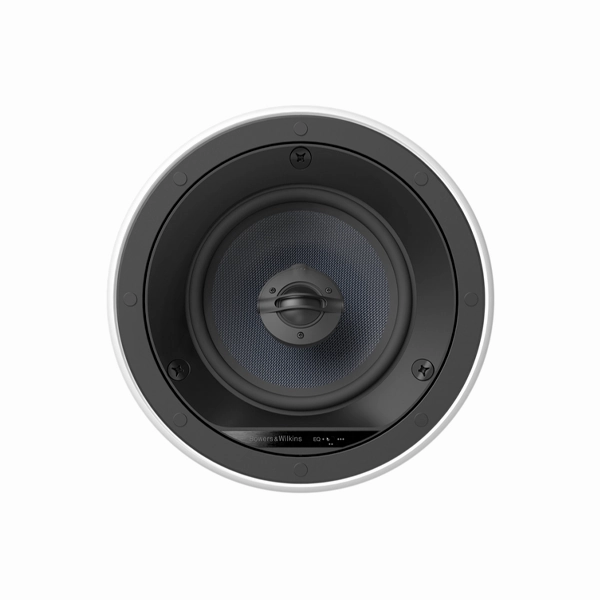

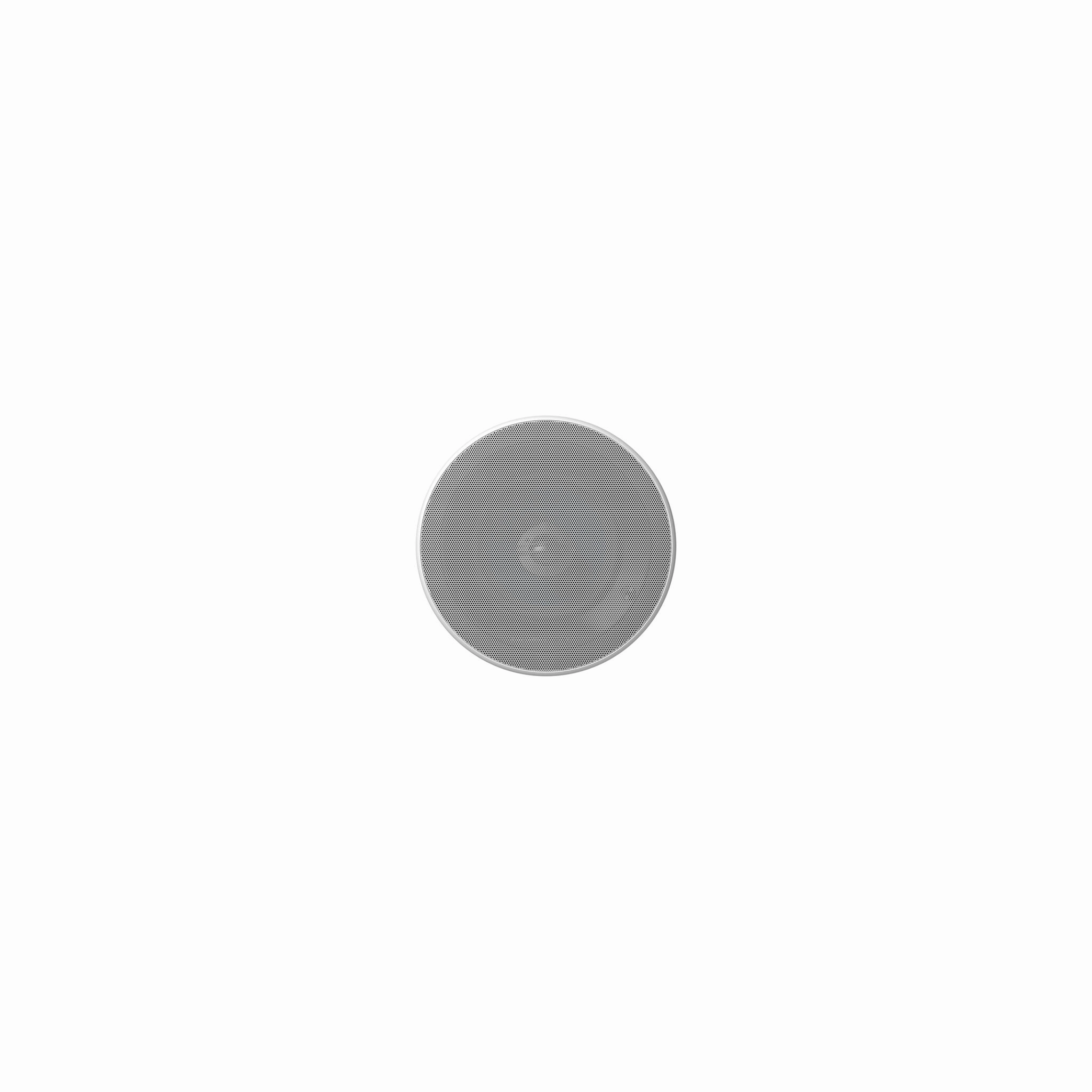

RD stands for Reduced Depth so this speaker will fit into tighter spaces than the standard CCM663. A shallower cone and a redesign of the easy-fit QuickDogs frame reduce depth to a more usable 90mm, while retaining everything that makes the CCM663 such a great in-ceiling speaker. The familiar-yet-discreet dark blue Aramid fiber cone of the bass/midrange driver delivers a stunningly clean, detailed response. This, combined with the pivoting aluminium dome tweeter for adjustable off-axis treble response and three-position EQ, make this one of the most versatile custom speakers around. If preferred, the supplied round grille can be replaced with an optional, square CCM663 grille.
Specifications:
| Description | 2-way in-ceiling system |
| Drive units |
|
| Frequency range (-6dB) | 35Hz 50kHz |
| Recommended Amplifer Power | 25W 100W |
| Sensitivity | 86dB (2.83V, 1m) |
| Nominal Impedance | 8 (4.8 minimum) |
| Frame | 240mm (9.4 in) |
| Cut-out (width/height) | 202mm (8 in) |
| Depth behind surface | 92mm (3.6 in) |
| Protrusion | 7mm (0.3 in) |
| Net weight | 2.3kg (5lb) |
| Back Box | BB6W or BB125C |
