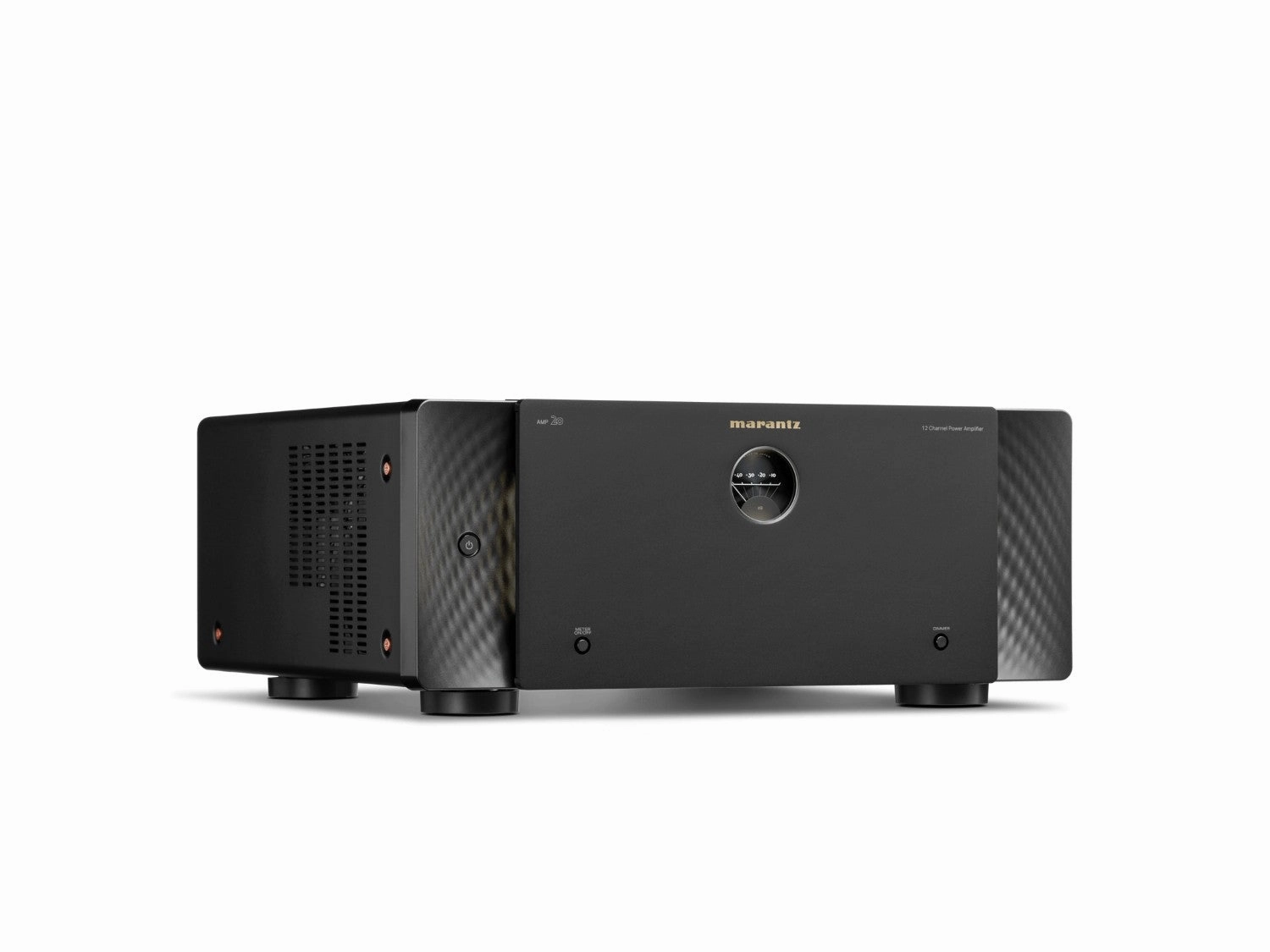

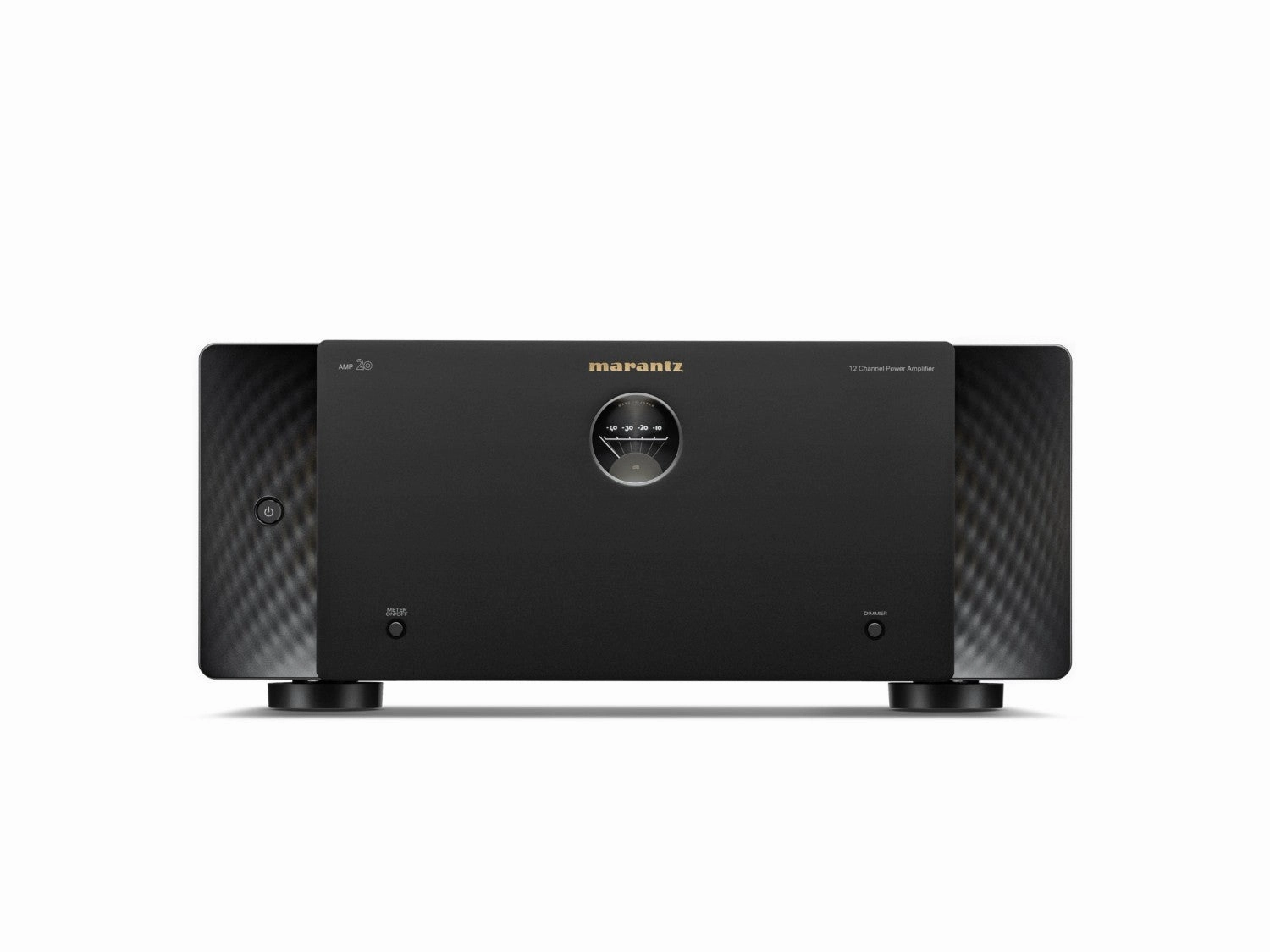

AMP 20
AMP 20 is a remarkably powerful 12-channel amplifier, and can be paired with AV 20 for an elite, reference-level home theater system.
- Crafted in Shirakawa, Japan
- 12 Channels
- 200 Watts per Channel
- Exclusive HDAM
- Custom Switching Amplifiers
- Selectable Output Modes

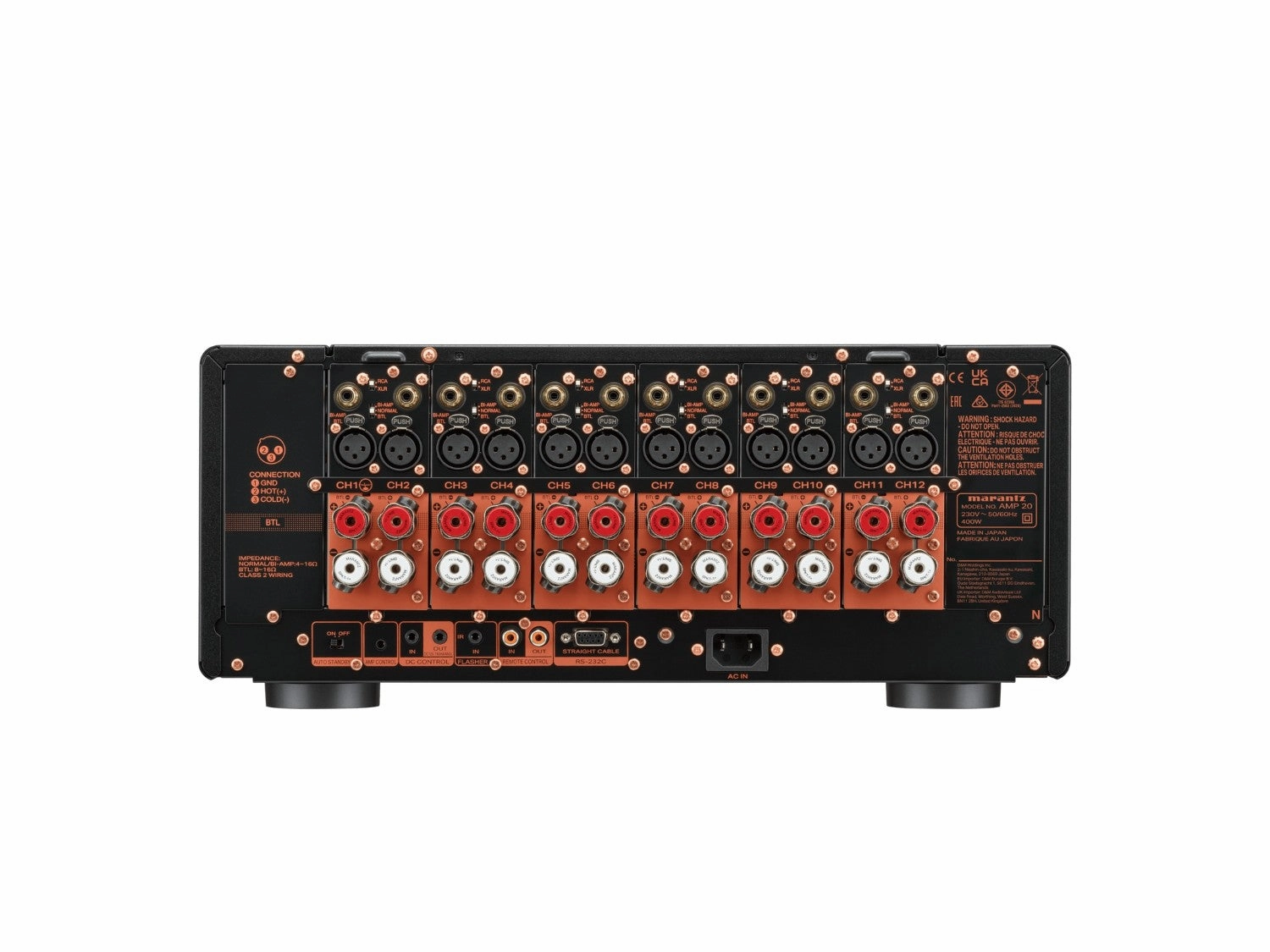

Inputs Outputs
| Main Amplifier in | Balanced & Unbalanced: 12ch (Exclusive use by a selector switch.) |
| Speaker Terminal | SPKT-1 |
| Number of Speaker Terminals | 12 |
| Bi-Amp Drive /BTL Drive | Yes/Yes |
| Level Meter | Yes |
| Chassis | Copper Plated |
Multi-Room CI
| RS232 Control | Yes |
| IR Flasher In | Yes |
| Marantz Remote Bus | Yes |
| DC Trigger Input/ Output | 1/1 |
Specifications
| Number of poweramps | 12 |
| Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL | 200W / 400W |
| Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal | 400W |
| Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal | 200W |
General
| Front Display | Level Meter |
| Auto Power Off | Yes |
| Metal Front Panel | Yes |
| Power Consumption | 400W |
| Power Consumption, No-Sound | 110W |
| Standby Consumption | 0.2W |
| Maximum Dimensions (W D H) | 17.4 17.4 7.5 in. |
| Weight | 39.7 lbs |
| What's in the box | Main unit, quick start guide, |
| UPC code | 747192143930 |
