Summary
A 6-1/2" coaxial ceiling speaker with cone woofer, fluid-cooled soft-dome swivel tweeter, 110W power handling, horn-shaped acoustic baffle and thin, light grille.
- Blue PP mica cone woofer
- Fluid-cooled soft-dome swivel tweeter
- 110W high power handling capacity
- Horn-shaped acoustic baffle with spiral pattern produces a clean and natural sound
- Thin grille with slim edge becomes almost invisible after installation
- Protective plastic cover on the back
- Light grill with magnetic catch is easy to attach and remove for spray painting and cleaning
- Large dog-eared clamp with non-slip tread for sure installation
Overview
High Sound Quality
Yamahas policy of always putting sound quality first, combined with decades of experience in producing fine speakers, ensures that the sound of these speakers is superior to that of many other in-ceiling speakers.
Moisture resistant 6-1/2 blue PP (polypropylene) mica cone woofer for high performance mid-low sound reproduction
1 fluid-cooled soft-dome swivel tweeter delivers pure high frequency with precise sound positioning
Unique Design
Grain-finished acoustic baffle with spiral pattern for natural sound dispersion

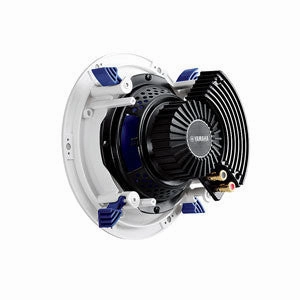

Sealed back cover to protect speaker and crossover from dust and moisture
Quick and Easy Installation

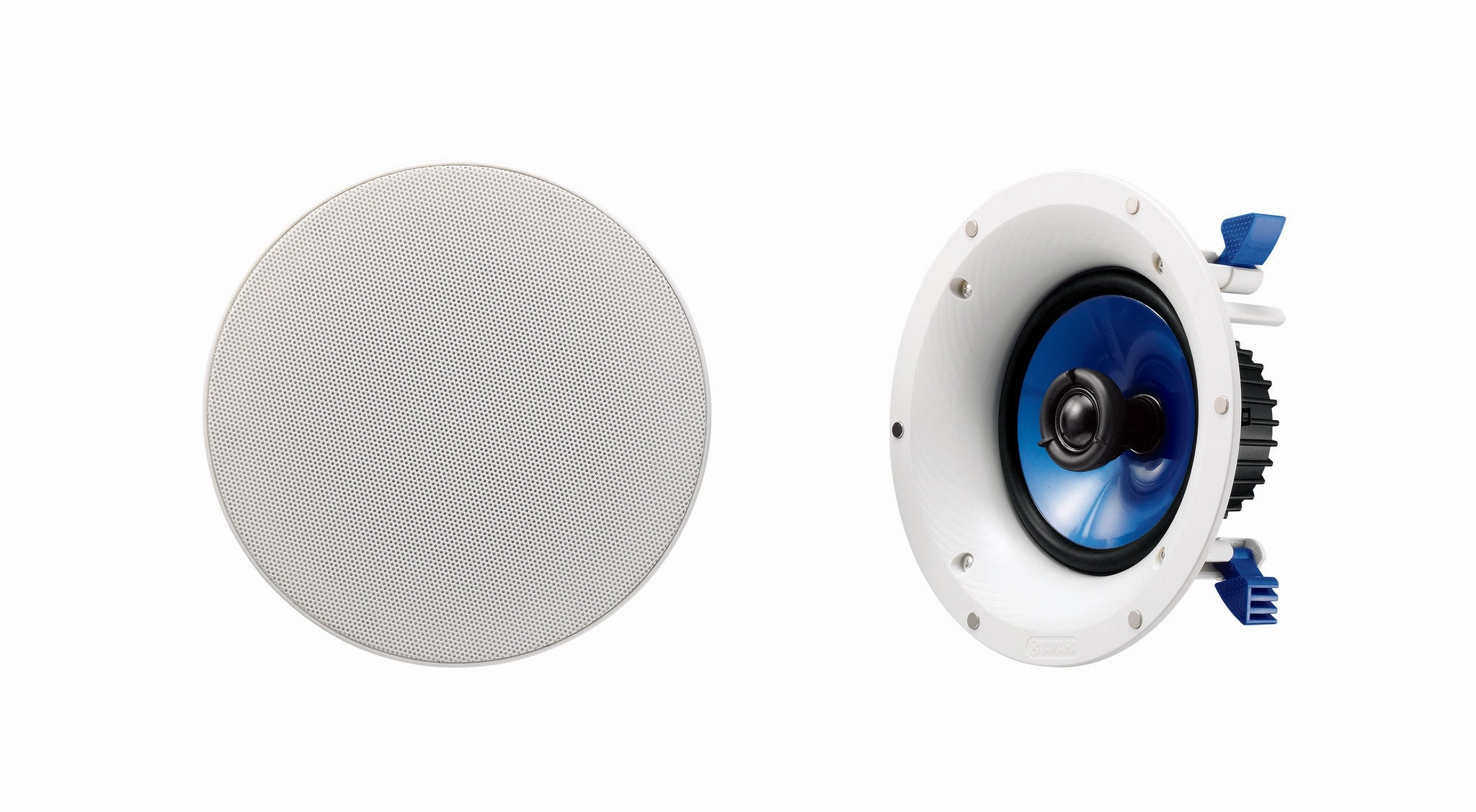

Paintable grille with magnets for quick and easy installation
Large mounting clamp with non-slip tread for sure grip
Specifications
| Type | 2-way coaxial | |
|---|---|---|
| Woofer | 6.5 (16 cm) PP (polypropylene) mica cone | |
| Tweeter | 1 (2.5 cm) fluid-cooled soft dome, coaxial, swivel | |
| Frequency Response | 65 Hz 28 kHz | |
| Maximum Input Power | 110 W | |
| Sensitivity | 90 dB | |
| Impedance | 8 ohms | |
| Dimensions (W x H x D) | 9-1/2 x 4-5/8; 242 x 119 mm | |
| Mounting Depth | 4-1/4 (109 mm) | |
| Weight | 3.3 lbs. (1.5 kg) | |
General specifications
| I/O connectors | Push Terminal ( Applicable Cable *Max, Twisted wire : 8mm/ AWG 8) | |
|---|---|---|
