Summary
Yamaha original double-layer 4 cone create natural sound tonality.
- Blue PP mica cone woofer
- Fluid-cooled soft-dome swivel tweeter
- Horn-shaped acoustic baffle with spiral pattern produces a clean and natural sound
- Thin grille with slim edge becomes almost invisible after installation
- Protective plastic cover on the back
- Light grill with magnetic catch is easy to attach and remove for spray painting and cleaning
- Large dog-eared clamp with non-slip tread for sure installation
Overview
High Sound Quality
Yamahas policy of always putting sound quality first, combined with decades of experience in producing fine speakers, ensures that the sound of these speakers is superior to that of many other in-ceiling speakers.
Yamaha original double-layer 4 cone create natural sound tonality
Ridge-shape aluminum center cap with stair-like speaker surround helps smooth frequency response from low to high
Unique Design
Grain-finished acoustic baffle with spiral pattern for natural sound dispersion
Slim profile design for flush in-ceiling or in-wall mounting

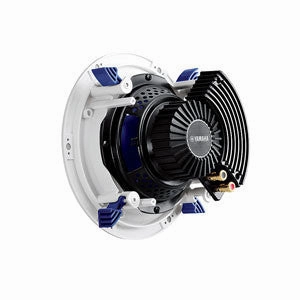

Sealed back cover to protect speaker and crossover from dust and moisture
Quick and Easy Installation

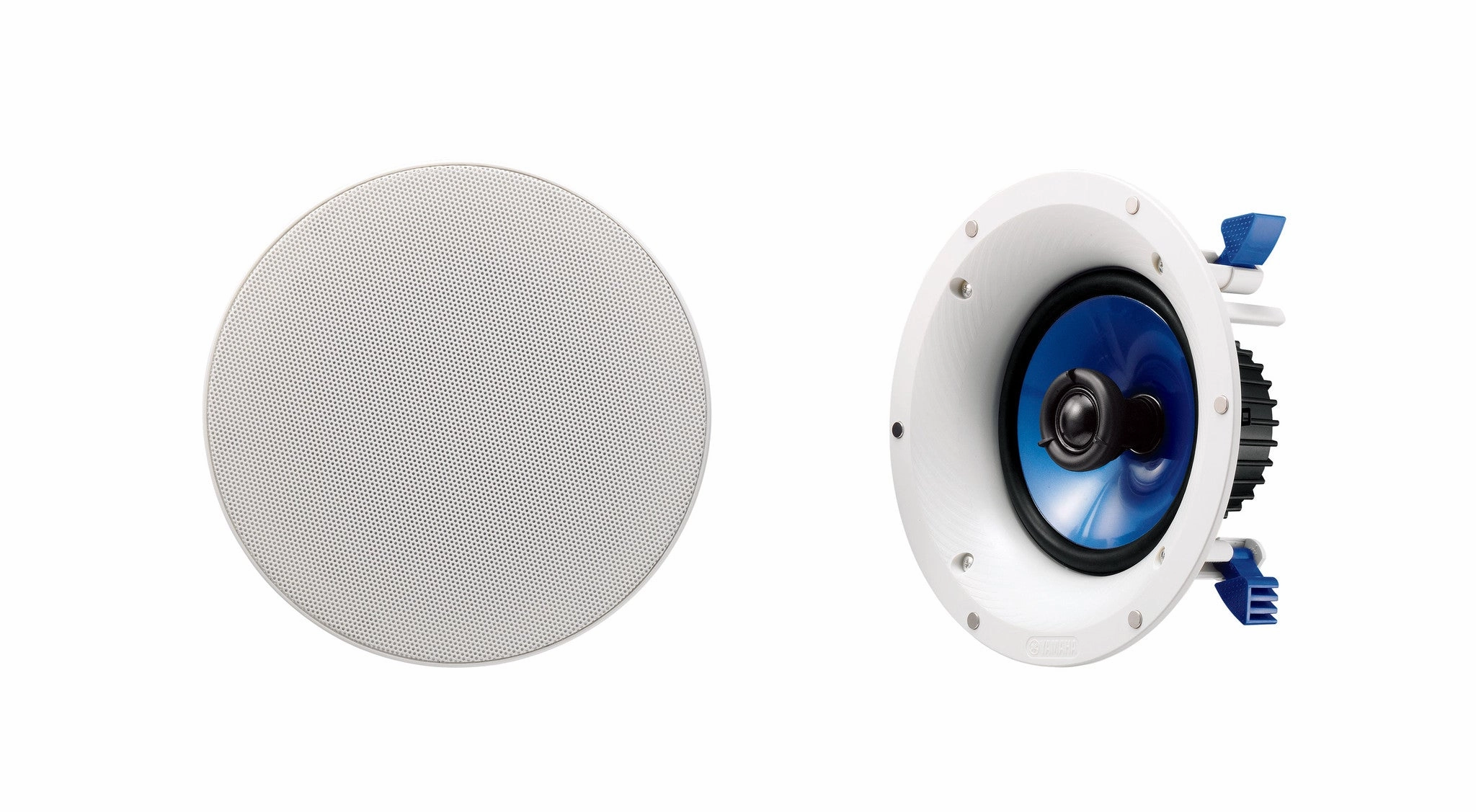

Paintable grille with magnets for quick and easy installation
Large mounting clamp with non-slip tread for sure grip
Specifications
| Type | Full range open back type | |
|---|---|---|
| Woofer | 4 (10cm) double-layered cone | |
| Frequency Response | 95 Hz - 40 kHz | |
| Maximum Input Power | 90 W | |
| Sensitivity | 85 dB | |
| Impedance | 8 ohms | |
| Dimensions (W x H x D) | 5-7/8 x 3-3/8; 150 x 86.5 mm | |
| Mounting Depth | 3-1/8 (79 mm) | |
| Weight | 1.8 lbs. (0.8 kg) | |
