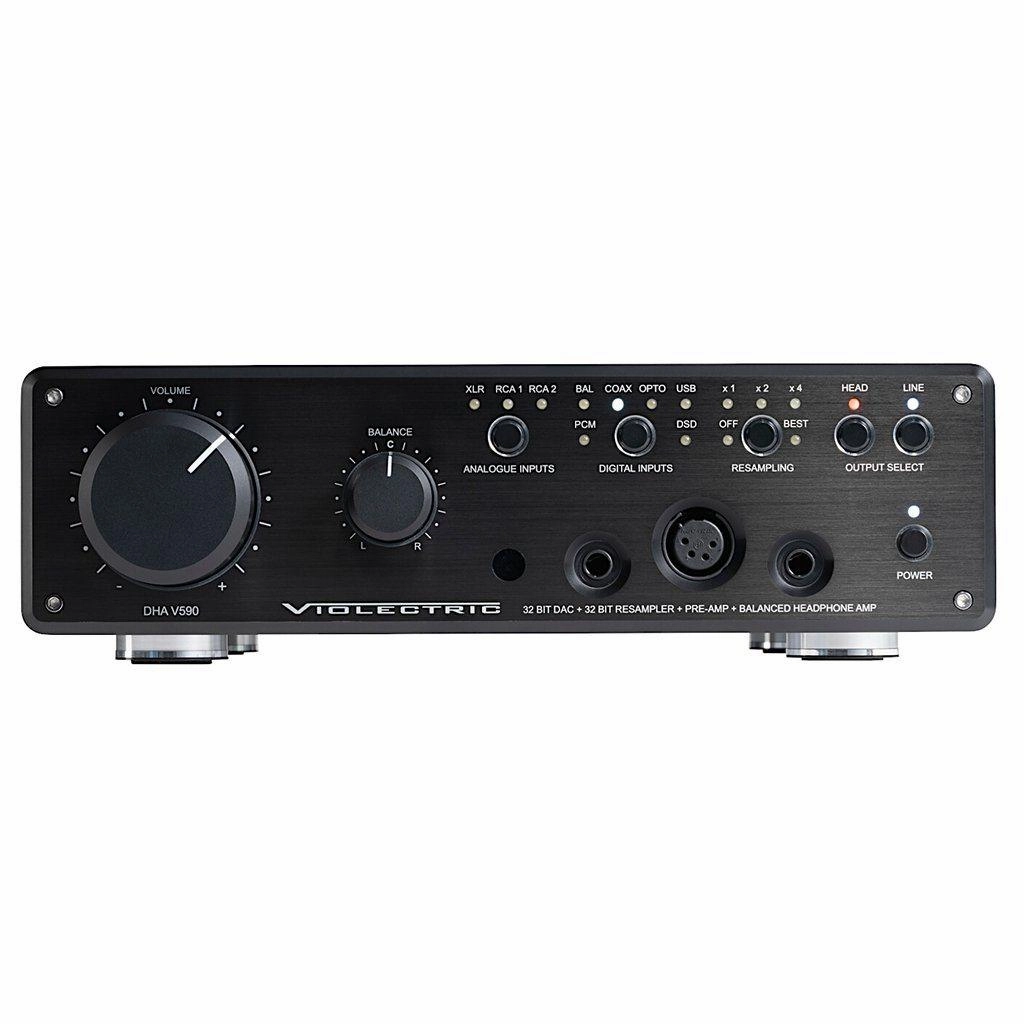

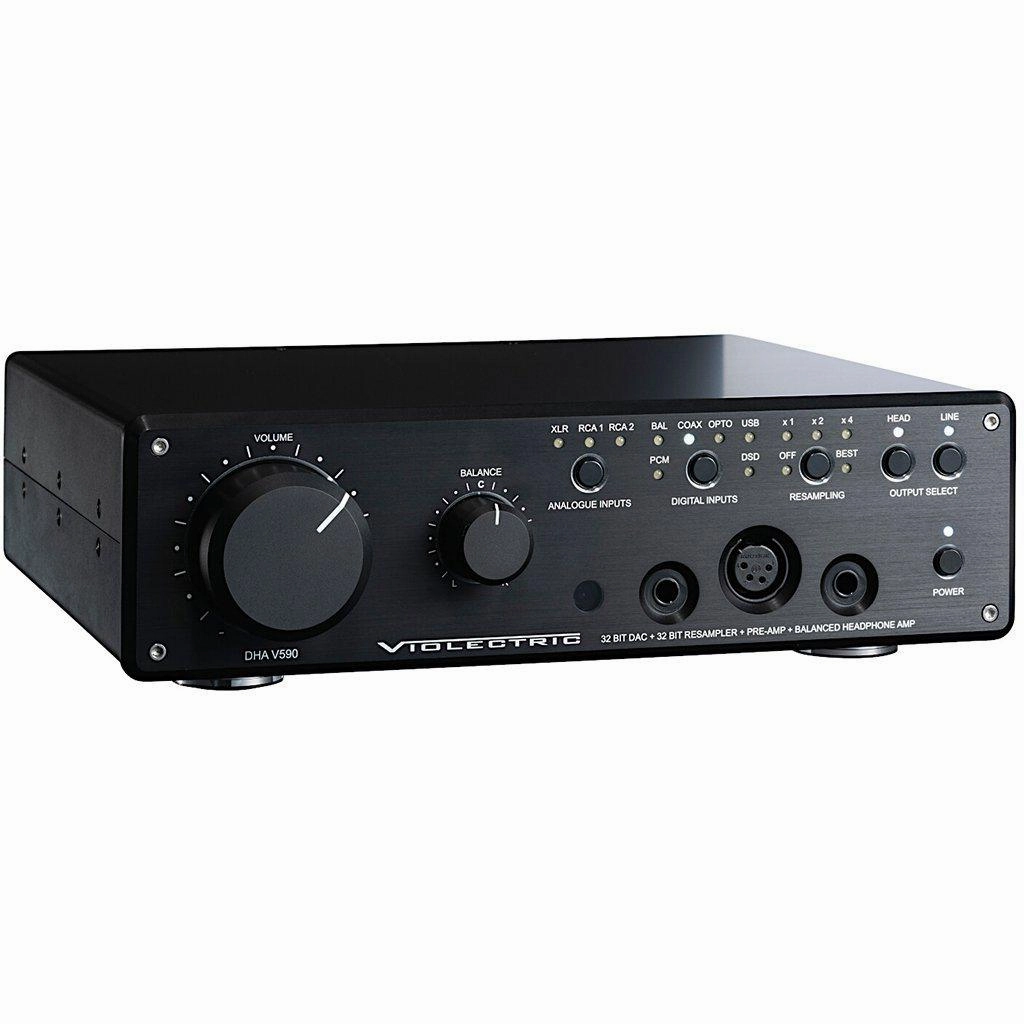

The NEW V590 balanced headphone amplifier, pre amp, and DAC!
-Pre-amplifer
-Balanced Headphone Amp
-ESS-based 32 bit DAC 32 bit Resampler (PCM & DSD)
-Femto-Clock (standard)
-Remote control (standard)
-256 step relay volume (Optional Pro model)
-Balanced Headphone Amp
-ESS-based 32 bit DAC 32 bit Resampler (PCM & DSD)
-Femto-Clock (standard)
-Remote control (standard)
-256 step relay volume (Optional Pro model)
| HP Impedance | Ua (dBu) | Ua (V) | Pa (mW) |
| 600 | 28,7 | 21,1 | 740 |
| 300 | 28,6 | 20,9 | 1450 |
| 100 | 28,5 | 20,7 | 4300 |
| 50 | 27,3 | 17,9 | 6400 |
| 32 | 24,0 | 12,3 | 4700 |
| 16 | 17,3 | 5,7 | 2000 |
| 8 | 12,3 | 3,2 | 1300 |
| 4 | 6,8 | 1,7 | 700 |

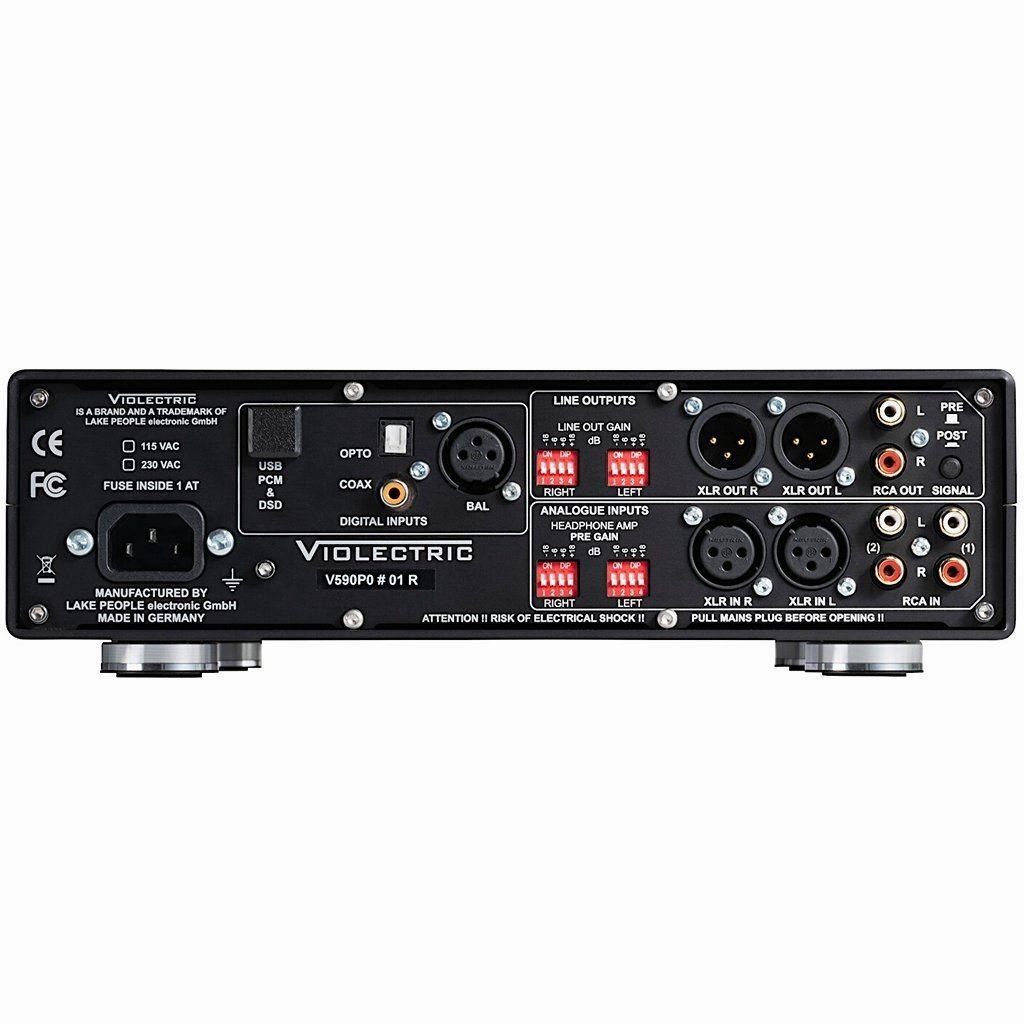

INPUTS
3 analogue inputs: 2 x RCA, 1 x XLR
4 digital inputs: optical, coaxial, AES balanced, USB
USB allows for up to 384 kHz PCM and 512 x DSD
4 digital inputs: optical, coaxial, AES balanced, USB
USB allows for up to 384 kHz PCM and 512 x DSD
DAC
32 Bit ES9028 Pro
New 32-bit Resampler with a dynamic range of up to 180 dB
32 Bit ES9028 Pro
New 32-bit Resampler with a dynamic range of up to 180 dB
POWER and NOISE
8 dB less noise than the V281
2 x 25 Watt PSU, switchable between 115 and 230V
Gain factor 0 dB unbalanced, 6 dB balanced
Extended pre-gain settings via DIP switches: -18, -12, -6, 0, 6, 12, 18 dB, same for the line out
Pre and post fader now work via the push of a button on the back and not via software control
Max output voltage (balanced output, both channels driven): 32 Volt = 1.8 Watts @ 600 Ohm
Maximum power (balanced output, both channels driven): 6.4 Watt @ 50 Ohm
Noise -100 dB / THD N 102 dB
Output impedance < 0,2 Ohm
Damping factor > 250
8 dB less noise than the V281
2 x 25 Watt PSU, switchable between 115 and 230V
Gain factor 0 dB unbalanced, 6 dB balanced
Extended pre-gain settings via DIP switches: -18, -12, -6, 0, 6, 12, 18 dB, same for the line out
Pre and post fader now work via the push of a button on the back and not via software control
Max output voltage (balanced output, both channels driven): 32 Volt = 1.8 Watts @ 600 Ohm
Maximum power (balanced output, both channels driven): 6.4 Watt @ 50 Ohm
Noise -100 dB / THD N 102 dB
Output impedance < 0,2 Ohm
Damping factor > 250
DIMENSIONS
(WxHxD) 290mm x 80mm (90 with feet) x 250 mm
Front, Back: 8 mm / 3 mm Aluminum, black anodized
Case: 3 mm / 4 mm Aluminum, black anodized
(WxHxD) 290mm x 80mm (90 with feet) x 250 mm
Front, Back: 8 mm / 3 mm Aluminum, black anodized
Case: 3 mm / 4 mm Aluminum, black anodized
