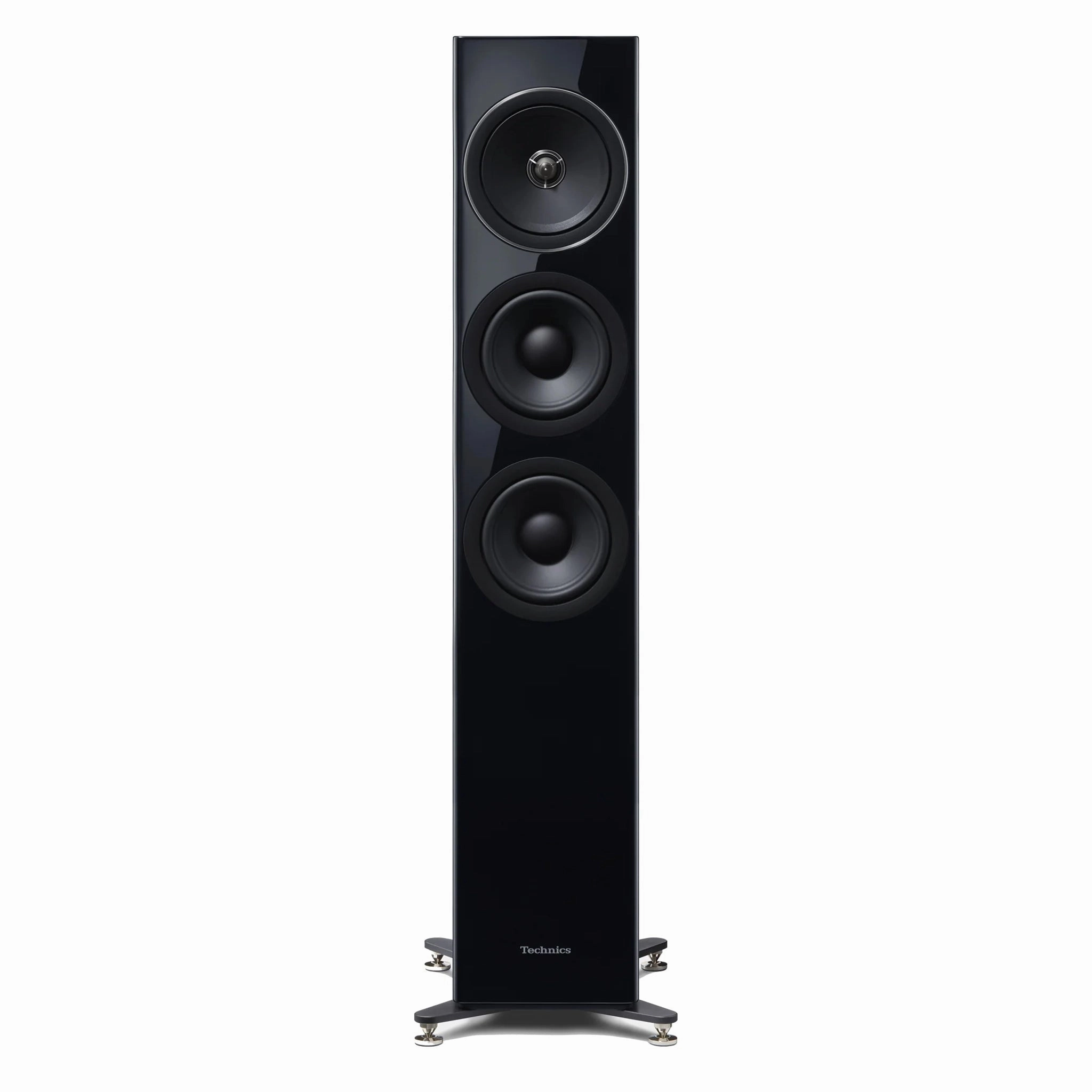

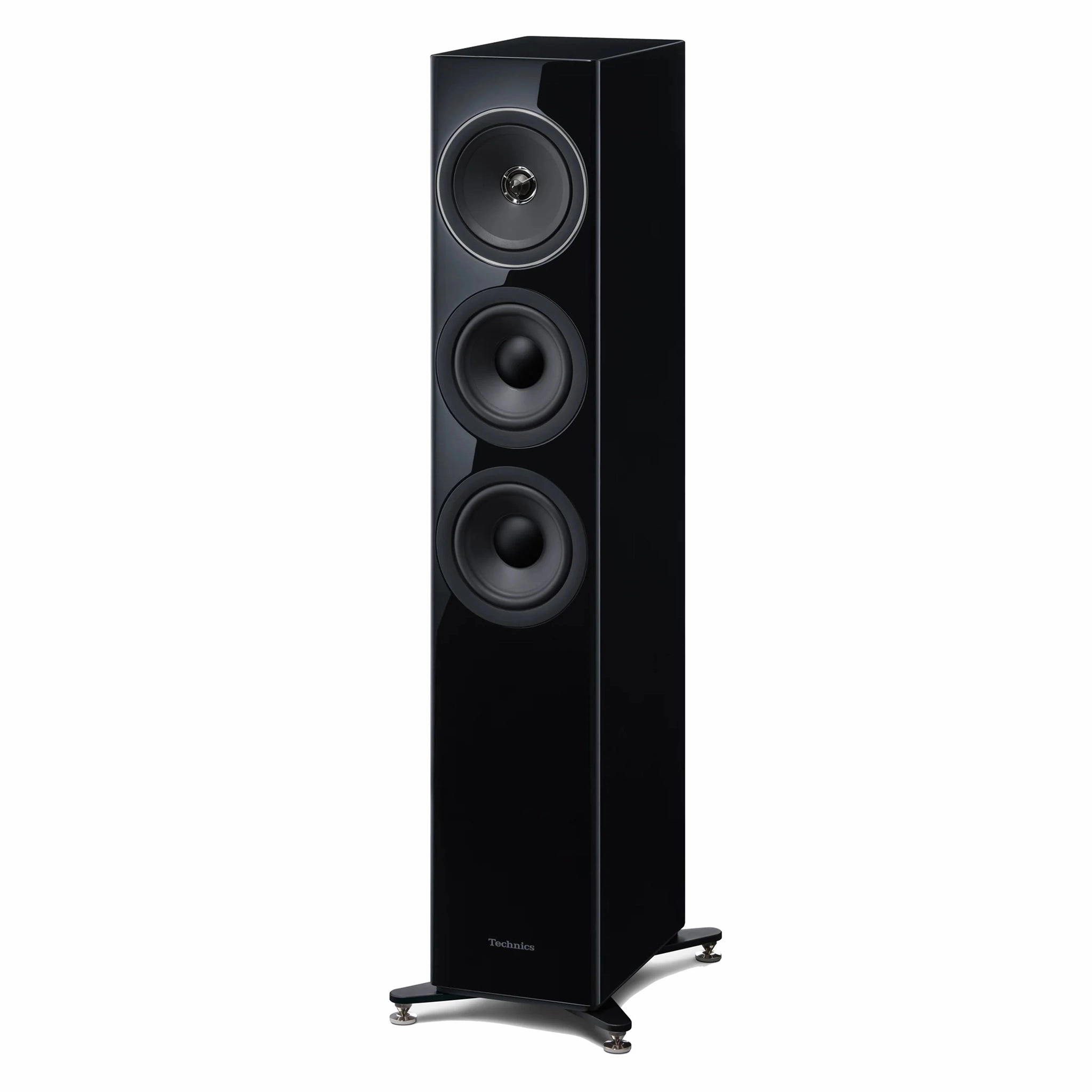

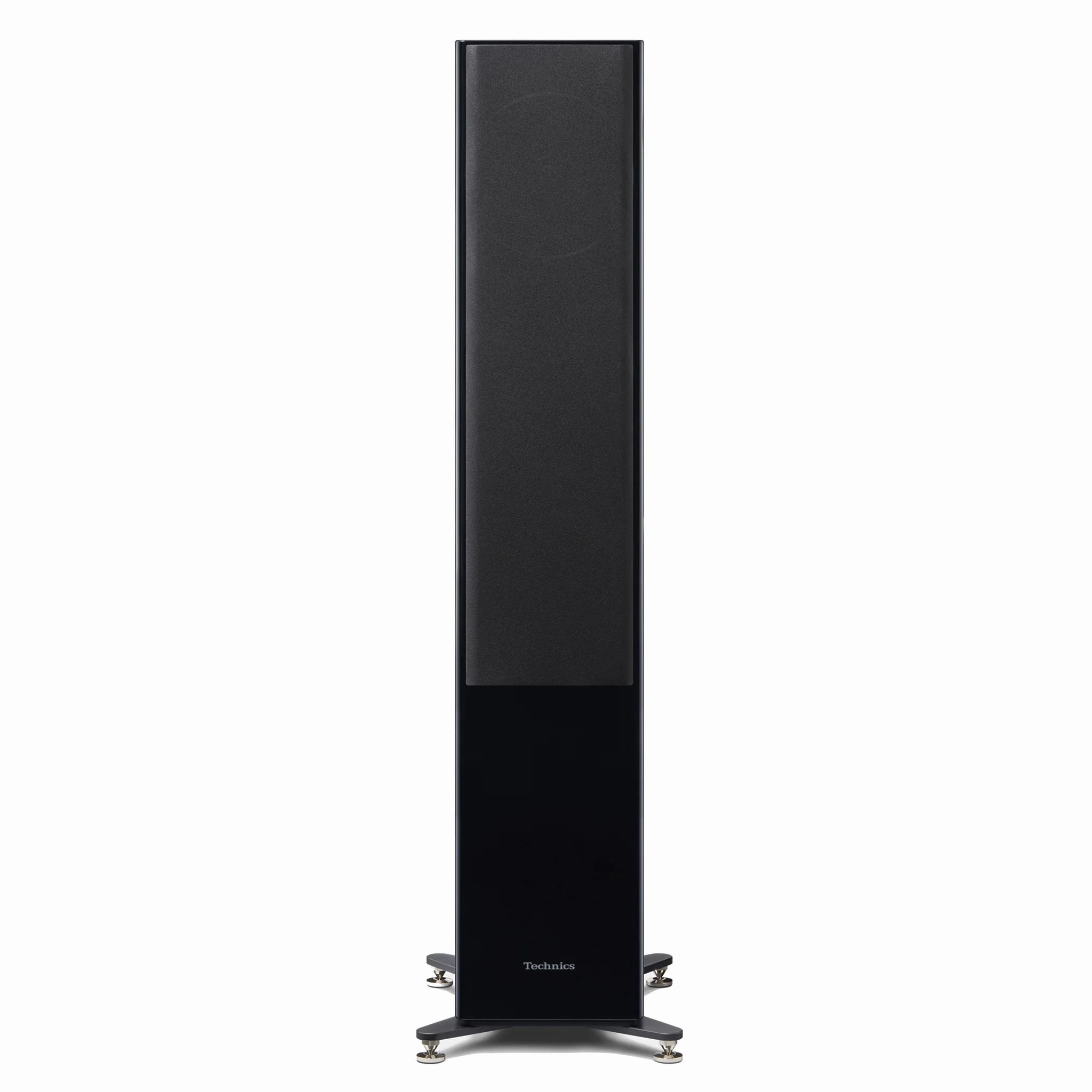

Technics SB-G90M2 Floorstanding Loudspeaker (each)
A three-way with coaxial mid-high and 2 x 6.5" woofers
The Technics SB-G90M2 uses pointsource design to achieve superb sound image localization for a true-to-life soundstage. This three-way bass reflex speaker system consists of a newly developed two-way coaxial driver, combining a 1" dome and a 6.3" midrange cone. This is accompanied by two 6.3" woofers. Thorough CAE analysis was used to optimize drivers, elements, and enclosure structures to efficiently eliminate unwanted vibrations and distortions.
Features
- Reworked coaxial driver unit for less distortion
- Linear phase plug eliminates phase disturbance
- Advanced BDMA (Balanced Driver Mounting Architecture) so vibrations can escape to the ground
- More energetic cabinet structure to efficiently eliminate standing waves

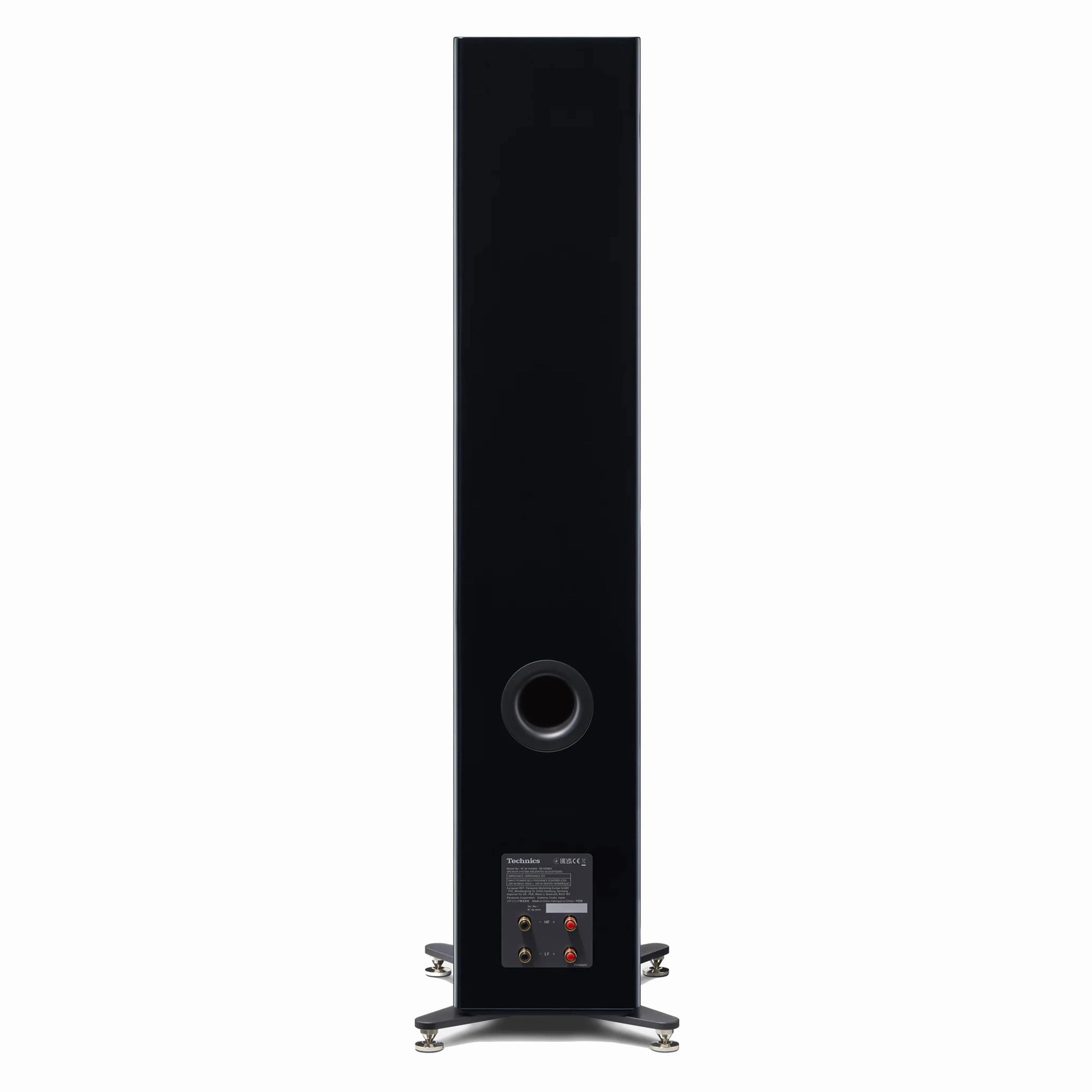

- Responding to requests from our customer base, the new SB-G90M2 now features bi-wiring speaker terminals
Specifications
Type: 3-way bass reflex
Drivers: 2 x 6.5" cone woofer, 1 x 6.5" cone mid,1 x 1" dome tweeter
Impedance: 4
Sensitivity: 86 dB
Frequency Range (-10 dB): 33 Hz - 90 kHz
Crossover Frequency: 500 Hz, 3,400 kHz
Dimensions (WHD): 11-1/2" x 43-27/32" x 14-2/5"
Weight: 78 lb.
