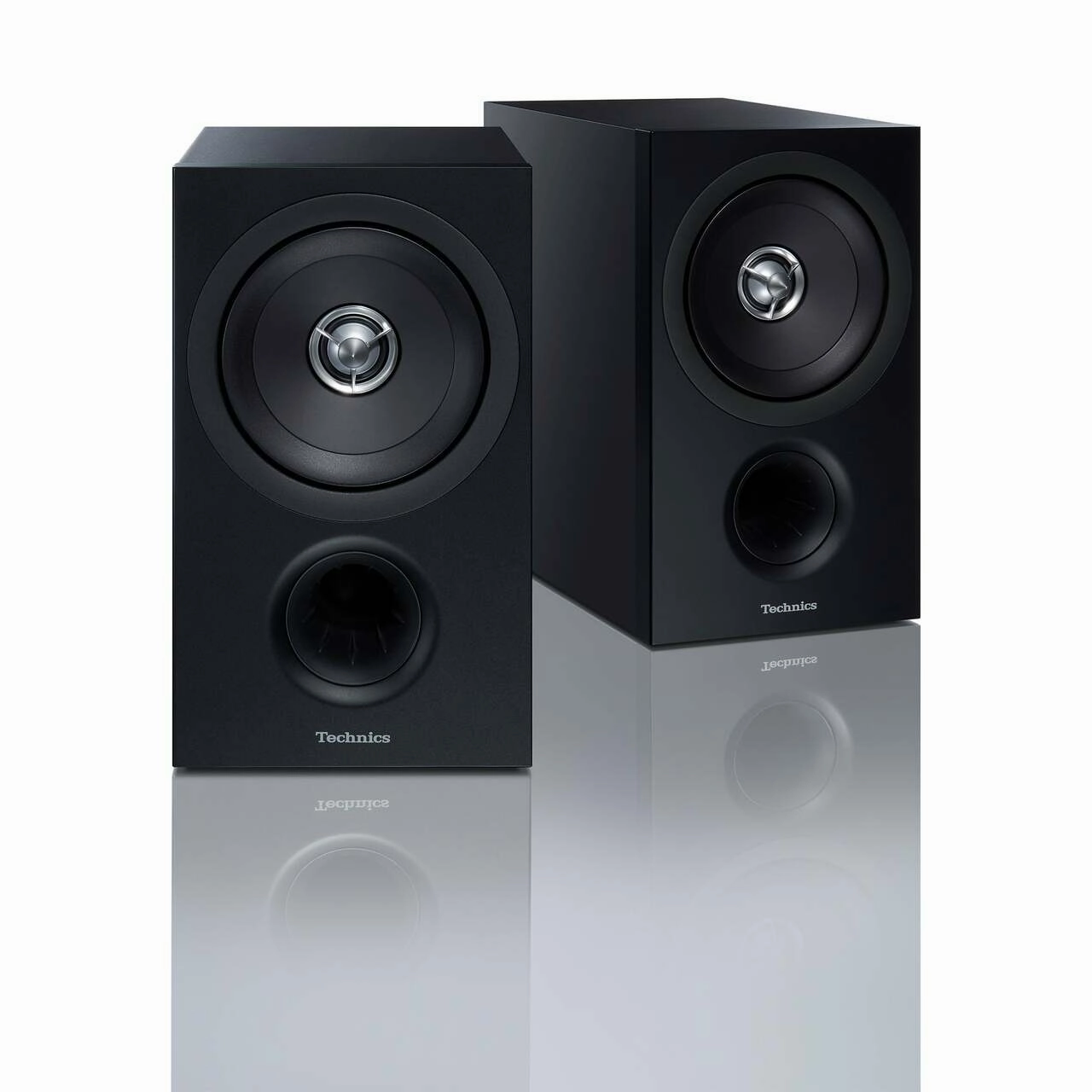

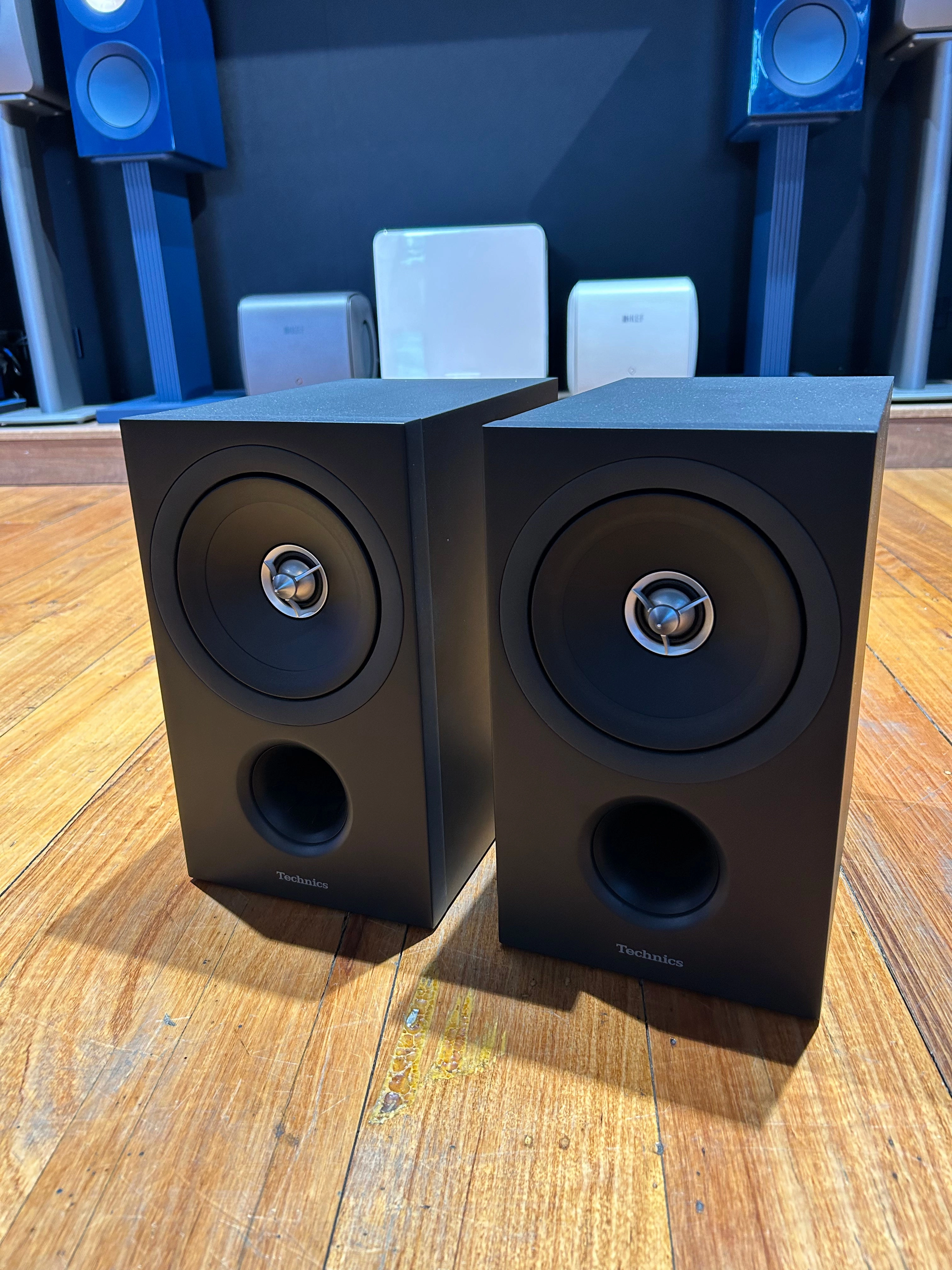

Technics SB-C600E Premium Class Bookshelf Speakers

The Technics SB-C600 Premium Class speaker system recreates a spacious 'concert hall' experience in the home. The SB-C600 Premium Class speaker system is an ideal match for the SA-C600 Network Receiver.

?Advanced Phase Precision Driver

The SB-C600's 2-way coaxial speaker unit offers clear sound image localisation, regardless of the listening position. The SB-C600 uses a point sound source concept to achieve enhanced spatial articulation, offering full-range coverage and high-quality sound.

To realise this, a coaxial configuration was adopted and combined with a uniquely shaped linear phase plug and smooth flow diaphragm, allowing the alignment of the phases with the added benefit of minimal sound reflection. The result is an aligned spherical wave that delivers radiated sound with outstanding spatial clarity.

?Linear Phase Plug

The specially designed linear phase plug reduces unwanted phase issues, allowing for a smooth blend of mid and high frequencies with a clear, distortion-free sound.

?Smooth Flow Diaphragm

The SB-C600s speakers feature a woofer diaphragm design to achieve a wide soundstage with a smooth and rich mid-to-high frequency range. Its shallow shape and smooth edge reduce reflection and create minimal disturbance to the sound waves radiating from the diaphragm.

The SB-C600 speakers produce excellent frequency response and phase characteristics, with the additional benefit of wide directivity, suitable for a broad range of music genres.

?Smooth Flow Port

Traditional bass reflex ports produce a large air current vortex that induces annoying high-frequency noise. To solve this problem, Technics employed flow analysis, as used in the design of aeroplane wings, to create an optimal cross-sectional shape for the port. The optimally designed port removes the airflow disturbance at the opening, ensuring high-quality bass reproduction with minimum noise and superb response.

?Solid Cabinet Construction

Careful consideration has been given to the architecture, materials, and construction of the speaker cabinet to minimise undesirable vibrations and ensure a high signal-to-noise ratio.

The internal architecture uses a series of vents to facilitate the smooth flow of sound emanating from the back of the speaker units, which improves response while maintaining low resonance and high rigidity within the cabinet.

?Balanced Driver Mounting Architecture

To achieve a composed, low-distortion sound, the SB-C600 uses the same "balanced driver mount architecture" design as seen in the Grand Class SB-G90M2 speaker system.

The newly designed speaker mount baffle increases the rigidity of the entire cabinet while maximising its output clarity.
