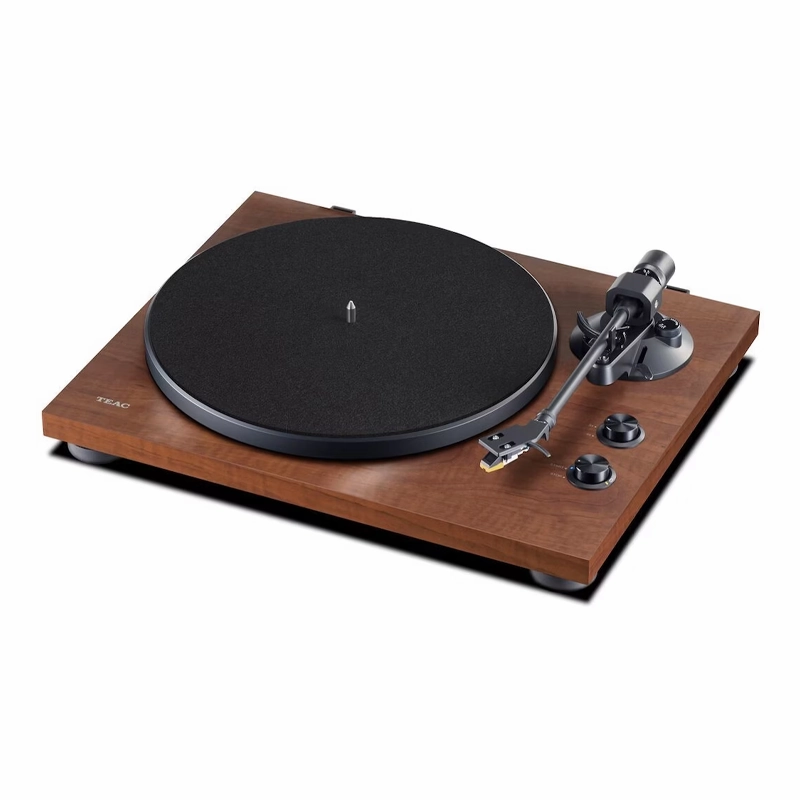

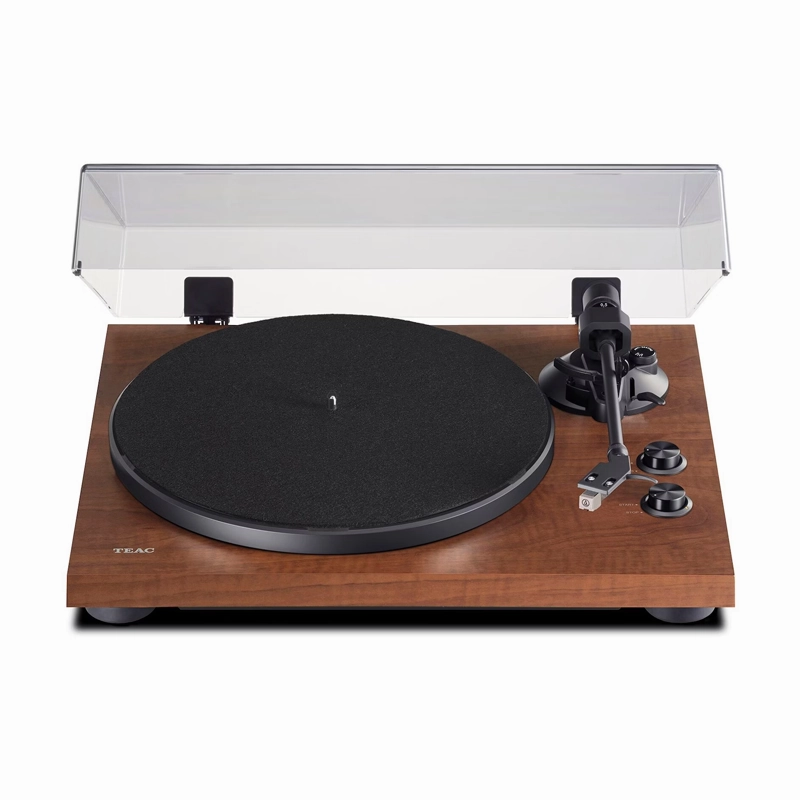

Offering a best-in-class Bluetooth wireless connection, the TN-280BT-A3 turntable offers a versatile option for the discerning audiophile.
HEAR EVERY NUANCE AND NOTE - WIRELESSLY
The TN-280BT-A3 turntable offers extra versatility with a best-in-class Bluetooth wireless connection. Simply connect the turntable to your wireless speakers of choice and drop the needle on your favorite records.
The TN-280BT-A3 also features a built-in Phono EQ amplifier for line output, allowing you to connect to almost any sound system regardless of the type of inputs.
The belt-drive motor on the TN-280BT-A3 reduces vibration for dynamic, more accurate sound than direct-drive turntables, while an aluminum die-cast platter and anti-skating system provide a solid foundation for great-sounding playback. The high-performance, upgradable MM cartridge AT3600L from Audio-Technica captures every detail, and the static-balanced straight tone-arm ensures clear sound.
CHOOSE YOUR CONNECTION

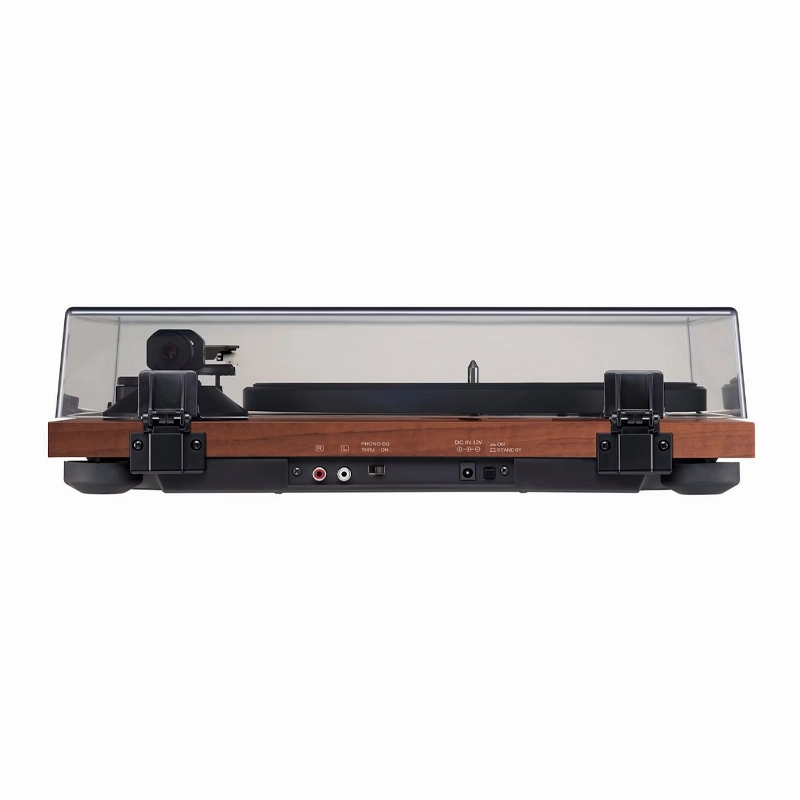

The TN-280BT-A3 delivers sound wirelessly via a built-in Bluetooth transmitter, in addition to conventional RCA output in analog Line or Phono format. The pairing button is located at the right-front side of the cabinet, and the pairing indicator tells you the speakers/headphone is successfully connected.
LISTENING MADE EASY
Unlike other turntable units, the TN-280BT-A3 provides you an easy way to experience your vinyl via Bluetooth wireless technology.
If you already have Bluetooth-enable speakers or headphones for your iPhone/Android phone, all you have to do is to install the TN-280BT-A3 in your room no pricy hi-fi system and complicated wiring are needed. The connection is frustration-free - just press the BT pairing button when the Bluetooth speakers/headphones are ready for the pairing, and once the connection is established, you don't need to do it again.
The TN-280BT-A3 also features a PHONO input via cable with an included RCA audio cable.
AUTHENTIC TWO-SPEED TURNTABLE
The high inertia aluminum die-cast platter is driven by a high torque DC motor for stable rotation for both 33- and 45 rpm. A soft felt mat further reduces vibration effectively. The high accuracy of the spindle is maintained by a polished Stainless steel Spindle and highly durable bronze spindle holder.
HIGH-DENSITY MDF CABINET CONSTRUCTION
Unlike other with plastic chassis, the heavy MDF cabinet minimizes vibrations and resonance for clearer sound.
BUILT-IN PHONO EQ AMPLIFIER
Enjoy vinyl playback with any amplifier. The TN-280BT-A3 supports both Phono and Line outputs that allow you to enjoy vinyl records with or without a phono equalizer.
VM-Type Cartridge Pre-Installed for Quick Start
A straight tone-arm is employed for high tracking accuracy. The anti-skating mechanism also ensures accurate tracking of vinyl records. A VM-type (equivalent to MM-type) cartridge Audio-Technica AT3600L is installed at the factory.
ANTI-SKATING ADJUSTMENT FOR ACCURATE TRACKING
The TN-280BT-A3s anti-skating mechanism ensures accurate tracking.
INCLUDED ACCESSORIES
- Rubber Sheet
- EP Adapter
- Counter Weight
- Head-shell (MM-type Cartridge audio-technica AT3600L installed)
- Turntable (Platter)
- Dust Cover
- Rubber Feet
- Dust Cover x2
- Hinge x2
- RCA Audio Cable
- AC Adapter (GPE053A-120050-Z)
- Owner's Manual (including Warranty Card)
SPECIFICATIONS
| Turntable section | |
| Motor | DC Motor |
| Speed | 33 1/3 RPM, 45 RPM RPM |
| Wow and Flutter | 0.2% |
| Signal-to-Noise Ratio | 67dB or higher (A-weighted, 20kHz LPF) 60dB (unweighted, 20kHz, LPF) |
| Platter | Aluminum Die-cast |
| Diameter of Platter | 12", 30cm |
| Tonearm section | |
| Type | Static Balance, Straight |
| Effective Arm Length | 8.8", 223mm |
| Stylus Pressure Range | 0 to 5g |
| Compatible Cartridge Range | 3.5 to 6.5g |
| Anti-skating Adjustment | Supported |
| Cartridge section | |
| Type | VM-type |
| Stylus Shape | Conical |
| Frequency Response | 20Hz to 20kHz |
| Channel Separation | 24dB at 1kHz, 15dB at 10kHz |
| Channel Balance | 1.5dB |
| Tracking Forcee | 3.5g0.5 g |
| Output Impedance | 47k ohms |
| Output Voltage | 3.5mV |
| Cartridge Weight | 5.0g0.3 g |
| Head-shell Weight | 10g (including nuts, screws and wires) |
| Stylus Replacement | audio-technica ATN3600L |
| Analog Output section | |
| Connectors | RCA Pin x 1 pair (Chrome-plated) |
| Output Voltage | |
| PHONO | 4.2mV |
| LINE | 120mV (13dBV) |
| Bluetooth section | |
| Range | Approx. 30ft. / 10 meters |
| Supported Codec | SBC |
| General | |
| Power | AC 100 to 240V, 50/60Hz |
| Power Consumption | < 1.5W (< 0.5W at Standby) |
| Overall Dimensions (W x H x D) | 16.5" x 4.6" x 14.0" 420 x 117 x 356 mm |
| Weight | Approx. 10.8 lbs. 4.9 kg |
