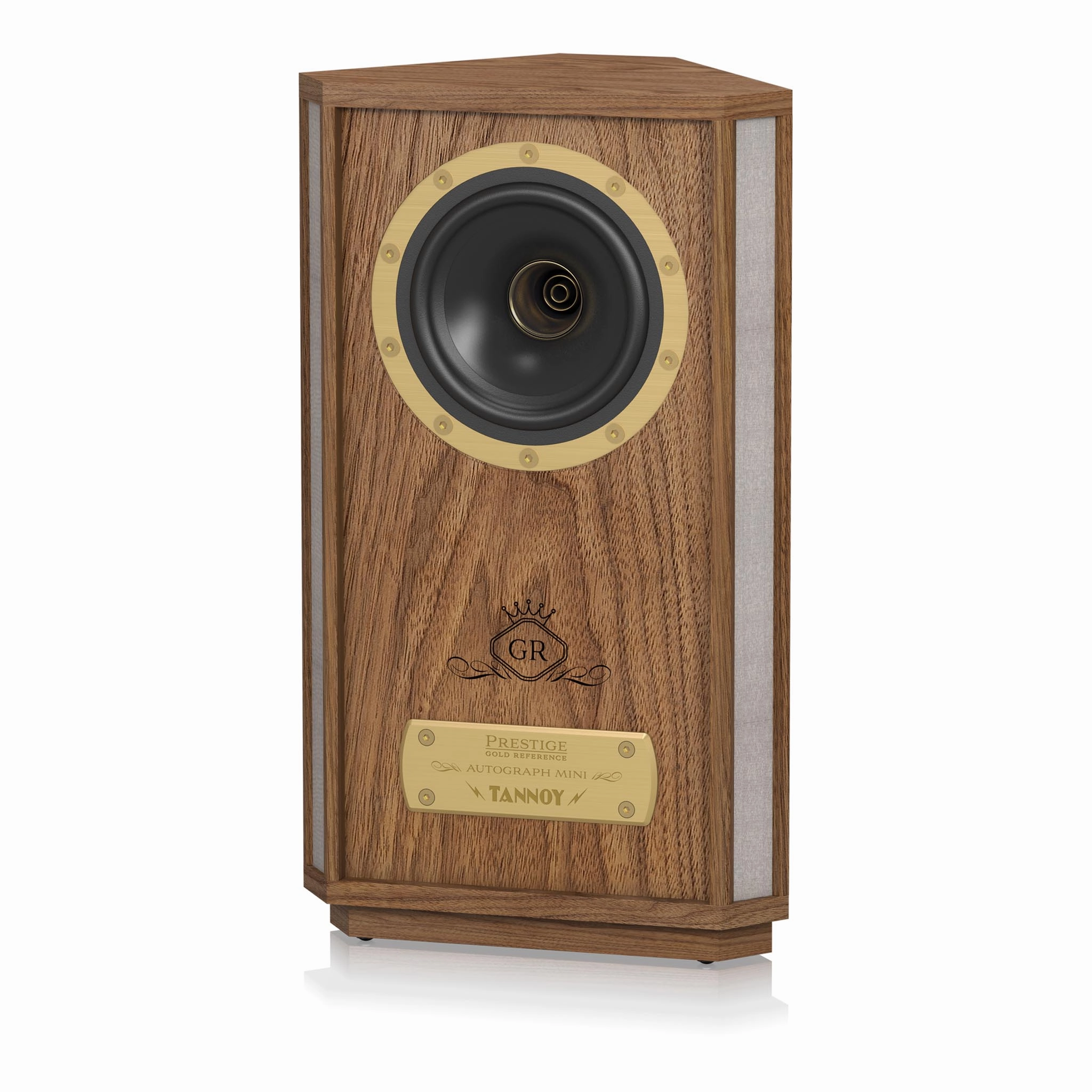

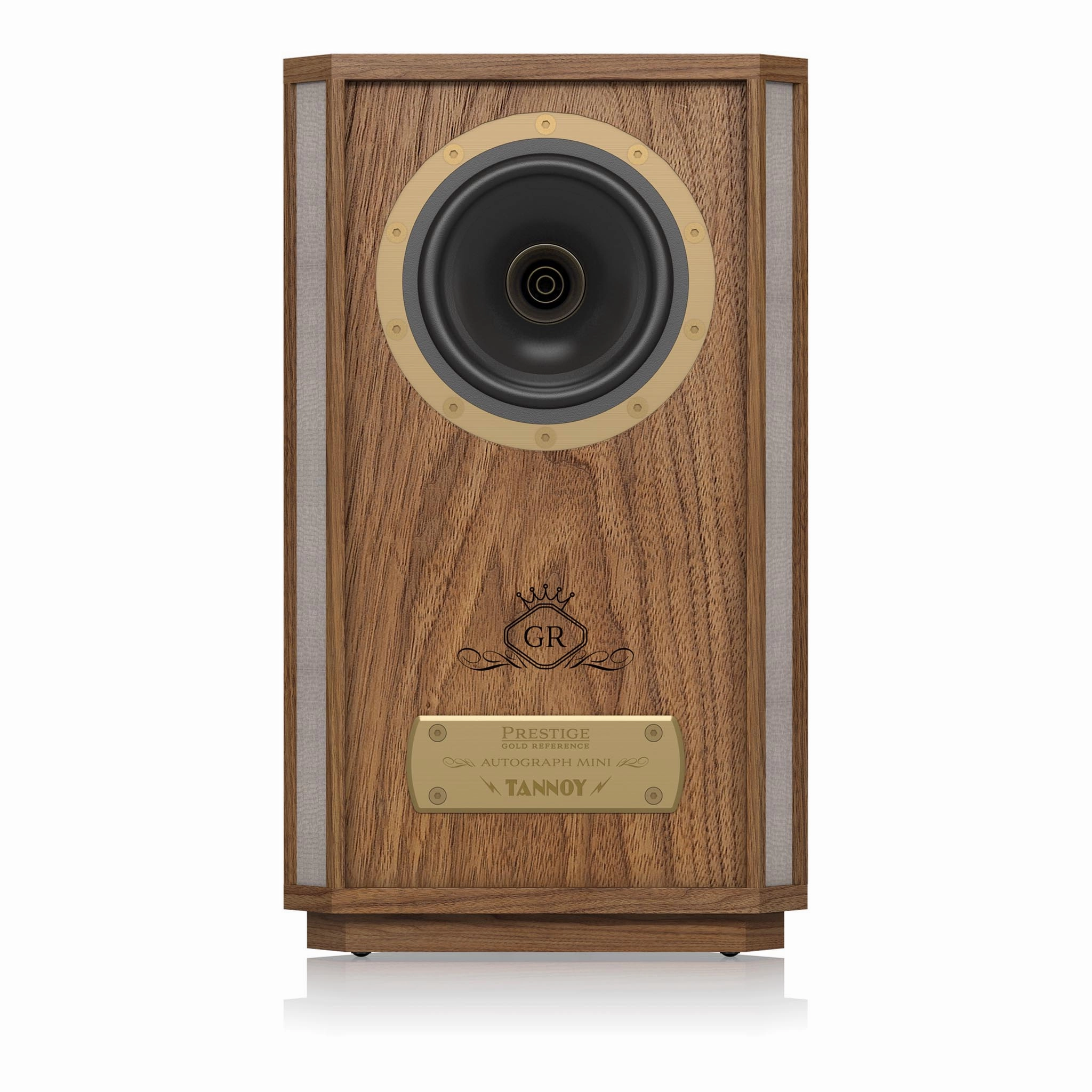

The Autograph Mini GR is a hugely scaled-down but authentic version of a loudspeaker that was famous throughout the audio world fifty years ago. Reduced to a fraction of the size of the immense and revered original Tannoy Autograph this exquisite replica is the ultimate modern retro audio product. Its diminutive size and accurately detailed finish produce a modern day classic that will embellish the most contemporary surroundings.
Remaining true to the cabinet build and finish quality of that yesteryear model, the Autograph Mini naturally incorporates a 4.50 Dual Concentric driver - the unique engineering statement that makes this speaker a 'real' Tannoy. Combining wide bandwidth technology to ensure breathtakingly natural midrange and a heavy cast alloy frame and multi fibre paper pulp cone for well defined bass performance, this miniature Dual performs with subtlety, stunning detail and expansive imaging.
Must be ordered in pairs
Specifications
Recommended amplifier power
20 - 100 Watts
Continuous power handling
50/200 Watts RMS Cont/Peak
Frequency response
60Hz - 20kHz -10dB
Sensitivity
88 dB (2.83 Volts @ 1 metre)
Nominal impedance
8 Ohms
Dual Concentric high frequency
19mm (0.75) titanium dome with Tulip WaveGuide
Dual Concentric low frequency
100mm (4.50) treated paper pulp cone with rubber surround. 33mm (1.33) edge wound voice coil
Dispersion
90 degrees conical
Frequency
2.3kHz
Type
Passive low loss 2nd order compensated LF, 1st order compensated HF
