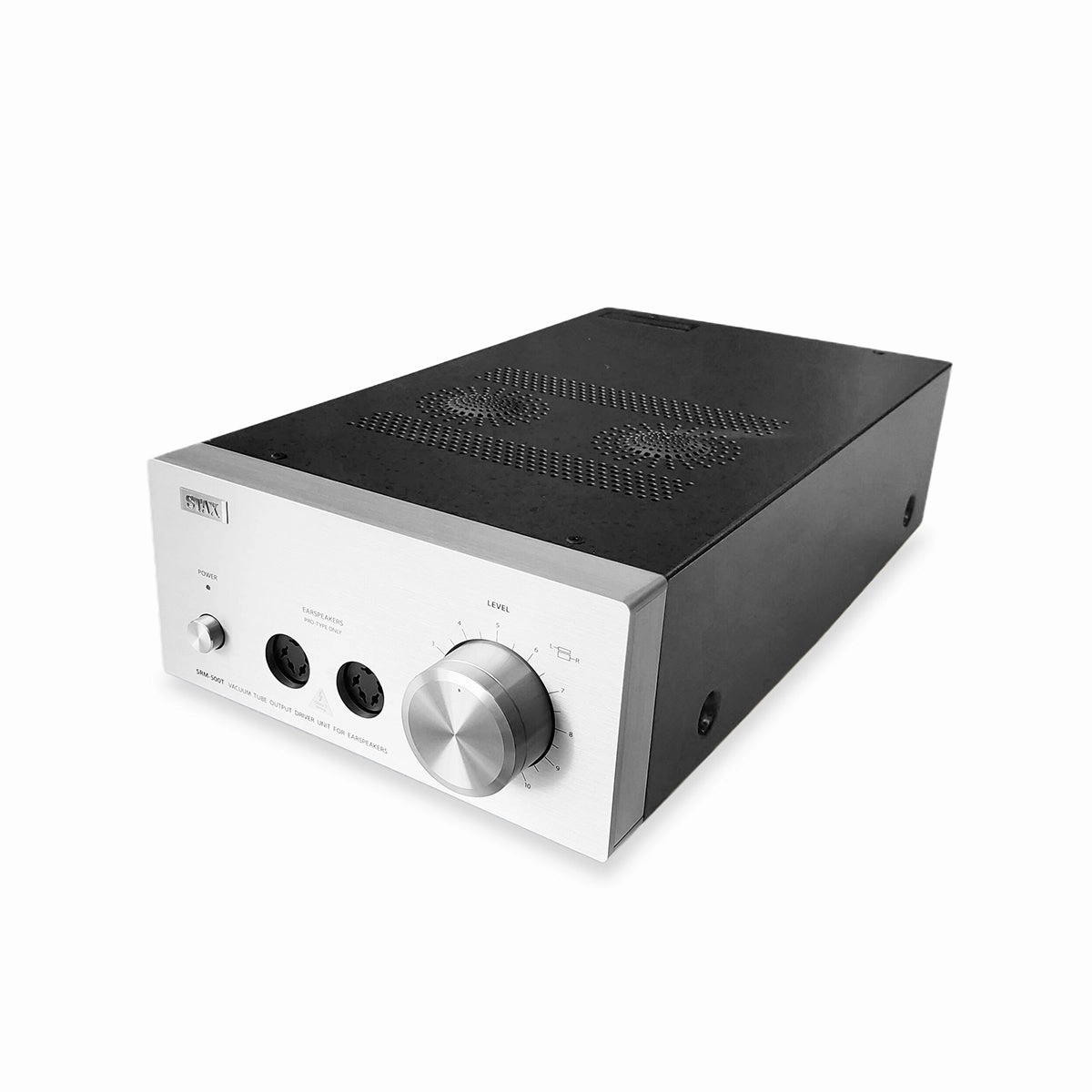

Stax introduces a new model SRM-500T to replace its successor of SRM-006tS. The SRM-500T utilizes a pair of 6FQ7/6CG7 vacuum tubes as the output, driven by custom-made low noise dual FET. Stax pride itself in offering a great value electrostatic driver at the best possible performance.

The newly designed power transformer enables power efficiency. As a result, it achieves an improved sound quality than the conventional vacuum tube output driver unit found in SRM-006tS.

Specification

• Type: FET input vacuum tube output hybrid DC amplification driver unit

• Vacuum tube: 6FQ7/6CG7

• Frequency response: DC - 90kHz (with one SR-L500 MK2)

• Gain: 60dB

• Harmonic distortion: 0.01% or less (1kHz/100Vrms output)

• Input impedance: 50k (RCA), 50kx 2 (XLR)

• Maximum output voltage: 300Vrms (1kHz)

• Bias voltage: DC 580V

• Operating temperature / humidity: 0 to 35 degrees C / less than 90% (non condensing)

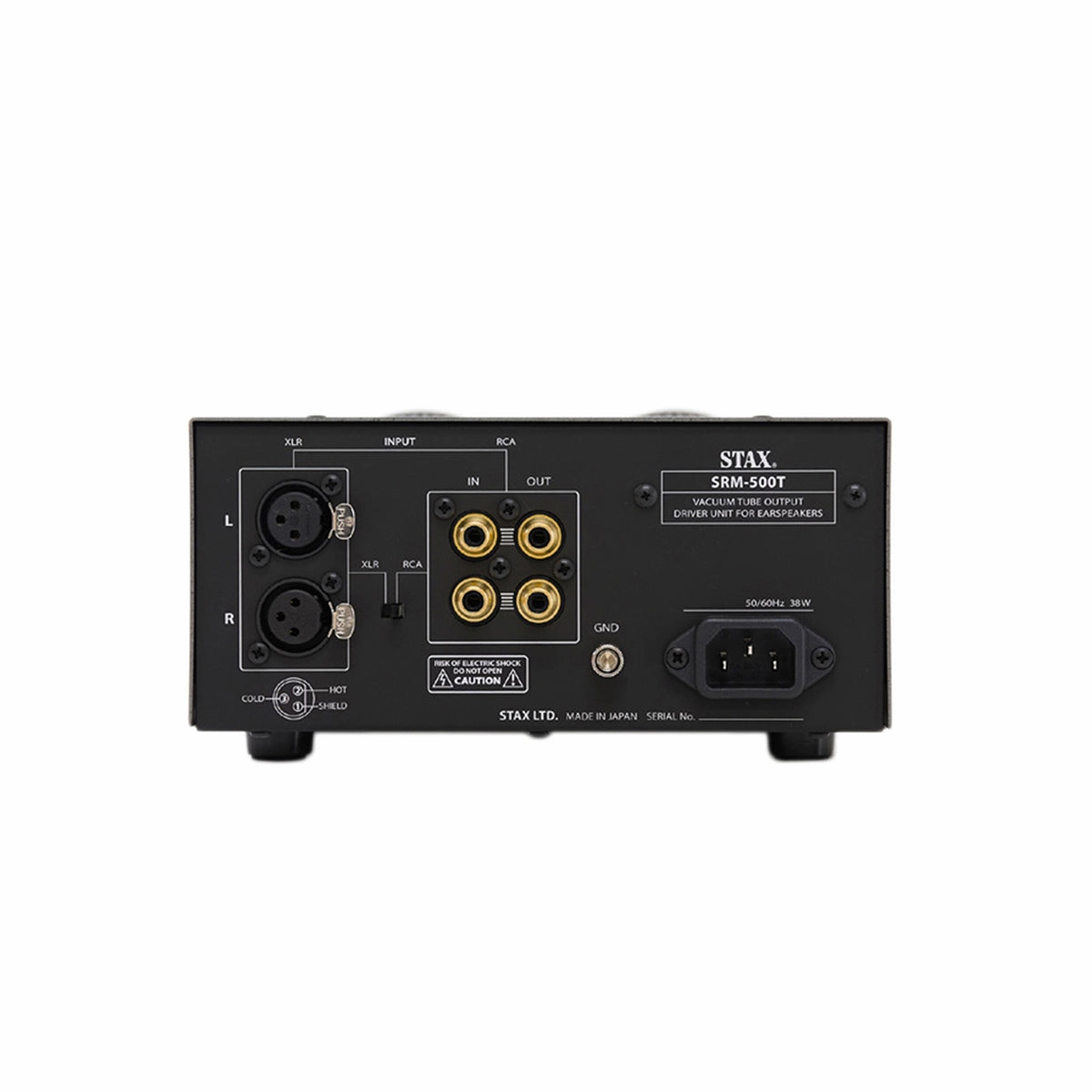

• Input terminal: RCA x 1, XLR x 1(mutual exclusion input)

• Output: RCA parallel output

• Power consumption: 38W

• Dimension: 195 (W) x 102 (H) x 376 (D) mm (maximum protruding portion included)

• Weight: 3.4kg
