The A11MKII Integrated Amplifier delivers the ideal combination of power and connectivity for anyone seeking to elevate their listening experience.
Constructed around a massive Rotel-built toroidal power transformer, the A11MKII delivers 50 Watts per channel of Class A/B power into 8 ohms supporting analog, digital and Moving Magnet Phono stage inputs.
Engineered with care.
The A11MKII Integrated Amplifier offers an ideal combination of power and connectivity for the music lover seeking to elevate their listening experience.

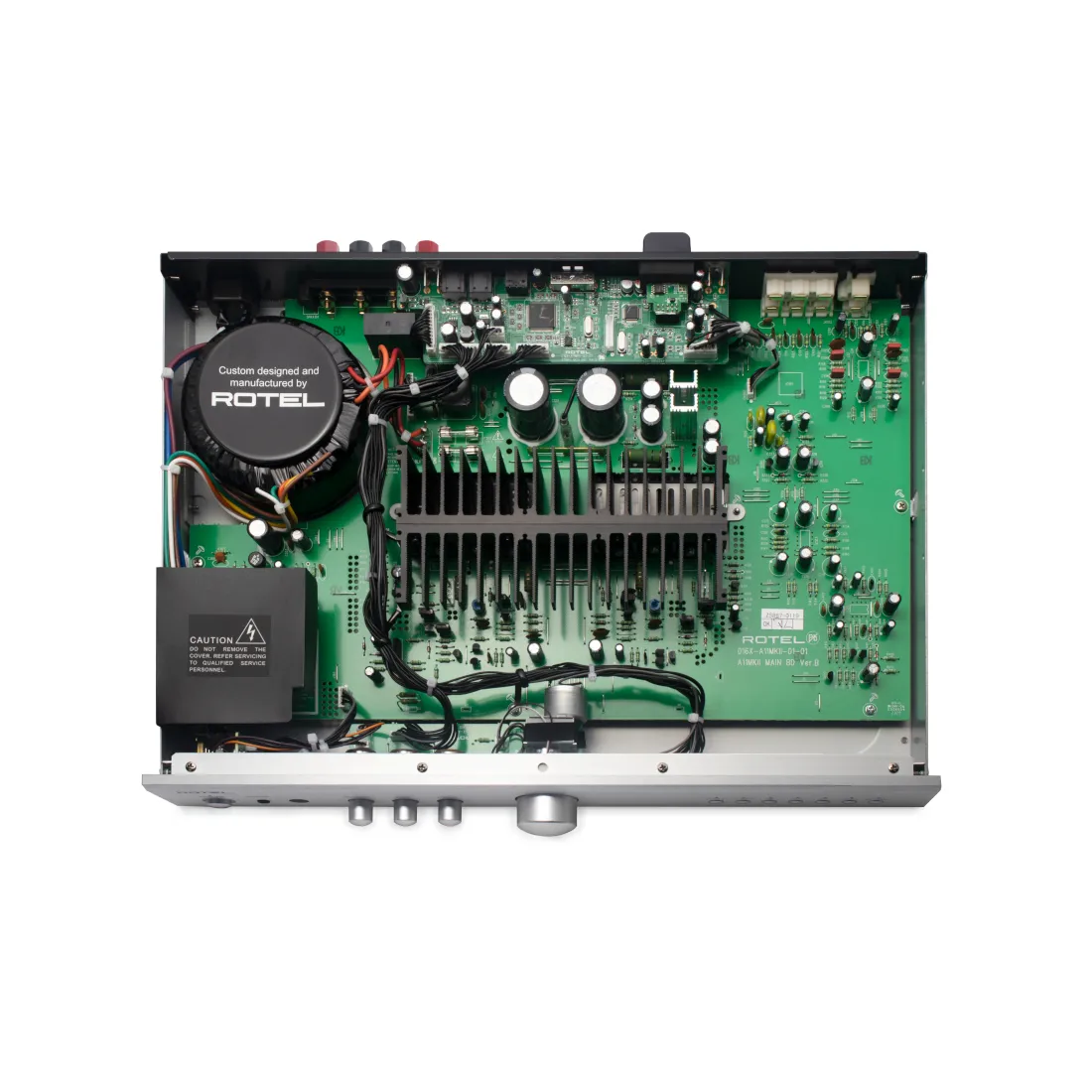

Constructed around a linear power supply featuring a massive Rotel-built toroidal power transformer, the A11MKII delivers an authoritative 50 Watts per channel of Class A/B power into 8 ohms, and even higher power into demanding loudspeakers.

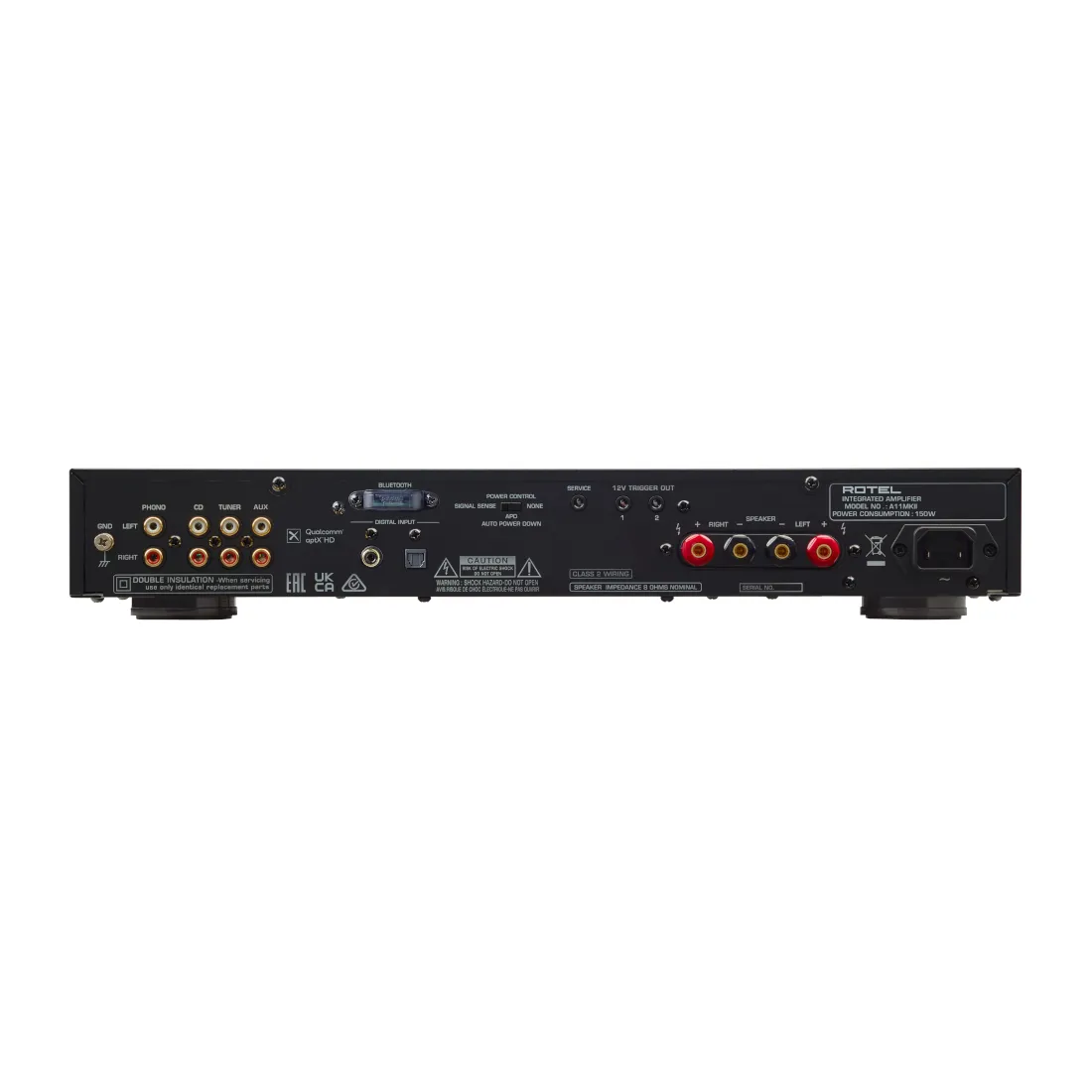

Both analog and digital sources are welcome, with three line-level RCA inputs, coaxial and optical digital inputs, a Moving Magnet Phono stage, and aptX HD Bluetooth. An 1/8 headphone jack with dedicated headphone amplifier circuit is provided on the front panel for private listening sessions.

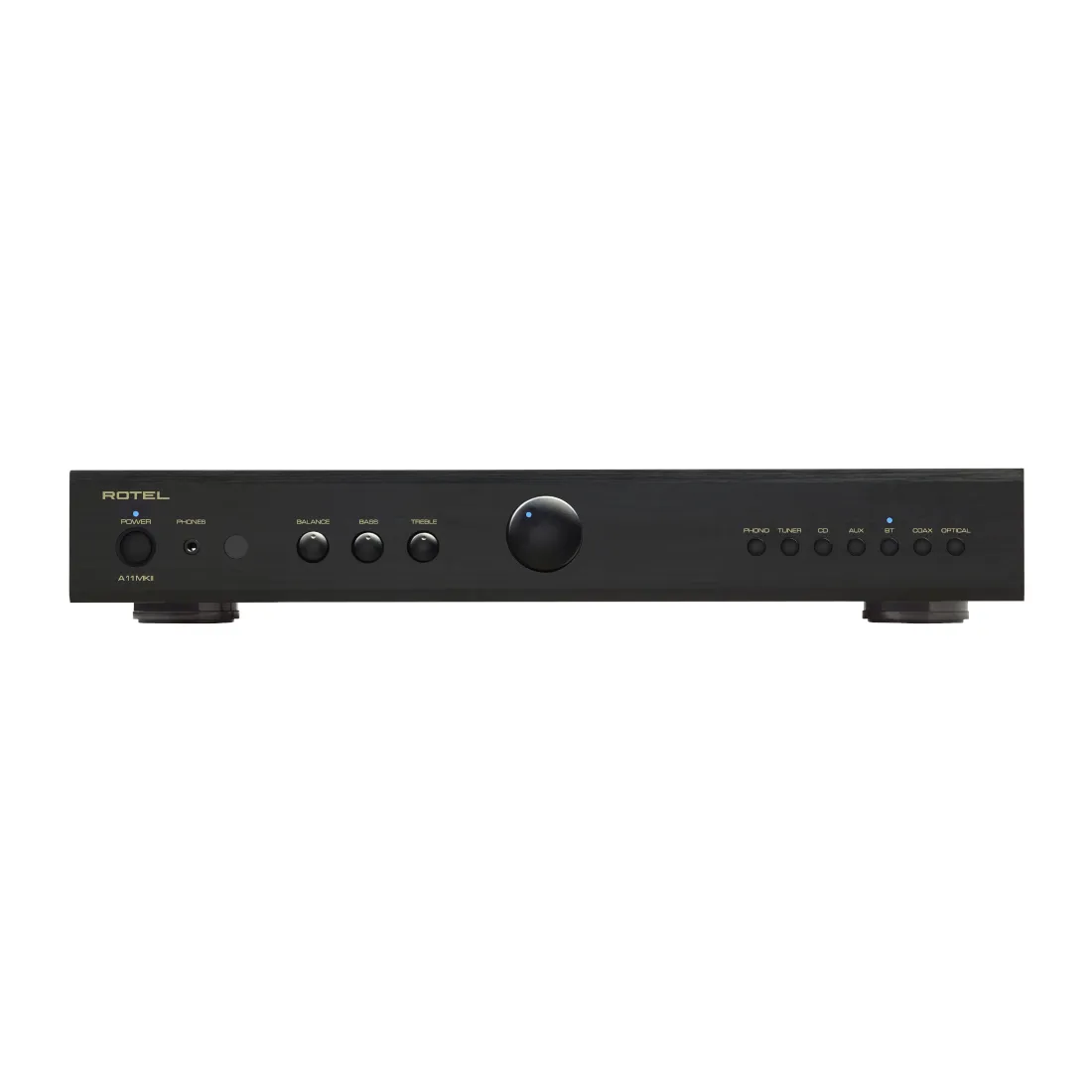

The intuitive front panel layout includes Bass, Treble, and Balance rotary controls and source input selection ensuring the A11MKII is personal and a pleasure to operate up close. The included IR remote drives a motorized analog volume controller for ease of use at the listening position.
The A11MKII is available in both black and silver colors.
Specifications:
| DIMENSIONS (W H D) | 430 73 347mm 17 x 2 7/8 x 13 5/8 |
| FRONT PANEL HEIGHT | 60 mm (2 3/8) |
| POWER REQUIREMENTS | 120V, 60Hz |
| POWER CONSUMPTION | 150W |
| STANDBY POWER CONSUMPTION | <0.5W |
| NET WEIGHT | 6.8kg (15lbs.) |
| BTU RATING (4, 1/8th power) | 450 BTU/h |
| POWER OUTPUT | 50W/Ch (8) 62W/Ch (4) |
| TOTAL HARMONIC DISTORTION (THD) | <0.03% |
| FREQUENCY RESPONSE | Line Level Inputs: 10Hz - 100kHz, -0.5dB, 0.05dBPhono Input: 20Hz - 20kHz, -0.5dB, 0.3dB |
| S/N RATIO (IHF "A" Weighted) | Line Level Inputs: 90dBPhono Input: 85dB |
