Revel Concerta2 F36 Floorstanding Loudspeaker

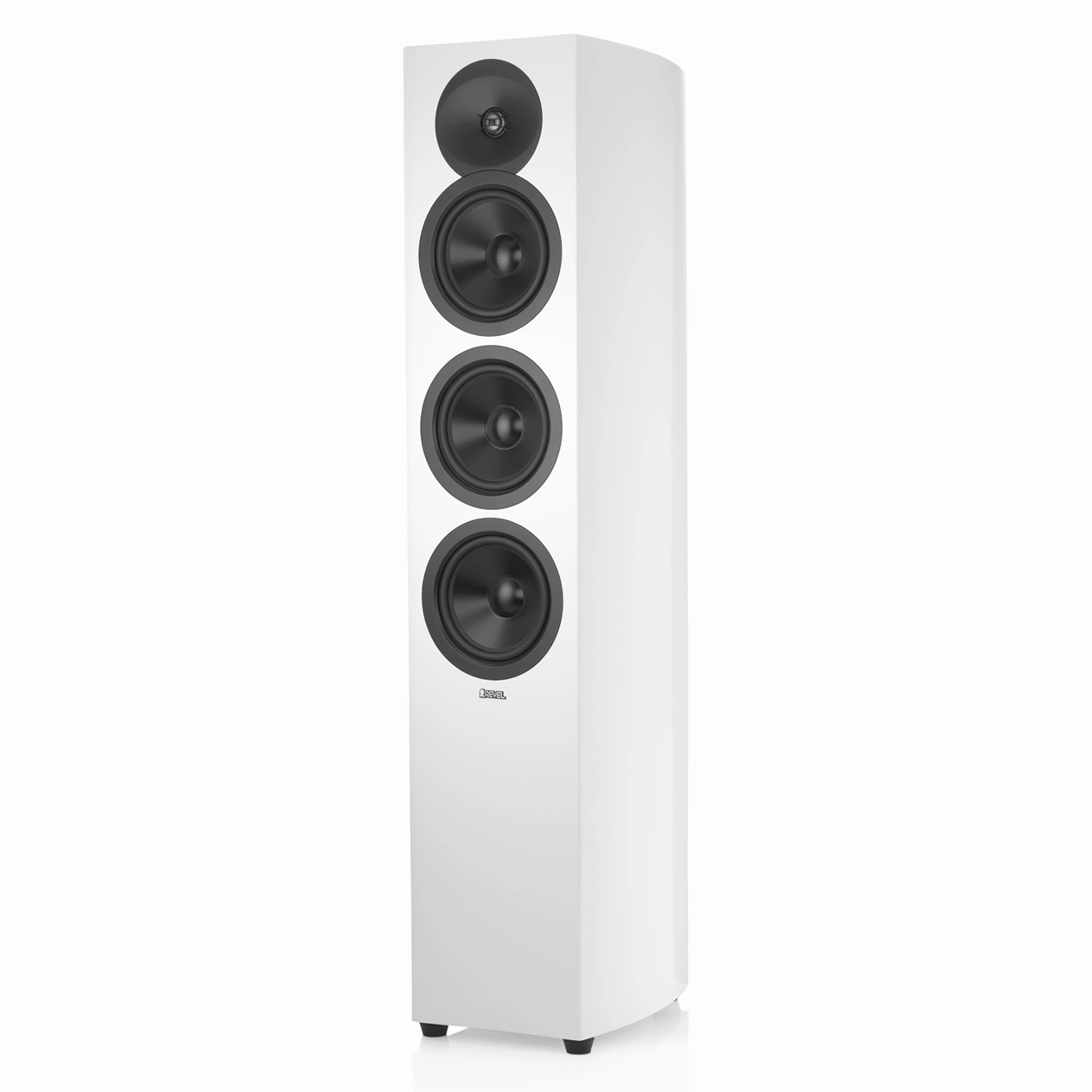

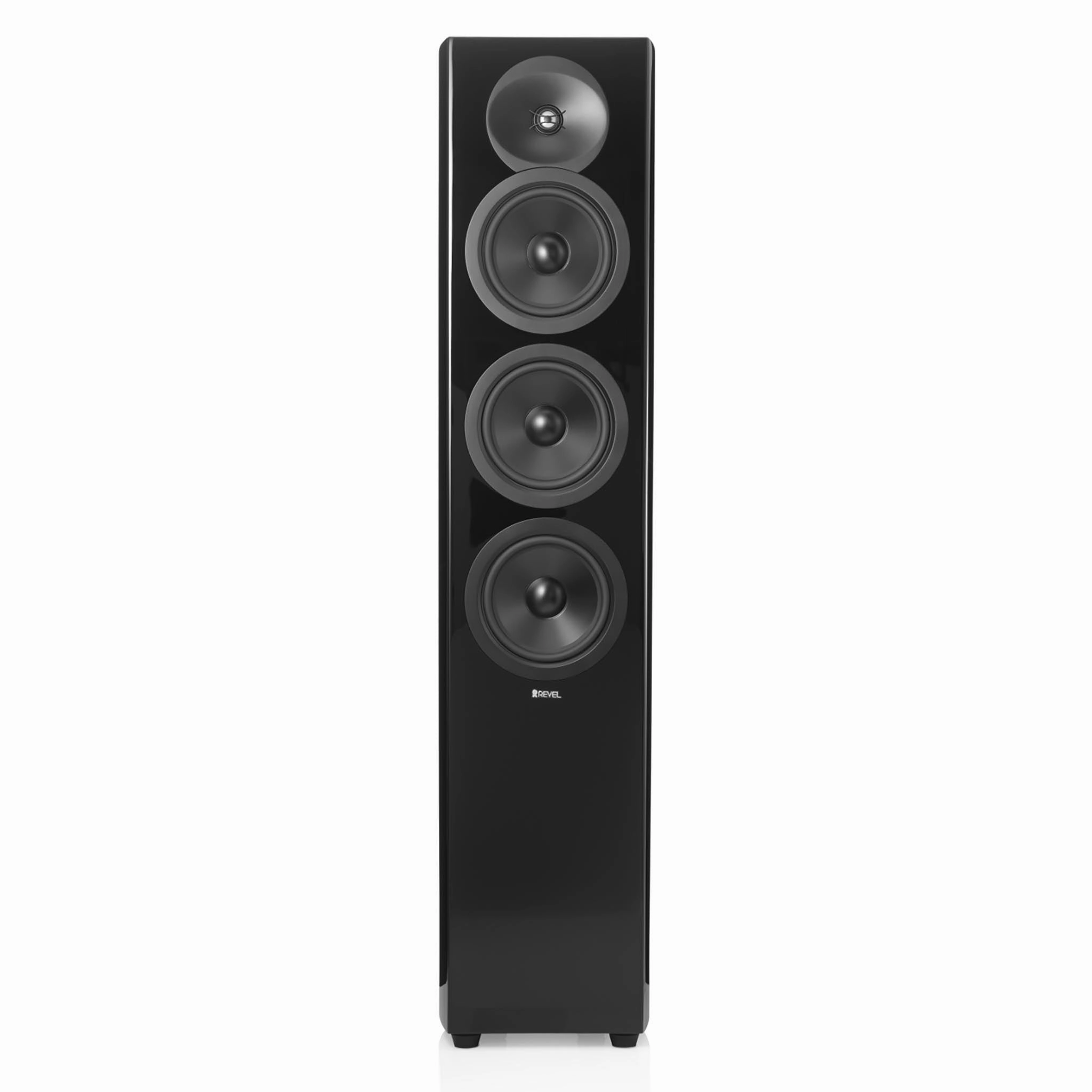

The F36 is a true full-range 2 1/2-way 6.5 floorstanding loudspeaker that was designed to provide true high-end sound quality. It will deliver an impressive combination of wide frequency range, uncompressed dynamic range and low distortion across the entire audible spectrum.
High-frequency response is supported by 1 inch aluminum dome tweeters that were derived from Revels Performa3 series. Low/Mid range frequency response is supported by 6.5 Aluminum cone woofers featuring low-distortion motor-structures for greater clarity and accuracy with improved sensitivity and output capability.
The patented wave guide design improves tweeter to woofer blend and significantly improves off-axis response for consistent performance over a wide listening area.
Features
- Derived from Revels award-winning Performa3 Series Loudspeakers
- 6.5"deep anodized aluminum cone woofers
- 1" aluminum tweeter
- Fourth-generation Acoustic Lens waveguides
- Computer-optimized driver positioning and network integration
- Constant pressure gradient port design
- No visible fasteners on the front, top or side panels

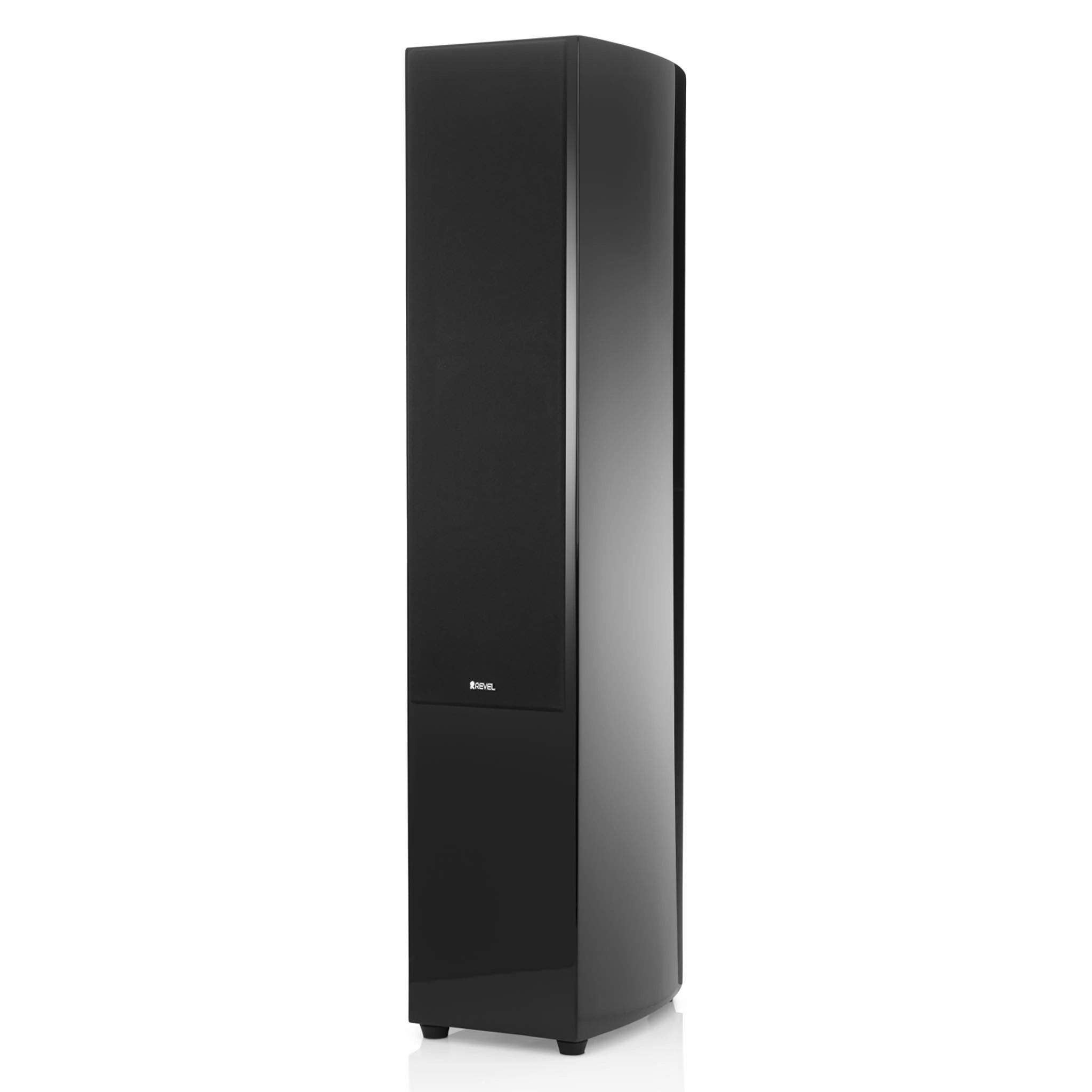

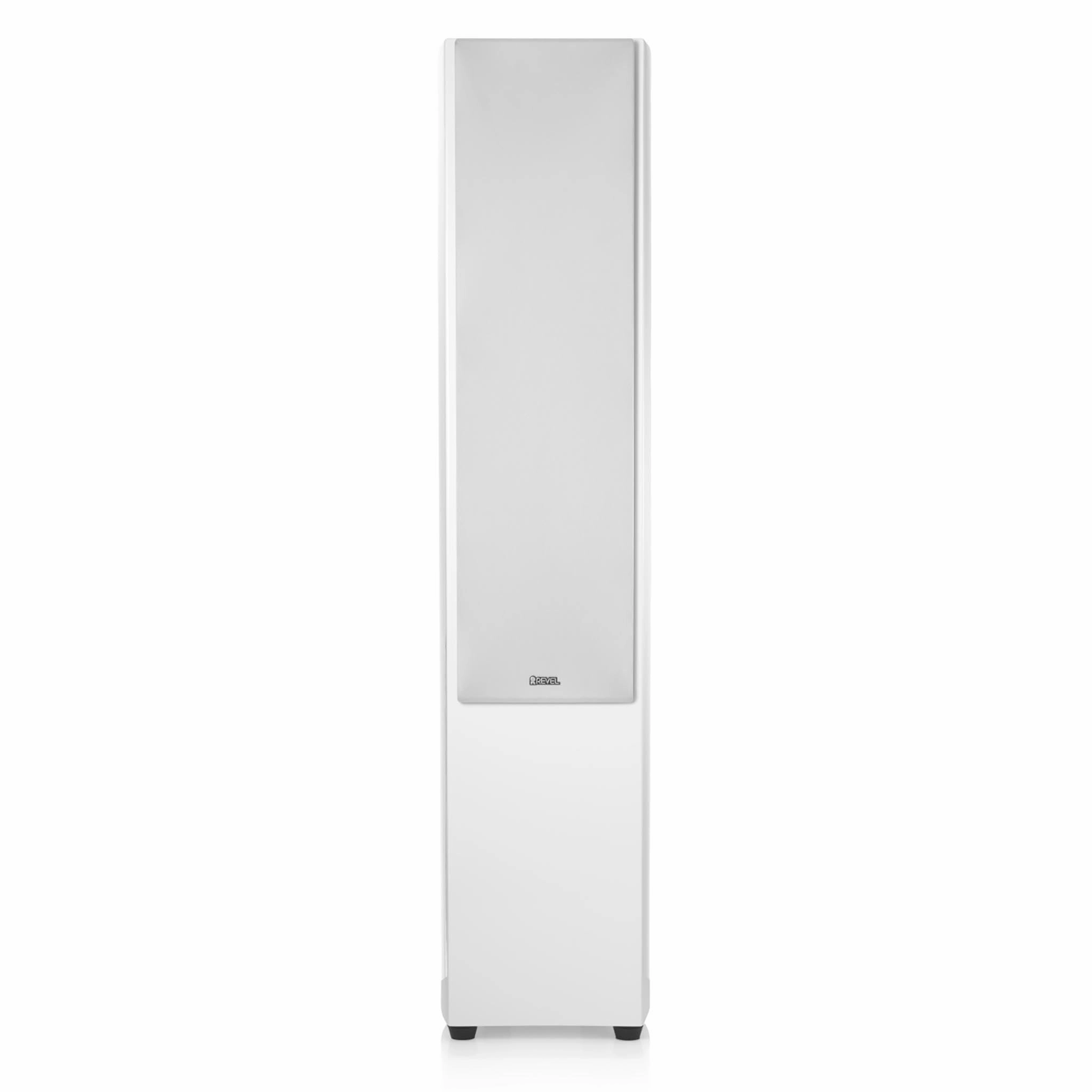

- Magnetic grilles with brushed metallic logos
Specifications

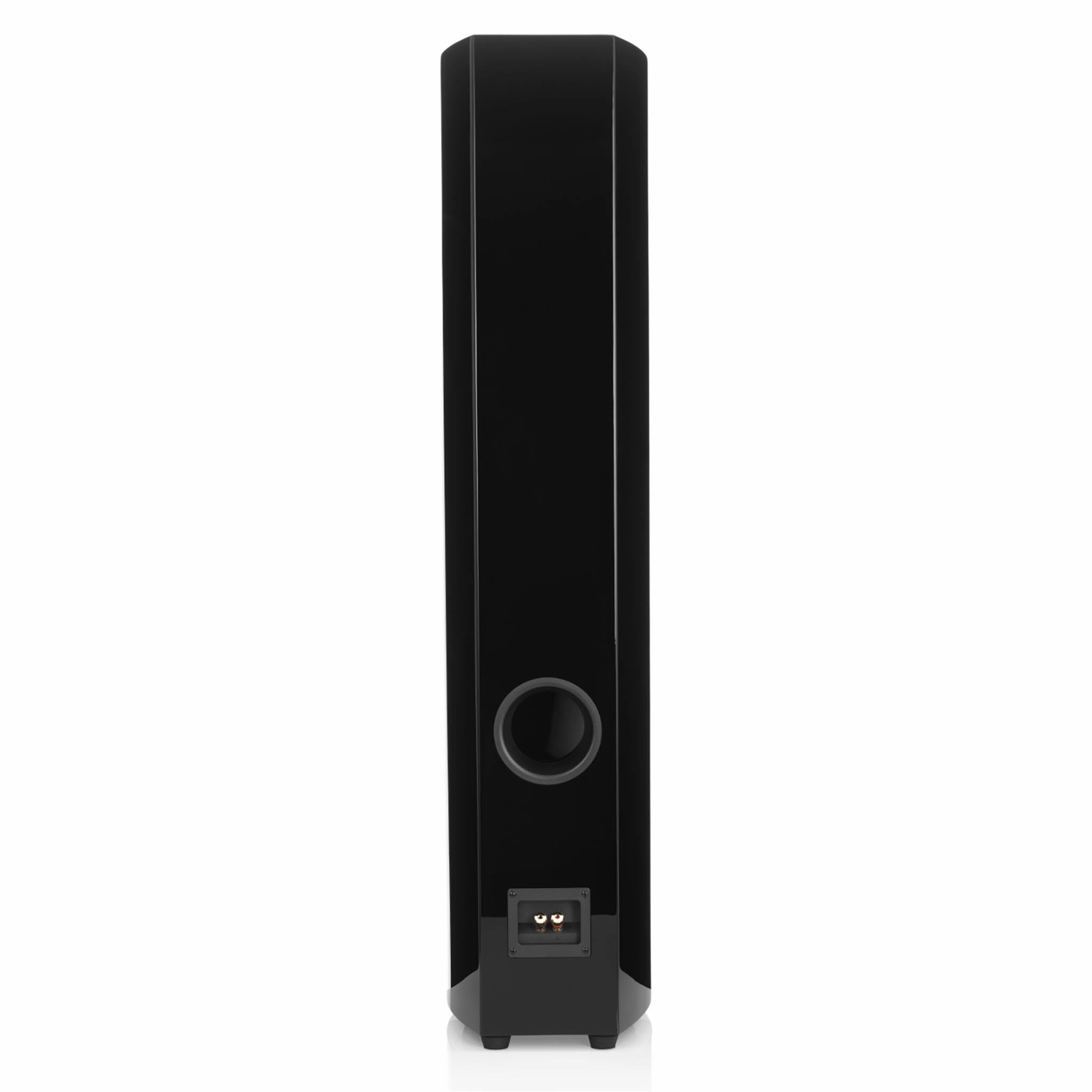

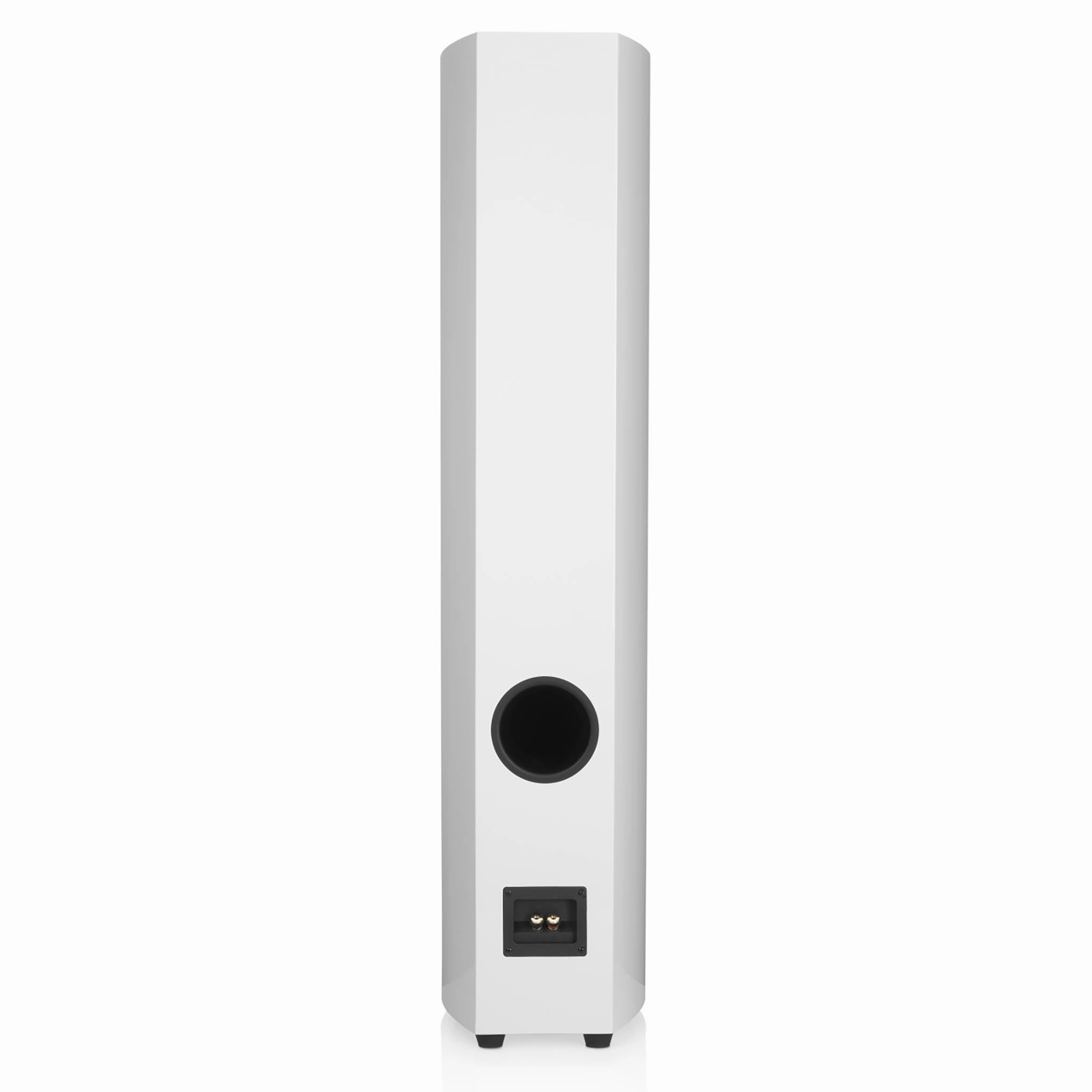

Enclosure type:Bass-reflex via rear-firing port
High-frequency driver:1" aluminum tweeter with Acoustic Lens Waveguide
Low-frequency driver:3 x 6.5" aluminum cone woofer
Nominal impedance:6 Ohm
Input connections:Five-way binding posts
Low-frequency extension:51 Hz, 45 Hz, 33 Hz (-3 dB, -6 dB, -10 dB)
Crossover frequencies:600Hz, 1.8 kHz
Sensitivity:91 dB (2.83 V @ 1 M)
Dimensions, including feet:44.25" x 9.65"x 12.2"
Weight:50lb
