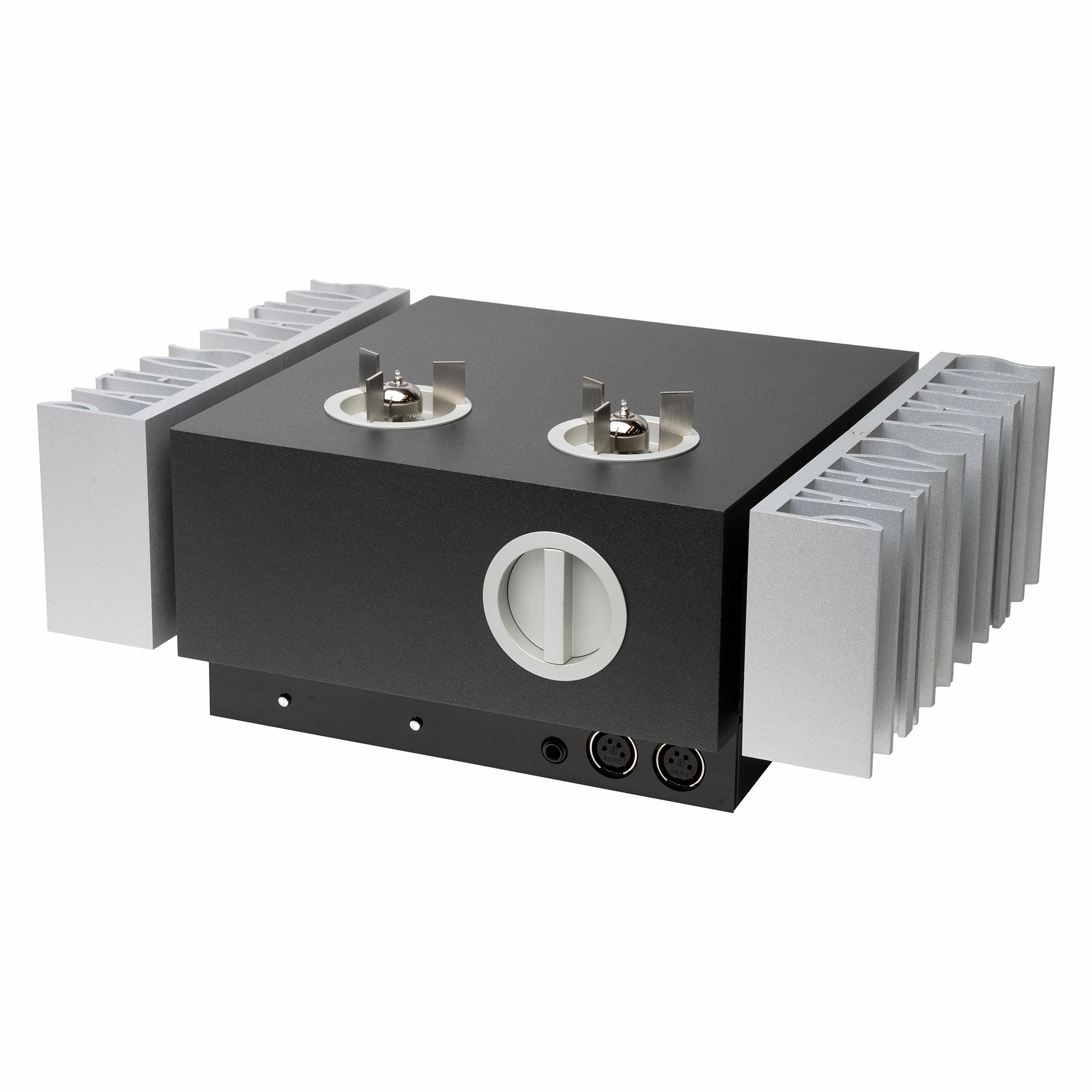

Pathos InPol Ear Reference Headphone Amplifier

A class-A hybrid with two Electro-Harmonix 6922's and Pathos' InPol circuit

InPol Ear is a pure class-A integrated headphone amplifier, with a fully balanced latest generation double InPol. It features two balanced and one unbalanced output and allows the addition ofthe HiDac Mk2 converter. The balanced output offers 10 W into 16 Ohm, and the single-ended, 6 W into 16 Ohm.

InPol (InseguitorePompaLineare- Linear Pump Follower) is a Pathos patented system that allows for much greater output in pure Class A. This fully balanced circuit design uses a single solid-state component in follower configuration, with ahigh-currentgain and voltage gain together.Think of the directnessof SET with the control and damping of solid-state. InPol technology allows the tube input stage to effectively drive your speakers with no further amplification.

An optional HiDac Mk2 converter offers a high-quality onboard DAC with digital inputs.

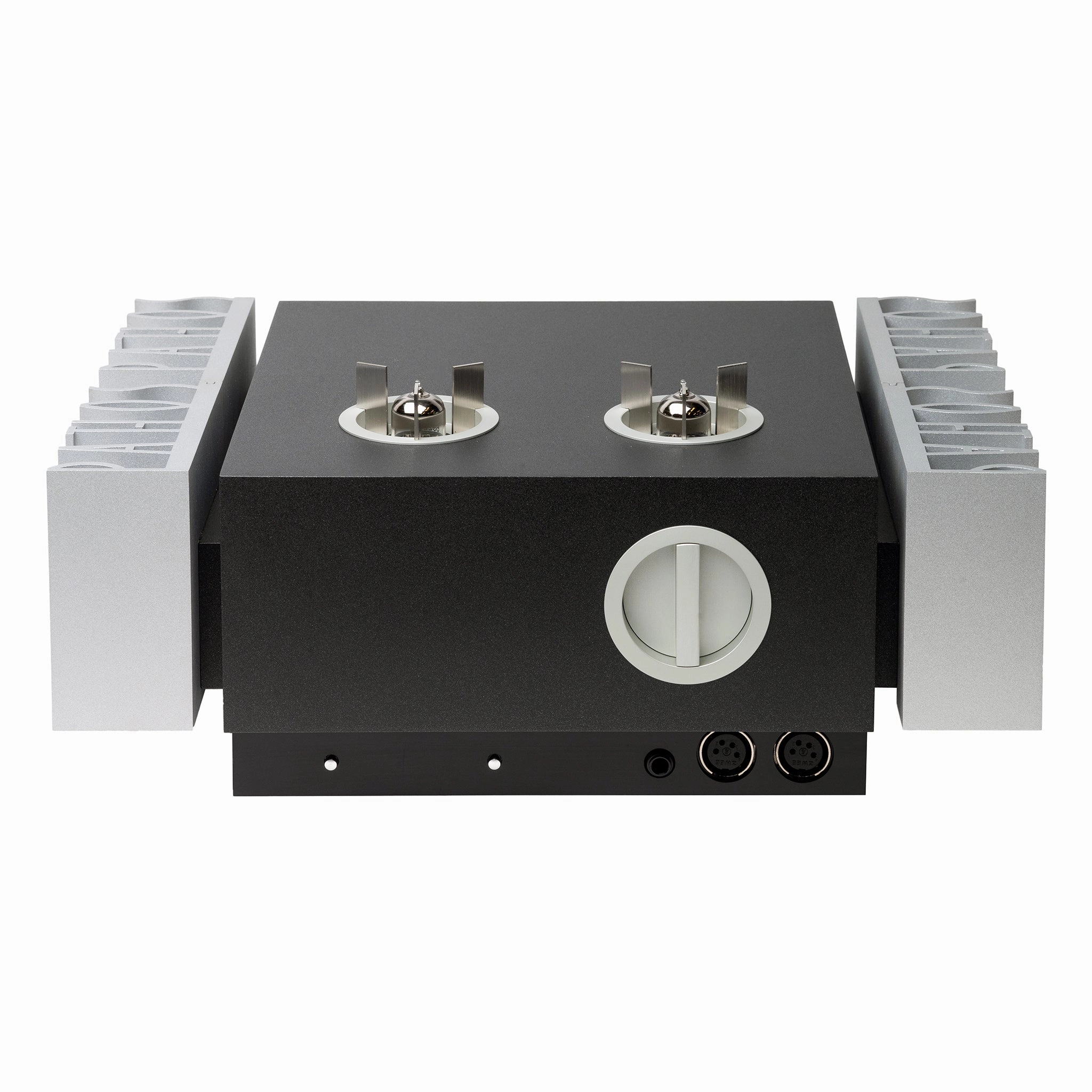

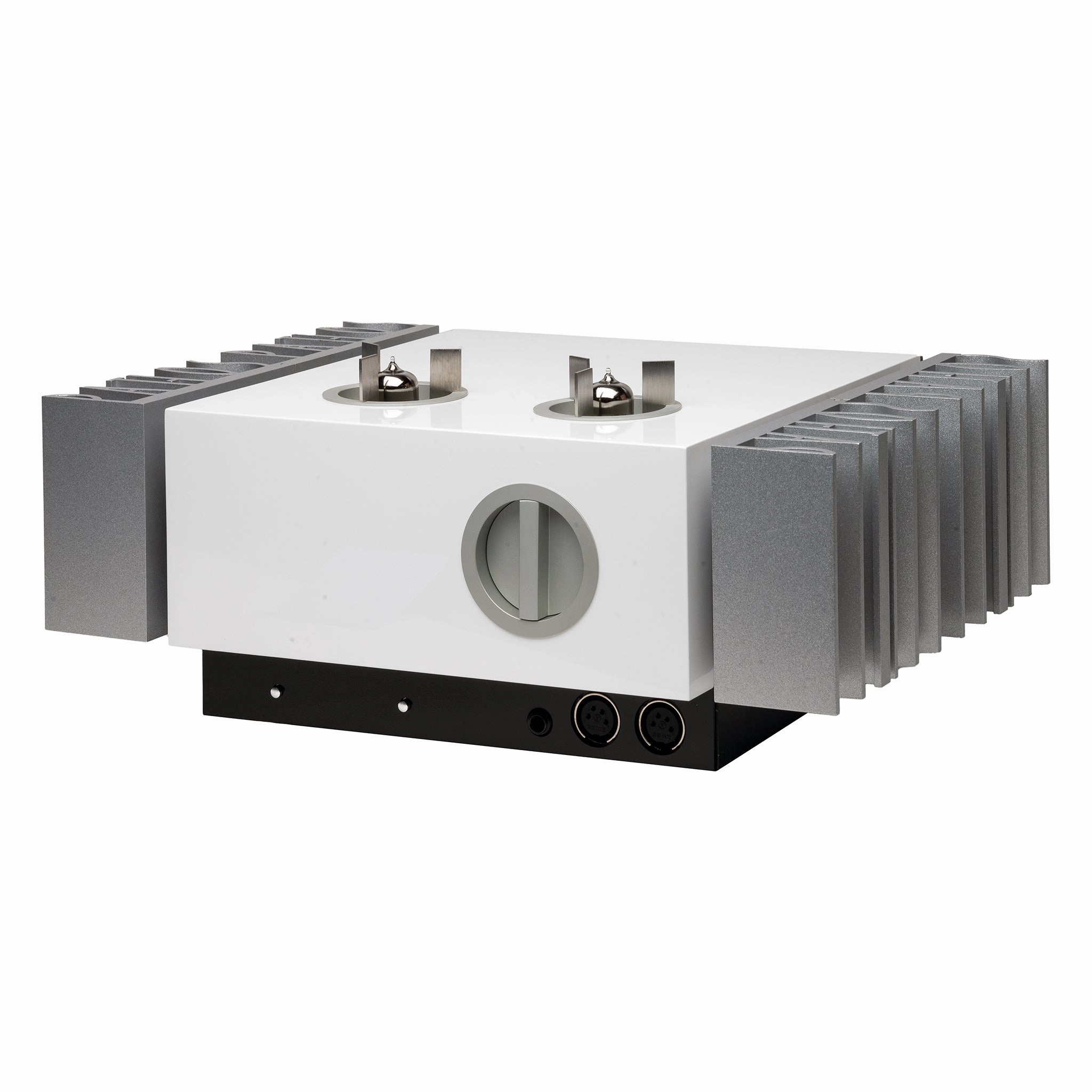

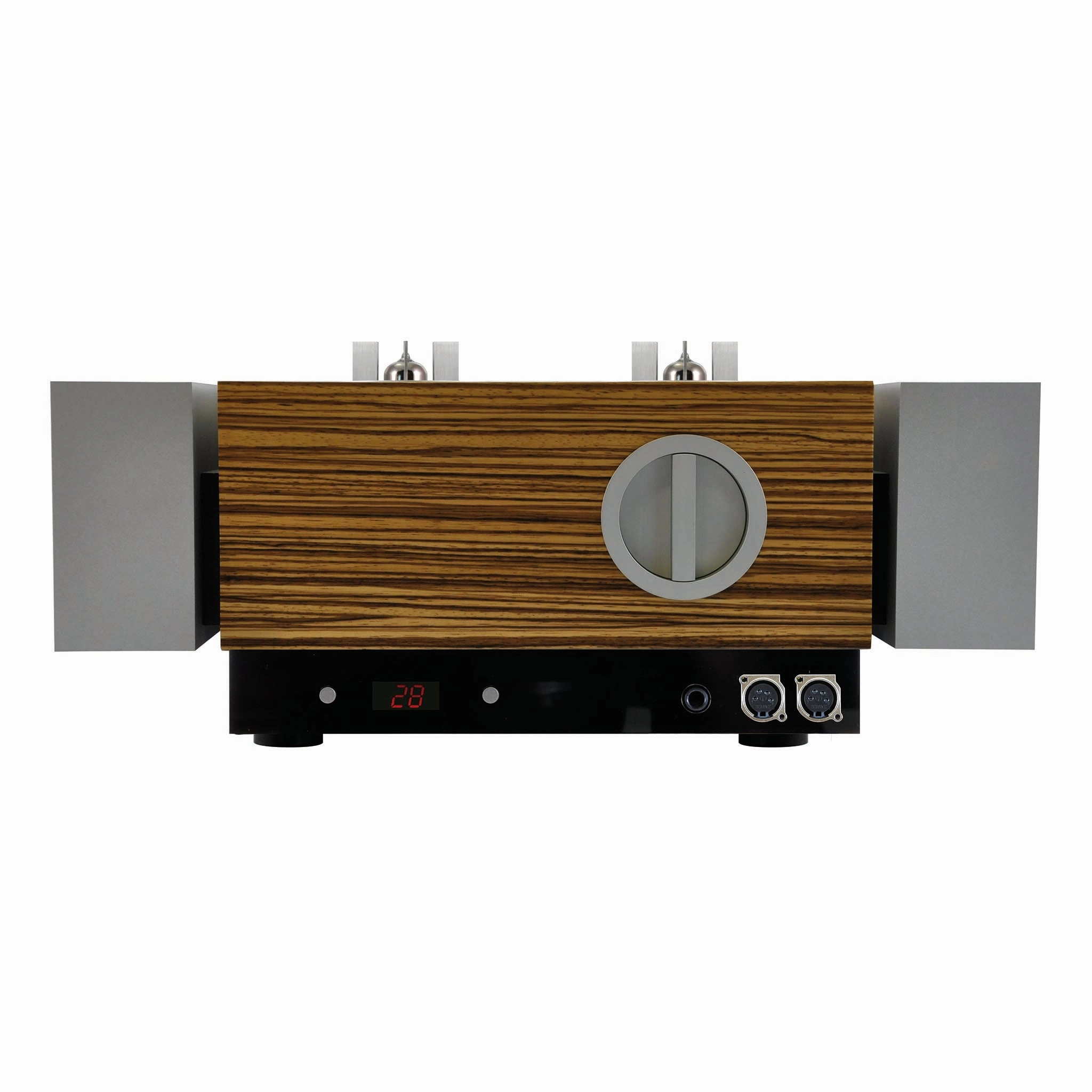

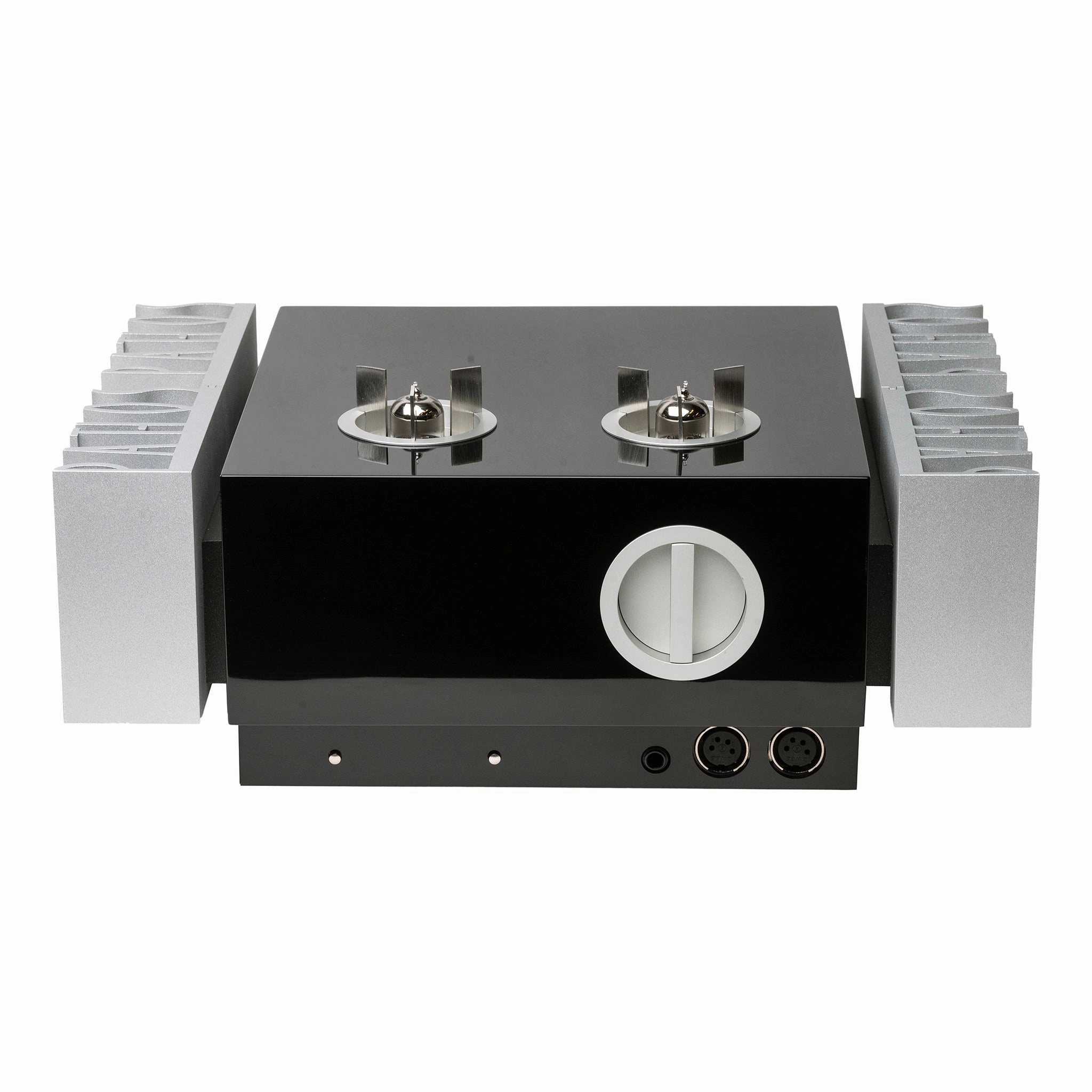

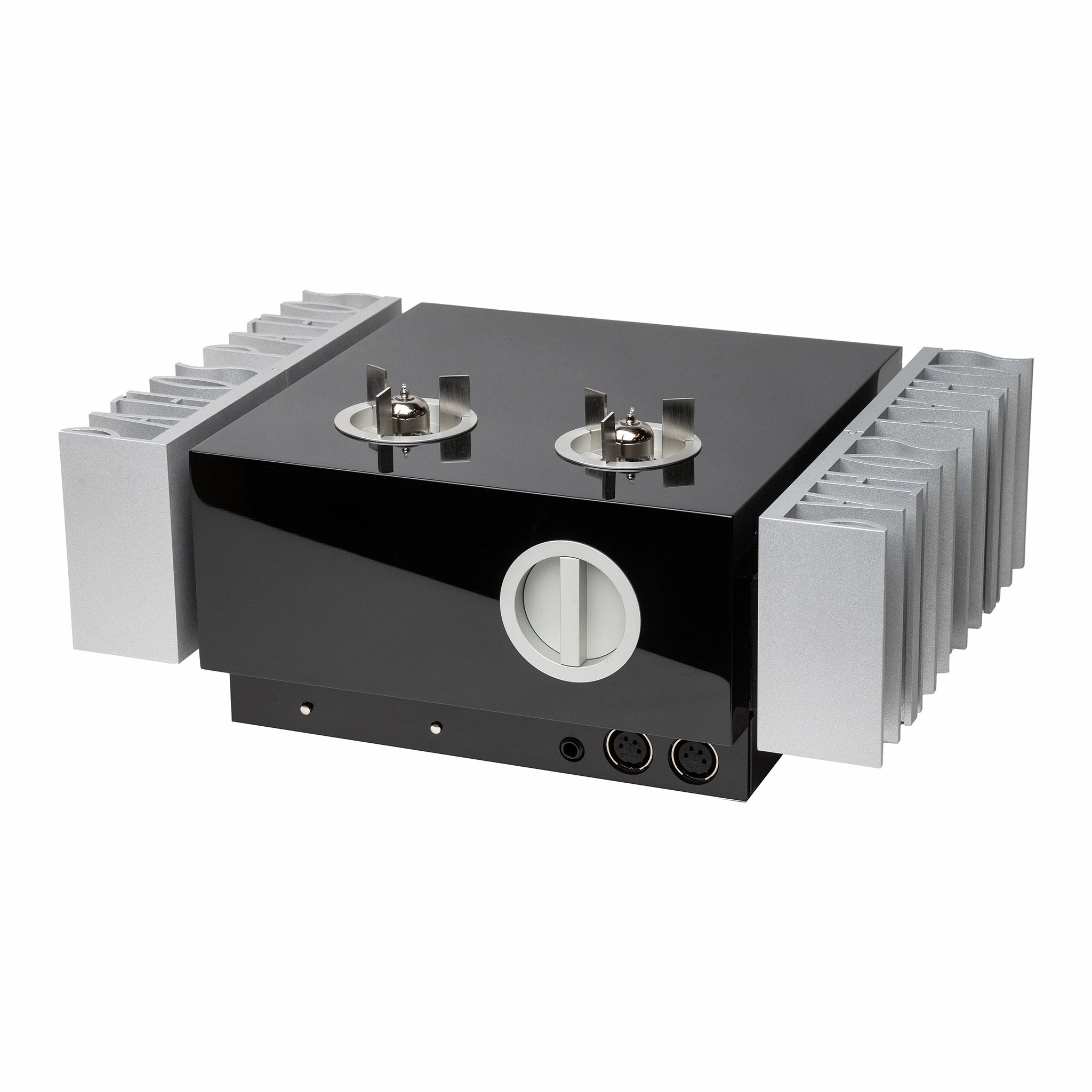

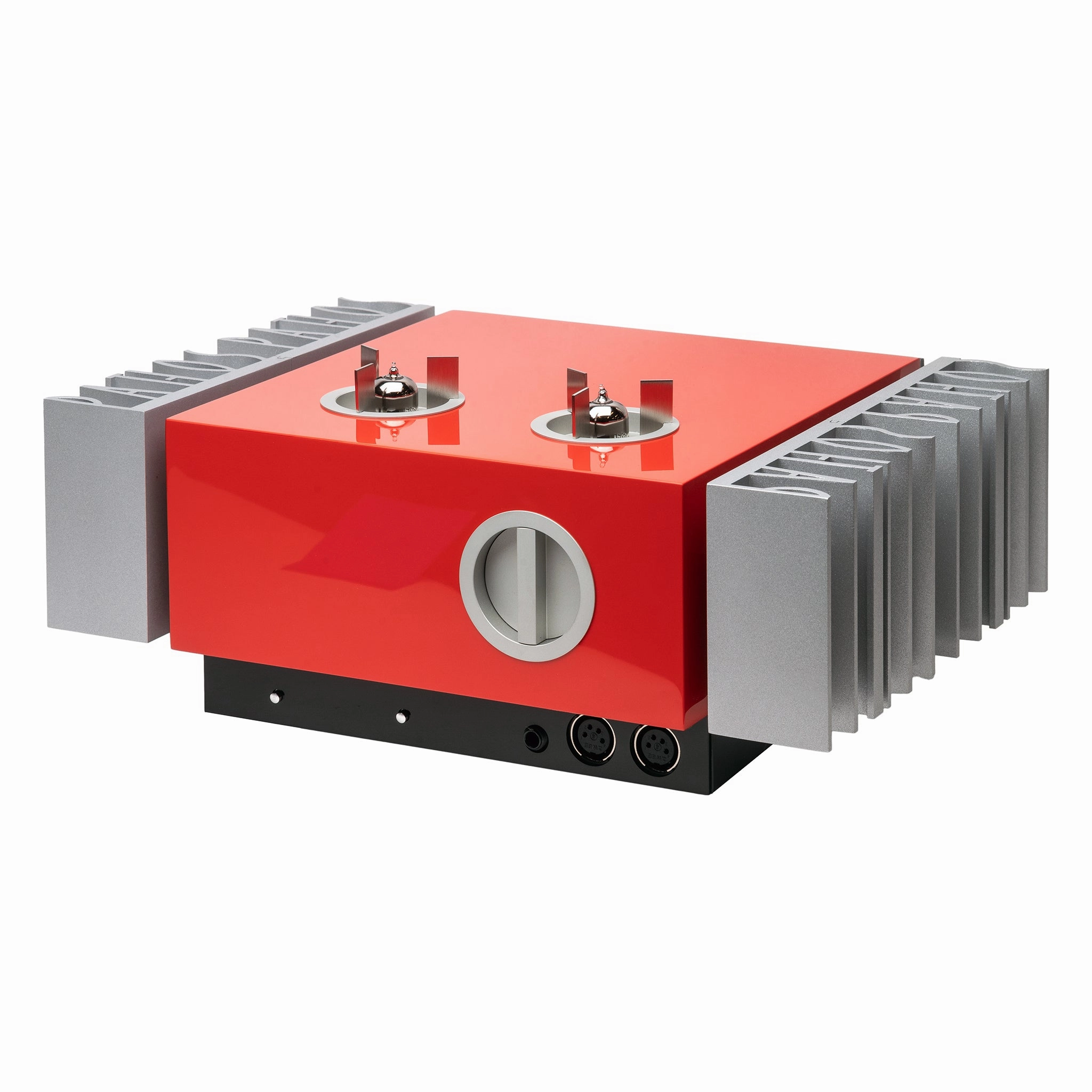

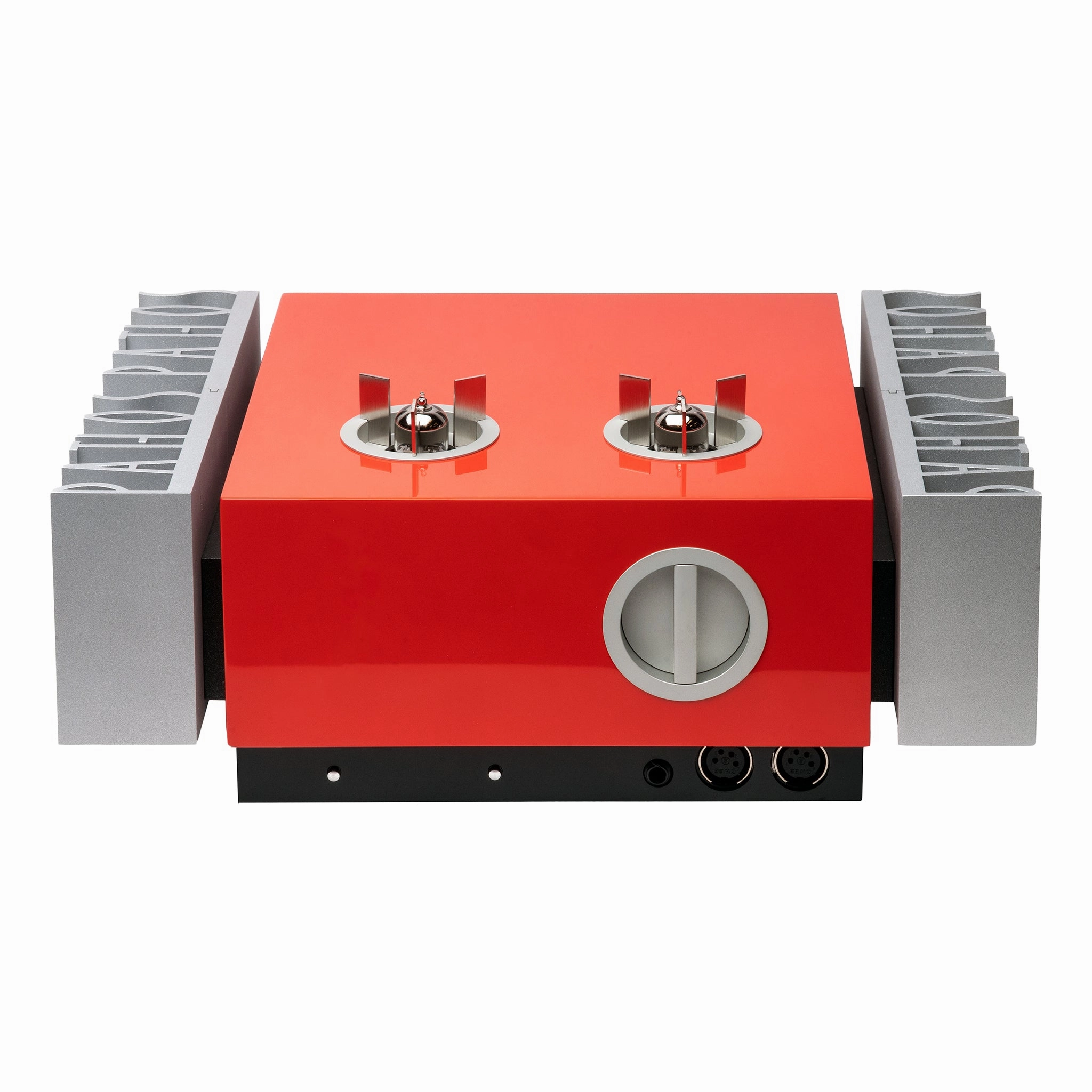

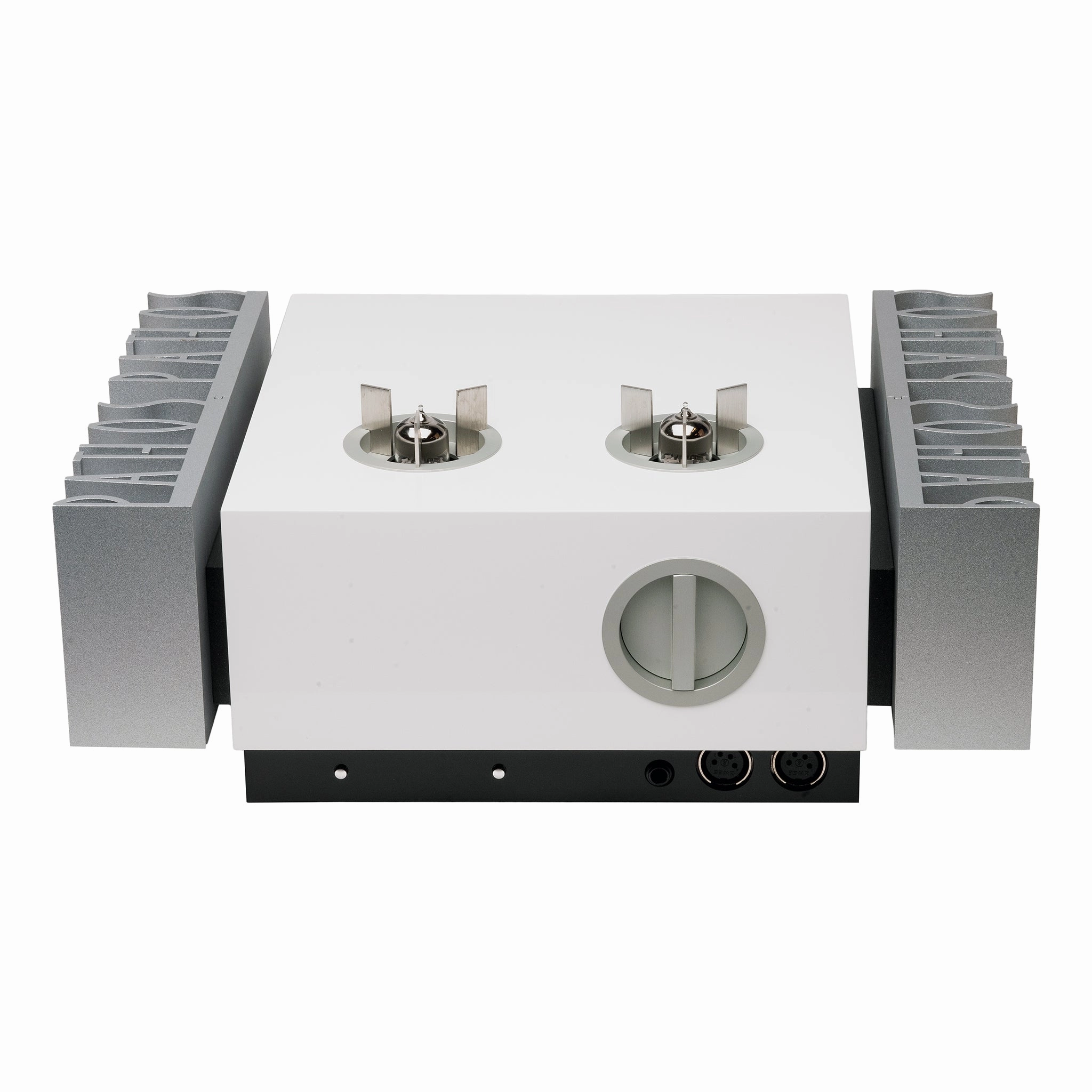

The InPol Ear has Pathos' eye-catching (and highly effective) logo-shaped heatsinks, and comes in a range of center panel options.

"The only thing I regret is not having bought this amplifier 3-4 years ago!!"

Read the detailed, unsolicited customer reviews below. This amp is truly beloved, and always steals the show at our tables at CanJam or RMAF or Axpona. If you're not able to visit us, look out forthe next show we're attending and bring your favorite headphones to listen to this Italian beauty!

Specifications

Type: Reference stereo integrated amplifier for headphones. Pure Class A double INPOL technology

Output Power (Unbalanced, Balanced)
32 : 3 W, 10 W
50 : 1.9 W, 6.4 W
120 : 800 mW, 2.7 W
300 : 320 mW, 1 W
600 : 160 mW, 533 mW

Tube Type: 2 x 6922 Electro-Harmonix

Output Impedance (Unbalanced, Balanced):0.45 Ohm, 0.9 Ohm

Frequency Response: 2 Hz 200 kHz 0.5 db

Input Sensitivity: 2.2 V RMS

Input Impedance: 100 kOhm

Output Polarity: Selectable by remote control

Volume Regulator: 2 x Burr Brown PGA2310 (180 steps 0.5 dB)

Max Input Voltage: 4.4 V RMS
Max Output Voltage (Unbalanced, Balanced):10 V RMS, 20 V RMS

Preamplifier Gain: 9 db

Outputs: 1 x balanced XLR,1 x RCA

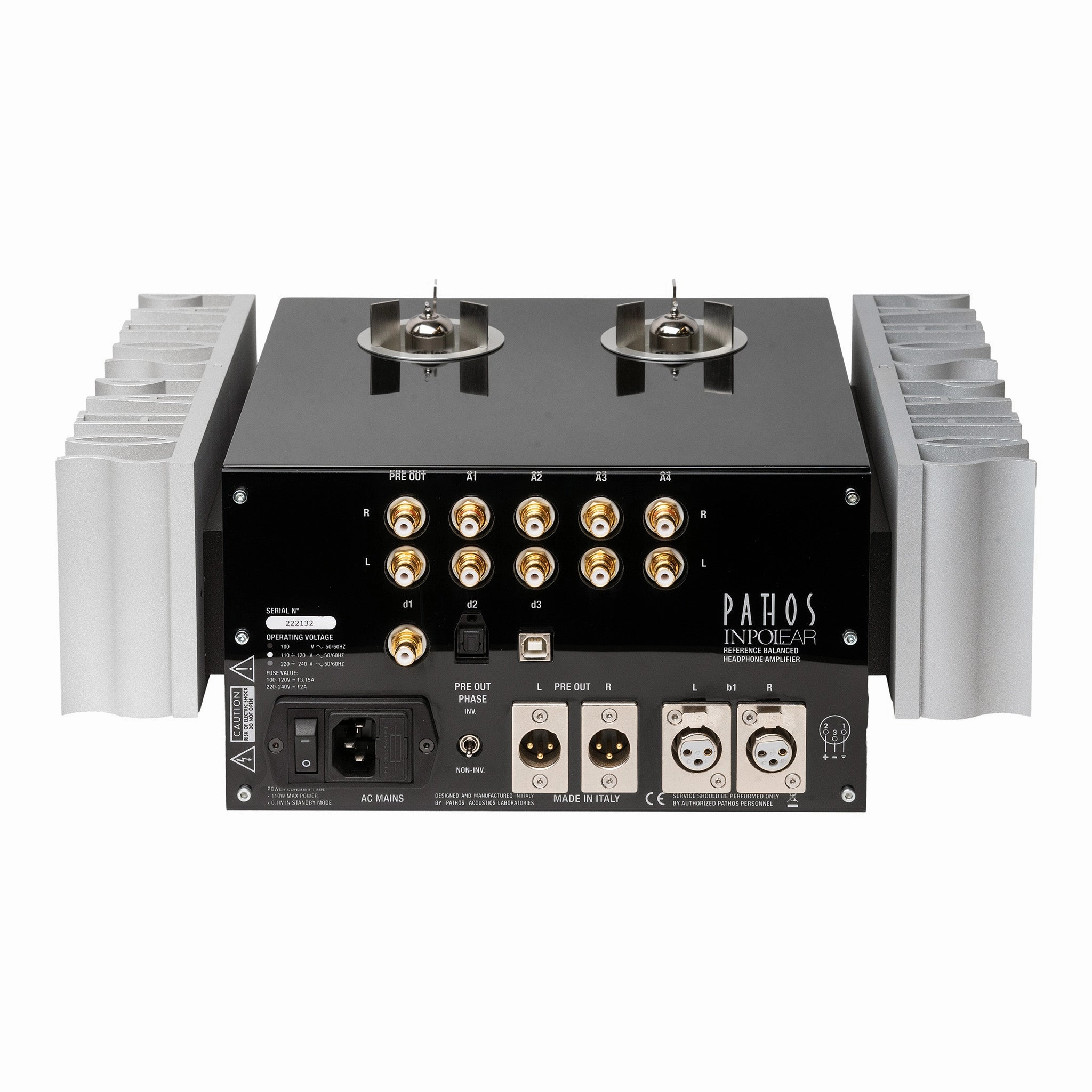

Connections
Analog Line Inputs: 1 x balancedXLR, 4 x RCA
Digital Inputs (Optional HiDac Mk2 board required): 1 x USB B, 1 x S/PDIF coaxial, 1 x S/PDIF optical
Outputs: 1 x pre out RCA (pre-output phase can be selected),1 x pre out balanced XLR,1 x 6.3 mm headphone, 2 x 4 pin XLR

Power Consumption: 110 W

Dimensions (WHD): 14.56" x 7" x 11"

Weight: 27.5 lb. (12.5 kg)
