UHD66
Features:
- Full 4K, 8 million pixel display, perfect pixel alignment and great contrast
- Bright 3,000 lumens and stable output, achieves 1,500,000 : 1 Contrast
- Wide Colour Gamut Mode that achieves 95% DCI-P3 Coverage
- HDR 10 & HLG Supported forBrightest Whites, Deepest Darks, and Lifelike Colors
- Superb gaming experience with extremely low 4ms Input Lag for 240Hz at 1080P, 16.9ms for 60Hz at 4K UHD
- Auto detect and display Super Ultra Wide 21:9/32:9 screen for immersive panoramic view
- Smart Home with Optoma Marketplace, File Manager, Creative Cast App, and more
- Easy installation with 1.3x zoom, 4-corner adjustment, 2D keystone correction, and warping
4K Smart Home Cinema and Home Entertainment Projector
Create your own entertainment room and personal office at home
UHD66 bring movies, sport, streaming media and more to life in sharp 4K HDR giant screen with unparalleled theater-quality colors and smooth visuals.
What is True 4K UHD
At least 8 million active pixels
The Consumer Technology Association (CTA) definition of 4K Ultra HD resolution states the display resolution must have at least 8 million active pixels.
The Consumer Technology Association (CTA)
Optoma HDR
HDR10 / HLG
UHD66 supports HDR10 and HLG. When a HDR / HLG signal is detected, the projector automatically switches to HDR / HLG display mode. Through Optomas HDR color mapping and tone mapping technology, it enables HDR / HLG movies or games to be presented at their best in terms of color accuracy and improved contrast ratio through dynamic contrast.
Wide Color Gamut Mode MoreVisually Striking Movies
UHD66s Wide Color Gamut Mode enhances your movie experience by reproducing authentic and lifelike colors. Suitable for movies and games filled with brilliant colors or artsy hues that support HDR and HLG metadata.
Limitless Entertainmentwith Optoma UHD66
USB Power Out (5V/1.5A)
HDMI 2.0 HDCP, 2.2, 4K 60Hz
Connect your favorite media streaming devices or game console to the HDMI port of UHD66, including Roku, Amazon Fire TV, Chromecast Ultra, Nvidia Shield TV, Apple TV, Chromecast withGoogle PlayStation 5 and Xbox Series X/S.
Auto Display Modefor Blu-ray 3D
Optoma provides 3D display mode to resolve the issues related to variations in brightness of 3D images due to overlapping signals and use of specialized lenses. When a 3D signal is received from Blu-ray 3D, the system directly switches to [3D] mode to elevate image brightness and contrast.
PureMotion
Using sophisticated frame-interpolation technology, advanced motion control processing eliminates motion blurring or image judder, even in high-speed action sequences.
*The PureMotion support is on HDMI Port 2.
Play big with family and friends. Scale up your gaming dramatically
Optoma takes gaming to the next level. UHD66 packs in everything a gamer could want: Immersive large screen image for the richest color gamut and sharpest contrast, extremely low input lag, high refresh rates,good motion handling and excellent contrastperfect for intense gaming as well as casual gaming.
Specifications:
| Display Technology | DLP 4K UHD chip |
|---|---|
| Native Resolution | |
| Brightness | 3,000 Lumens |
| Contrast | 1,500,000:1 |
| Light Source | Lamp |
| Lamp Life | 4,000/10,000/15,000(Bright/STD/DynamicBlack) |
| Throw Ratio | 1.21 1.59:1, 3% |
| Zoom Type | 1.3x Manual |

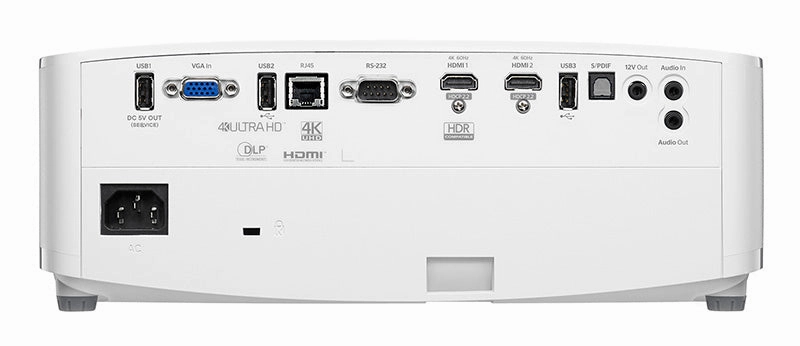

| I/O Connectors | 2x HDMI, VGA in , Audio in(3.5mm jack), Audio out, S/PDIF, USB-A (power 5V/1.5A), USB-Ax2( USB stick and WiFi Dongle), RS232, 12V trigger |
| Speaker (Watts) | 10W |
| Weight (Kg) | 3.72 0.2kg |
| Dimensions (W x D x H) (mm) | 315 x 270 x115 mm (w/o feet), 315 x 270 x118 mm (w/ feet) |
| Aspect Ratio | 16:9 |
| Projection Screen Size | 34.1" 302.4" |
| Projection Lens | F# 1.94~2.23 / f 12.81~16.74mm |
| Uniformity | 80% |
| Horizontal Scan Rate | 31~135KHz |
| Vertical Scan Rate | 24 120Hz (1080p/240Hz at Enhanced Gaming Mode) |
| Displayable Colors | 1073.4 million colors (10 bit) |
| 3D Support | Full 3D (HDMI2 only, HDMI1:Frame Sequential/ Frame packing) |
| Noise Level | 26dB |
| Power Supply | 100240V, 5060Hz, auto-switching |
| Power Consumption | Power Consumption (Min) @110V 210W; Power Consumption (Max) @110V 330W Power Consumption (Min) @220V 200W; Power Consumption (Max) @220V 320W |
| RoHS | Compliant |
