For nearly 80 years, Onkyo has been providing audiophiles with sounds that no
other company can match. Thanks to unique analogue circuitry and high-end am-
plifier technology, the 9.2-channel Onkyo TX-RZ30 delivers your favorite content
with out-of-this-world sound with soaring highs and deeper bass. Fan favorite
features like Dirac Live, Dolby Atmos, Works with Sonos, and IMAX Enhanced
come standard with the Onkyo RZ Series AVRs to make it the heartbeat of your
entertainment system.
FEATURES
100 w/ch x 9 ch, High current amplifier
Wi-Fi / Bluetooth
Dirac Live Full Bandwidth License included
Optional Dirac Live Bass Control
Works with Sonos w/ Volume Pass-through
THX Certified for Theater Reference Sound
Klipsch Optimized Mode
Specification
Power and Amplification 100W
(8ohm, 20Hz-20kHz, THD0.08%, 2ch Driven)
9 channels amplifier
Class AB Amplifier
5Hz-100kHz ( 1/-3dB)
9.2ch Processing

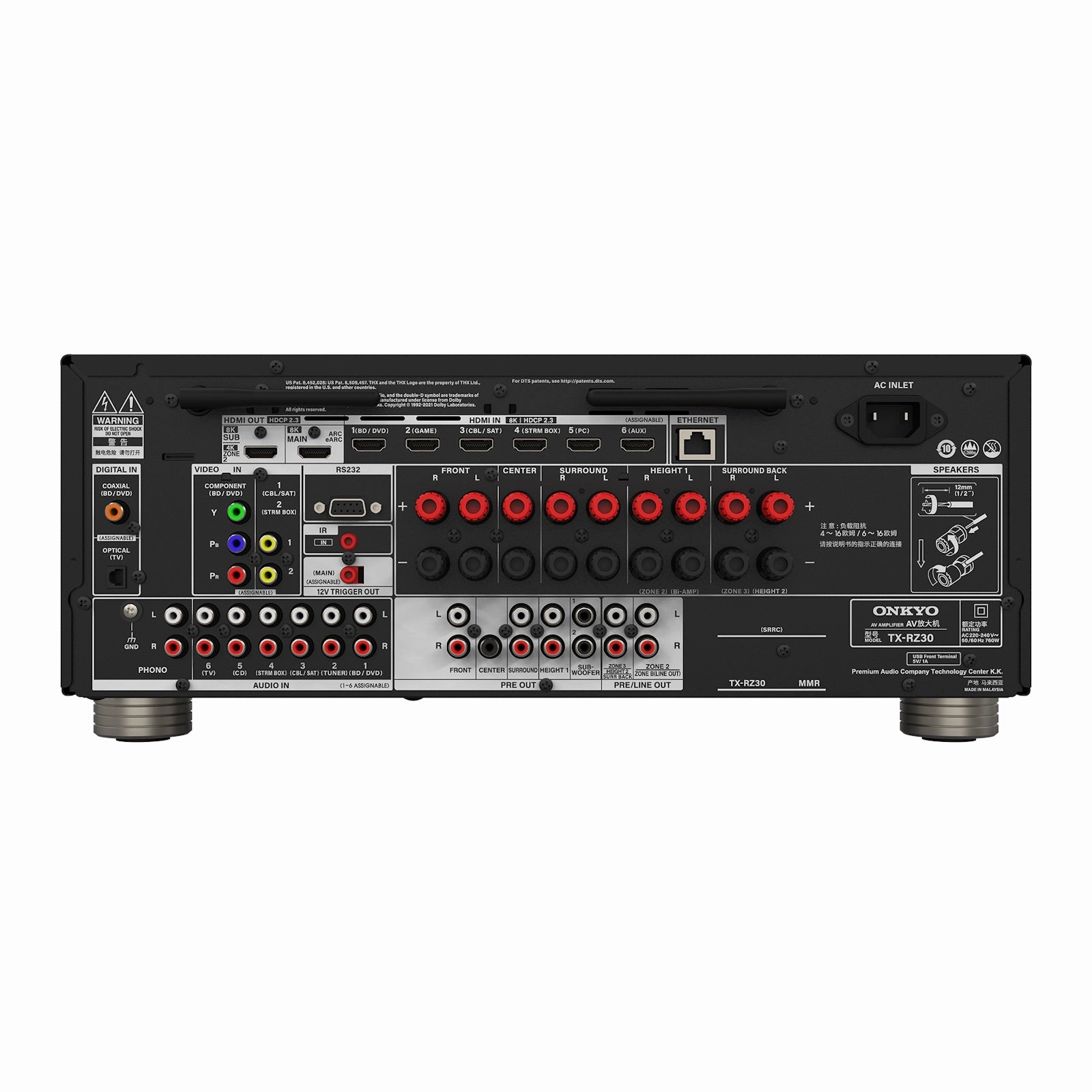

HDMI and video Inputs 6 In / 2 Out (eARC)
8K/4K Ultra HD
Dolby Vision, HDR10 , HDCP2.3,
HDMI2.1a VRR, QFT, ALLM, SBTM
1 component, 2 composite
Audio In/Out 6 RCA, 1 RCA Phono
1 Opt, 1 Coax
9.2 ch preouts (2 Independent subwoofer
outputs)
Zone 2 Stereo RCA
Surround Modes Dolby Atmos, Dolby Surround
DTS:X, Neural:X
IMAX Enhanced
THX
Streaming Roon Tested
Chromecast built-in
AirPlay 2
Spotify
Amazon Music HD
Tidal
Deezer
Pandora
TuneIn
Power supply AC 220240 V~, 50/60 Hz
Dimensions (W x H x D) 435 x 177.5 x 382.5 mm
Weight 14.5 kg
Warranty 3 Year Warranty
