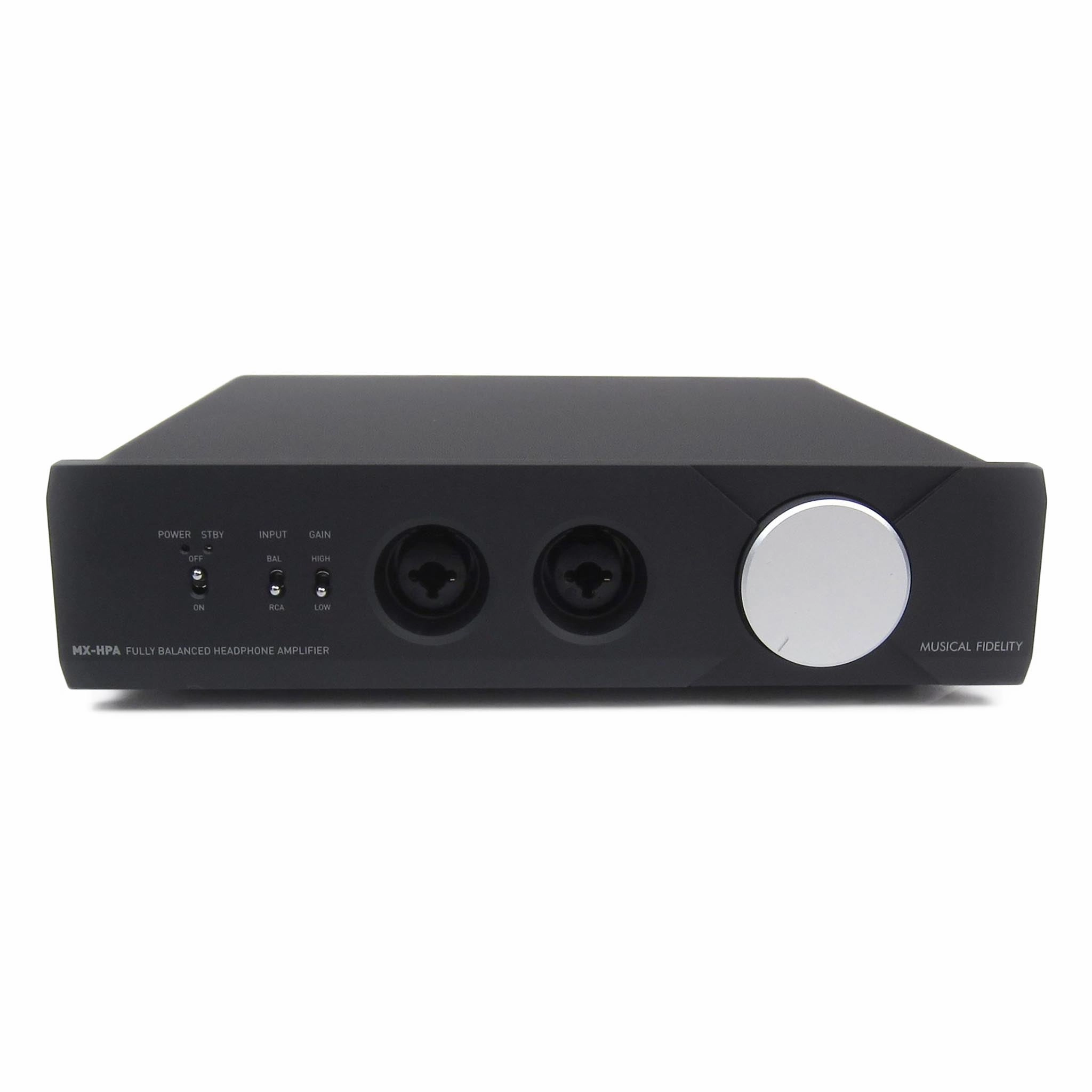

Musical Fidelity MX-HPA
Years of experience in making high-quality headphone amps have been distilled into the design of the MX-HPA. As a result, this fully-balanced headphone amp offers an awe-inspiring listening experience.
The MX-HPAs technical performance is stunning. Typically, distortion from 20 Hz to 40 kHz is less than 0.005%. Signal-to-noise ratio is better than 120dB (A weighted). Frequency response is ruler flat from 10 Hz to 20 kHz (-0.1dB).
The MX-HPA is capable of a short-term peak of 10 watts (for one cycle) and has two gain positions: 18dB (8X) and 24dB (15X). Inputs are either balanced or single-ended. The MX-HPA will automatically convert single-ended inputs to balanced. The MX-HPA is genuinely fully balanced from beginning to end.
- Fully balanced, studio design, purist headphone amplifier
- Incredible technical performance
- Will drive any headphone with ease
- Wide bandwidth: 10Hz-40kHz at 0, -3dB
- Very low noise
- Very low distortion: < 0.003%, 20Hz to 20kHz
- Outstanding channel separation
- Powerful, muscular, output into 32 Ohms
- Beautiful aesthetics and build quality
Specifications
Power: 1.8w per channel into 8 Ohm (27 dBW)
Maximum output voltage: 19 V RMS, 20 Hz to 20 kHz, Onset of clipping (54 Volts peak-to-peak) balanced
THD N: >0.005 % typical, 20 Hz to 20 kHz
Signal / noise ratio: >120 dB A-weighted
Input impedance: 50 k Ohm
Frequency response: 0, 0.1 dB, 10 Hz to 20 kHz
Gain, LO position (volume max): 18 db (8x)
Gain, HI position (volume max): 24 dB (15x)

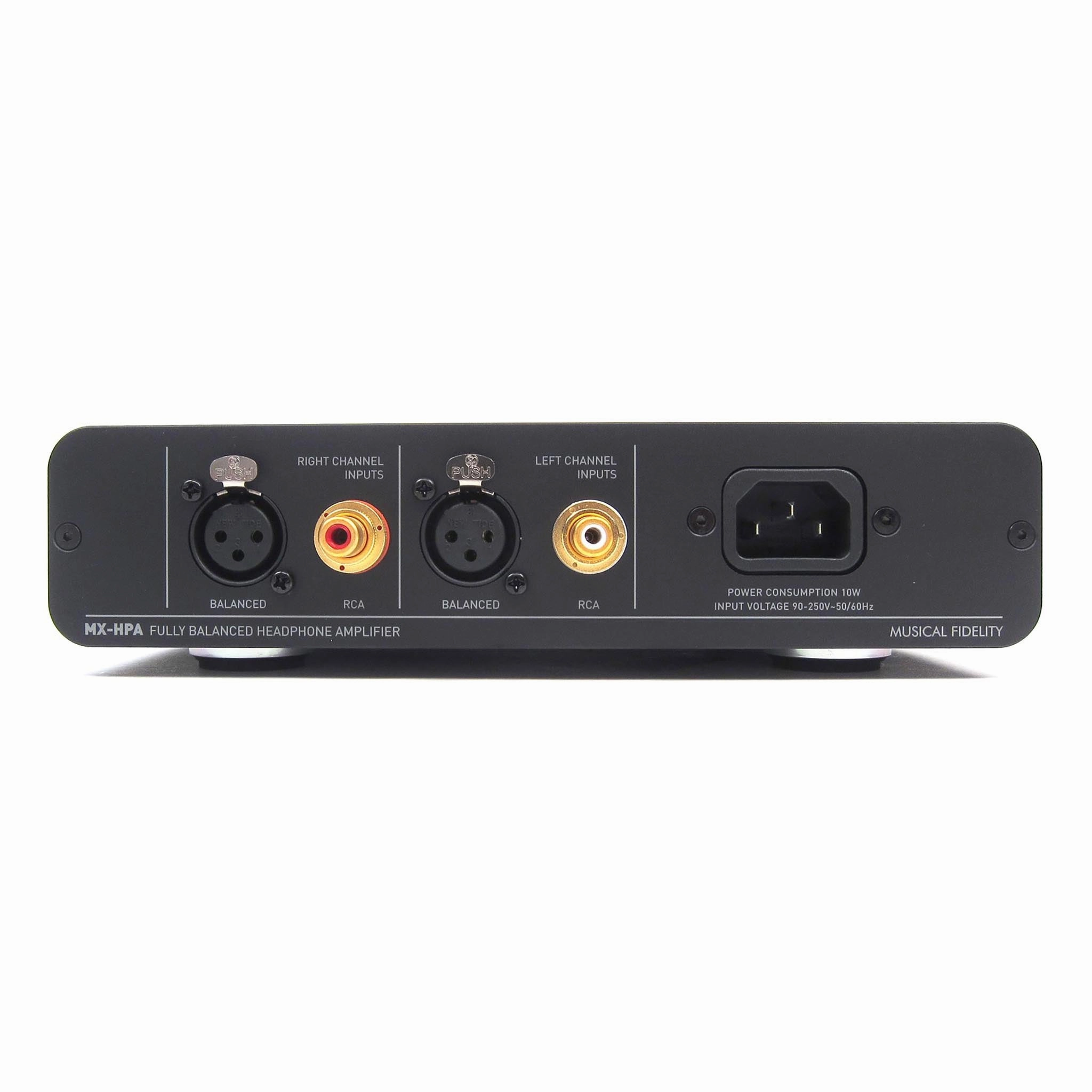

Line level inputs:1 pair line level XLR (balanced) connectors,1 pair line level RCA connectors
Headphone outputs:1 pair 3-pin XLR/ stereo Jack combined sockets
Mains voltages: 90-250 VAC 50-60 Hz universal worldwide supply
Consumption: >0.25 Ws standby (Orange LED lit), 15 W maximum (Blue LED lit, full power output)
Dimensions - WxHxD (mm): 220 (82/3) x 53 (2) x 240 mm (9)
Weight (unpacked / packed): 2.2 kg (5 lb) / 3.7 kg (8 lb)
