The SoundFrame series consists of three sizes of speakers that complement any room.SoundFrame 3 In-Wallis the most compact speaker of the three and it can be used on its own, as a rear to complement the SoundFrame 1 In-Wall and SoundFrame 2 In-Wall, or with a sub-woofer.
Individual images for the grille cloths can be selected from our library or bespoke speakers can be created using your own high resolution photographs. The cabinet frames are available in high gloss white and high gloss black lacquer.
The SoundFrames can be fitted either in-wall or on-wall and with or without a frame using the Frameless grilles option.
The SoundFrame 3 In-Wall has a 2-way configuration with a pivoting 1-inch tweeter module and a 4-inchC-CAMdriver.
Technology
- Quick and easy installation.
- Slender 87 mm (3.5") cabinet depth.

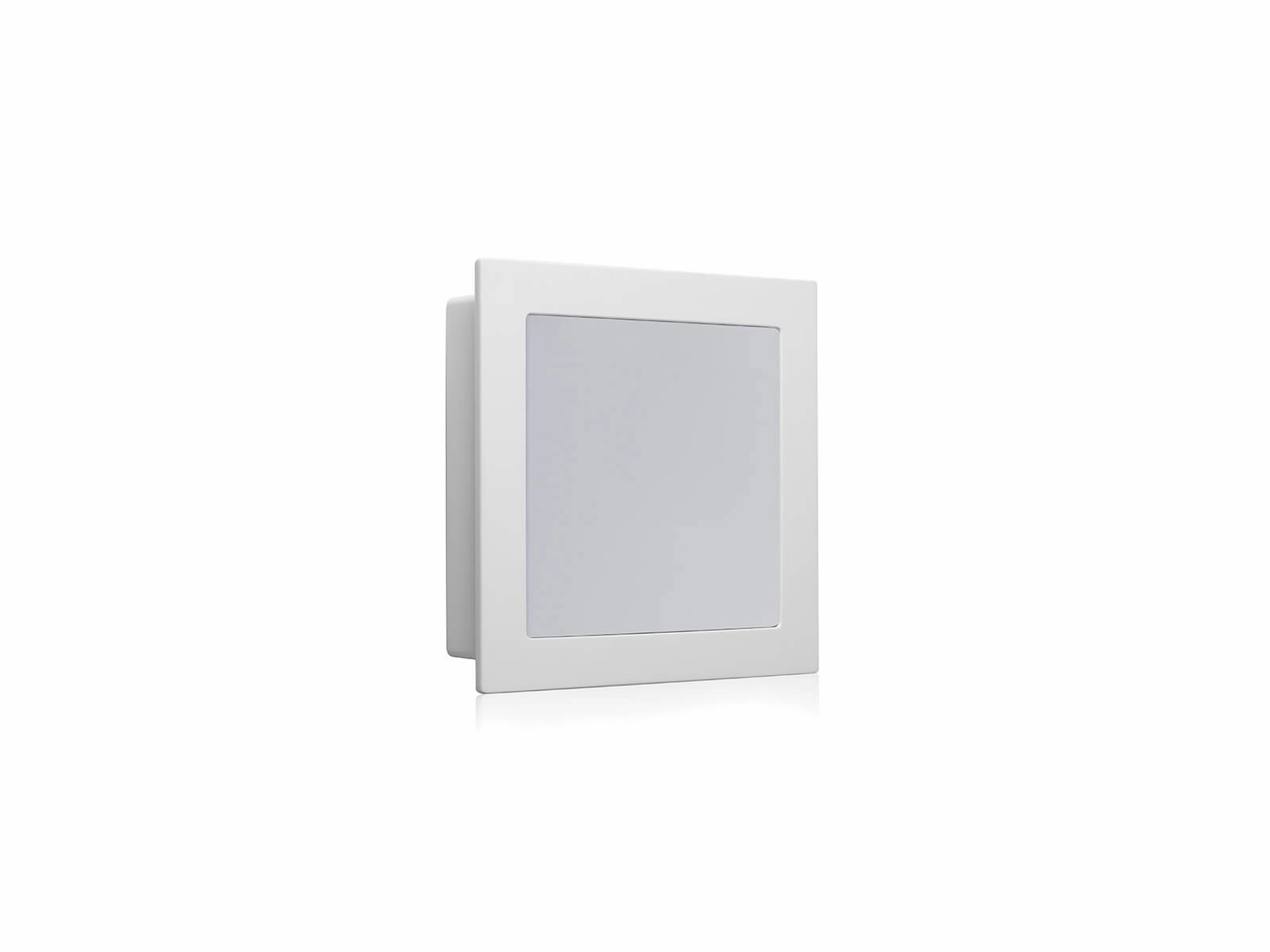

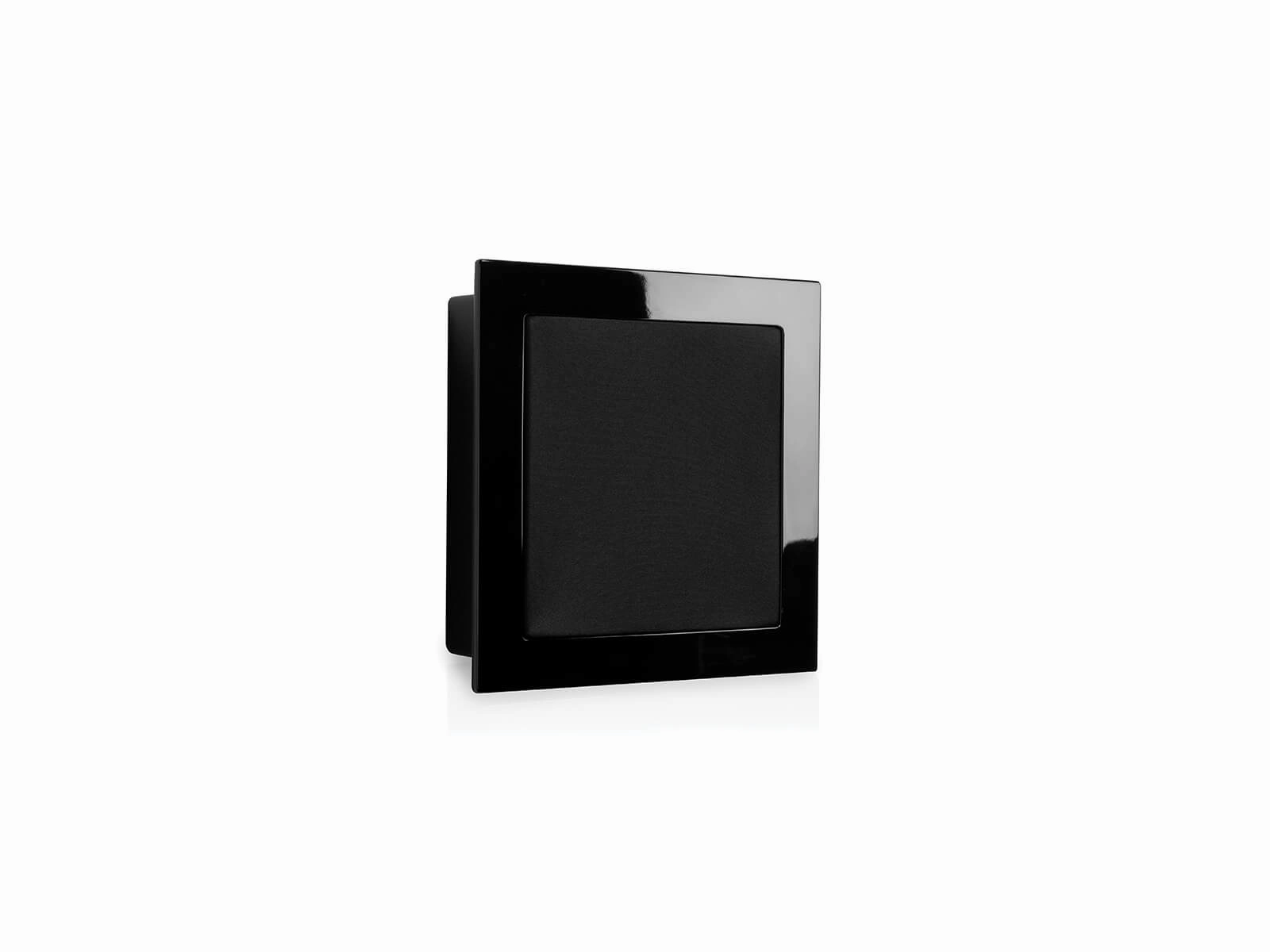

- Choice of high gloss white or black lacquer frames.
- SoundFrame 3: 2-way configuration: a pivoting 1 inch tweeter module with a 4-inchC-CAMdriver.
- High frequency attenuation - 3 dB.
- Ultra-discreet on-wall/in-wall AV/audio system, suitable for any interior.
Specifications:
Frequency Response
75 Hz 35 kHz
System Configuration
2-Way
Drive Unit Complement
1 x 4"mid-range driver
1 x 1" pivoting Gold Dome tweeter
Recommended Amplifier Requirements
25 50 W
Crossover Frequency
3.2 kHz
Dimensions (Including Frame (H x W x D))
301.5 x 301.5 x 77.5 mm (117/8x 117/8x 31/16")
Cut-Out Dimensions
251x 251 x 59.5 mm (97/8x 97/8x 25/16")
Weight (packaged)
3 kg (6.6 lbs)
