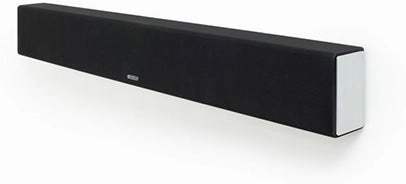

The compact SB-2 is engineered for seamless integration with 50-60 inch TVs, featuring three separate driver arrays for left, centre, right channels in a single cabinet.
Key Features:
- C-CAM(Ceramic-Coated Aluminium/Magnesium) bass/mid driver per channel
- C-CAM gold dome tweeters per channel
- Auxiliary Bass Reflex (ABR) per channel
- Three separate driver arrays for left, centre, right channels in a single cabinet
- Optional dedicatedwall bracket
- Integrated Silicon feet provide a secure cabinet-top mounting alternative.
The SB-2 employs individual 4 inchC-CAMmid-bass, 1 inch C-CAM tweeter and sealedABR(Auxiliary Bass Radiator) drivers per section.
In larger rooms the SB-2 can be used with a partnering Monitor Audio subwoofer to deliver the best possible audio experience. Within smaller environments and systems, the SBs will deliver effortless full range audio way beyond the limits of any TV's sound system.
Product Video:
Specifications:
| Frequency Response (-3 dB) | 90 Hz 30 kHz |
| Sensitivity (1 W @ 1 m) | 84 dB |
| Nominal Impedance | 8 Ohms |
| Power Handling (RMS) | 40 W |
| System Power Handling (RMS) | 100 W (High Pass Filter Set to 100 Hz) |
| Recommended Enclosure | 30 100 W |
| Crossover Frequency | 80 120 Hz |
| Maximum SPL | 104 (108.8 All Channels Driven) dBa |
| Bass Alignment | 3 x Auxiliary Bass Reflex (ABR) Loading |
| Drive Unit Complement | 3 x 4" (100 mm) C-CAM Cone Bass/Mid Driver, 3 x 1" (25 mm) C-CAM Gold Dome Tweeter |
| Cabinet Dimensions (Including Feet (H x W x D)) | 147 x 1107 x 93 mm (5 13/16 x 43 9/16 x 3 11/16") |
| External Dimensions (Including Bracket (H x W x D)) | 145 x 1107 x 100 mm (5 11/16 x 43 9/16 x 3 15/16") |
| Bracket | BSB |
| Weight | 7.64 kg (16 lb 12 oz) |
