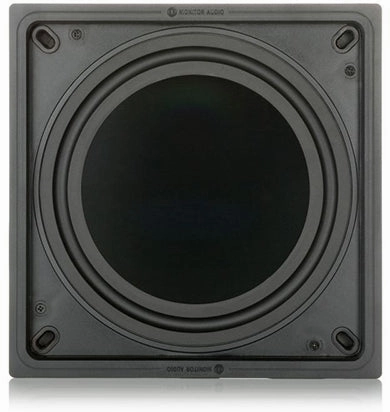

The IWS-10 is specified to produce excellent bass quality in a range of wall, ceiling, even floor locations, ideally but not exclusively with itsIWB-10back box.
The IWS-10 subwoofer driver employs a rigid, flat 10 surface of 10 mm (3/8")RDTmaterial derived from Monitor audios acclaimed Platinum series of high-end speakers. A large vented pole helps to move air quickly, reducing power compression and increasing heat dissipation.
It features Monitor Audios patentedTri-Gripclamping system and paintable trim-less grille and frame edge.
Specifications:
| Frequency Response | 28 Hz 120 Hz (When Mounted in Optimum Enclosure) |
| Nominal Impedance | 8 Ohms |
| Sensitivity (1 W @ 1 m) | 86 dB |
| Maximum SPL | Single Unit 109.8 dB; Pair 115.8 dB |
| Power Handling (RMS) | 150 W |
| Cut-Out Dimensions | 280 x 280 mm (11 x 11") |
| Mounting Depth | 89.98 mm (3 1/2") |
| Fixing Type | 4 Position Tri-Grip Dog Leg Fixings |
| Connection | Gold Plated "Push" Type Terminals |
| Construction Material | Mineral Filled ABS Plastic (RoHS 2 Compliant) |
| Overall Dimensions (H x W x D) | 302 x 302 x 92.28 mm (11 7/8 x 11 7/8 x 3 5/8") |
| Overall Dimensions (Including Grille (H x W x D)) | 314.21 x 314.21 x 100.78 mm (12 3/8 x 12 3/8 x 3 15/16") |
| Weight | 3.8 kg (8 lb 6 oz) |
