This large Tier 3 in-ceiling loudspeaker is a three-way model with an angled IDC II driver array that focuses sound mid-range and high-frequency sound into the listening area for improved clarity. It has a cut-out dimension of 248 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
Key Features:
- Ideal for installations where pristine acoustic performance is required.
- Filled back box delivers consistent performance regardless of interior wall construction
- Two-way design
- 1 x 1"(25 mm) C-CAM tweeter with UD Waveguide II for lifelike sound
- 1 x 7" (178 mm) RST II mid-bass driver for pristine mid-range and full bass
- Patented Quik-Link speaker cable connector for quicker installation(UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment

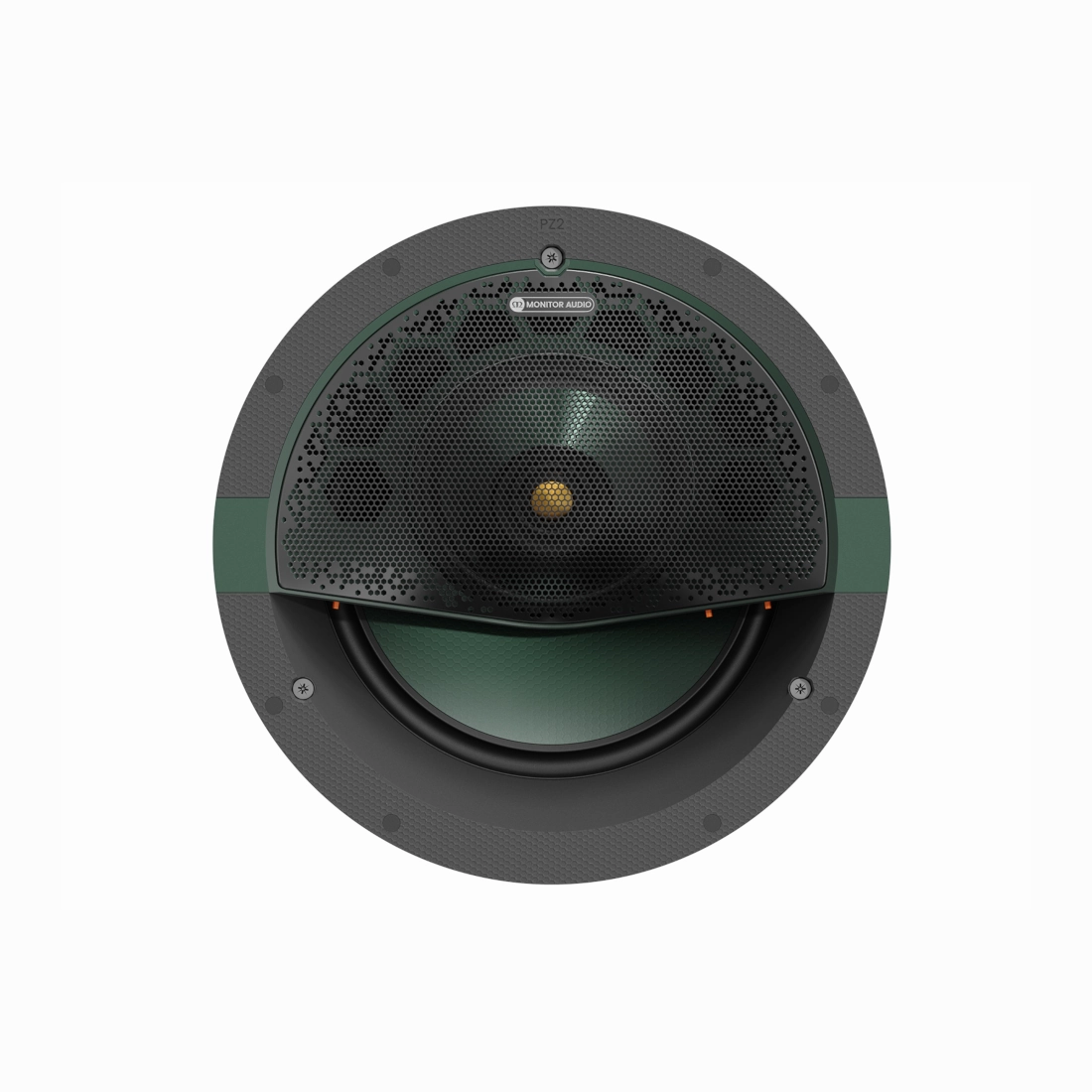

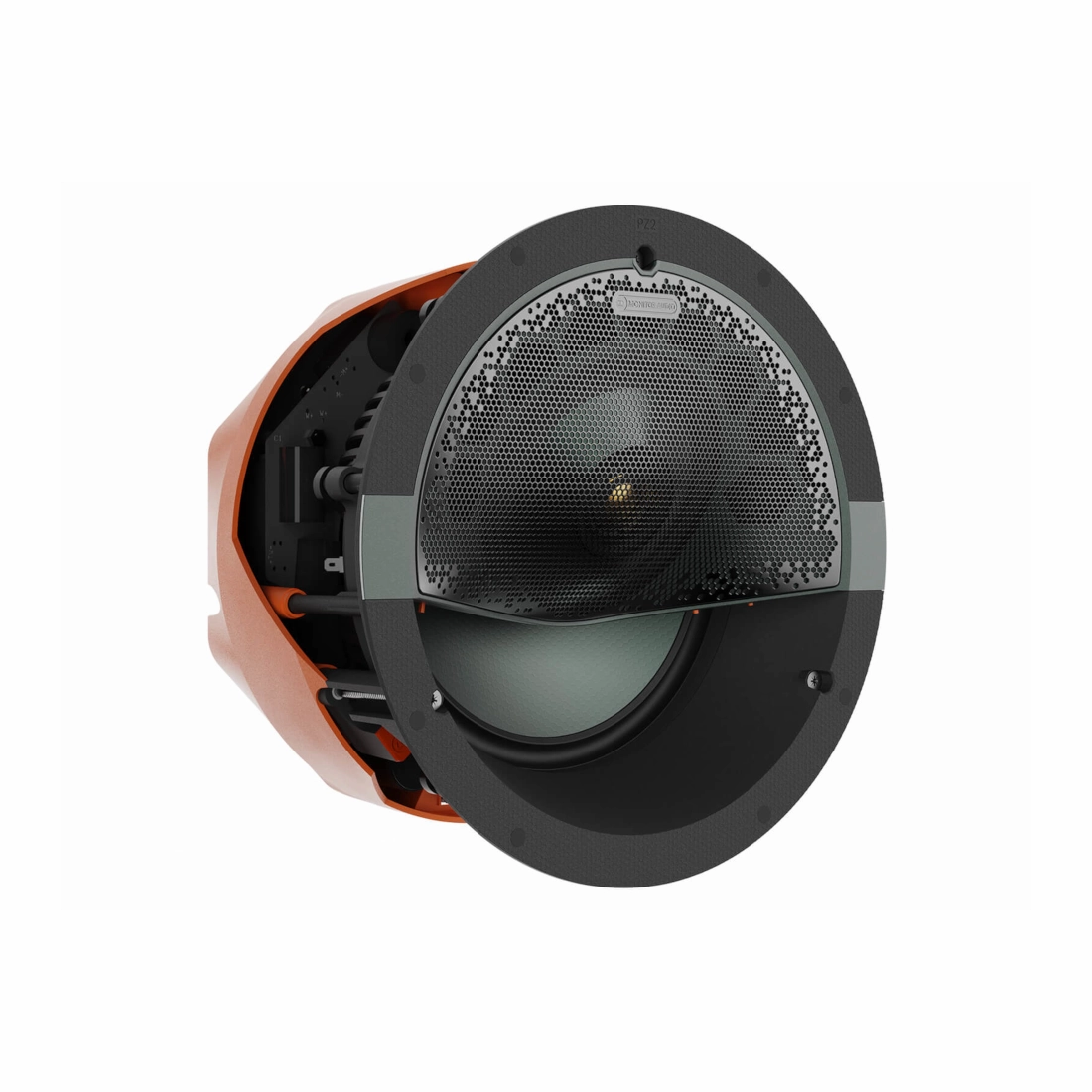

C3L-A is a new and invaluable addition to the Creator Series. A stands for Angle, and the speaker consists of a fixed-angle IDC II that delivers a spotlight effect that focusses and directs the mid-range and high-frequency sound into the listening area for improved intelligibility and clarity.
The completely redesigned IDC II is set at 25 degrees and delivers focused sound across the full frequency range into the listening area, making it an ideal in-ceiling LCR speaker where In-wall speakers arent possible.
Supported with the lightweight, pistonic RDT III cone and an extensive motor system to drive it, the soundstage and dynamic range is highly impressive. C3L-A is ideal for creating a discreet home theatre and multi-channel music solution that offers high-fidelity performance, detail, clarity and deep, controlled bass.
It has a cut-out diameter of 248 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Optional square grillecan be used with this model.
Specifications:
| Drive Units Complement | 1 x 9 RDT III bass driver, 1 x 4 IDC II midrange driver, 1 x 25mm IDC II tweeter |
| Nominal Impedance | 6 Ohms |
| Amplifier Requirement | 60 - 225 W |
| Continuous Power Handling | 150 W |
| Sensitivity (2.83v @ 1m) | 89 dB |
| Cut Out Size | 248 mm |
| Mounting Depth | 157 mm |
| Dimensions | inc. grille: 278 x 161 mm ( 10 15/16 x 6 5/16) |
| Weight | 5.1 kg (11 lb 3 oz) |
