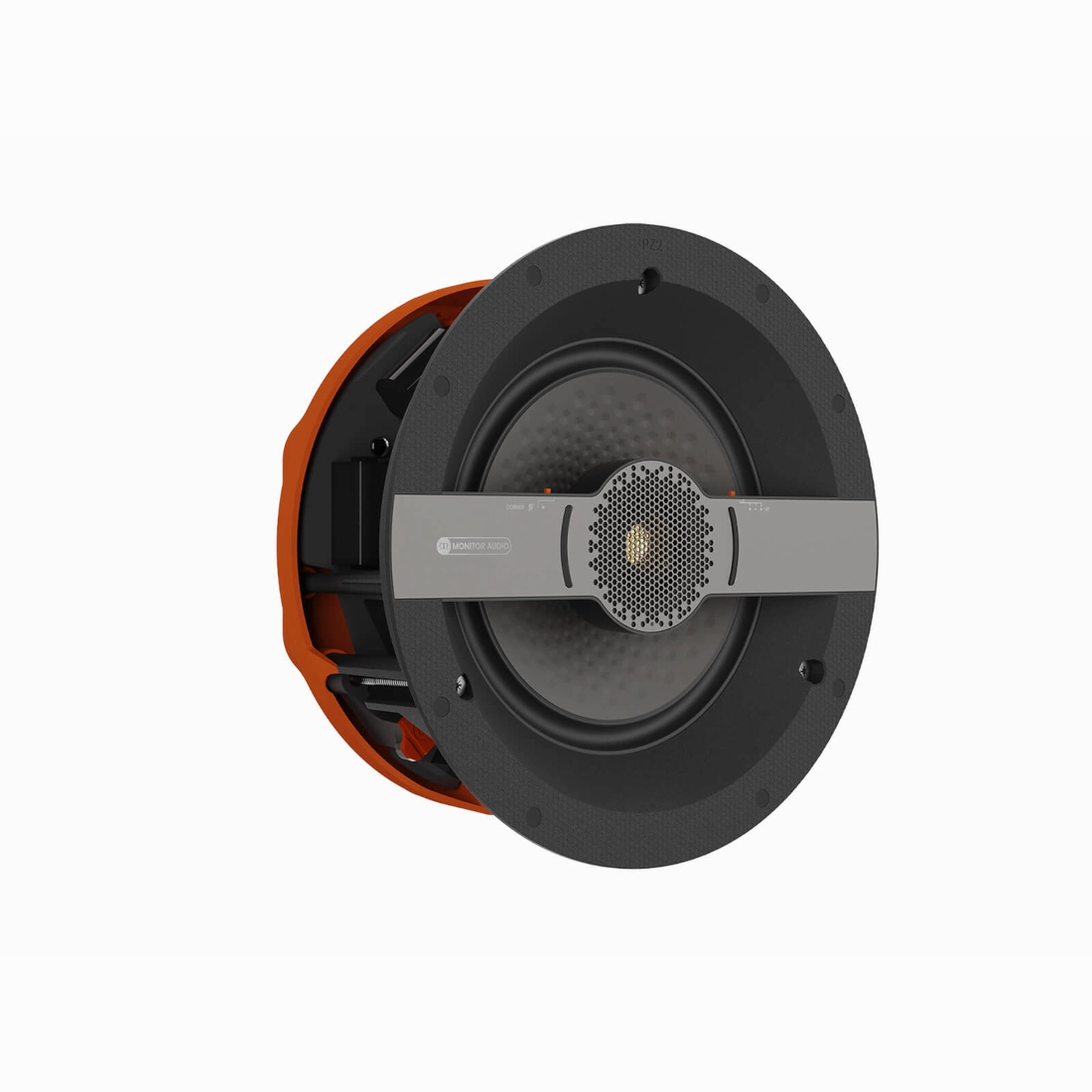

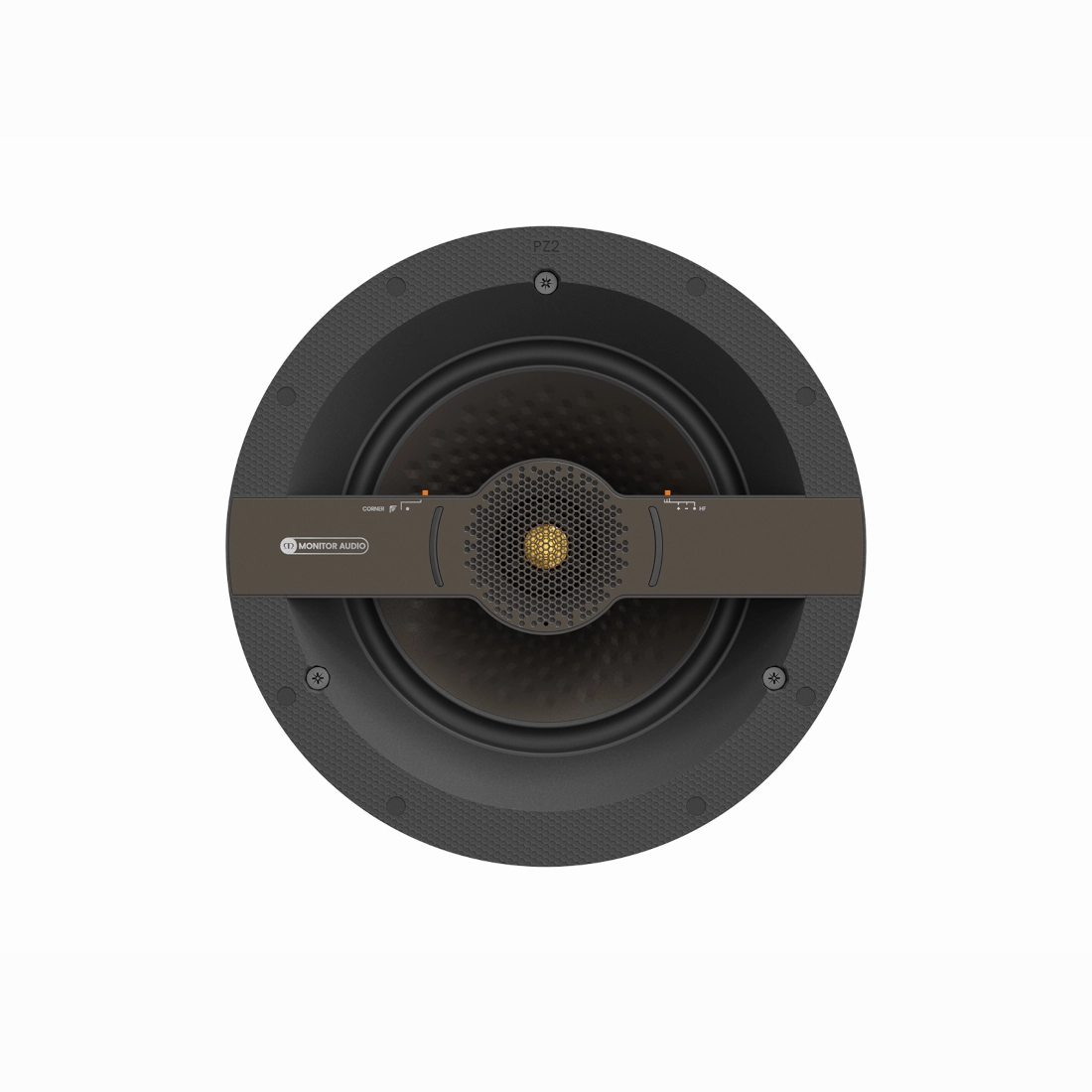

This medium-sized Tier 2 in-ceiling loudspeaker is a two-way model featuring an RST II mid-bass driverand C-CAM tweeter. It has a cut out dimension of 212 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
Key Features:
- Ideal for installations where pristine acoustic performance is required.
- Two-way design
- 1 x 1"(25 mm) C-CAM tweeter with UD Waveguide II for lifelike sound
- 1 x 7"(178 mm) RST II mid-bass driver for pristine mid-range and full bass
- Patented Quik-Link speaker cable connector for quicker installation(UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
This medium-sized Tier 2 in-ceiling loudspeaker is designed to deliver pristine, engaging acoustics where high-performance sound is a key requirement. It is a two-way model featuring an RST II mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound of the quality youd expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 212 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.

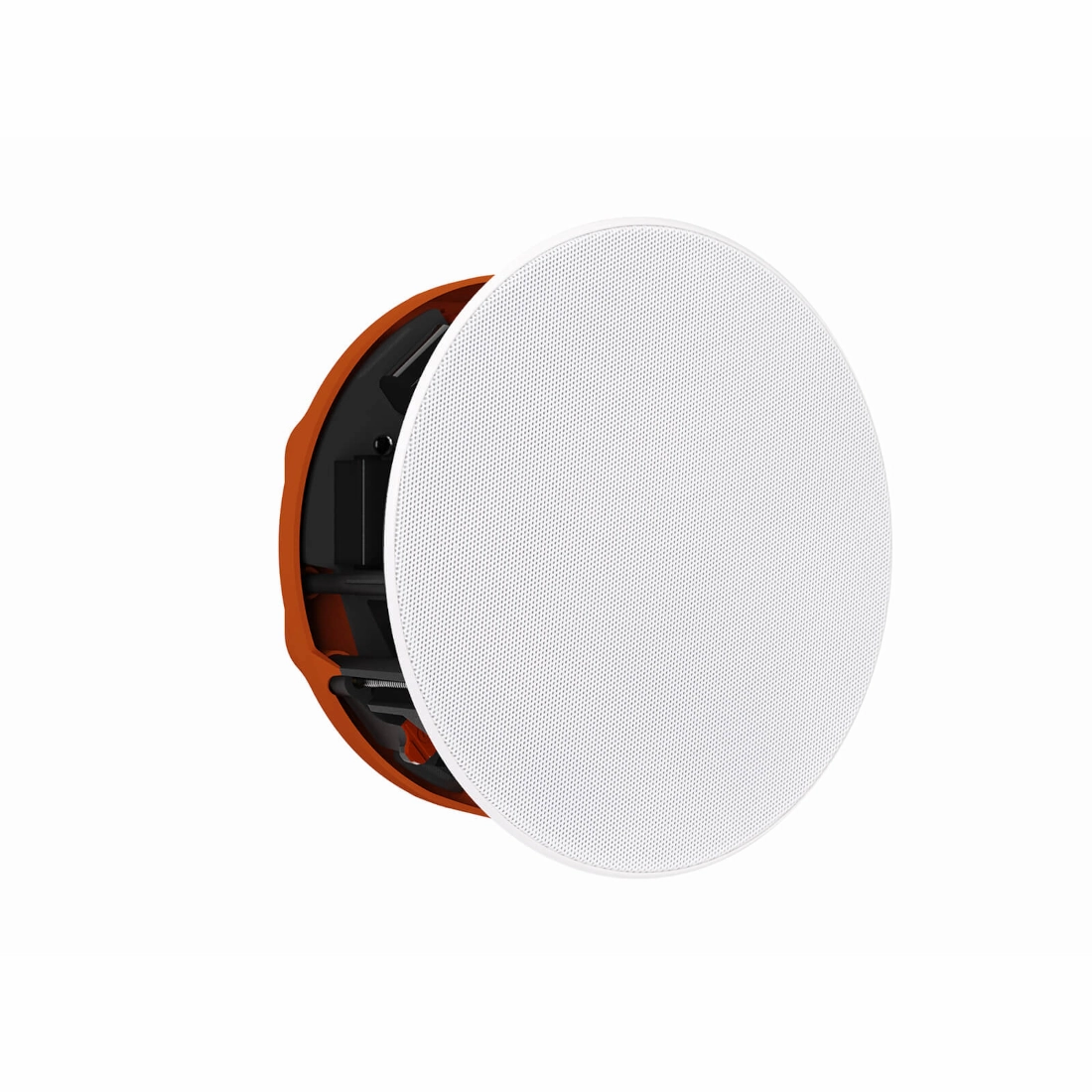

Optional square or premium grille can be used with this model.
Specifications:
| Drive Units Complement | 1 x 7 RST II bass driver, 1 x 25mm C-CAM tweeter |
| Nominal Impedance | 8 Ohms |
| Amplifier Requirement | 40 - 150 W |
| Continuous Power Handling | 75 W |
| Sensitivity (2.83v @ 1m) | 86 dB |
| Cut Out Size | 212 mm |
| Mounting Depth | 99 mm |
| Dimensions | inc. grille: 242 x 103 mm ( 9 1/2 x 4 4/16) |
| Weight | 2 kg (4 lb 6 oz) |
