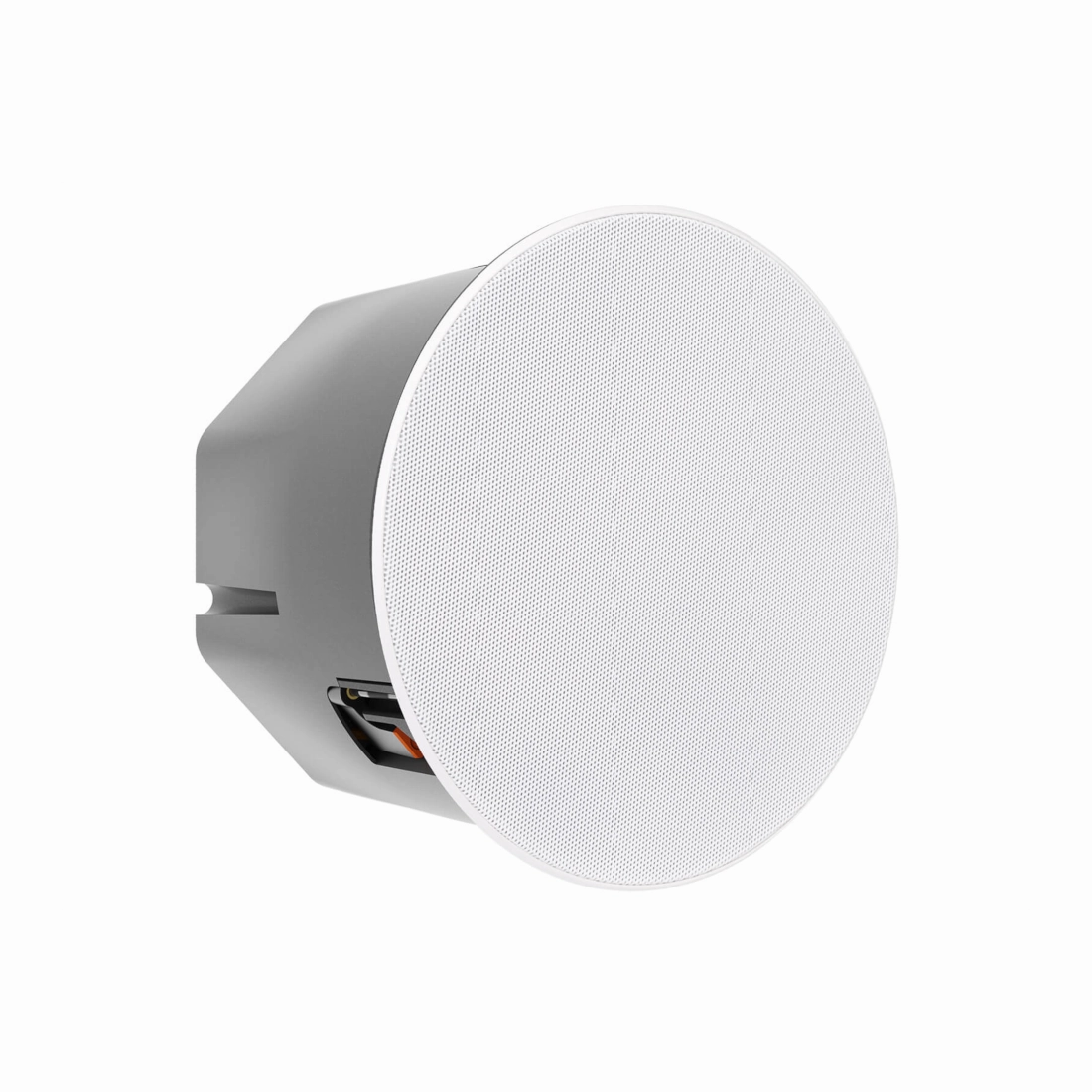

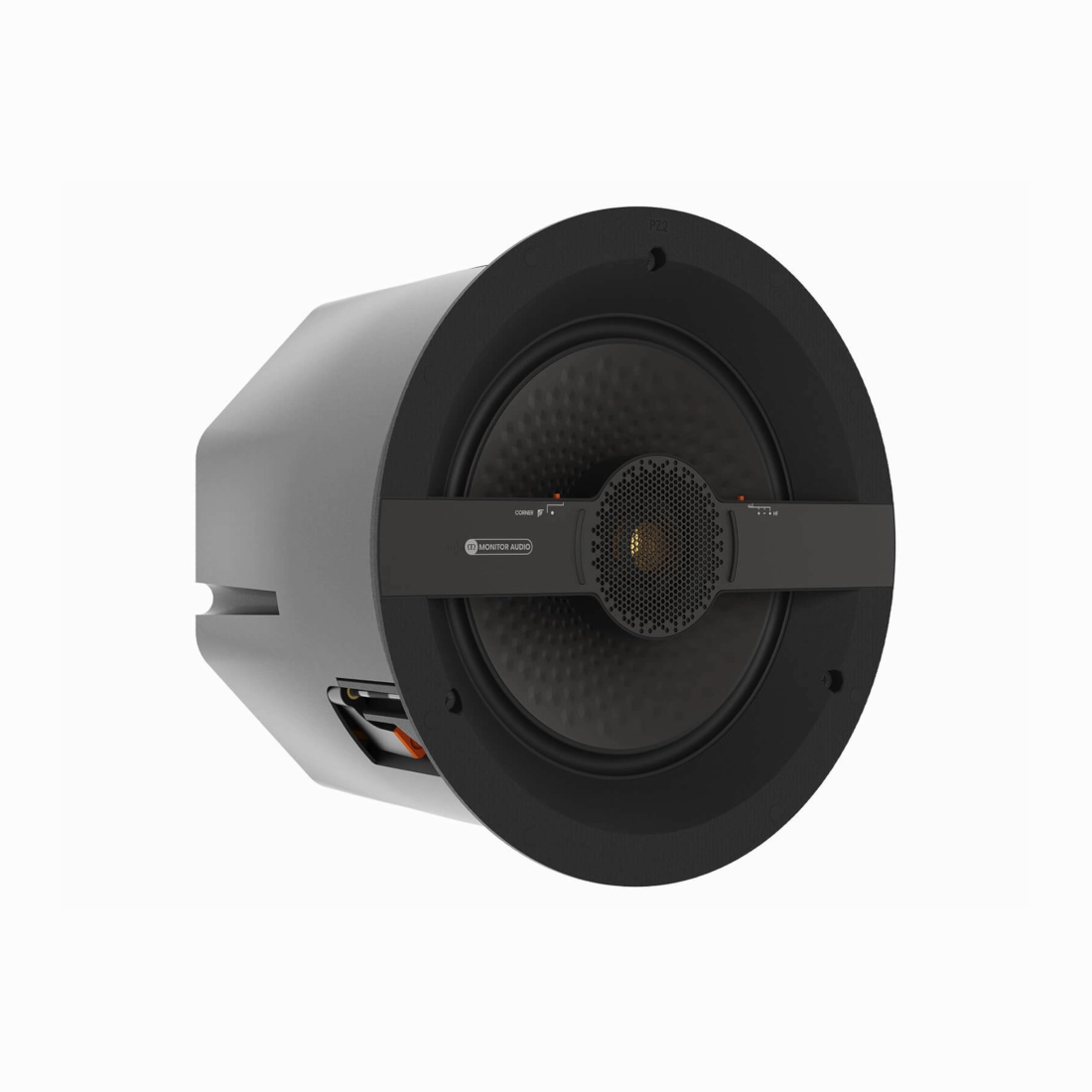

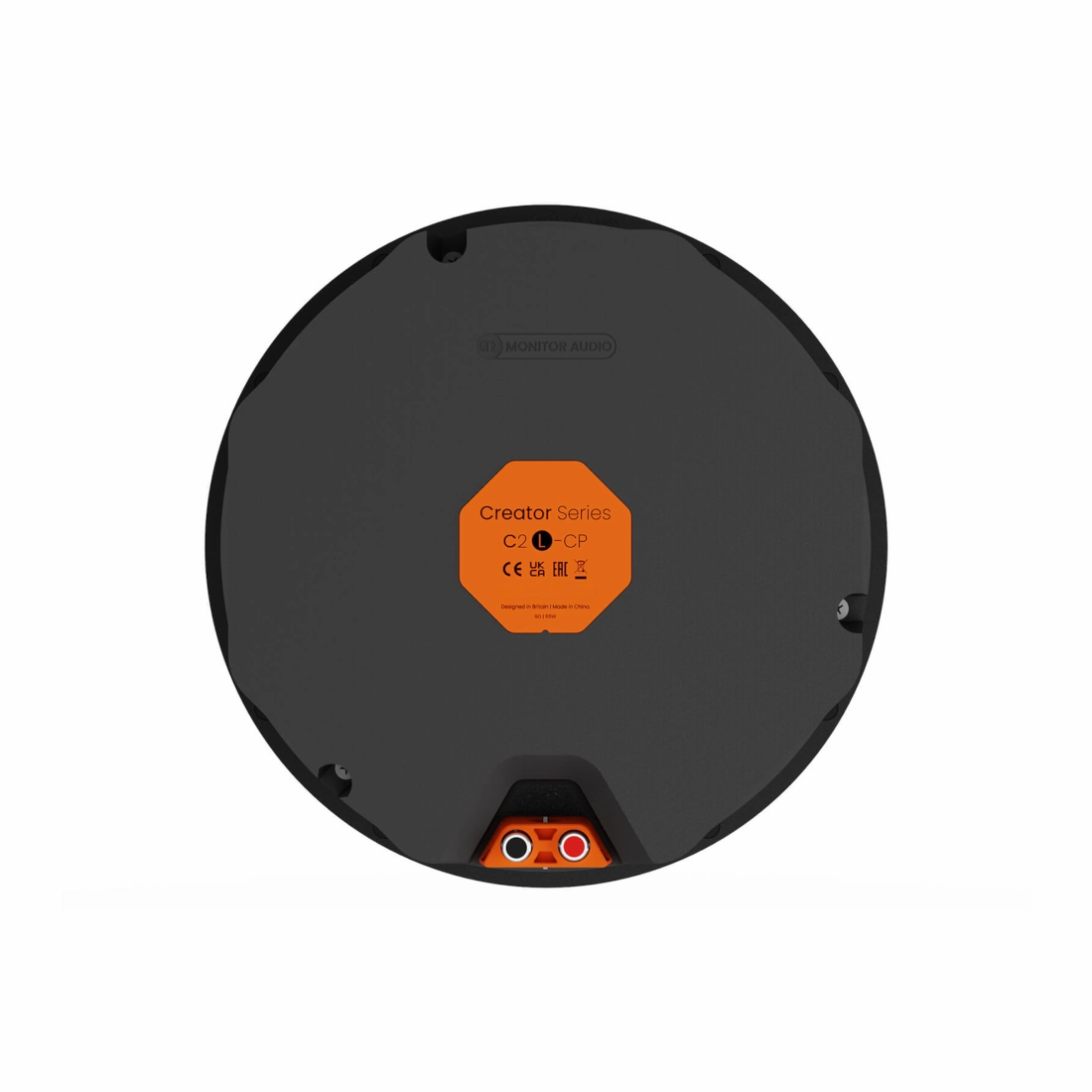

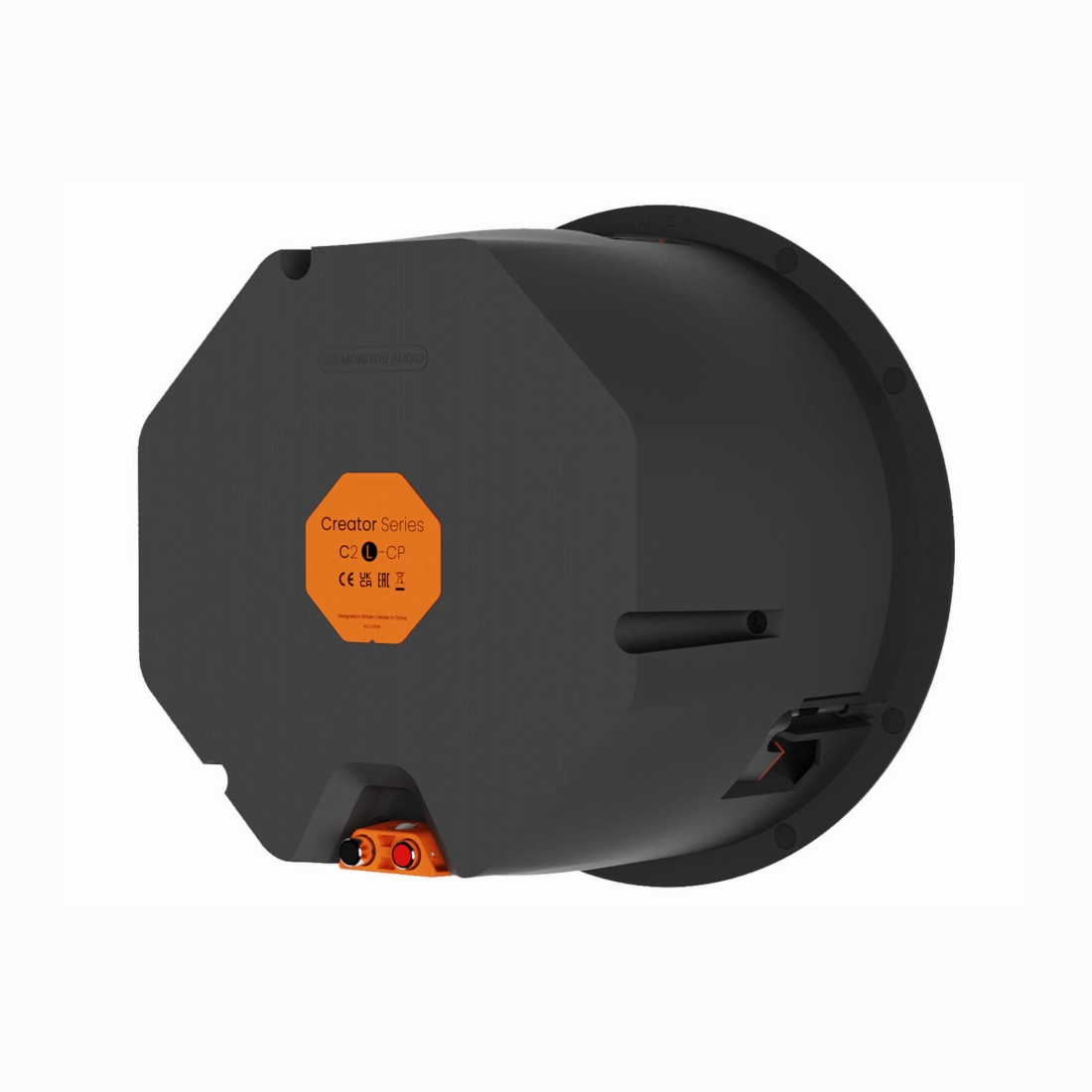

This large Tier 2 in-ceiling loudspeaker features an RST II mid-bass driver and C-CAM tweeter. Its fully sealed back box delivers consistency of performance, no matter where it is used. It has a cut-out dimension of 248 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
Key Features
- Ideal for installations where pristine acoustic performance is required
- Fitted back box delivers consistent performance regardless of interior wall construction
- Two-way design
- 1 x 1.25" (32 mm) C-CAM tweeter with UD Waveguide II for lifelike sound
- 1 x 9" (229mm) RST II mid-bass driver for pristine mid-range and full bass
- Patented Quik-Link speaker cable connector for quicker installation(UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
This large Tier 2 in-ceiling loudspeaker is designed to deliver pristine, engaging acoustics where high-performance sound is a key requirement. It is a two-way model featuring an RST II mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound of the quality youd expect from any Monitor Audio passive box loudspeaker.
As a Controlled Performance (CP) model, it is fitted with fully sealed back boxes that provides an ideal air load for the drivers, optimising mid-range and bass performance while maintaining sonic consistency regardless of interior wall construction. These rigid, mineral filled enclosures reduce the sound from the back of the cabinet by around 30 dB. This range guarantees excellent audio quality and versatility, for superior level of sound isolation between rooms and floors.
It has a cut-out dimension of 248 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Optional square grillecan be used with this model.
Specifications:
| Drive Units Complement | 1 x 9 RST II bass driver, 1 x 32mm C-CAM tweeter |
| Nominal Impedance | 8 Ohms |
| Amplifier Requirement | 50 - 200 W |
| Continuous Power Handling | 100 W |
| Sensitivity (2.83v @ 1m) | 89 dB |
| Cut Out Size | 248 mm |
| Mounting Depth | 177.5 mm |
| Dimensions | inc. grille: 278 x 181 mm ( 10 15/16 x 7 1/8) |
| Weight | 3.3 kg (7 lb 5 oz) |
