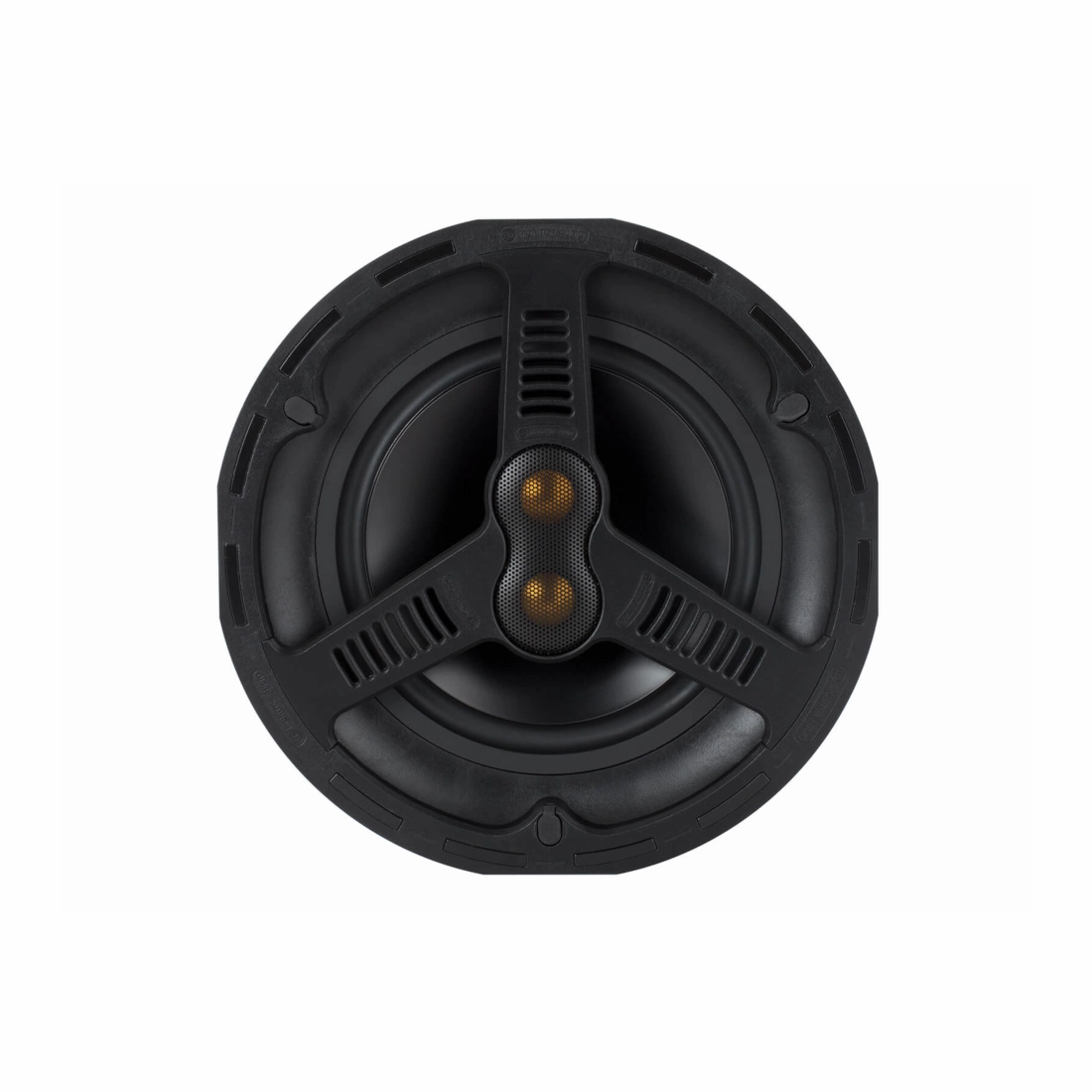

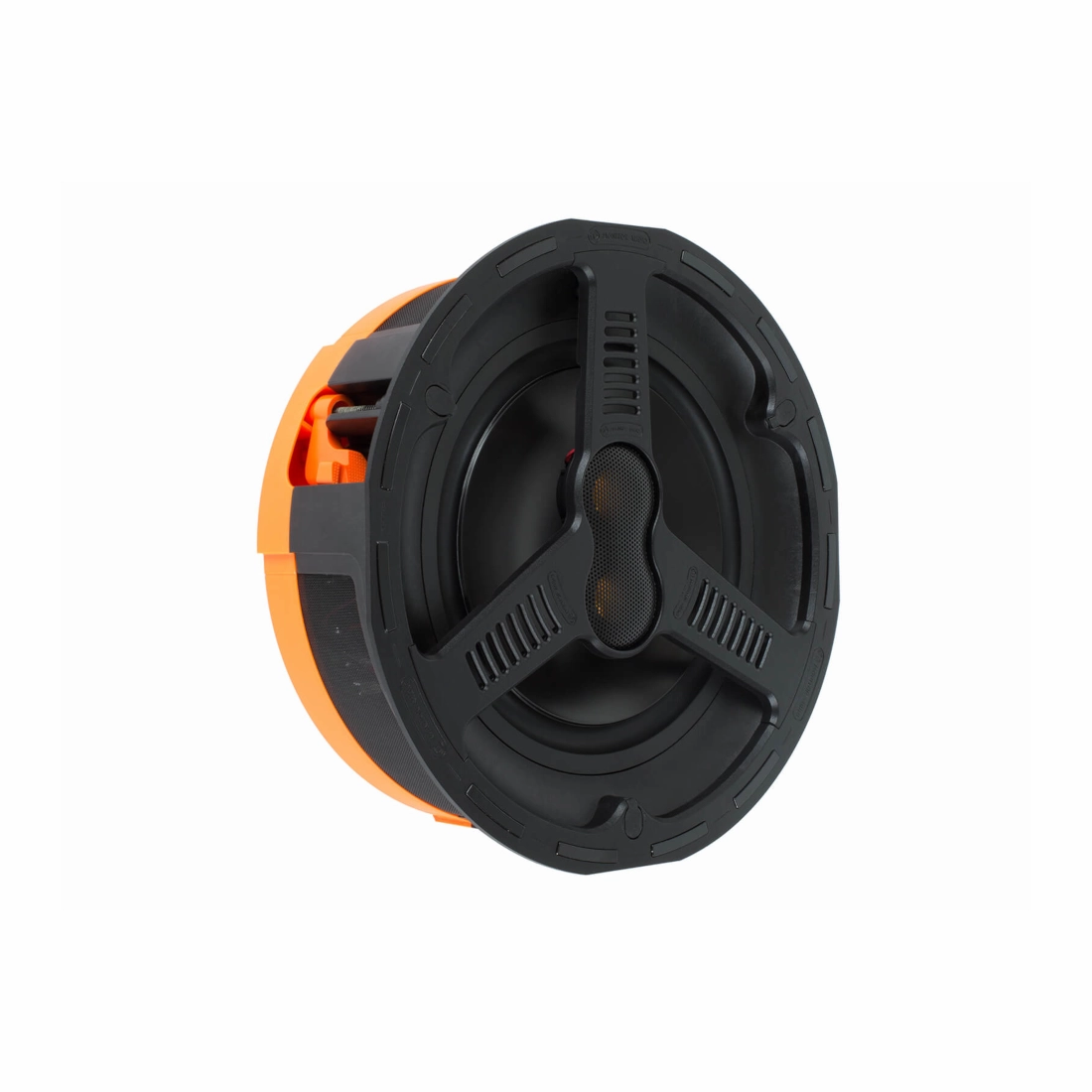

Anodised black for stealthy in-wall/ceiling integration, the C-CAM bass drivers combine co-axially with Monitor Audios renowned 1" C-CAM tweeters, which are twinned and angled on theAWC280-T2to deliver high performance stereo sound from a single unit where space is limited.
Technology
- High Performance C-CAM bass and high frequency drivers
- Stainless Steel Trimless grille strong and resistant to corrosion
- Non-ferrous Samarium Cobalt magnets for grille attachment prevent rust and corrosion
- IP55 certified for extreme climate conditions: Salt Spray, UV stability, Water, Vibration, Anti-corrosion
- Patented Tri-grip Dog-leg fixings for easy, long-lasting installation
- EPDM barriers to prevent moisture. EPDM is an extremely durable synthetic rubber membrane (ethylene propylene diene monomer)
- Gold plated push terminals with silicon cover
- Stainless fixing screws with Silicone covers
- Tweeter level attenuation (internal) set prior to installation
- Applications: pool rooms, bathrooms, marine deck, universal outdoor installation
| Frequency Response | 50 Hz 30 kHz |
| Maximum SPL | 109 dBA |
| Drivers | 8" C-CAM cone bass driver 2 x 1" C-CAM Gold Dome tweeters (fixed angle) |
| Overall Diameter (Including Grille) | 285 mm |
| Mounting Depth | 97.6 mm |
| Construction Material | Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant) |
| Operating Temperature Range | -34 to 79 C -29 to 174 F |
| Sensitivity (1W@1M) | 88 dB (both channels driven) |
| Power Handling (RMS) | 100 W |
| Adjustment Controls | HF Level Switch ( 3 dB / 0 dB / -3 dB) - Adjustable at the point of installation |
| Overall Depth (Including Grille) | 102.5 mm |
| Optional Square Grille - Outer Dimensions | 285 x 285 mm |
| Grille | SS430 Stainless Steel |
| Weight | 2.8 kg |
| Sold As | Single Unit |
| Nominal Impedance | 8 8 ohms |
| Recommended Amplifier Requirements | 20 100 W |
| Connection | 2 x (2 pairs) Gold plated push style terminal |
| Cut-Out Hole Diameter | 247 mm |
| Fixing Type | 3 position Tri-Grip dog leg fixings |
| Magnets | Samarium Cobalt |
| Pre-Construction Bracket | CB8 Pre-Construction Bracket (Green) |
