Marantz MODEL 50 Integrated Amplifier

Marantz MODEL 50 Integrated Amplifier

$ 70.03

$ 0.00

Unavailable
Marantz MODEL 50 Integrated Amplifier

Marantz MODEL 50 Integrated Amplifier

$ 70.03

$ 0.00

Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

MODEL 50 is the ideal integrated amplifier. With 70 watts per channel of unique Marantz current- feedback power and HDAM SA-3 circuitry, this amplifier drives loudspeakers with total control.

Warm, rich, and spacious sound. Elegant to behold. Marantz 50 series strikes a perfect balance between timeless and modern.

An Evolution 70 Yearsin the Making

Features:

  • Powerful And Precise Class A/B Amplifier
    Even difficult to drive loudspeakers will sound effortless with the high- current, dual-device amplifier in MODEL 50.
  • Six Analog Inputs
    With a collection of available analog inputs, MODEL 50 can accept audio from myriad source components and includes upgraded connectors for CD and phono.
  • Moving Magnet Phono
    The built-in MM phono stage works with your turntable to amplify the nuance and tone in your records. Using a new circuit without distortion-inducing coupling capacitors.
  • Stereo Preamp Out
    MODEL 50s stereo preamp outputs add valuable flexibility to your audio system setup. Connect a subwoofer, add channels to your home theater, or multiply listening zonesthe possibilities are endless.

Powerful Yet Precise

With a precisely engineered Class A/B amplifier, MODEL 50 will drive your loudspeakers with authority yet reveal details you never knew existed.

Analog Purity and Simplicity

Analog is paramount in the design of MODEL 50. The decision to exclude digital audio ensures completely intuitive operation and eliminates the risk of interference from complex digital circuitry.

Exquisite Style

We designed MODEL 50 to be thoroughly modern, yet timeless. Hallmark aesthetic cues like symmetry, warmth, and tactile satisfaction push the boundaries of audio equipment design inspired by icons of our past.

Specifications:

Features
Channels2
Current Feedback TopologyYes
Phono EQ: Standard / Marantz Musical / Marantz Musical Premium- / o / -
Digital in: USB-B / optical / coaxial / USB-A- / - / - / -
HDAM versionSA3, SA2
Power Transformer: Toroidal / ElYes / -
High Grade Audio ComponentsYes
Customised ComponentsYes
Symmetric PCB LayoutYes
Aluminium extrusion heat sinkYes
Balance / Bass / Treble / LoudnessYes / Yes / Yes / -
Others
Linear Drive Power SupplyYes
Liniear volume controlYes
Schottky diodesYes
Input buffer amp (all inputs / CD only)- / Yes
Solid Heat SinksYes
System block shielding: Copper / metal / none- / - / Yes
Double Layer Bottom Platetriple
Low noise OLED displayYes
Source DirectYes
Power Amp directYes

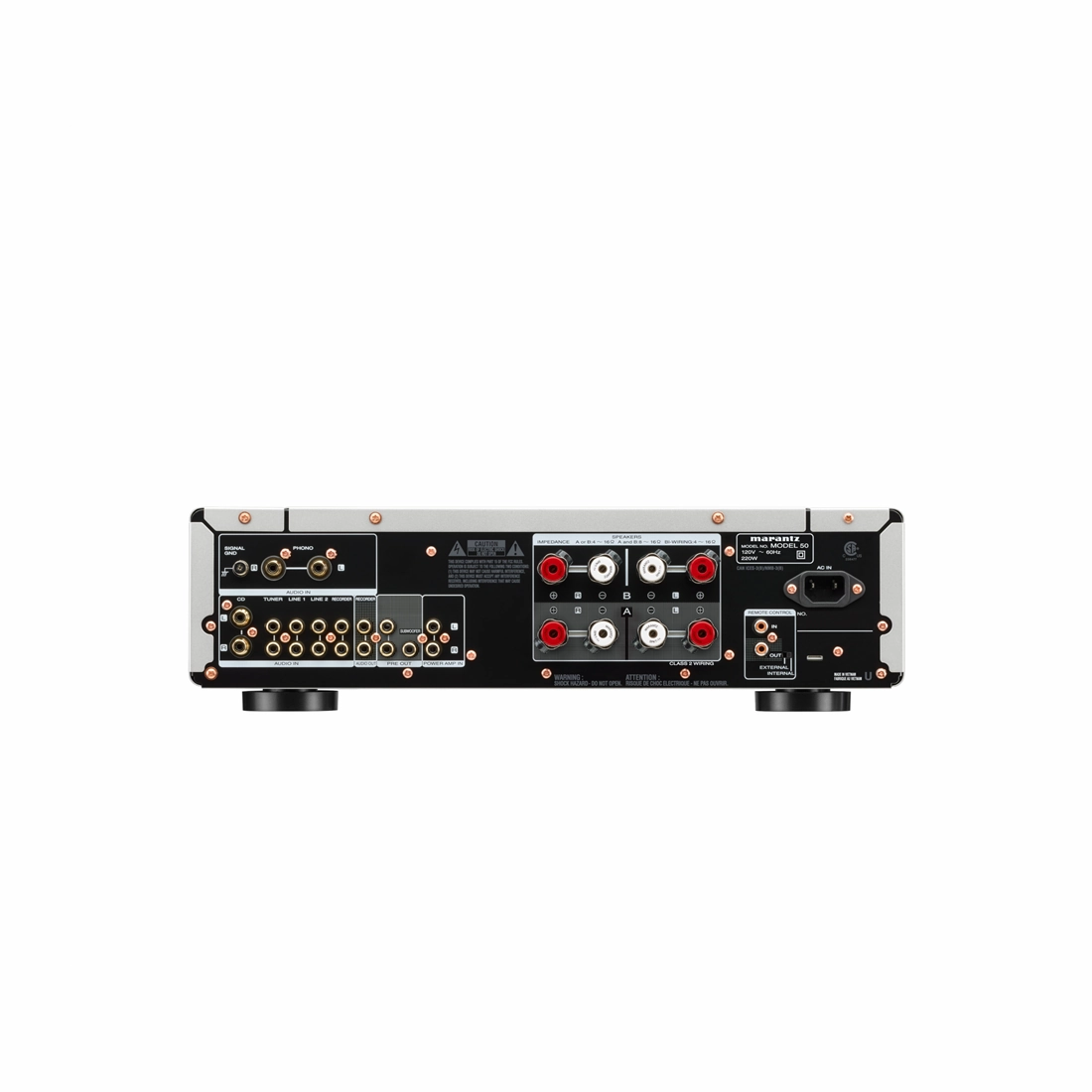

Inputs/Outputs
Audio Inputs6
Digital in: USB-B / optical / coaxial / USB-A- / - / - / -
Phono Input: MM / MCYes / -
Audio Outputs1
Balanced In / Out- / -
Pre-out / Main-inYes subwoofer / -
Power Amp Direct INYes
Gold Plated CinchYes
Speaker A / BYes
Speaker TerminalsMarantz SPKT-1
Number of terminals4
D-BusYes
Headphone OutYes
Specifications
Power Output (8 / 4 Ohm RMS)70 W / 100 W
Frequency Response5 Hz100 kHz
Total Harmonic Distortion0.02 %
Damping Factor100
Input Sensitivity: MM1.4 mV / 47 k
Signal to Noise Ratio: MM/MC87 dB / -
Input Sensitivity: High level185 mV / 16 k
Signal to Noise Ratio: High level116 dB (2 V input)
Input Sensitivity: Power Amp Direct IN1.5 V / 15 k
Signal to Noise Ratio: Power Amp Direct IN125 dB
Treble Control 10 dB at 15 kHz
Bass Control 10 dB at 50 Hz
General
Available Colors: Gold / Silver / Black / Silver-Gold- / - / Yes / Yes
Metal Front PanelYes
Power Consumption in W220
Standby Consumption in W0.3
Auto Power offYes
Detachable Power CableYes
Remote ControlRC003PMND
System Remote FunctionYes
Maximum Dimensions (W x D x H) in mm442 x 431 x 130
Weight in kg14.2
Carton Maximum Dimensions (W x D x H) in mm527 x 517 x 255
Carton Weight (inc. product) in kg17.5
