REFERENCE 11.4 CHANNEL AV RECEIVER WITH 140W, 8K AND 7 HDMI INPUTS
Engineered with proprietary technology and crafted with premium materials for timeless style, CINEMA 30 redefines cinematic sound for superior home theater systems.
Achieve the Best Sound Possible
Dirac Live is a professional room acoustic solution that enables you to optimize your sound systems and reduce unwanted effects introduced by the room. Utilizing purpose-built audio algorithms, this world-class software is now available as an upgrade with CINEMA 30.
Listen and watch differently with the new Marantz CINEMA series. With artisanal craftsmanship, inspired design, and 70 years of innovation. This is cinematic sound, redefined. That means sound thats better than the theaters, to reveal entertainment the way its meant to be heard. Bring home the sound of cinema
Sound For What You See
High Power & Low Distortion
Each channel is rated at 140W with 0.05% THD, making both powerful dynamics and subtle detail a reality.
11 Channels & Countless Configurations
Though 11 amplifier channels are built in, CINEMA 30 can process up to 13.4 channels, making the perfect speaker layout for your room easy to achieve.
No Compromise Engineering
HiFi performance technologies like HDAM SA-2 and more elevate the CINEMA 30 to performance levels seldom found in an AVR.
Sound Master Tuned & Calibrated For You
Powerful calibration and tuning tools are included, enabling you to get the best performance from your system.
Believe in Quality
Highly Customizable
Thoughtfully curated connectivity options, myriad speaker configurations, and room calibration capability allow you to make CINEMA 30 your own.
Timeless YetModern Style
Excellence is heard and seen. CINEMA 30 is meticulously crafted in Japan with authentic materials in a modern style, befitting its rich heritage and stunning performance.
Complete Compatibility

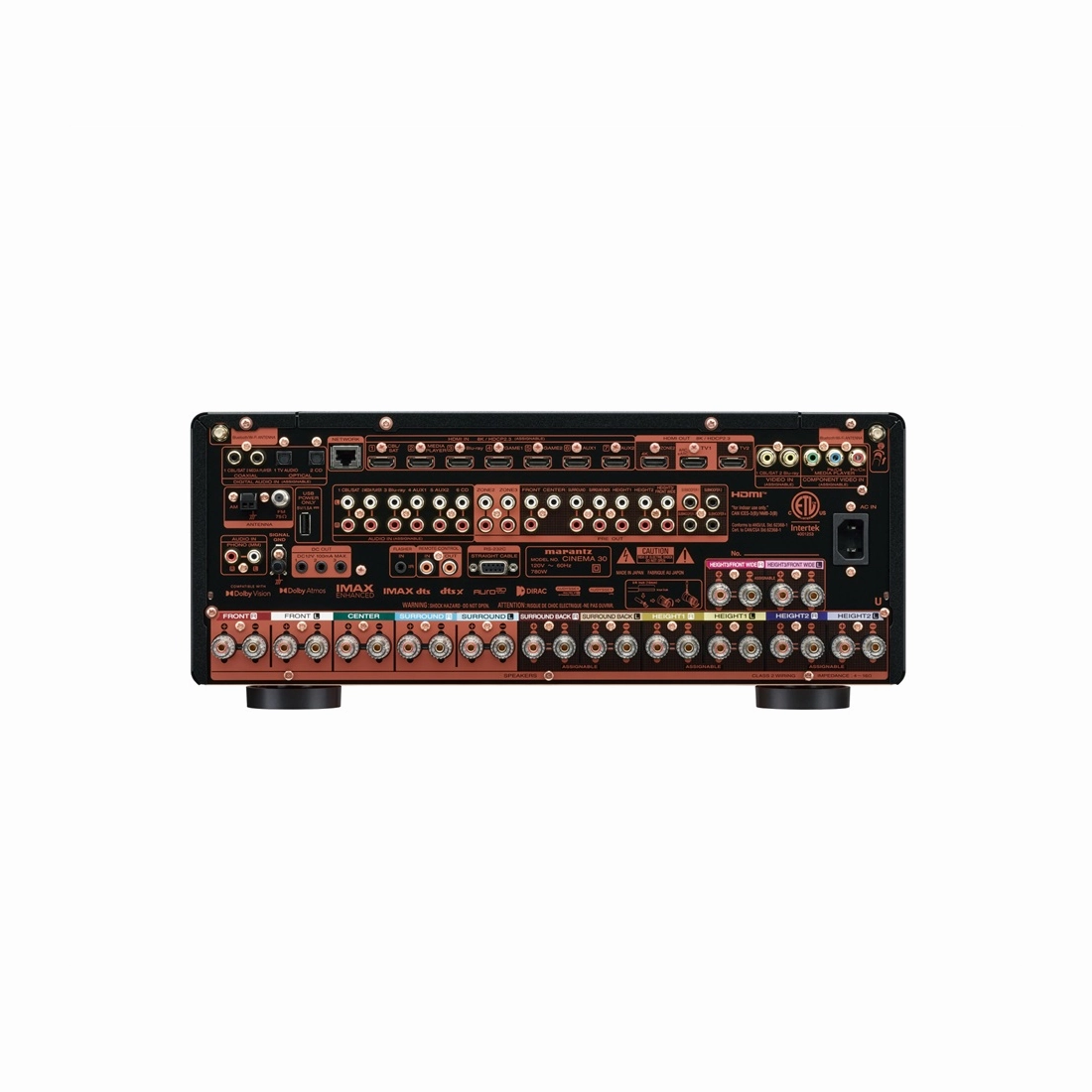

Seven HDMI inputs, plus digital, analog, and phono inputs even analog video plus loudspeaker and pre-amp outputs ensure connectivity to virtually any componentsyou have.
Specifications:
Modern HD GUIModern HD GUIMetal Front Panel Power Consumption in W 0.2| Number of Powered Channels | 11 |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) | - |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) | 140 W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 175 W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 250 W |
| 70% Guarantee | Yes |
| Discrete Power Amplifier | Yes |
| Amplifier Topology | Class A/B |
| Current Feedback Topology | yes |
| Bi-Amp Drive | assignable |
| DTS | DTS HD Master, DTS:X, DTS:X Pro, DTS Neural:X, DTS Virtual:X |
| Dolby | Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround |
| Max Number of Processing (Preamp) Channels | 13.4 |
| IMAX Enhanced | Yes |
| Auro 3D | Yes |
| Audyssey DSX | Yes |
| Multichannel Stereo | Yes |
| Composite In / Out | 2 / 0 |
| Component In / Out | 1 / 0 |
| HDMI In / Out | 7 / 3 |
| Multi-Room Video Out via HDMI | 0 / 0 |
| Analog In / Fixed Level Out | 3 in / 0 out |
| Phono (MM) In | Yes |
| Digital In: Optical / Coaxial | 2 / 2 |
| Multi-Room Out: analog / digital | 2 / 0 |
| Multichannel Preamp Out | 7.2 |
| Subwoofer Out | 4 (independent) |
| 7.1 multichannel input | No |
| Number of Speaker Terminals | 13 |
| Speaker A / B | assignable |
| Multi-Room Speaker Terminal | assignable |
| Front Inputs | USB-A |
| USB Audio | Yes / No / No |
| FM Tuner with RDS | Yes |
| DAB Tuner | No |
| Multi-Room Video Out: Video / HDMI | 7/3 |
| analog In/out | 6 / 0 |
| Multichannel Pre Out | Yes (13.4) |
| Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB | No / No / No / No / Yes |
| Total HDMI Inputs / No. Support 8K | 6 / 3 |
| HDCP2.3 support | Yes |
| HDMI Outputs: Main / Zone | 2 / 1 |
| Analog to HDMI Video Conversion | No |
| HDMI Upscaling | 1080P/4K to 8K |
| Max resolution @ framerate | |
| Audio Return Channel | ARC, eARC |
| Video Dynamic Range | HDR / HLG / Dolby Vision / HDR10 / Dynamic HDR |
| ALLM (Auto Low Latency Mode) Pass-through for gaming | Yes |
| Variable Refresh Rate / Quick Frame Transport | Yes / Yes / No |
| HDMI Pass-Through in Standby Mode | Yes |
| CEC | Yes |
| DSD Audio over HDMI | No |
| Auto LipSync | Yes |
| HDMI Inputs: Back / Front | 7 / - |
| Video Conversion Analog -> HDMI | Yes |
| HDMI to HDMI Scaling | 1080P/4K to 8K |
| HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB | Yes / Yes |
| 8K/60Hz AB / 4K/120Hz AB Pass-through In/Out | 7 / 2 (up to 40Gbps) |
| HDMI 2.0: 3D / 4K / CEC / ARC | Yes / Yes / Yes / Yes |
| HDR / HLG / Dolby Vision / HDR10 / Dynamic HDR | Yes / Yes / Yes / Yes / Yes |
| Variable Refresh Rate / Quick Flame Transport / Quick Media Switching | Yes / Yes / No |
| 8K signal pass-through / scaling / GUI overlay | o / o / o |
| 4K Signal Pass-Through / Scaling / GUI Overlay | o / o / o |
| DSD Audio Capability | Yes |
| Copper Plated Chassis | Yes |
| Toroidal Power Supply Transformer | Yes |
| Hyper Dynamic Amplifier Modules (HDAM) (List version) | Yes |
| Pure Direct Mode | Yes |
| Gold Plated RCA Terminals | Yes |
| Clock Jitter Reducer | Yes |
| Audyssey | MultEQ XT32 |
| Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
| Audyssey LFC | Yes |
| Variable Cross Over | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | Yes |
| Dirac Live Upgradability | Yes |
| Lossy Formats | MP3 / WMA / AAC |
| Lossless formats | FLAC HD 192/24 / WAV 192/24 / ALAC 192/31 |
| DSD Audio | 2.8 MHz / 5.6 MHz |
| Gapless Playback | FLAC, WAV ,ALAC ,DSD |
| Compressed Audio Enhancer: MDAX2 | Yes |
| Network Audio Sharing | Yes |
| HEOS Multi-room and Streaming | Yes |
| AirPlay Audio Streaming | AirPlay2 |
| Internet Radio | TuneIn |
| Spotify* | Spotify Connect |
| Pandora | Yes |
| SiriusXM | Yes |
| Other Streaming Services * | Amazon Music HD/ Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix |
| Roon tested | Yes |
| Ethernet Ports | Yes |
| Wi-Fi (include version / band) | Yes |
| Bluetooth (Include version) | Yes |
| Bluetooth Re-transmit for Bluetooth headphones | Yes |
| Voice Assistant Compatibility | Alexa / Google Voice Assistant / Apple HomePod |
| App for Smart Phones & Tablets (iOS & Android) | Marantz AVR App |
| HEOS Multi-Room Integrated | Yes |
| HEOS Link Compatibility: IR/ IP | Yes /Yes |
| Multi-Room zones | 2 |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | 2 Ch / 2 Ch / Yes / Yes |
| Zone Audio Output: Speaker / Preout | Yes / Yes |
| Zone HDMI Output from HDMI Source | Yes |
| Control Connectivity | IP Control / RS232 Control / Web Control / App Control |
| IR Flasher In | Yes |
| Marantz Remote Bus | Yes |
| DC Trigger Output | 3 |
| HDMI Diagnostics | Yes |
| Front Display | 2 line FLD port hole OLED |
| GUI Languages | 3 |
| Setup Assistant | Yes |
| Smart Select on Remote | Yes |
| Firmware Update by Network / USB | Yes / Yes |
| ECO Mode | Yes |
| Auto Power off | Yes |
| Sleep Timer | Yes |
| CEC | Yes |
| Auto Speaker Setup by Microphone | Audyssey MultEQ XT32Dirac Live (upgrade) |
| Graphic User Interface - GUI | |
| Available Colors | Black/Silver-Gold |
| System Remote Control | RC-051SR |
| Power Consumption No-Sound (ECO on/off) in W | 65 W / 110 W |
| Standby Consumption in W | 0.2 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
| Maximum Dimensions Antenna:Horizontal:(W x D x H) in mm Antenna:Vertical :(W x D x H) in mm W/o Antenna:(W x D x H) in mm | 442 x 384 x 109 ( 442 x 384 x 178 ) 442 x 372 x 109 |
| Weight in kg | 8.7 |
| What's in the box | Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, cardboard microphone stand, 2 External Detachable Antennas, AC cord |
| Weight in lbs. | 42.8 |
| Maximum Dimensions Antenna:Horizontal:(W x D x H) in CM | 44.2 x 38.4 x 10.9 |
| Pre-Programmed / Learnable / LCD Display | Yes / Yes / Yes |
