PIX

2 WAY

**Speakers are sold individually - Please get in touch with us to work our your requirements**

High acoustic power

Excellent power handling

Massive dynamic range

These 2 way extreme speakers deliver an incredibly dynamic and effortless performance. Utilising commercial cinema technology, the Pix are capable of producing high sound pressure levelswith pristinefidelity and extremely low distortion.

EXPERIENCE DYNAMICS

Pix are serious main front speakers for dedicated home cinemas.Providing exceptionally high acoustic power output over an extremely wide frequency range, with low harmonic distortion and excellent power handling evident in the third harmonic, in the critical 1kHz 3kHz speech region. The smooth response, acoustic powerand dynamic range of the Pix are features not often found in one speaker.

The Pix features a 380mm high stiffness paper cone driver with a 77mmvoice coil for increased linear excursion, and a powerful, vented magnet assembly designed for low distortion. Its specially engineered bass driver offers superb bass performance, high peak program power handling and high efficiency capable of very high sound pressure levels. The massive ferrite magnet structure includes components engineered to achieve maximum efficiency. Symmetrical gap geometry, combined with large linear voice coil travel, ensures minimum distortion at all levels.

For high frequencies, the Pix features Krixs patented design, a 90 by40 short throw horn, delivering optimum dispersion of 90 degrees horizontal and 40 degrees vertical, consistently maintained over the entire working bandwidth. It is driven by a compression driver with a 25mm throat, 32mm edge-wound aluminium voice coil and Nomex former. The constant directivity means far less sound is reflected off of side walls and ceilings, ensuring sound energy is focused directly at the listening position for better clarity.

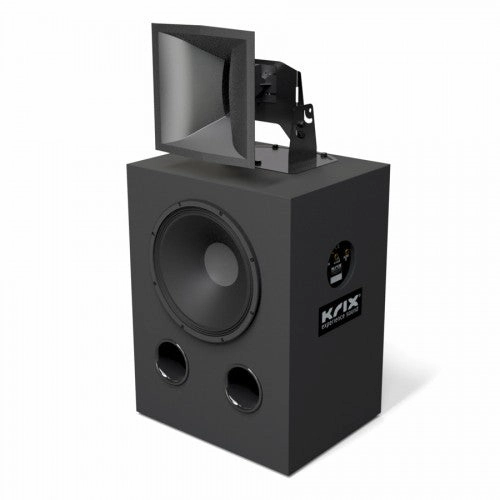

The horn assembly is mounted to the bass cabinet with a solid mounting bracket, offering both vertical and horizontal tilt, while the crossover network housed in the bass cabinet uses professional grade, close tolerance components, for a smooth frequency response.

For the ultimate cinema experience at home, play it through Krix.

SPECIFICATIONS

Frequency Range
38Hz-16kHz in room response

Power Handling
500Watts RMS recommended maximum amplifier power

Sensitivity
96dB for 2.83 volts at 1 metre

Impedance
Nominally 8 Ohms

Configuration
2-way

Enclosure Type
Bass reflex, frontvented

Dimensions
Total Dimensions: 1190mm high x 565mm wide x 340mm deep

LowFrequency Driver
Single 380mm (15) high stiffness paper cone driver with 77mm (3) voice coil of optimal length for increased linear excursion, wound on high temperature apical former and powerful vented magnet assembly designed for low distortion

High Frequency Driver
A Krix patented designed 90 x 40 short throw horn driven by a compression driver with a 1 throat, coated titanium diaphragm, polyimide surround.

Crossover Point
900Hz passive contact Krix directly for bi-amped active filter parameters

Input Terminals
200 amp proprietary terminal posts, accepting up to 6mm diameter cable

Weight
38kg each
