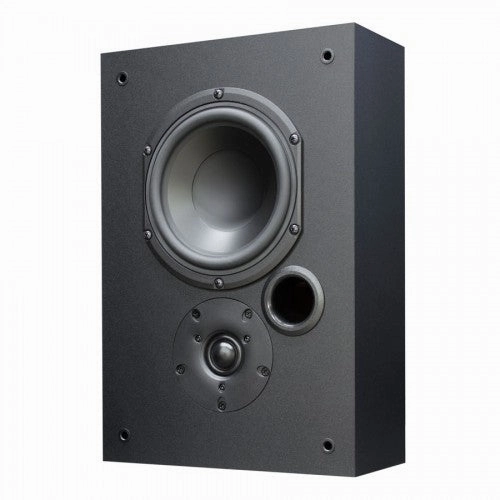

PHONIX FLAT
ON WALL
Immersive surround or ceiling effects
Easy wall mounting
Compact, slim design
Installed on the wall or ceiling, the Phonix Flat deliversurround effectswith clarity and power, putting you in the middle of the action.
EXPERIENCE IMMERSION
For an all-encompassing cinema sound in a conveniently sized package, the Phonix Flat, with its slim flat baffle design, provides an immersive home theatre experience as a side surround, rear surround or ceiling effect speaker.
Best for use in 5.1, 7.1 or Dolby Atmos configurations, this dedicated home cinema speaker offers high power handling with low frequency extension down to 45Hz in a neat 132mm deep package.
The hefty 165mm bass driver has a 33mm voice coil wound on high powered aluminium former, with ventilated spider and aluminium flux stabilisation ring for low distortion. The paper cone and surround of the bass driver have been developed to provide the smoothest possible response and a dynamic and non-fatiguing vocal mid-band.
Thehigh frequency drive unit is a specially-damped, high power, 26mm doped fabric dome tweeter. Combined with the crossover network which has been designed and built using close-tolerance, professional-grade components, the resulting sound is exceptionally smooth and well controlled.
Complete with a braced, critically-damped enclosure, finished with a neat black cloth grille and an optional low profile mounting bracket for wall or ceiling mounting, the Phonix Flat is a versatile new benchmark for surround loudspeaker reproduction.
For the ultimate cinema experience at home, play it through Krix.
SPECIFICATIONS
Frequency Range
45Hz-20kHzin room response
Power Handling
50-150 Watts RMS recommended amplifier power
Sensitivity
88dB for 2.83 volts at 1 metre
Impedance
8 Ohms
Configuration
2-way
Enclosure Type
Bass reflex, frontvented
Dimensions
388mm high x 260mm wide x 132mm deep
LowFrequency Driver
Single 165mm (61/2) paper cone driver. 33mm (11/4) voice coil wound on high powered kapton former, with ventilated magnet assembly and copper shorting ring for low distortion
High Frequency Driver
26mm (1) doped fabric dome with large roll surround. Ferro fluid cooled
Crossover Point
1.8kHz
Input Terminals
Gold plated binding posts
Weight
6kg each
