LX-7 - LINEAR LCR
- Three 90 x 90 Krix short-throw waveguides
- Suitable for mounting below or above your sceen
- Included bracket to be mounted flush or at adjustable angles up to 15 degrees
Its not a soundbar its a sound experience.
A SOUND EXPERIENCE

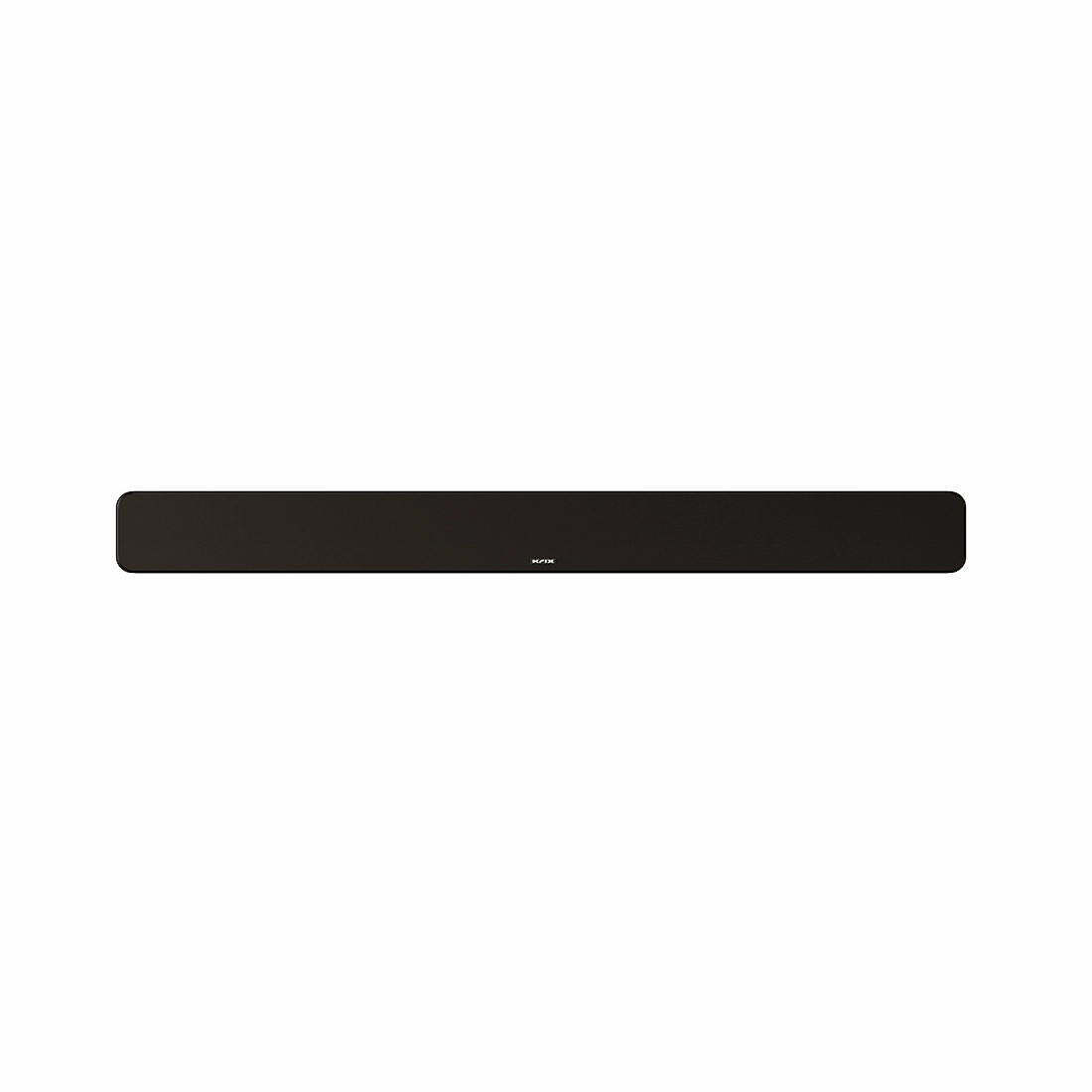

The LX-7 is a stylish, high-performance passive loudspeaker, custom-built in Australia for screen sizes 75 inch and above.
Featuring left, centre and right channels, it can be combined with surround speakers and an AVR/processor to create a genuine, immersive cinema soundscape without the need for virtual or bouncing effects. The sleek design requires minimal space above or below your screen. The LX-7 is intended to be combined with a Krix subwoofer(s) to accurately reproduce the lowest frequencies for the very highest level of home cinema performance.
Tilting bracket
Using the included bracket, the LX-7 can be mounted flush against the wall or at adjustable angles up to 15 degrees for optimal sound dispersion.
Tonally matched
The LX-7 is tonally matched to all Krix surround and overhead speakers.
Unparalleled Sound
Three 90 x 90 Krix short throw waveguides significantly improve dispersion characteristics and increase efficiency for very high output levels.
For the ultimate sound experience at home, play it through Krix.
Specifications:
| Frequency range | 60Hz-20kHz in room response |
| Power handling | 50-250 Watts RMS recommended amplifier power |
| Sensitivity | 92dB for 2.83 volts at 1 metre |
| Impedance | 8 Ohms |
| Configuration | 2-way |
| Enclosure type | Bass reflex, front vented, 12mm braced MDF |
| Dimensions | Various see specification sheet |
| Low frequency driver | Single 165mm (6 1/2) paper cone. 50mm (2) voice coil wound on high powered kapton former, with ventilated spider and aluminum flux stabilisation ring for low distortion |
| High frequency driver | 26mm (1) doped fabric dome with large roll surround. Ferro fluid cooled. Coupled to a Krix designed 90 x 90 short throw waveguide |
| Crossover point | 1.9kHz |
| Input terminals | High current terminals featuring 5mm hole to accept up to 10 AWG cable |
| Weight | Various see specification sheet |
