EQUINOXMK5

BOOKSHELF

Small space, big sound
Ideal for apartment living
Full, revealing sound

A favourite among2 channel enthusiasts, this compact bookshelf speakerwill bring your music collection to life. On stands or mounts, they can also provide surround effectsfor your multi-channel system.

CLASSIC COMPACT

For a big sound from a small speaker, the Equinox Mk5 will astonish and surprise. With finesse and power punching well above its weight, it can be tucked-away while still filling the room with sound.

Deceptively compact, the Equinox Mk5 are ideal for 2 channel hi-fi allowing you to play your favorite records, CDs or digital files with clarity but can also be used on stands as side or rear surround speakers in a Krix home theatre.

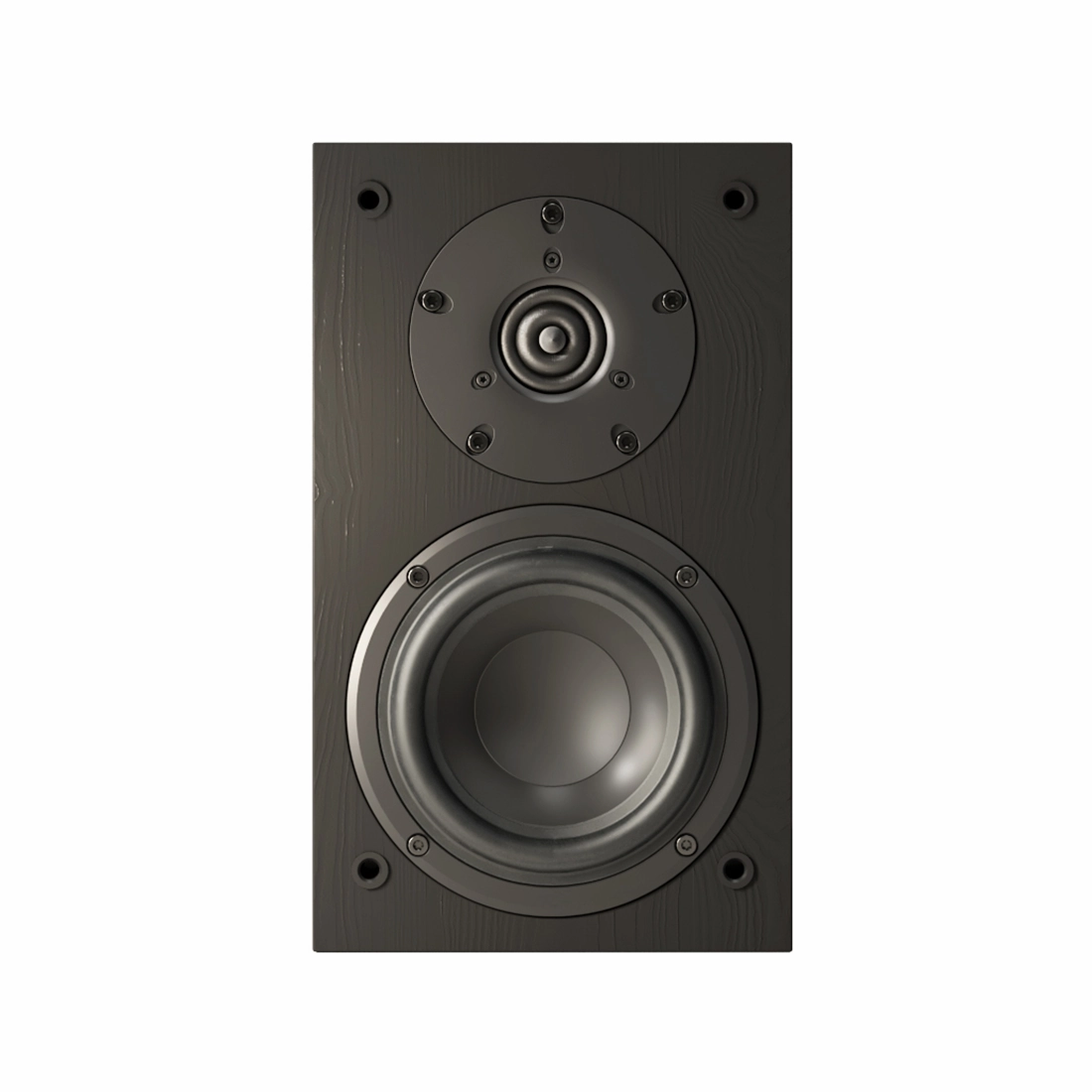

The mid-range and bass come from a high grade 130mm driver with a doped curvilinear paper cone, over-sized voice coil, and powerful magnet, while extended frequency response is delivered through a 26mm ring radiator tweeter. Combined with its bass reflex design, the result is an efficient but balanced bass sound witha revealing, detailed high end, performing well beyond the relatively small cabinet size of the speaker.

For the ultimate sound experience at home, play it through Krix.

Specifications:

Frequency range	45Hz-40kHz in room response
Power handling	20 120 Watts RMS recommended amplifier power
Sensitivity	88dB for 2.83 volts at 1 metre
Impedance	Nominally 6 Ohms (minimum 3.6 Ohms)
Configuration	2-way
Enclosure type	Bass reflex, rear vented with internal bracing
Dimensions	295mm high x 175mm wide x 235mm deep
Low frequency driver	Cast aluminium basket with a nominal 130mm (5) doped curvilinear paper cone. 30mm (1.2) vented magnet voice coil wound on high temperature kapton former, with copper shorting ring
High frequency driver	26mm (1) dual concentric diaphragm with wave-guide centre plug for controlled directivity. Non-reflective dual chambered magnet structure with copper shorting ring to lower distortion
Input terminals	Gold plated binding posts
Weight	6kg each
