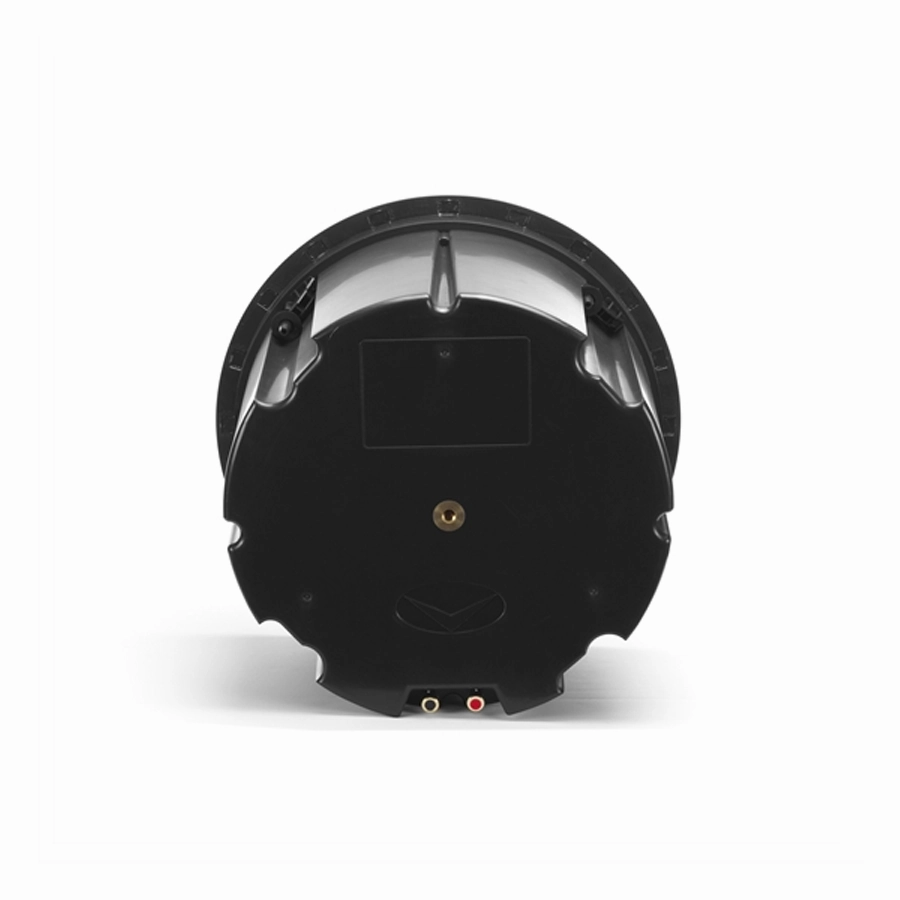

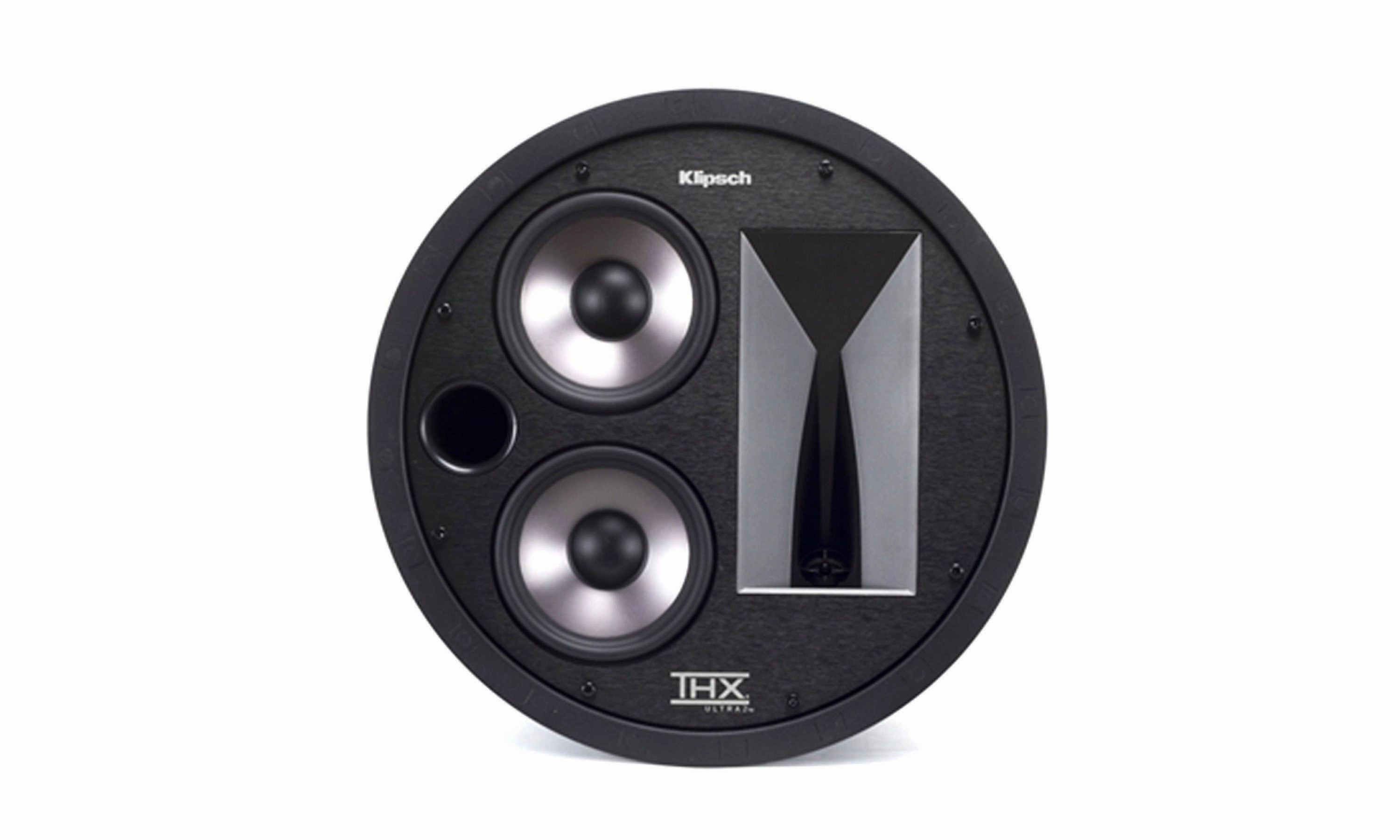

Armed with explosive dynamics that won't disrupt your home's decor, the Klipsch THX Ultra2-certified in-ceiling speaker creates realistic audio experiences that rival those found in large movie theaters and concert halls.
Features:
- 1 Titanium Tweeter
- Dual 5.25 Cerametallic Woofers
- THX Ultra2 Certified
- Cinema Quality Sound
- Maximum Installation Reliability
- Unlimited Flexibility
- Edge-to-Edge Grille
THX ULTRA2 CERTIFIED
Works well with multi-channel movie and music presentations playing up to reference levels in rooms of 3,000 cubic feet or larger.
CINEMA QUALITY SOUND
Employs dual 5.25-inch Cerametallic woofers that operate in an enclosed tuned-port chamber. These exclusive woofer cones offer superb damping characteristics that will not flex or resonate at frequencies within the drivers operating ranges, resulting in consistent bass response regardless of the installation or ceiling air space. A 1-inch titanium tweeter in a patented 60-90-110-degree horn that features Variable Coverage Technology, or VCT, allows the speaker to create precise imaging and localized sound fields.
UNLIMITED FLEXIBILITY
Timbre matched to all of our THX-certified products, so you can mix and match to create an unbeatable, discreet stereo or home theater system thats just right for you.
EDGE-TO-EDGE GRILL
Covering the whole of the speaker makes painting the product both simpler and quicker. Premium Neodynium magnets make it easy to install and remove and ensure a secure and flush fit without any moving parts. The flat grill allows better harmonization with todays modern interior designs and disappear into the background, enabling sound to take center stage.
SPECIFICATIONS:
| System Type | 2-way In-ceiling |
| Frequency Response | 45 Hz - 20 kHz /- 3dB |
| Power Handling | 100W/400W |
| Sensitivity | 93dB |
| Impedance | 8 Ohms compatible |
| Crossover Frequency | 1200 Hz & 1800 Hz |
| High Frequency Driver | 1 Titanium tweeter in a 7.5 x 3.75 60-90-110 VCT 45 Skewed horn |
| Low Frequency Driver | Two 5.25 Cerametallic Woofers |
| Enclosure Type | Bass Reflex via 1.6 diameter port - Front Flush with Ceiling |
| Hole dimensions (mm/in, HxWxD) | 13.25 (33.7cm) |
| Dimensions | 14.89 (378.21mm) |
| Mounting Depth | 9.23 (234.44mm) |
| Weight | 12 lbs. (5.4kg) |
| Finish | White paintable grill |
| Installation Kit | IK-502-C |
| Cutout Diameter | 13.39 (349.11mm) |
